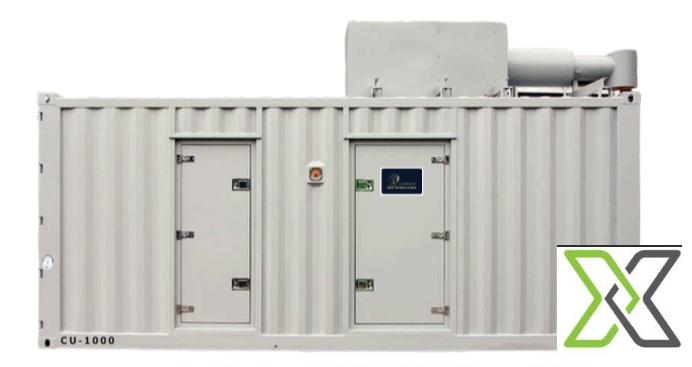

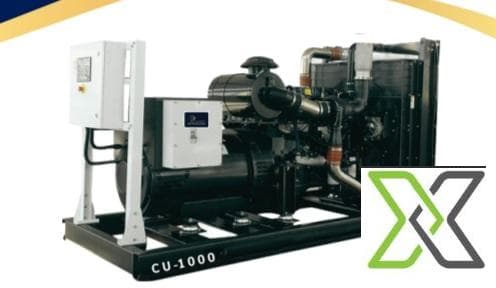

Cummins KTA38-G14 Diesel Generator Set – with Leroy Somer LSA52.3 L9 Alternator

ReflowX SKU: REF-9510

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Perkins
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

Heavy-duty Cummins KTA38-G14 diesel generator with 12-cylinder Vee engine and Leroy Somer LSA52.3 L9 brushless alternator, providing 1015 kVA prime and 1110 kVA standby output.

Description

Cummins KTA38-G14 Diesel Generator Set – with Leroy Somer LSA52.3 L9 Alternator

The Cummins KTA38-G14 diesel generator set is a high-capacity industrial power solution, engineered for consistent performance and robust reliability in demanding applications. Featuring a 12-cylinder, 60° Vee, turbocharged and aftercooled 4-cycle diesel engine, this unit delivers prime power output of 1015 kVA and standby capacity of 1110 kVA. The engine is equipped with Cummins PT direct injection fuel system and a dual spin-on filtration setup for fuel and lubricating oil.

Coupled with a brushless AQT I LSA52.3 L9 alternator from Leroy Somer/Stamford, the generator offers advanced AREP + PMI excitation, Class H insulation, and ±1% voltage regulation, ensuring efficient and stable operation. Designed with IP23 ingress protection, a 50°C rated radiator cooling system, and a D510C AVR, this generator set meets rigorous industrial power requirements with dependable performance.

Specifications:

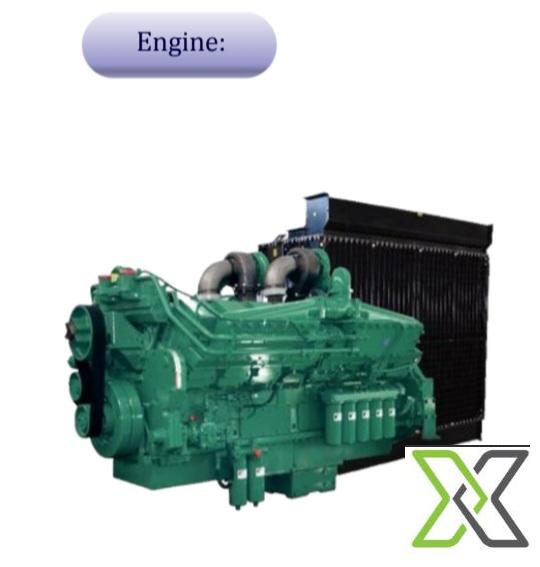

– Engine Type: 4-Cycle, 60° Vee, 12-Cylinder Diesel Engine
– Aspiration: Turbocharged and Aftercooled
– Cooling Method: Water-Cooled with 50°C Radiator
– Bore x Stroke: 159 mm x 159 mm (6.25 in. x 6.25 in.)
– Displacement: 37.8 Litres (2300 in³)
– Compression Ratio: 13.9:1
– Fuel System: Cummins PT Direct Injection
– Fuel Filter: Dual Spin-On Paper Element with Water Separator
– Lube Oil Filter: Spin-On Type
– Lube Oil Capacity: Approx. 180–200 litres (refer to manual)
– Governing Type: Electronic Governor
– Battery Charging Alternator: 35 AMP, 24 Volt
– Starting Voltage: 24 Volt
– Starting Motor: Heavy-duty 24V Electric Starter
– Dynamic Charging Alternator: 35 AMP, 24V
– Alternator Make: AQT I Leroy Somer / Stamford
– Alternator Model: LSA52.3 L9
– Alternator Type: Brushless AC Alternator
– Output Rating: 1015 kVA Prime / 1110 kVA Standby
– Number of Poles: 4
– Winding Pitch: 2/3
– Insulation Class: Class H
– Temperature Rise: 125°C at 40°C Ambient
– Ingress Protection: IP23
– Excitation System: AREP + PMI
– AVR Model: D 510C
– Voltage Regulation: ±1%
– Harmonic Coefficient (THF): < 3.5%
– Telephone Influence Factor (TIF): < 50
– Cooling Air Flow: 1.0 m³/sec
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	CUMMINS KTA38-G14
Model Number	CUMMINS KTA38-G14
Height	2400 mm
Width	2100 mm
Length	5300 mm
Weight	Approx. 7500 kg
Usage Hours	00
Voltage	400V
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcElectricGenerator
Explosion Protection Temperature Class	T3 or T4
Explosion Protection Zone	Zone 2
Lower Limit Operating Temperature	–10°C (standard), –25°C with optional cold weather kit
Normal Output Power	914 kVA / 731 kW
Operation Continuous Intermittent	Continuous (Prime) / Intermittent (Standby)
Upper Limit Operating Temperature	+50°C (derating applies above 40°C)
