AQT 15 kVA Diesel Generator Set with PERKINS 403A-15G1 Engine & AL-040-C Alternator

ReflowX SKU: REF-6876

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Perkins
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

15 kVA diesel generator set powered by PERKINS 403A-15G1 engine and equipped with Leroy Somer/Stamford AL-040-C alternator, designed for reliable 50 Hz, 400V three-phase power supply.

Description

AQT 15 kVA Diesel Generator Set with PERKINS 403A-15G1 Engine & AL-040-C Alternator

The AQT 15 kVA diesel generator set is engineered for reliable prime and standby power applications. Featuring the dependable PERKINS 403A-15G1 3-cylinder diesel engine, this genset delivers 15 kVA (11.4 kW) of prime power and 17.5 kVA (13.9 kW) of standby power. It operates at 400V, 50 Hz, with a power factor of 0.8. The generator maintains excellent voltage regulation within ±1%, with a total harmonic factor under 3.5% and a telephone influence factor below 50.

This model is paired with a Leroy Somer or Stamford AL-040-C alternator—self-excited, 4-pole, brushless synchronous—with insulation class H and ingress protection rating of IP23. It includes an R120 AVR for automatic voltage control. Cooling air flow is maintained at 0.06 m³/sec. The system complies with major global standards including ISO 3046, BS 5514, IEC 60034, and NEMA MG1.

Specifications:

– Prime Power: 15 kVA / 11.4 kW
– Standby Power: 17.5 kVA / 13.9 kW
– Rated Voltage: 400V, 3 Phase
– Frequency: 50 Hz
– Voltage Regulation: ±1%
– Total Harmonic Factor (THF): < 3.5%
– Telephone Influence Factor (TIF): < 50
– Cooling Air Flow: 0.06 m³/sec

Alternator Specifications
– Make: Leroy Somer / Stamford
– Model: AQT | AL-040-C
– Type: 4-Pole, Brushless, Self-Excited
– Number of Winding Leads: 6
– Bearing Type: Single Bearing
– Insulation Class / Temp Rise: Class H / 125°C @ 40°C Ambient
– Ingress Protection Rating: IP23
– Excitation System: Self-Excited
– AVR Model: R120

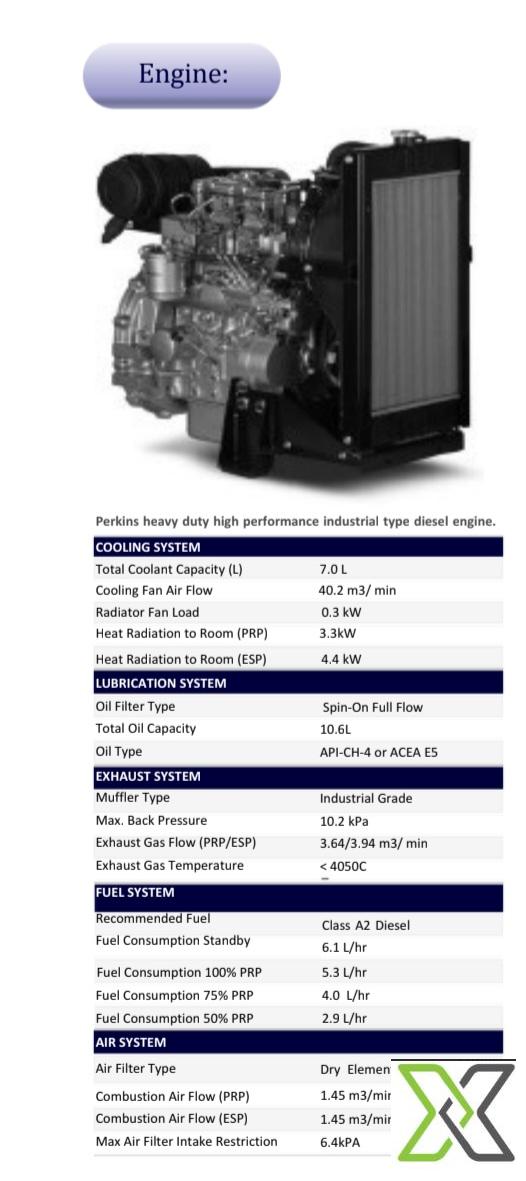

Engine Specifications
– Make: PERKINS
– Model: 403A-15G1
– Number of Cylinders: 3, Vertical In-line
– Cycle: 4-Stroke
– Aspiration: Naturally Aspirated
– Cooling Method: Water-Cooled
– Governing Type: Mechanical
– Governing Class: G2 – ISO 8528 Part 1
– Compression Ratio: 22.5:1
– Displacement: 1.496 Liters
– Bore / Stroke: 84 mm x 90 mm
– Overspeed Protection: 2250 rpm
– Dynamic Charging Alternator: 15AMP, 12V
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	PERKINS 403A-15G1
Year of Manufacturing	2024
Model Number	PERKINS 403A-15G1
Year of Manufacturing	2024
Height	1050 mm
Width	750 mm
Length	1450 mm
Weight	~450 kg
Usage Hours	00
Voltage	400V
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	15.8 kVA / 12.6 kW
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcElectricGenerator
Explosion Protection Temperature Class	T3
Explosion Protection Zone	Zone 2
Lower Limit Operating Temperature	–10°C (standard)
Normal Output Power	14.4 kVA / 11.5 kW
Operation Continuous Intermittent	Prime / Standby
Upper Limit Operating Temperature	+50°C
