Diesel Generator Set 2045 kVA (400V, 3PH, 50Hz) — CUMMINS QSK60-G4

ReflowX SKU: REF-4753

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Perkins
Equipment code

gen-d

Get Quotation Whatsapp Chat With Seller

Short Description

AQT-CU2250 GENERATING SET CU2250KVA

Description

GENERAL DESCRIPTION

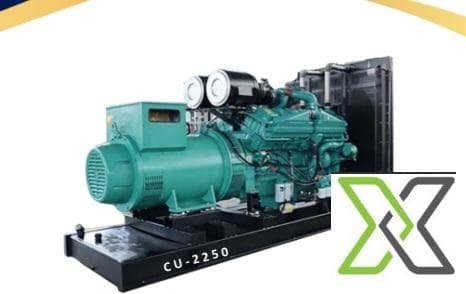

The CU-2250 diesel generator set delivers dependable, high-capacity power for continuous and emergency operation in industrial applications. Powered by a Cummins QSK60-G4 turbocharged aftercooled engine and equipped with a high-performance brushless AC alternator, this unit guarantees robust, stable, and efficient operation, designed in accordance with global generator standards.

POWER RATINGS

Prime Rating: 2045 kVA / 1636 kW at 50 Hz, 1500 rpm

Standby Rating: 2250 kVA / 1800 kW at 50 Hz, 1500 rpm

Prime rating allows unlimited hours of usage with an average load factor of 80% over each 24-hour period. A 10% overload is available for 1 hour in every 12 hours of operation.
Standby rating is limited to 500 hours annual usage, with an average load factor of 80% of the standby rating. Up to 300 hours can be run continuously. No overload is permitted on standby.

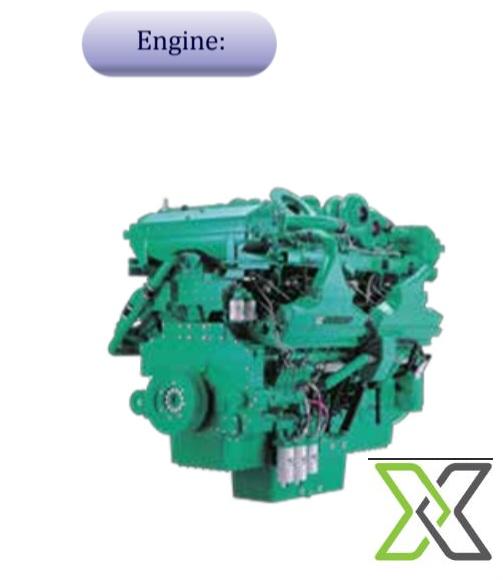

ENGINE SPECIFICATIONS

Engine Make: Cummins

Engine Model: QSK60-G4

Type: 4-Cycle, 16-Cylinder, Turbocharged, Aftercooled Diesel Engine

Aspiration: Turbocharged & Aftercooled

Cooling Method: Water-Cooled with 50°C Radiator and Protective Fan Shroud

Bore x Stroke: 159 mm x 190 mm

Displacement: 60.2 Litres

Governing Type: Electronic Governor

Compression Ratio: 13.5:1 (typical for this model range)

Fuel System: Cummins HPI Direct Injection

Fuel Filter: Dual Spin-On Fuel Filters with Water Separator

Lube Oil Filter: Spin-On Full Flow Filter

Lubrication Oil Capacity: 280 Litres

Battery Charging Alternator: 55 AMP, 24 Volt

Starting Voltage: 24 Volt

Starting Motor: Heavy-duty 24V electric starter

ALTERNATOR SPECIFICATIONS

Alternator Make: AQT I Leroy Somer / Stamford

Alternator Model: AQT I LSA52.3 L9 (or equivalent)

Type: Brushless AC Alternator

Output Rating: 2045 kVA Prime / 2250 kVA Standby

Number of Poles: 4

Winding Pitch: 2/3

Insulation Class: Class H

Temperature Rise: 125°C at 40°C ambient

Ingress Protection Rating: IP23

Excitation System: AREP + PMI

Automatic Voltage Regulator (AVR) Model: D 510C

Voltage Regulation: ±0.5%

Harmonic Coefficient (THF): < 3.5%

Telephone Influence Factor (TIF): < 50

Cooling Air Flow: 2.5 m³/sec

COMPLIANCE & STANDARDS

Manufactured and tested in compliance with:
ISO 3046, ISO 8528, BS 5000, DIN 6271, DIN EN, IEC 60034, IEC 60947-2, BS 5514, NEMA MG1

FEATURES

Heavy-duty Cummins QSK60-G4 16-cylinder turbocharged aftercooled diesel engine

Robust brushless AC alternator with AREP excitation for superior transient response

Low harmonic distortion (THF < 3.5%) for sensitive electrical loads

D 510C AVR ensures precise voltage control under varying load conditions

Dual spin-on fuel filters with water separator for maximum engine protection

Spin-on full flow oil filters for ease of service

High capacity 280-litre oil system for extended operating intervals

50°C radiator with protective fan shroud for demanding environments

Fully compliant with major global generator standards

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	CUMMINS QSK60-G4
Model Number	CUMMINS QSK60-G4
Height	2550 mm
Width	2300 mm
Length	5850 mm
Weight	Approx. 9000 kg
Usage Hours	00
Voltage	400V
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	1840 kVA / 1472 kW
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcElectricGenerator
Explosion Protection Temperature Class	T3 or T4
Explosion Protection Zone	Zone 2
Lower Limit Operating Temperature	–10°C (standard), –25°C with optional cold weather kit
Operation Continuous Intermittent	Continuous (Prime) / Intermittent (Standby)
Upper Limit Operating Temperature	+50°C (derating applies above 40°C)
