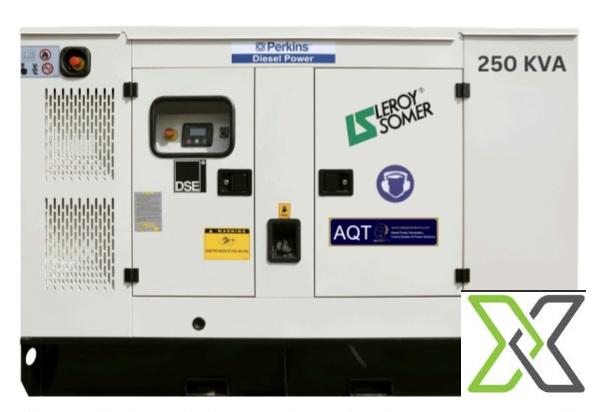

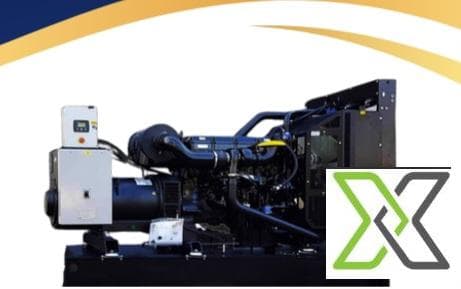

Diesel Generator Set 230/245 kVA (400V/480V, 3PH) — PERKINS 1506A-E88TAG2 / 1206A-E70TTAG2

ReflowX SKU: REF-2524

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Perkins
Equipment code

gen-d

Get Quotation Whatsapp Chat With Seller

Short Description

A heavy-duty, high-capacity diesel generator set engineered for continuous, standby, and emergency power applications. Powered by the reliable Perkins 1506A-E88TAG2 or 1206A-E70TTAG2 engine models and equipped with a Leroy Somer or Stamford alternator, this generator delivers dependable, stable 3-phase power at both 50 Hz and 60 Hz frequencies, suitable for demanding industrial, commercial, and utility installations.

Description

TECHNICAL SPECIFICATIONS

Electrical Performance

At 50 Hz, 1500 rpm, the generator delivers 230 kVA / 200 kW prime power and 250 kVA / 200 kW standby output with 400V, 3-phase voltage. At 60 Hz, 1800 rpm, it delivers 245 kVA / 215 kW prime power and 269 kVA / 215 kW standby output with 480V, 3-phase voltage.
Voltage regulation is highly stable at ±1%, with a harmonic coefficient (THF) of less than 2.5% and a telephone influence factor (TIF) below 50. Alternator cooling air flow is rated at 0.48 m³/sec.

Alternator

The generator utilizes an AQT I Leroy Somer or Stamford alternator, with model options including AQT I TAL-046-C and UCD274J. These alternators feature a 4-pole design with 6 winding leads, operating with a single bearing construction for reliability.
They come with Class H insulation and a temperature rise limit of 125°C at 40°C ambient. The alternators have an IP23 ingress protection rating and operate using a self-excited excitation system controlled by an AVR model R150.
All alternators comply with ISO 3046, BS 5514, DIN 6271, NEMA-MGI, DIN EN, BS 5000, IEC 60034, and IEC 60947-2 international standards.

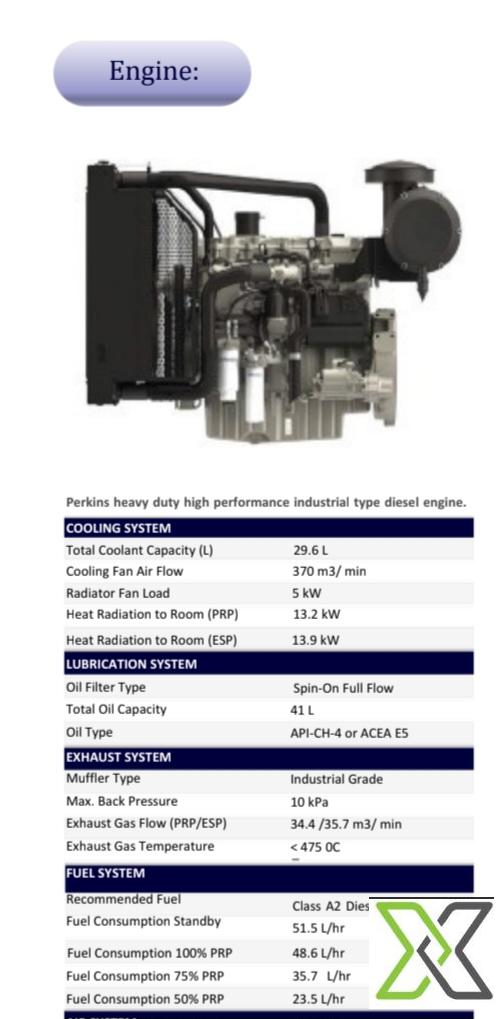

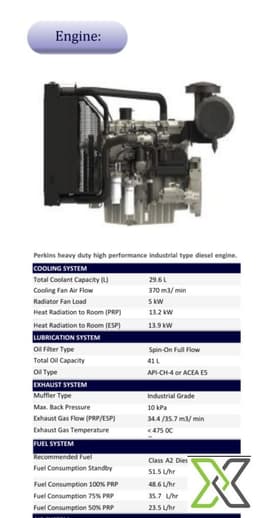

Engine

At the heart of the generator is a Perkins 1506A-E88TAG2 or 1206A-E70TTAG2 diesel engine, configured as a 6-cylinder vertical in-line, 4-stroke unit. The engine features turbocharging with after-cooling for enhanced efficiency and output.
It’s equipped with a water cooling system and electronic governing, classified as G2 according to ISO 8528 Part 1.
The engine runs with a compression ratio of 16.1:1, a displacement of 8.8 liters, and bore and stroke dimensions of 112 mm x 149 mm. The dynamic charging alternator is rated at 45AMP, 24V. Overspeed protection is set at 2250 rpm.

FEATURES

Powerful Perkins 1506A-E88TAG2 / 1206A-E70TTAG2 engines

High-performance Leroy Somer / Stamford alternator with AVR R150

Excellent ±1% voltage regulation and low THF (<2.5%)

Class H insulation for high thermal resistance

IP23 alternator protection for industrial environments

Turbocharged, after-cooled, electronically governed diesel engine

Fully compliant with multiple international electrical and mechanical standards

Dual-frequency capability: 50 Hz / 400V, 60 Hz / 480V operation

Designed for continuous, prime, and standby power applications

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	PERKINS 1506A-E88TAG2
Model Number	PERKINS 1506A-E88TAG2
Height	1700 mm
Width	1000 mm
Length	2900 mm
Weight	~2000 kg
Voltage	400V / 480V
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	245 kVA / 196 kW
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcElectricGenerator
Explosion Protection Temperature Class	T3 / T4
Explosion Protection Zone	Zone 2
Lower Limit Operating Temperature	–10°C (standard), –25°C
Normal Output Power	245 kVA / 196 kW
Operation Continuous Intermittent	Continuous / Standby
Upper Limit Operating Temperature	+50°C

General Terms

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
