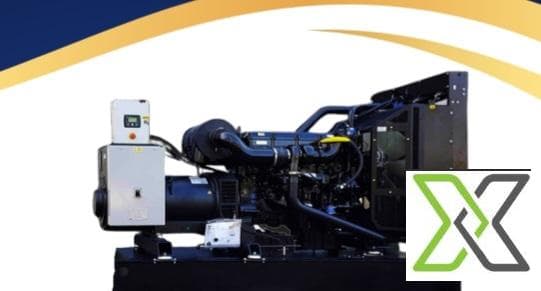

AQT 33 kVA Diesel Generator Set with PERKINS 1103A-33G Engine

ReflowX SKU: REF-1640

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Perkins
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

33 kVA prime diesel generator powered by PERKINS 1103A-33G engine, matched with Leroy Somer/Stamford TAL-042-C or SOL2P1 alternator, delivering stable 480V, 60Hz power for industrial and commercial applications.

Description

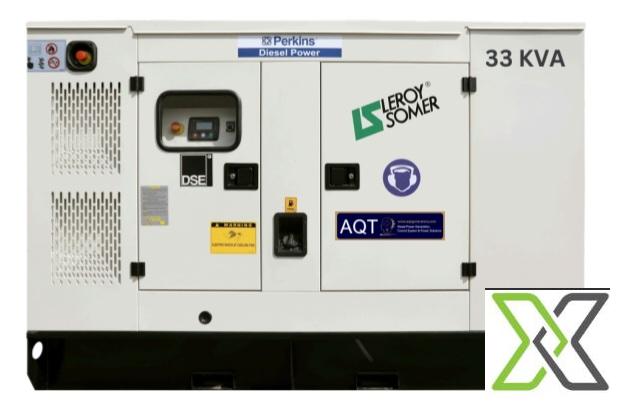

AQT 33 kVA Diesel Generator Set with PERKINS 1103A-33G Engine

The AQT 33 kVA diesel generator set is designed for efficient and reliable power delivery under both prime and standby conditions. It provides 33 kVA (26 kW) prime and 38.2 kVA (30.6 kW) standby power at 480V, 3-phase, 60 Hz. With a voltage regulation of ±1%, a harmonic coefficient (THF) of less than 2%, and TIF below 50, this generator ensures clean and stable output suitable for sensitive loads. Alternator cooling air flow is rated at 0.10 m³/sec.

This set integrates a robust Leroy Somer or Stamford alternator—either the TAL-042-C or SOL2P1 model—featuring a 4-pole, self-excited system with 6 winding leads and a single bearing design. The alternator is IP23 rated, Class H insulated, and regulated via an R120 AVR. It meets major international standards such as ISO 3046, BS 5514, DIN 6271, and IEC 60034.

The generator is powered by a Perkins 1103A-33G diesel engine—3-cylinder, naturally aspirated, vertical in-line type, operating on a 4-stroke cycle. It is water-cooled and governed mechanically to G2 classification under ISO 8528 Part 1. With a compression ratio of 19.25:1 and displacement of 3.3 liters, it delivers consistent performance even under variable loads. The system includes a 65AMP, 12V dynamic charging alternator and supports overspeed protection up to 2250 rpm.

Specifications:

– Prime Power: 33 kVA / 26 kW
– Standby Power: 38.2 kVA / 30.6 kW
– Rated Voltage: 480V, 3 Phase
– Frequency: 60 Hz
– Voltage Regulation: ±1%
– Harmonic Coefficient (THF): < 2%
– Telephone Influence Factor (TIF): < 50
– Cooling Air Flow (Alternator): 0.10 m³/sec

Alternator Specifications
– Make: Leroy Somer / Stamford
– Model: AQT | TAL-042-C or SOL2P1
– Design: 4-Pole, Brushless, Self-Excited
– Number of Winding Leads: 6
– Bearing Type: Single Bearing
– Insulation Class / Temp Rise: Class H / 125°C @ 40°C Ambient
– Ingress Protection Rating: IP23
– AVR Model: R120
– Standards Compliance: ISO 3046, BS 5514, DIN 6271, NEMA-MGI, BS 5000, IEC 60034, IEC 60947-2

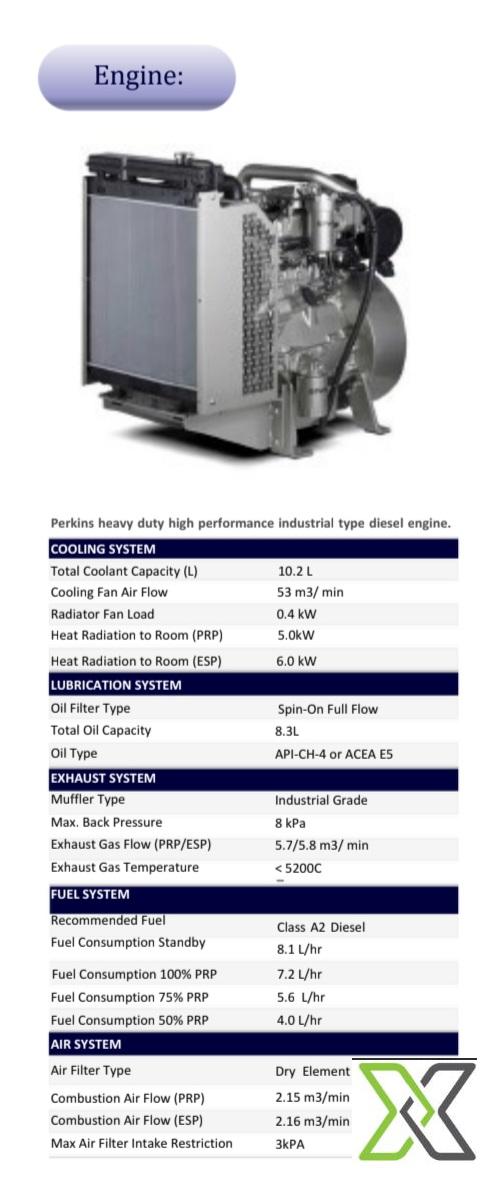

Engine Specifications
– Make: PERKINS
– Model: 1103A-33G
– Number of Cylinders: 3, Vertical In-line
– Cycle: 4-Stroke
– Aspiration: Naturally Aspirated
– Cooling Method: Water Cooled
– Governing Type: Mechanical
– Governing Class: G2 – ISO 8528 Part 1
– Compression Ratio: 19.25:1
– Displacement: 3.3 Liters
– Bore / Stroke: 105 mm x 127 mm
– Overspeed Protection: 2250 rpm
– Dynamic Charging Alternator: 65AMP, 12V
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	PERKINS 1103A-33G
Model Number	PERKINS 1103A-33G
Height	1300 mm
Width	850 mm
Length	1850 mm
Weight	~700 kg
Usage Hours	00
Voltage	480V
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	38.5 kVA / 30.8 kW
Speed	1800 RPM
Direction of Rotation	Clockwise
IFC Class	IfcElectricGenerator
Explosion Protection Temperature Class	T3
Explosion Protection Zone	Zone 2
Lower Limit Operating Temperature	–10°C
Normal Output Power	35 kVA / 28 kW
Operation Continuous Intermittent	Prime / Standby
Upper Limit Operating Temperature	+50°C
