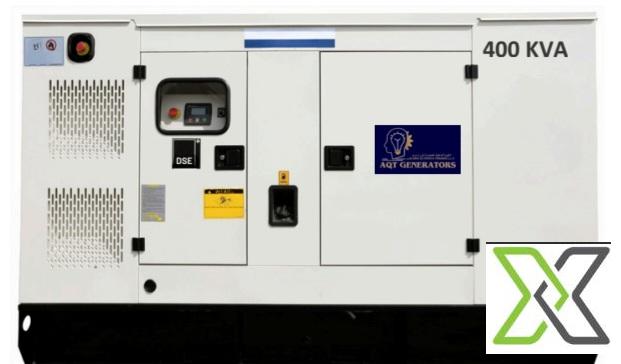

Perkins 2206A-E13TAG2 Diesel Generator Set with AQT - HC444E Alternator

ReflowX SKU: REF-4453

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Perkins
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

1250 kVA generator set powered by the Perkins 2206A-E13TAG2 engine, featuring a high-performance Leroy Somer / Stamford alternator with AVR R150 and IP23 protection, ideal for demanding industrial environments.

Description

Perkins 2206A-E13TAG2 Diesel Generator Set with AQT - HC444E Alternator

This high-capacity diesel generator set is powered by the world-renowned Perkins 2206A-E13TAG2 engine and paired with an AQT I TAL-046-H or HC444E alternator from Leroy Somer / Stamford. Designed for dependable prime and standby applications, this set delivers robust performance with ±1% voltage regulation, low harmonic distortion (THF < 2.5%), and Class H insulation protected to IP23 standards.

The turbocharged, water-cooled engine features air-to-air after-cooling for enhanced fuel efficiency and performance, while the electronic governor (ISO 8528 G2 class) ensures stable operation across varying loads. The alternator operates with a self-excited system controlled by AVR R150, ensuring tight voltage control and minimal power fluctuation. This generator is dual-frequency capable, supporting both 50 Hz at 400V and 60 Hz at 480V operation, and is suitable for use in continuous, prime, or standby modes.

Built to meet global mechanical and electrical standards including ISO, IEC, and NEMA, the set is ideal for industrial, commercial, or utility backup installations.

Specifications:

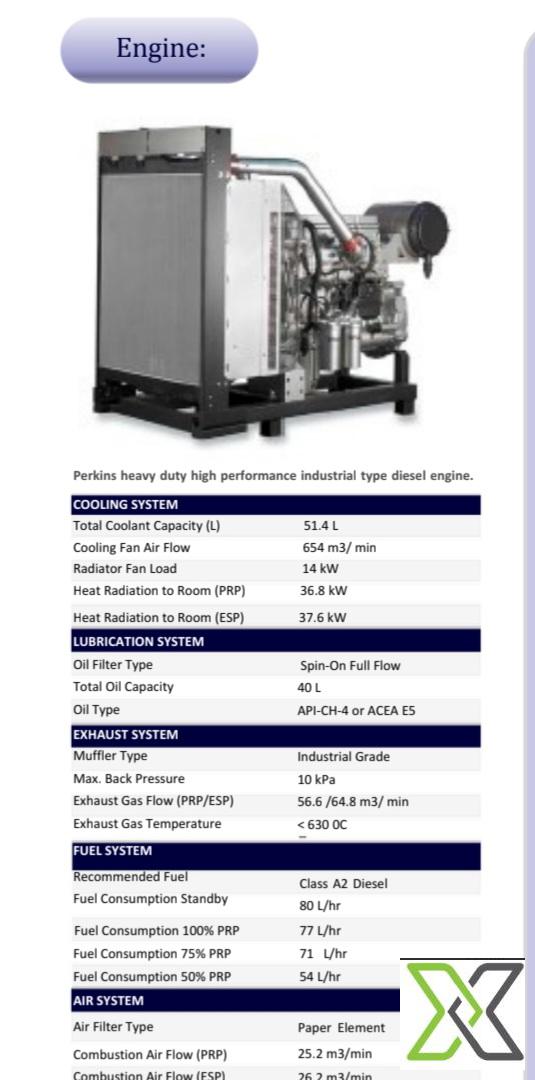

– Engine Make: Perkins
– Engine Model: 2206A-E13TAG2
– Number of Cylinders: 6, vertical in-line
– Cycle: 4 Stroke
– Aspiration: Turbocharged with air-to-air after-cooling
– Cooling Method: Water Cooled
– Governing Type: Electronic
– Governing Class: G2 — ISO 8528 Part 1
– Compression Ratio: 16.3:1
– Displacement: 12.5 liters
– Bore x Stroke: 130 mm x 157 mm
– Dynamic Charging Alternator: 45AMP, 24V
– Overspeed Limit: 2250 rpm

– Alternator Make: AQT I Leroy Somer / Stamford
– Alternator Model: TAL-046-H / HC444E
– Number of Poles: 4
– Winding Leads: 6
– Bearing Type: Single Bearing
– Insulation Class: Class H
– Temperature Rise: 125°C at 40°C ambient
– Ingress Protection: IP23
– Excitation System: Self Excited
– AVR Model: R150
– Voltage Regulation: ±1%
– Harmonic Distortion (THF): < 2.5%
– Telephone Influence Factor (TIF): < 50
– Cooling Air Flow: 0.55 m³/sec

– Rated Output – Prime: 1250 kVA / 1000 kW
– Rated Output – Standby: 1375 kVA / 1100 kW
– Rated Voltage: 400V (50 Hz) / 480V (60 Hz), 3-Phase
– Rated Power Factor: 0.8 lagging
– Rated Speed: 1500 rpm
– Rated Current (Prime): 1804 A
– Rated Current (Standby): 1984 A
– Alternator Connection: Star
– Excitation Voltage: 60V
– Excitation Current: 4.3A
– Altitude Rating: 1000 m
– Ambient Temp Rating: 40°C
– Direction of Rotation: Anti-clockwise
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	PERKINS 2206A-E13TAG2
Model Number	PERKINS 2206A-E13TAG2
Height	1900 mm
Width	1100 mm
Length	3300 mm
Weight	~2750 kg
Usage Hours	00
Voltage	400V / 480V
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	400 kVA / 320 kW
Speed	1500 RPM (50Hz)
Direction of Rotation	Clockwise
IFC Class	IfcElectricGenerator
Explosion Protection Temperature Class	T3 / T4
Explosion Protection Zone	Zone 2
Lower Limit Operating Temperature	–10°C (standard), –25°C
Normal Output Power	350 kVA / 280 kW
Operation Continuous Intermittent	Continuous / Standby
Upper Limit Operating Temperature	+50°C
