Taiyo Electric TWH 22DL Brushless A.C. Generator

The Taiyo Electric TWH 22DL is a robust and efficient brushless A.C. generator designed for demanding industrial applications. Built by Taiyo Electric Co., Ltd., it supports both 50Hz and 60Hz operations with consistent performance and a power factor of 0.8. The unit delivers a maximum rated output of 60 kVA at 60Hz and 50 kVA at 50Hz, with a 3-phase, 4-pole design. This generator supports a wide voltage range for both high and low-voltage configurations, has a durable F-class insulation system, and features a self-exciting mechanism. The TWH 22DL conforms to JIC/JEC standards, ensuring safe and reliable power delivery under standard ambient conditions.

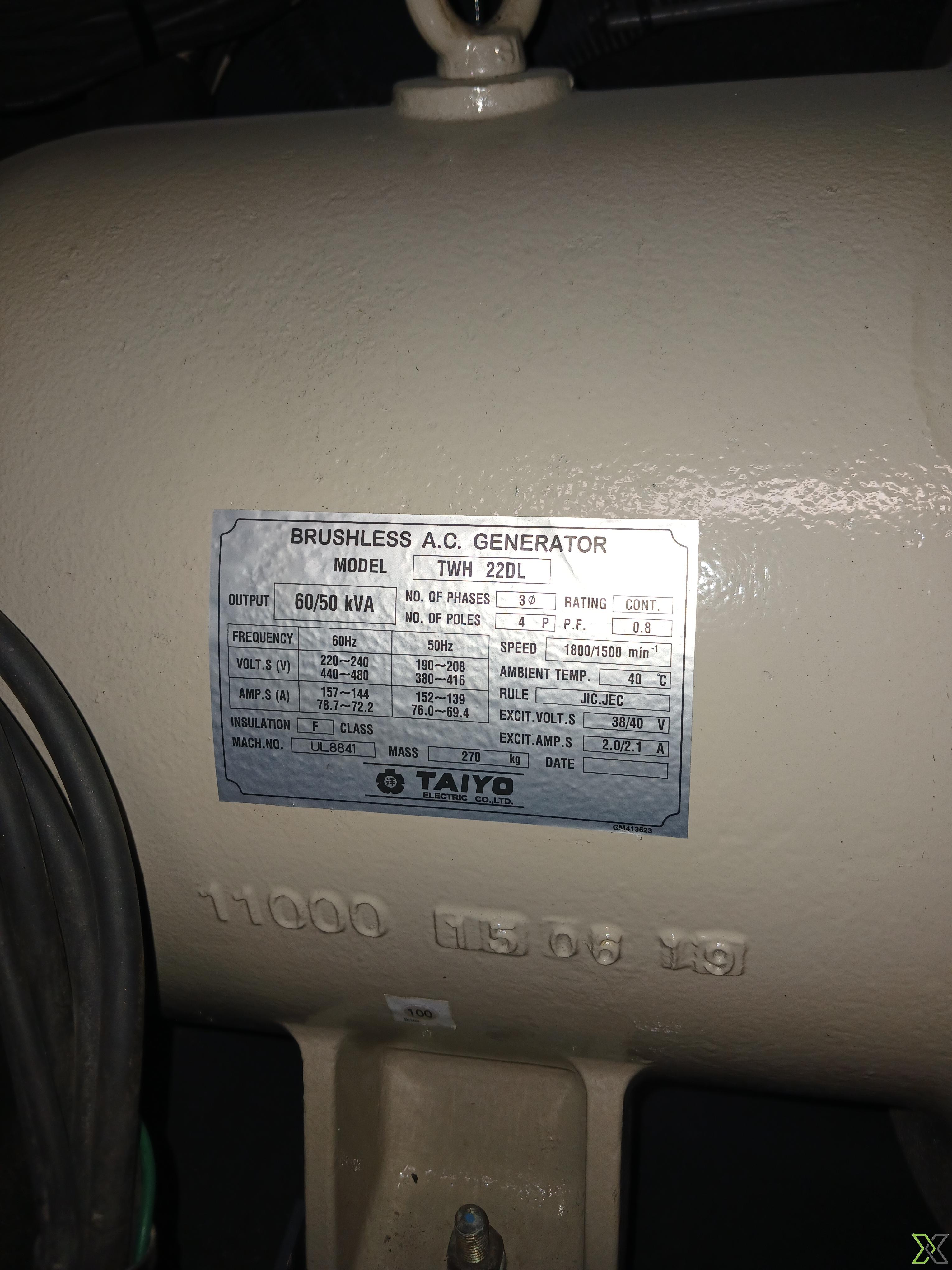

Specifications:

– Model: TWH 22DL
– Type: Brushless A.C. Generator
– Manufacturer: Taiyo Electric Co., Ltd.
– Machine No.: U.LL.8841
– Rated Output Power:
 – 60 kVA (at 60Hz)
 – 50 kVA (at 50Hz)
– Voltage Options:
 – 220–240 V / 440–480 V (60Hz)
 – 190–208 V / 380–416 V (50Hz)
– Rated Current:
 – 157–144 A @ 220–240 V (60Hz)
 – 78.5–72.2 A @ 440–480 V (60Hz)
 – 152–139 A @ 190–208 V (50Hz)
 – 76.6–69.4 A @ 380–416 V (50Hz)
– Number of Phases: 3
– Number of Poles: 4
– Speed:
 – 1800 RPM (60Hz)
 – 1500 RPM (50Hz)
– Power Factor: 0.8
– Excitation Voltage: 38 / 40 V
– Excitation Current: 2.0 / 2.1 A
– Insulation Class: F
– Ambient Temperature: 40°C
– Standard Compliance: JIC / JEC
– Weight: 270 kg
