FG Wilson P660E5 Diesel Generator – 600 kVA Prime | 3-Phase | 50 Hz

ReflowX SKU: REF-7887

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

FG Wilson (Engineering) Ltd
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

The FG Wilson P660E5 is a heavy-duty 600 kVA diesel generator equipped with a brushless alternator, R448 AVR, and IP23 enclosure. Designed for industrial power generation with G3-class performance.

Description

FG Wilson P660E5 Diesel Generator – 600 kVA Prime | 3-Phase | 50 Hz

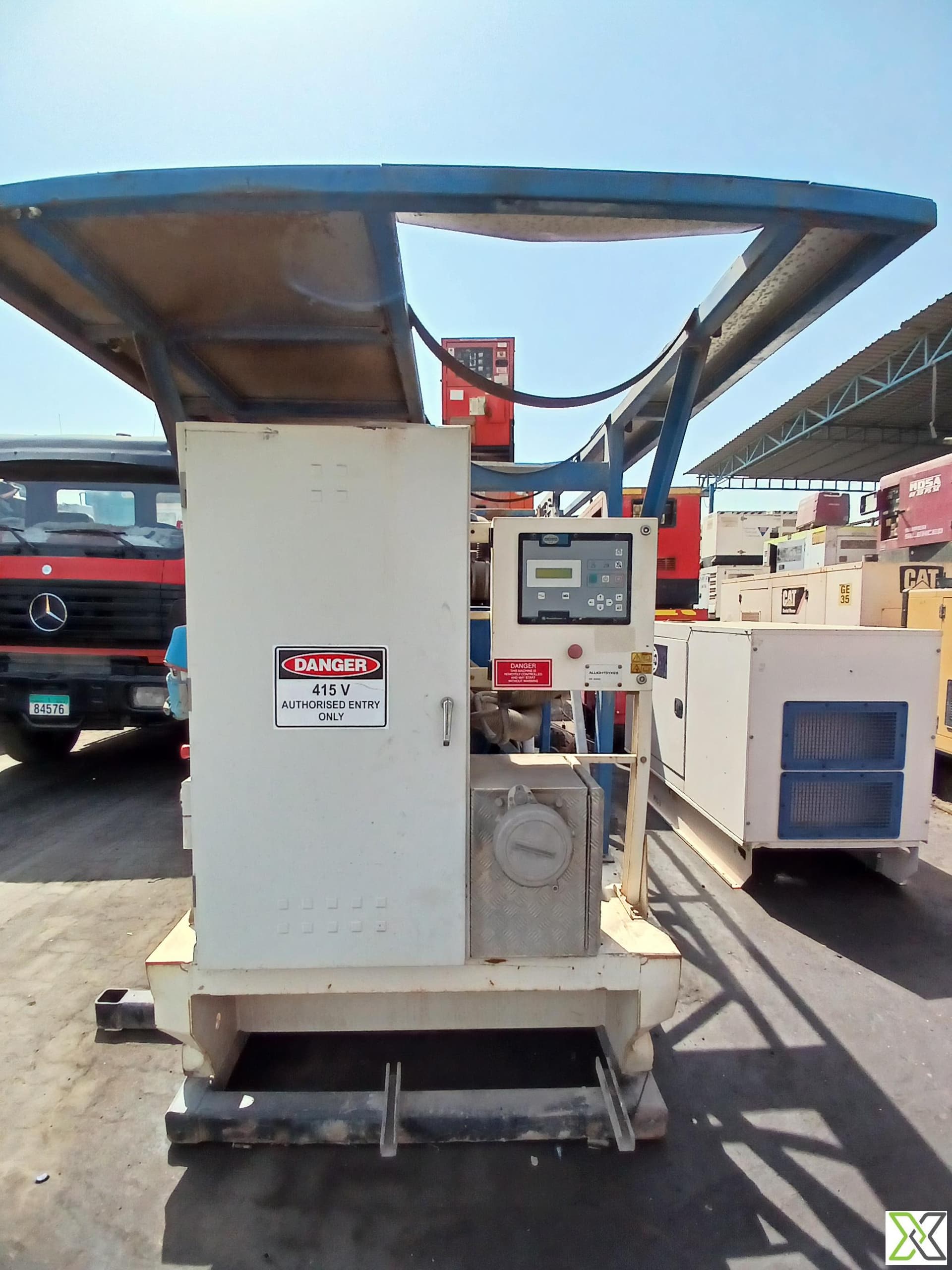

The FG Wilson P660E5 (alternate model label: CPES2) is a high-capacity 3-phase diesel generator designed for reliable, continuous, or standby power in industrial and commercial settings. Manufactured in 2010 by FG Wilson (Engineering) Ltd, this generator delivers 600 kVA at 415/240V, 50 Hz, with a rated RPM of 1500 and power factor of 0.8 lagging.

Built with a robust sound-attenuated enclosure and weighing 4787 kg, the unit measures 4111 mm in length, 1536 mm in width, and 2246 mm in height. It is capable of operating at ambient temperatures up to 27°C and altitudes up to 152.4 meters.

The generator features a brushless alternator with S-STAR connection and IP23 protection class, paired with an R448 automatic voltage regulator (AVR) to ensure voltage stability. With insulation class H and excitation parameters of 40V and 4A, this generator meets ISO 8528-3 PR standards and performance class G3—making it suitable for demanding applications requiring precise voltage and frequency control.

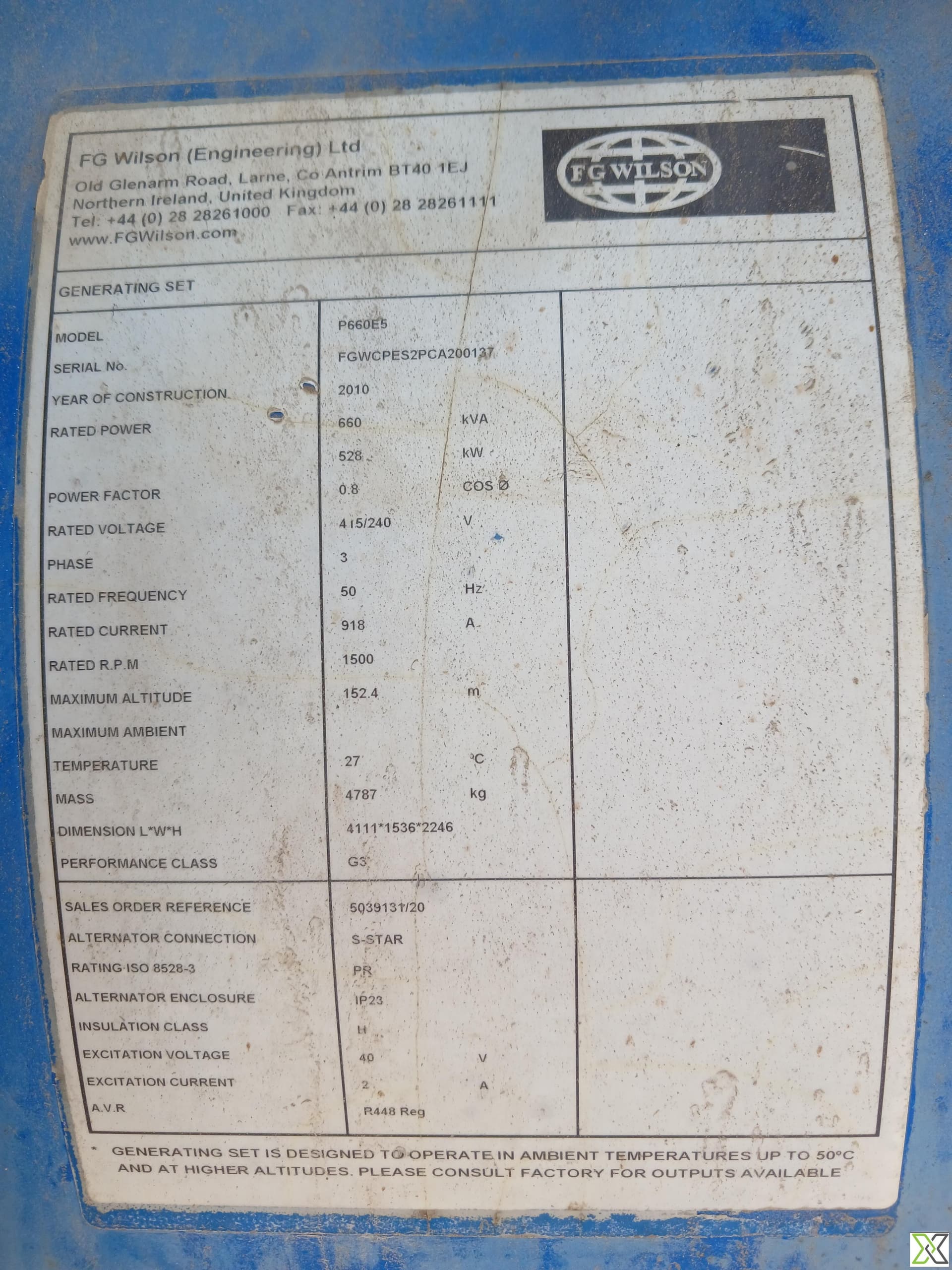

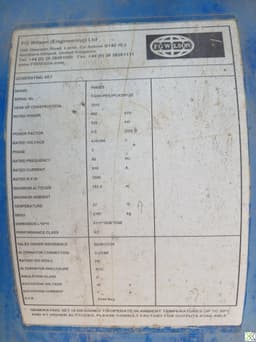

Specifications:

– Manufacturer: FG Wilson (Engineering) Ltd
– Model Number: P660E5

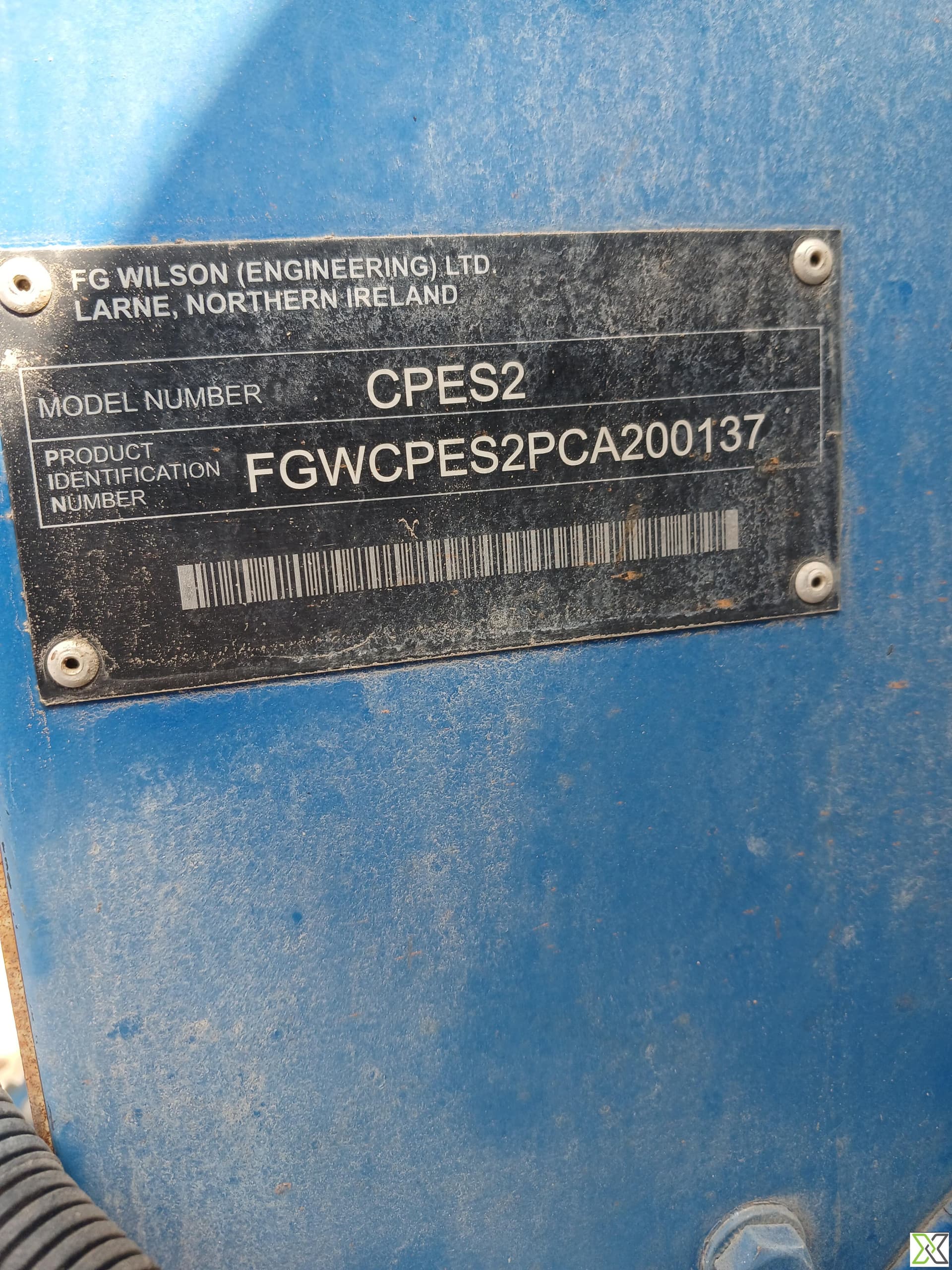

– Alternate Model Label: CPES2
– Serial Number: FGWCPES2PCA200137
– Year of Manufacture: 2010
– Rated Power Output: 600 kVA (480 kW) Prime
– Rated Voltage: 415 / 240 V
– Phase Configuration: 3 Phase
– Rated Frequency: 50 Hz
– Rated Speed: 1500 RPM
– Power Factor: 0.8 (COS φ)
– Performance Class: G3 (ISO 8528-3 PR compliant)
– Max Altitude: 152.4 meters
– Max Ambient Temperature: 27°C
– Mass (Dry Weight): 4787 kg
– Dimensions (L × W × H): 4111 × 1536 × 2246 mm
– Alternator Connection: S-STAR
– Alternator Enclosure: IP23
– Insulation Class: H
– Excitation Voltage: 40 V
– Excitation Current: 4 A
– AVR (Automatic Voltage Regulator): R448 Regulator
– Standard Compliance: ISO 8528-3 PR

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	2806A-E18TAG2
Model Number	2806A-E18TAG2
Height	2220 mm
Width	1430 mm
Length	3960 mm
Weight	4700 kg
Temperature Range	Class F (IEC 60034-1 compliant)
Voltage	400/230 V (standard)
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	Prime Power (PRP): 600 kVA / 480 kW
Speed	1500 RPM
IFC Class	IfcElectricGeneratorType
