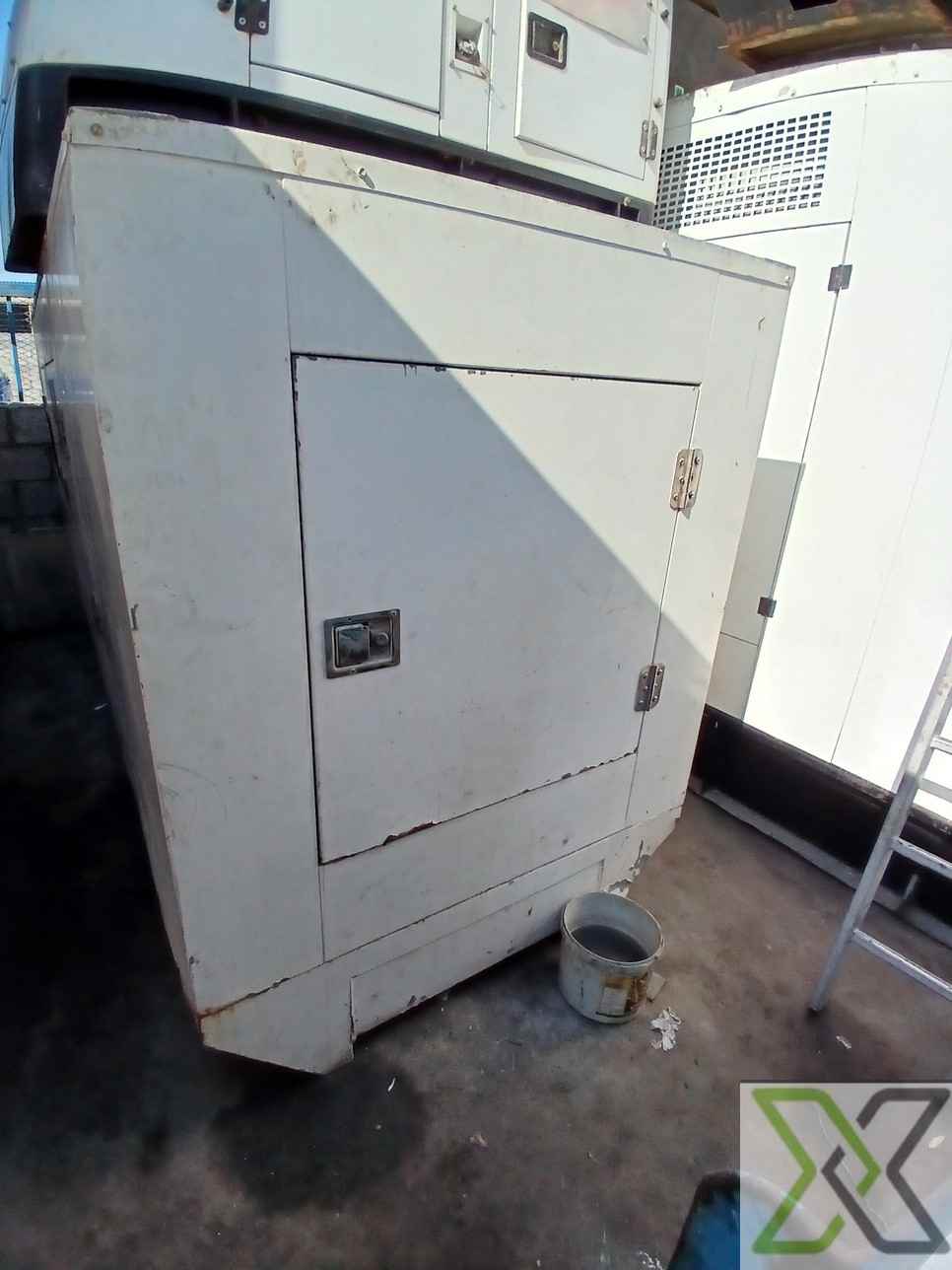

FG Wilson PEP05 Generator – Full Specification

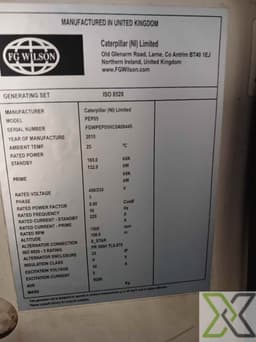

 General Information:

Brand: FG Wilson

Manufacturer: Caterpillar (NI) Limited

Model: PEP05

Serial Number: FGWPEP05HCA08445

Manufactured In: United Kingdom

Year of Manufacture: 2010

Ambient Temperature Rating: 25°C

 Power Specifications:

Rated Power (Prime): 165.0 kVA / 132.0 kW

Standby Power: Slightly higher than prime rating

Rated Voltage: 400/230 V

Phase: 3-Phase

Power Factor: 0.80 CosØ

Frequency: 50 Hz

Rated Current (Standby): 229 A

Rated Speed: 1500 RPM

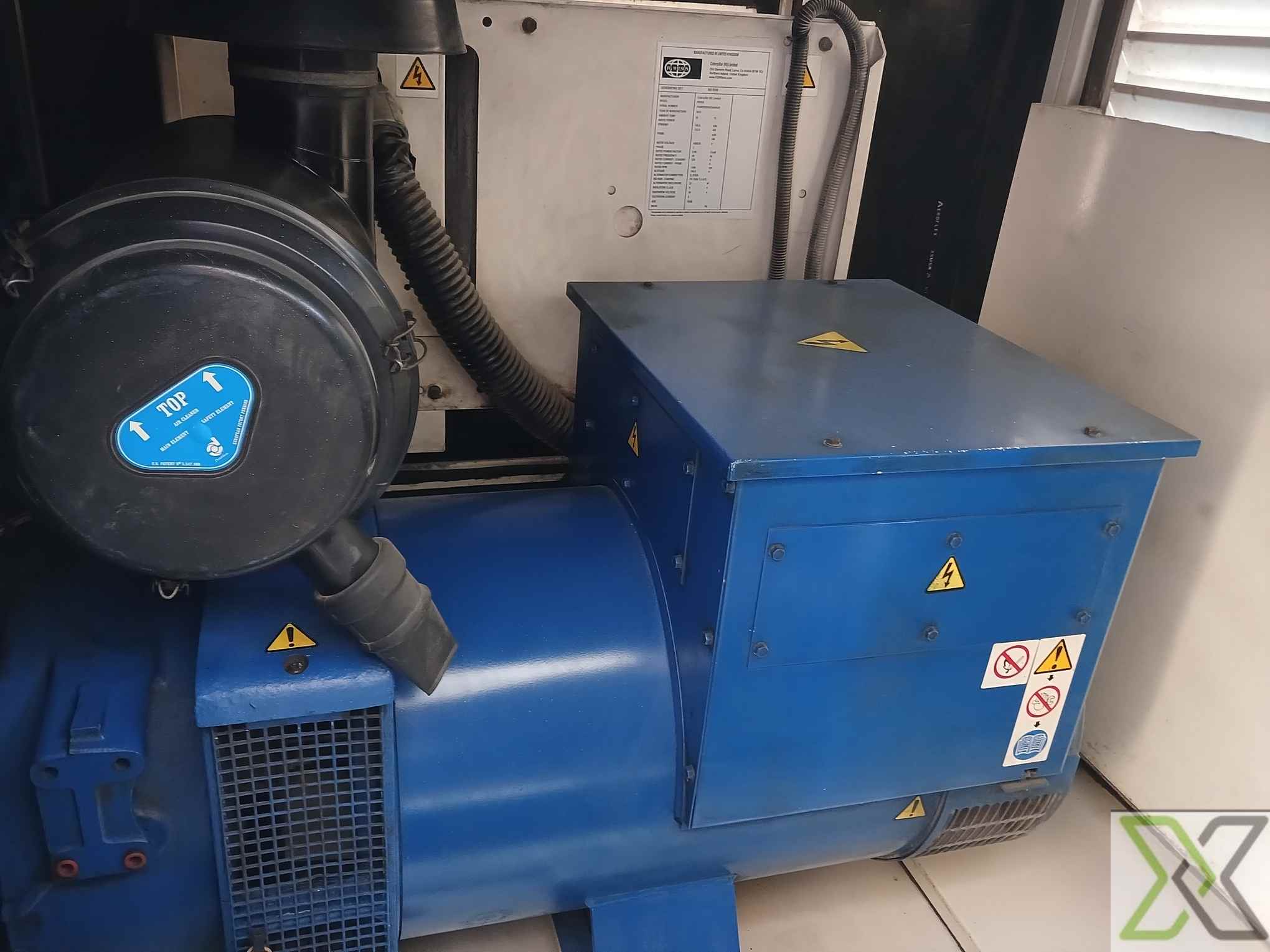

 Alternator Details:

Alternator Connection: S_STAR

Enclosure Protection Rating: IP23

Insulation Class: H

Excitation Voltage: 30V

Excitation Current: 2A

Automatic Voltage Regulator (AVR): R250

 Environmental & Design Ratings:

Altitude Rating: 1000 m

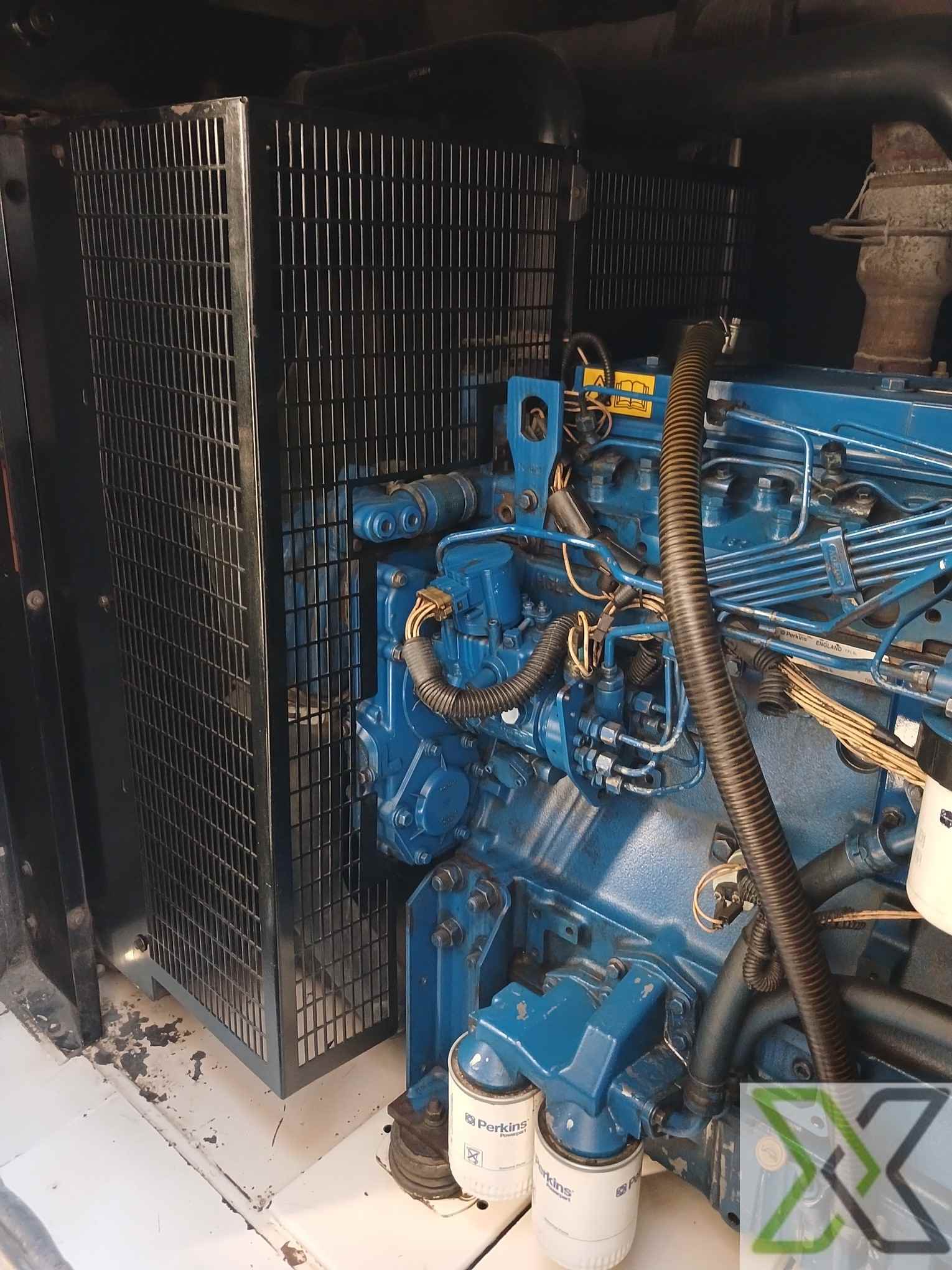

Cooling System: Radiator-cooled

Engine Aspiration: Turbocharged & Aftercooled

Fuel Type: Diesel

Starting System: Electric Start (12V or 24V battery system)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
