FG Wilson P110-3 Diesel Generator Set – 110 kVA Standby Power, 3 Phase, 415V - 2013

ReflowX SKU: REF-8347

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Used
OEM

Caterpillar (NI) Limited (FG Wilson)
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

The FG Wilson P110-3 is a diesel-powered, 3-phase generator with a standby power rating of 110 kVA (88 kW) and prime rating of 80 kVA (80 kW). Manufactured in 2013 by Caterpillar (NI) Limited, it operates at 415/240V and 50 Hz, with a rated speed of 1500 RPM. Built to ISO 8528 standards, it's suitable for use in ambient temperatures up to 50°C and is equipped with a Marelli alternator and AVR system

Description

FG Wilson P110-3 Diesel Generator Set – 110 kVA Standby Power, 3 Phase, 415V

Description:

The FG Wilson P110-3 diesel generator set delivers robust and reliable power for industrial, commercial, and backup applications. Manufactured in 2013, this set is rated at 110 kVA standby and 80 kVA prime power, operating at 415/240 volts, 3-phase, and 50 Hz frequency. The generator runs at 1500 RPM, offering smooth and efficient performance for extended use.

Its compact yet durable construction features dimensions of 1980 × 690 × 1324 mm and a weight of 1066 kg, making it suitable for tight installations without compromising on power output. The generator is fitted with a Marelli alternator, Marelli ALT AVR for automatic voltage regulation, and Class H insulation for superior thermal endurance. This generator is ideal for continuous or backup power in demanding environments, ensuring performance and longevity with minimal maintenance.

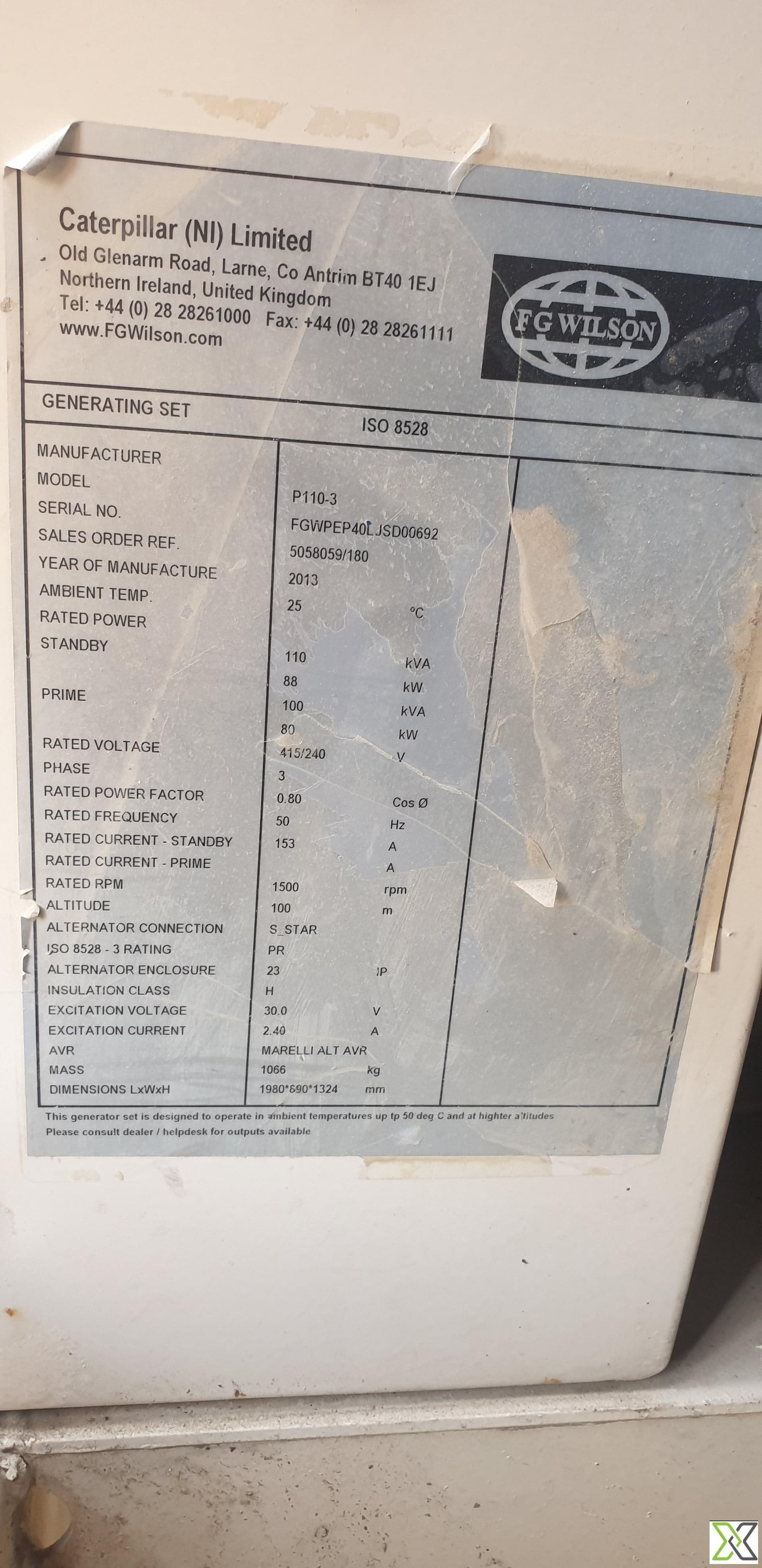

Specification:

- Manufacturer: Caterpillar (NI) Limited (FG Wilson)
- Model: P110-3
- Serial No: FGWPEP40LJSD00692
- Year of Manufacture: 2013
- Power Rating: Standby: 110 kVA / 88 kW, Prime: 80 kVA / 80 kW
- Voltage: 415/240 V | 3 Phase | 50 Hz
- RPM: 1500
- Weight: 1066 kg
- Dimensions: 1980 × 690 × 1324 mm
- AVR: Marelli ALT AVR
- Insulation Class: H

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	P110-3
Year of Manufacturing	2013
Model Number	P110-3
Year of Manufacturing	2013
Manufacturer Name	FG Wilson
Height	1324 mm
Width	690 mm
Length	1980 mm
Weight	1066 kg
Temperature Range	-10°C to +45°C
Voltage	415/240 V
Color	White
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	110 kVA / 88 kW
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Lower Limit Operating Temperature	-10°C
Operation Continuous Intermittent	Continuous and Intermittent
Upper Limit Operating Temperature	+45°C
