FG Wilson P50-3 Diesel Generator - 2020

ReflowX SKU: REF-9908

Product Details

Quantity

1
Availability (Lead Time)

N/A
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

gen-d

Get Quotation Whatsapp

Description

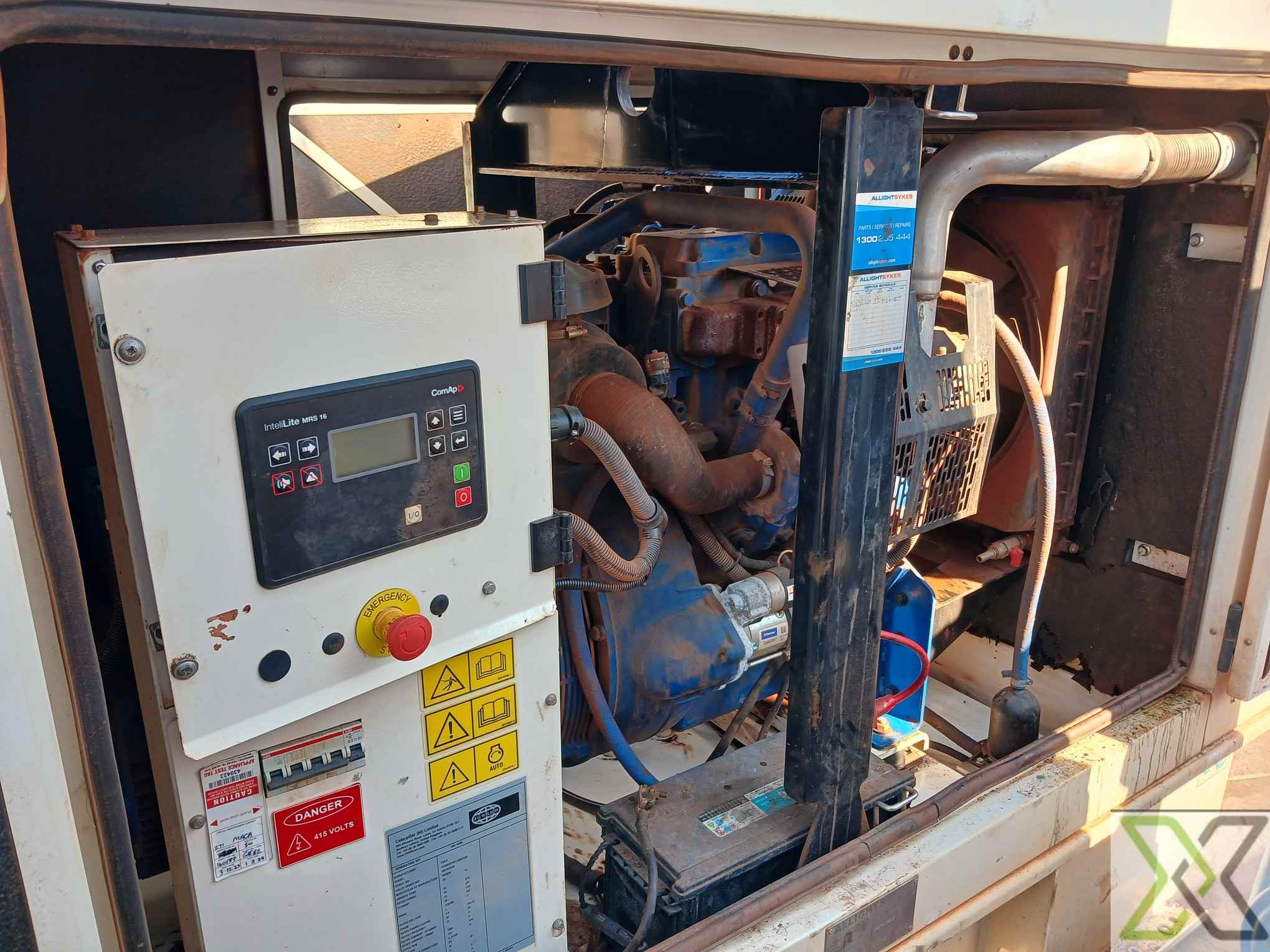

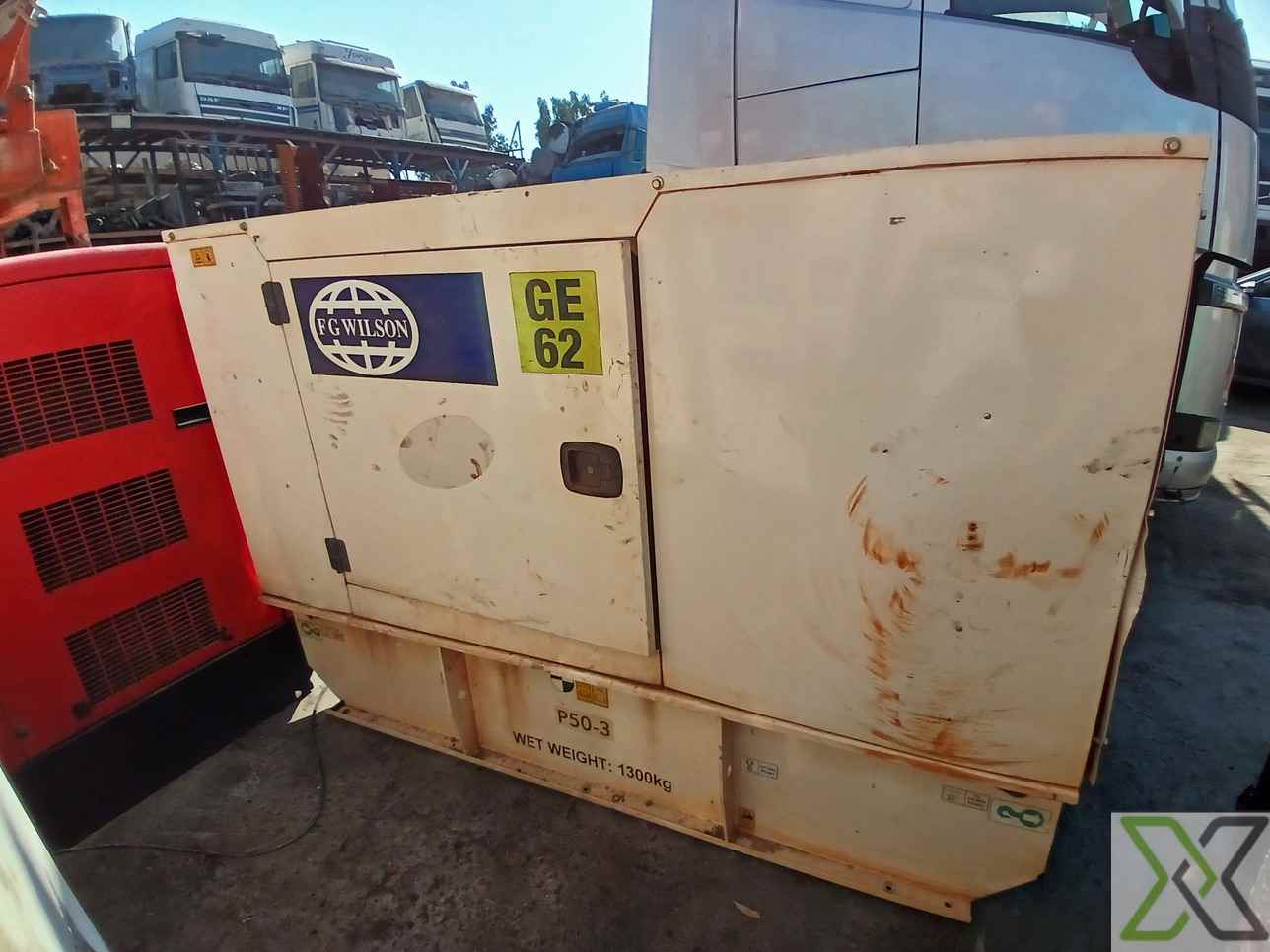

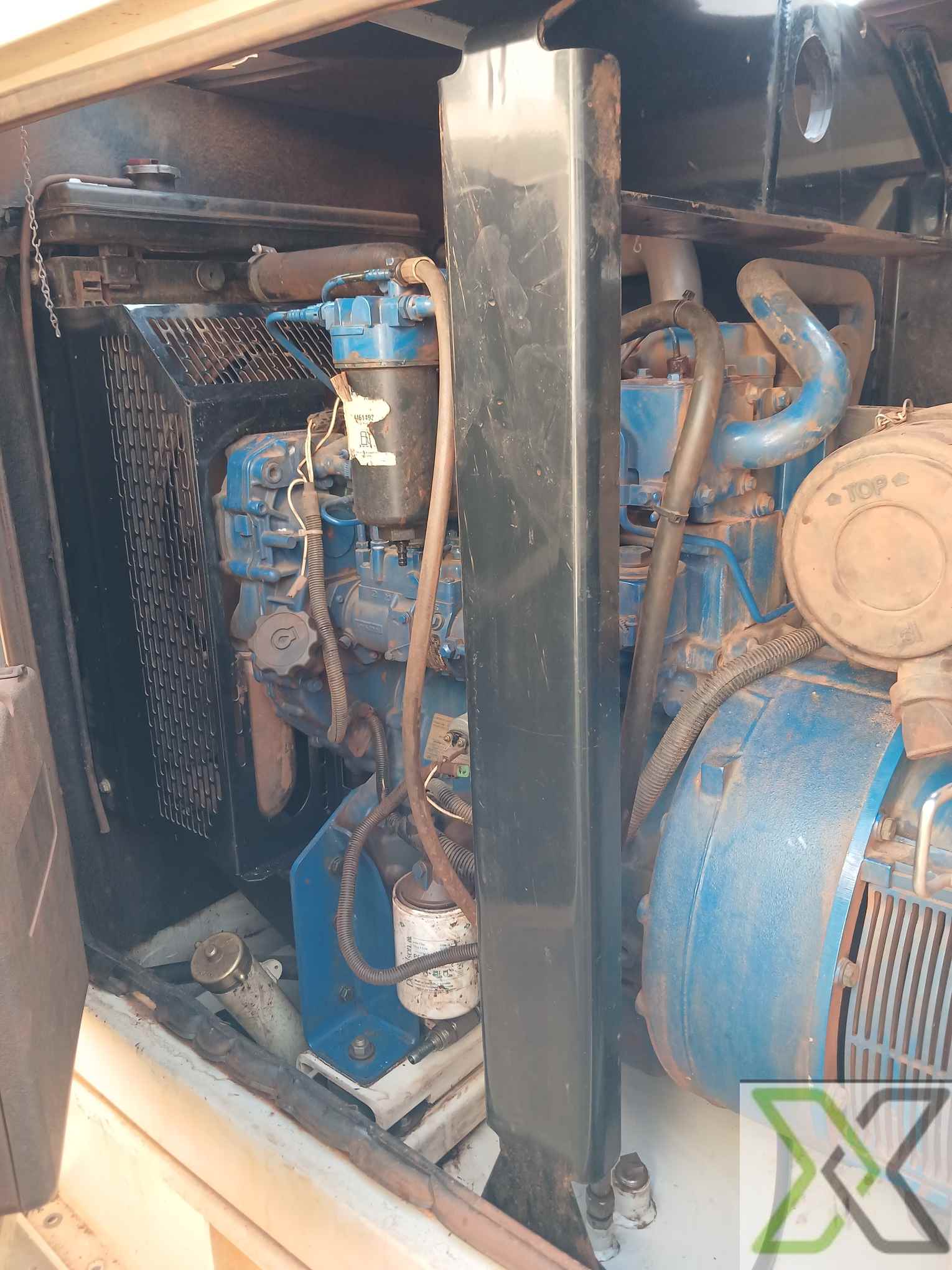

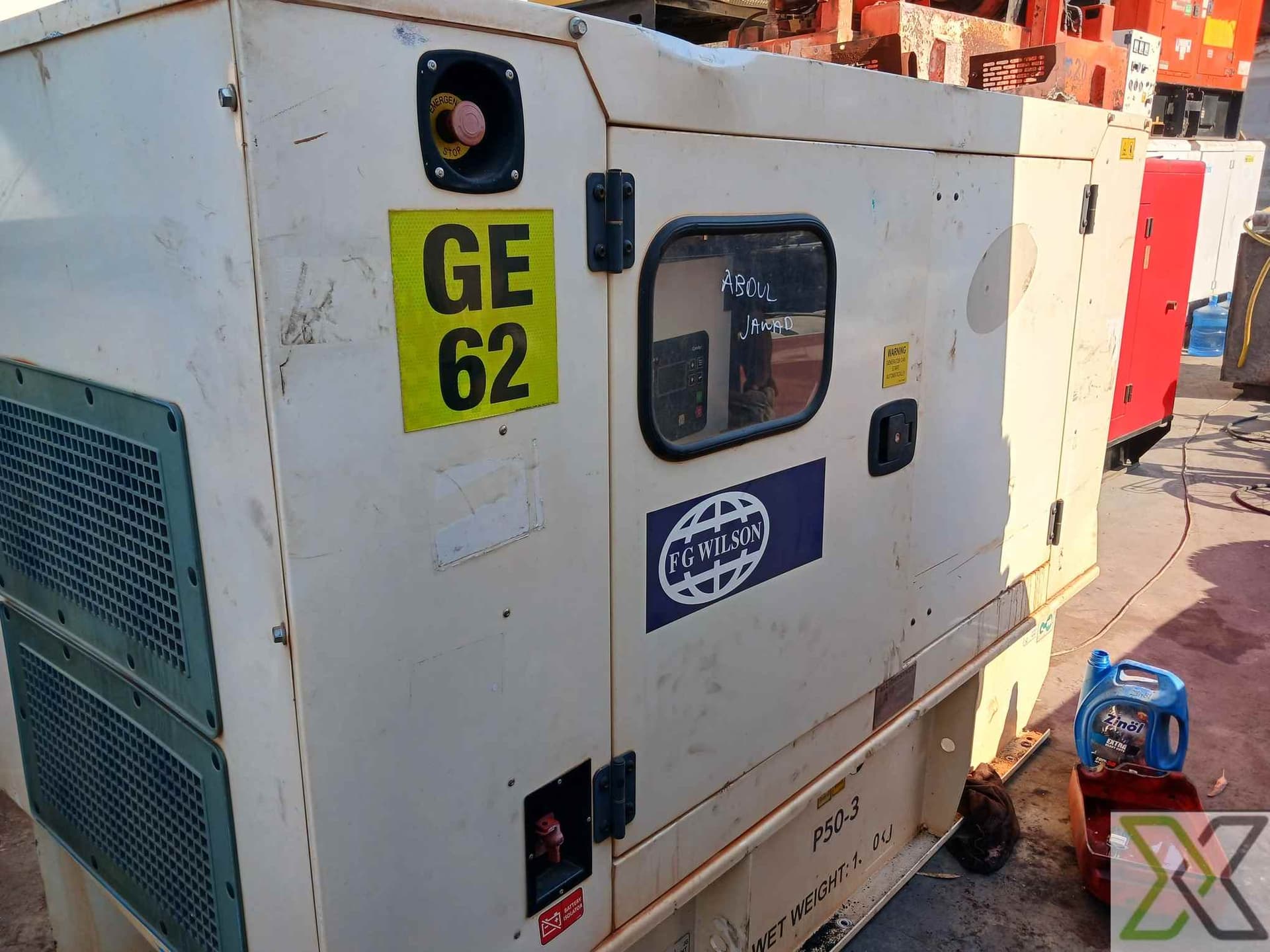

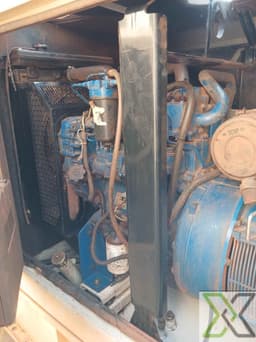

FG Wilson P50-3 Diesel Generator – Full Specifications

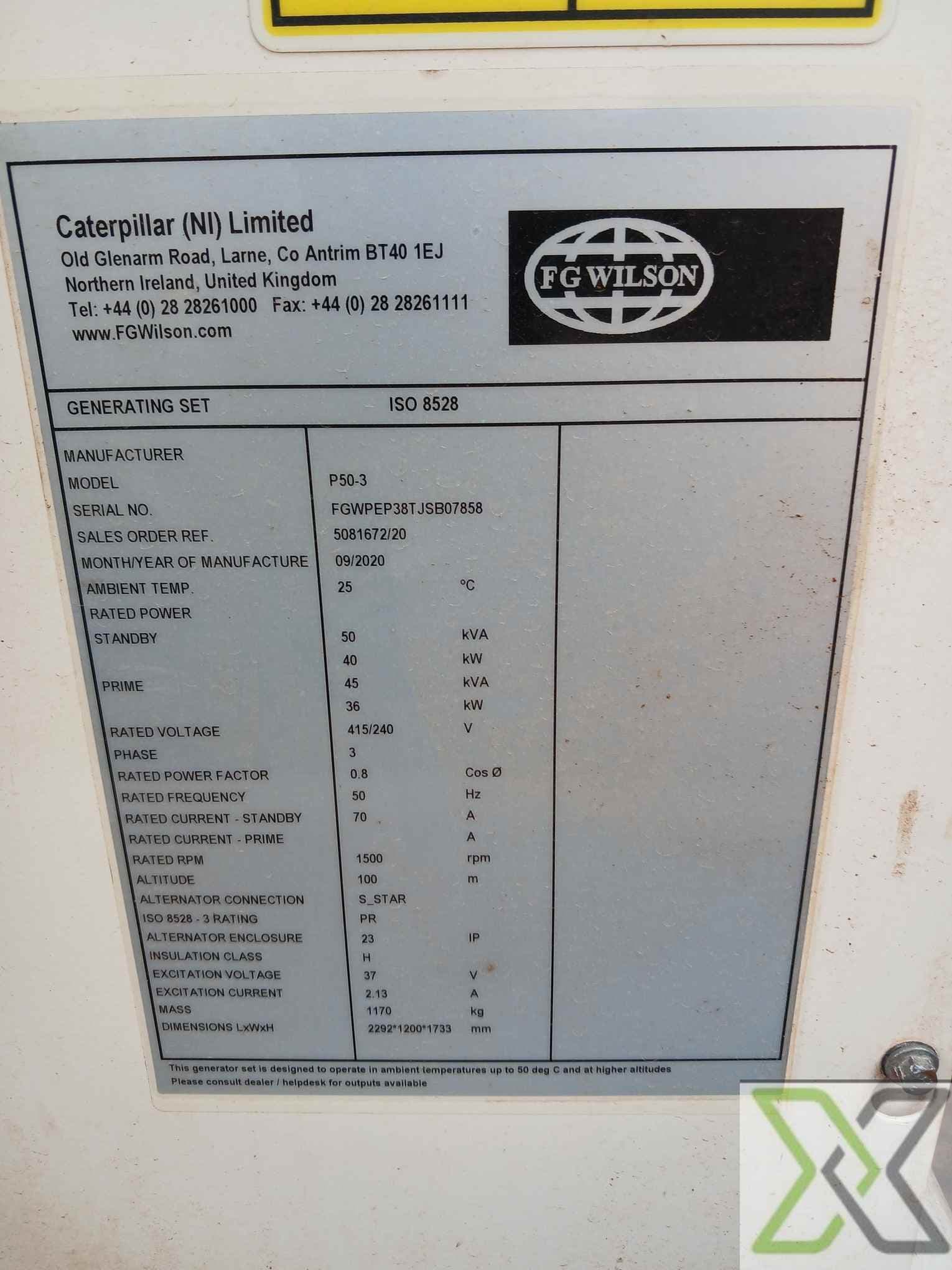

General Information:

Brand: FG Wilson

Manufacturer: Caterpillar (NI) Limited

Model: P50-3

Serial Number: FGWPEP38TJSB07858

Sales Order Reference: 5081672/20

Manufactured in: United Kingdom

Month/Year of Manufacture: 09/2020

Ambient Temperature Rating: 25°C

Power Specifications:

Standby Power: 50 kVA / 40 kW

Prime Power: 45 kVA / 36 kW

Rated Voltage: 415/240 V

Phase: 3-Phase

Power Factor: 0.80 CosØ

Frequency: 50 Hz

Rated Current (Standby): 70 A

Rated RPM: 1500 RPM

Alternator & Electrical System:

Altitude Rating: 1000 m

Alternator Connection: S_STAR

ISO 8528-3 Rating: PR

Alternator Enclosure: IP23 (Protected against solid objects over 12mm and limited water spray)

Insulation Class: H (High-temperature resistance)

Excitation Voltage: 37V

Excitation Current: 1A

Physical Specifications:

Mass: 1170 kg

Dimensions (L x W x H): 2292 x 1200 x 1733 mm

Key Features:

✅ Reliable Power: Built for continuous operation in industrial and commercial applications.
✅ Fuel Efficiency: Designed for cost-effective operation.
✅ Durability: Heavy-duty components ensure long operational life.
✅ Advanced Control Panel: Provides real-time monitoring and protection.

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	P50-3
Year of Manufacturing	2020
Model Number	P50-3
Year of Manufacturing	2020
Height	1,413 mm
Width	795 mm
Length	2,200 mm
Weight	1,080 kg
Temperature Range	-5°C to +50°C
Voltage	415/240 V, 3-Phase, 50 Hz
Color	White
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	50 kVA / 40 kW
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Explosion Protection Zone	Zone-free
Lower Limit Operating Temperature	-5°C
Normal Output Power	36 kW
Upper Limit Operating Temperature	+50°C
