Volvo Penta TAD1642GE Diesel Generator Set with Wuxi HC.1444F1 Alternator

ReflowX SKU: REF-1439

Product Details

Quantity

3
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Wuxi Newage Alternators Ltd.
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

High-performance diesel generator set combining Volvo Penta TAD1642GE engine with Wuxi HC.1444F1 alternator, delivering 625 kVA at 400V, ideal for both prime and standby power applications.

Description

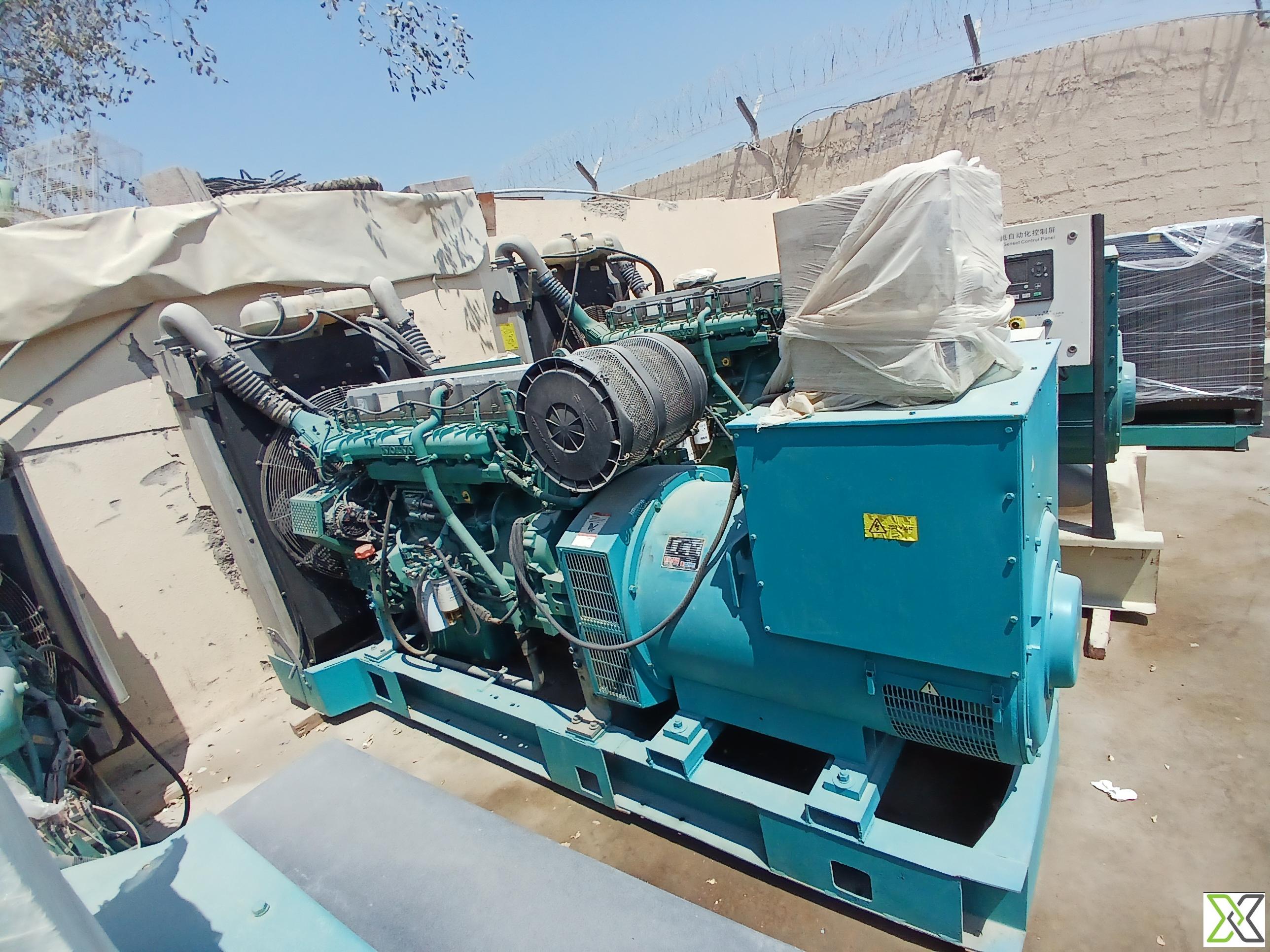

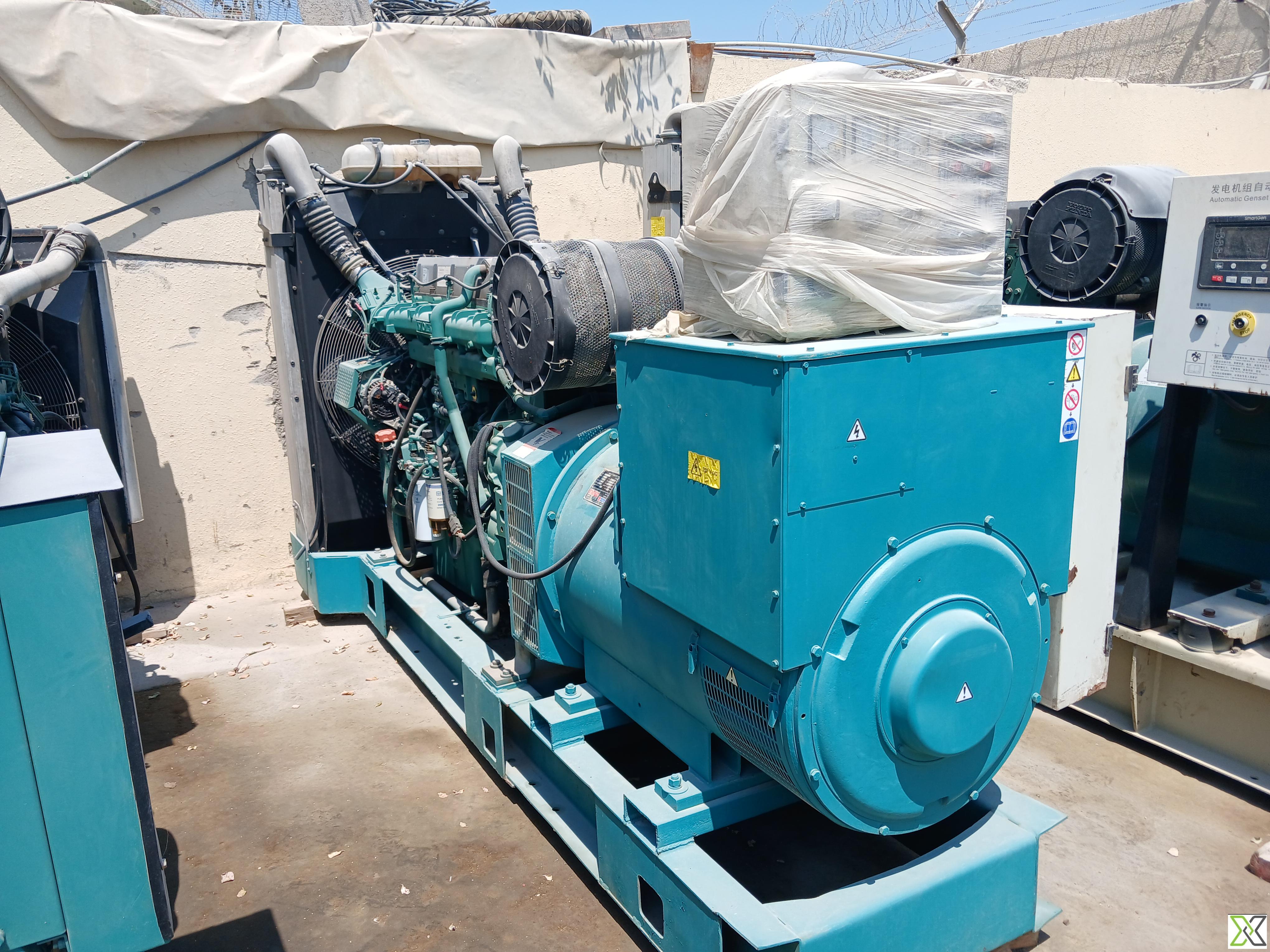

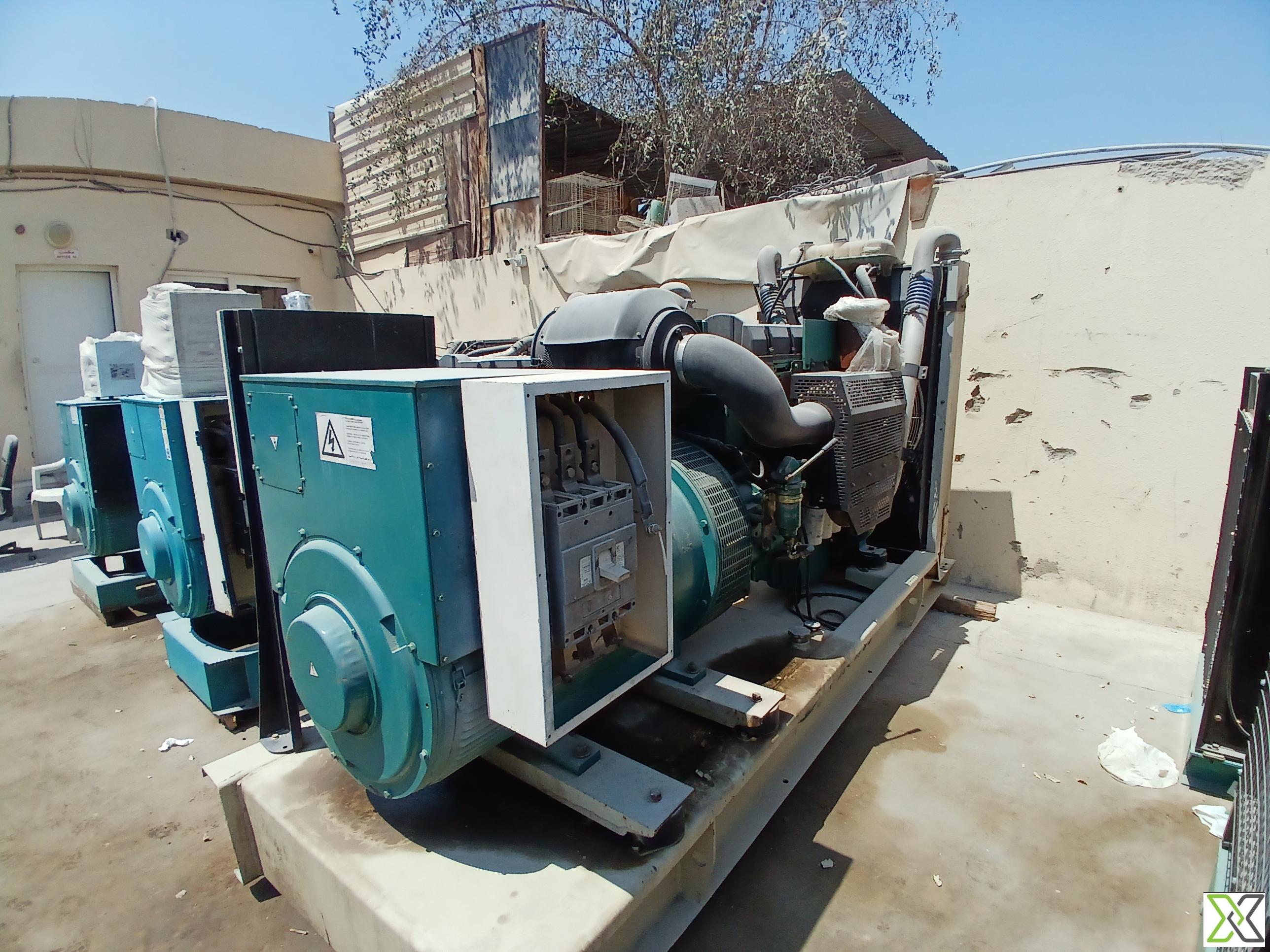

Volvo Penta TAD1642GE Diesel Generator Set with Wuxi HC.1444F1 Alternator

The generator set integrates the robust and efficient Volvo Penta TAD1642GE 6-cylinder diesel engine with the high-efficiency Wuxi Newage HC.1444F1 brushless alternator, forming a reliable power generation system designed for both prime and standby operations. Rated at 625 kVA, this unit delivers 902A at 400V with a power factor of 0.8 lagging and 50 Hz frequency. The engine features a water-cooled turbocharged design with charge air cooling and a displacement of 16.12 liters, offering an output of 575 kW (771 HP) at 1500 RPM. The alternator boasts an insulation class of H, protection class IP23, and AVR-regulated voltage stability of ±1%. The entire set supports efficient operation with a fuel consumption of ~198 g/kWh at 75% load and complies with EU Stage II / Tier 2 emission norms. The generator is built for durability, high thermal efficiency, and seamless power delivery in industrial, commercial, and critical backup scenarios.

Specifications:

– Generator Type: Diesel-Powered Alternator Set
– Rated Output Power: 625 kVA
– Voltage Output: 400 V
– Frequency: 50 Hz
– Current Output: 902 A
– Power Factor: 0.8 (Lagging)
– Phase Configuration: 3-Phase

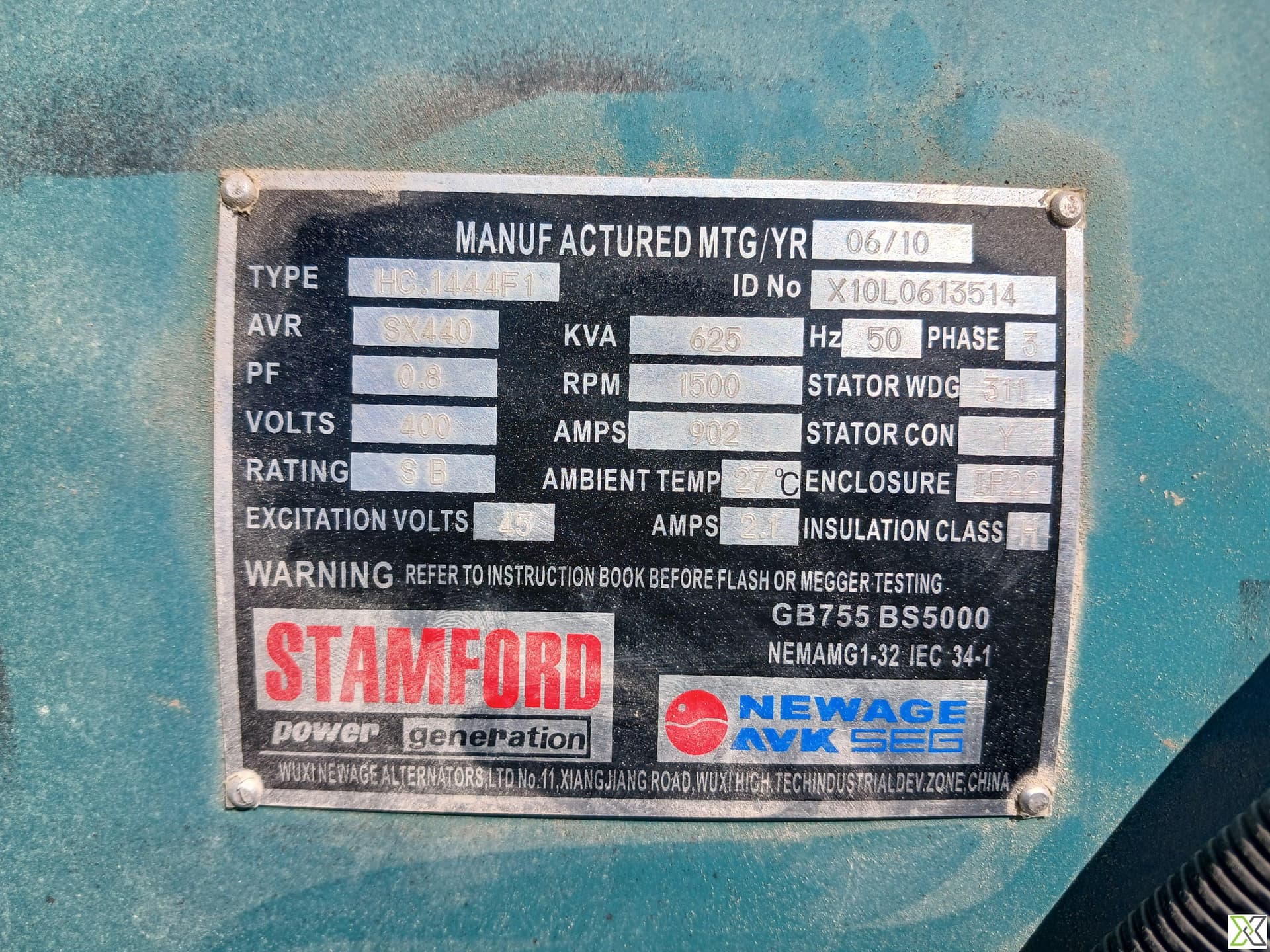

– Alternator Manufacturer: Wuxi Newage Alternators Ltd.
– Alternator Model: HC.1444F1
– Alternator Type: Brushless, Self-Excited
– Insulation Class: H
– Protection Class: IP23
– Voltage Regulation: ±1% with AVR
– Cooling Method (Alternator): Air-Cooled
– Efficiency: High-efficiency alternator design

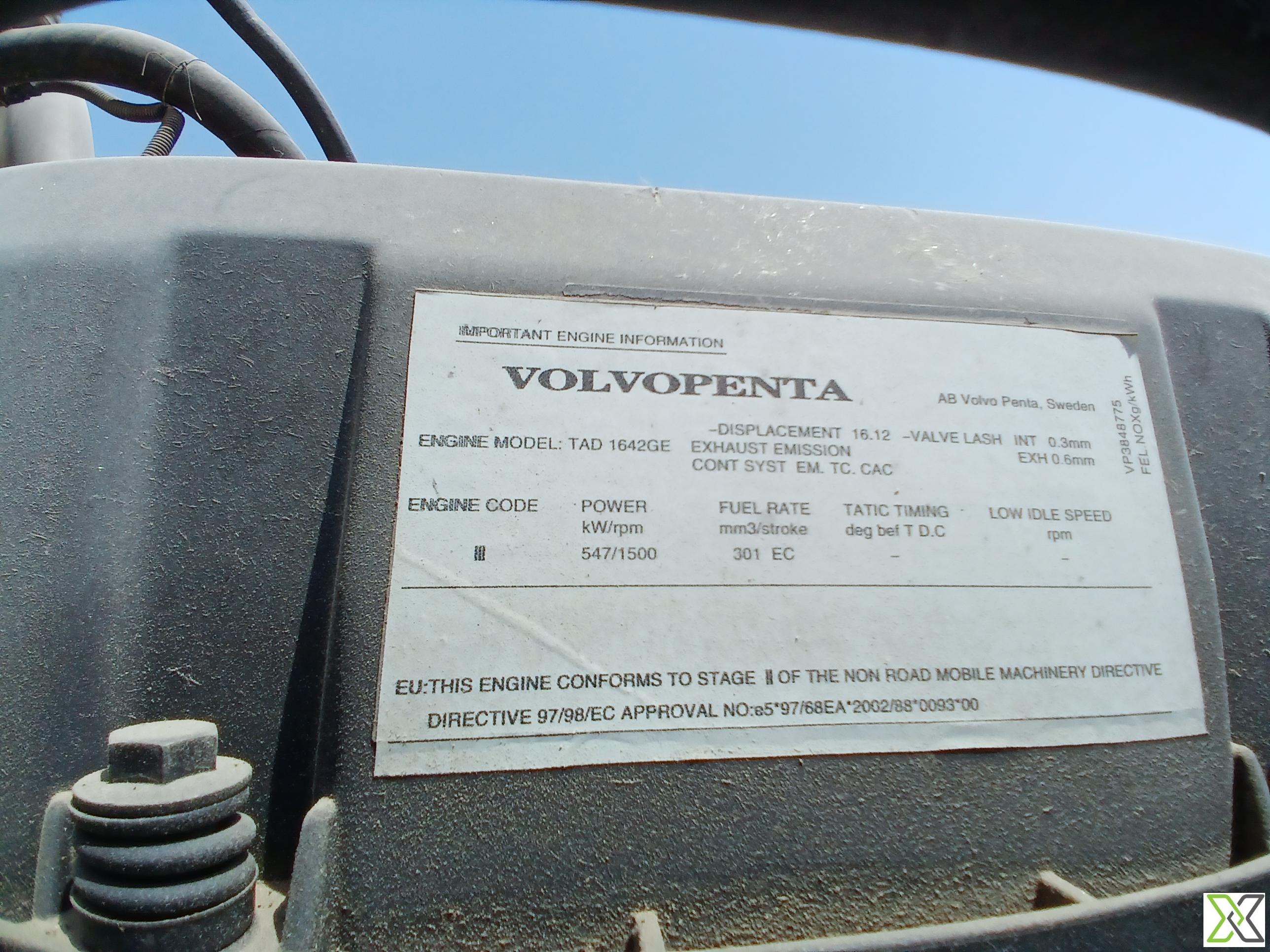

– Engine Manufacturer: Volvo Penta
– Engine Model: TAD1642GE
– Engine Type: 6-Cylinder, Turbocharged, Charge Air Cooled
– Displacement: 16.12 L (983 in³)
– Rated Engine Output: 575 kW (771 HP) @ 1500 RPM
– Fuel Type: Diesel
– Fuel Consumption: ~198 g/kWh at 75% Load
– Cooling System (Engine): Water-Cooled
– Lubrication System Capacity: 48 L (12.7 gal)
– Fuel Tank Capacity: As per genset configuration
– Emission Compliance: EU Stage II / Tier 2
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	TAD1642GE
Model Number	TAD1642GE
Height	1,818 mm
Width	1,160 mm
Length	2,304 mm
Weight	1,480 kg
Temperature Range	-15°C to +40°C
Pressure Rating	300–650 kPa
Voltage	400V
Color	Blue
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	503 kW
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Lower Limit Operating Temperature	-15°C
Operation Continuous Intermittent	continuous operation
Upper Limit Operating Temperature	+40°C
