CUMMINS KTA50-G9 DIESEL GENERATOR SET – 1875 kVA STANDBY  CONTAINERIZED

Description

The Cummins KTA50-G9 generator set is an industrial-grade power solution designed for critical applications requiring large-scale, reliable energy output. Manufactured in 2010 and showing only 209 hours of runtime, this diesel genset is powered by the robust Cummins KTA50-G9 engine, built in the USA, and coupled with a UK-manufactured alternator.

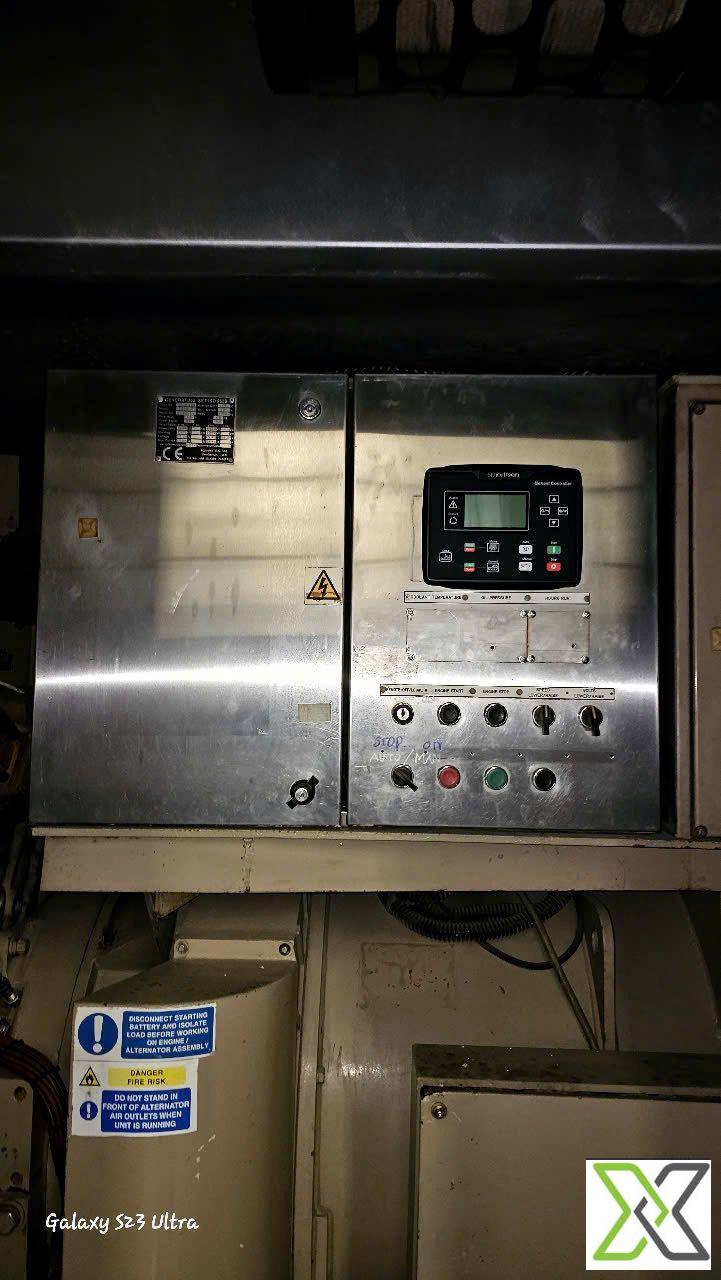

It delivers 1600 kVA prime and 1875 kVA standby power at 50 Hz, with a power factor of 0.8. Housed within a heavy-duty container canopy, the genset features a built-in fuel tank and an integrated control board for on-site management. The entire system is CE-certified and conforms to ISO 8528 performance standards.

With its high maximum current of 2500 A and a three-phase output of 416–480 V, this unit is ideal for industrial, mining, construction, or emergency backup power use. Designed to operate at ambient temperatures up to 45°C and altitudes up to 1000 meters, it ensures consistent output even in challenging environments.

Specifications:

– Model: KTA50-G9
– Engine Model: Cummins KTA50-G9
– Rated Power – Standby: 1875 kVA / 1500 kW
– Rated Power – Prime: 1600 kVA / 1280 kW
– Power Factor: 0.80
– Rated Voltage (3-phase): 416–480 V
– Rated Voltage (1-phase): 208–277 V
– Rated Current: 2500 A
– Rated Frequency: 50 Hz
– Rated Speed: 1500 RPM
– Phase: 3

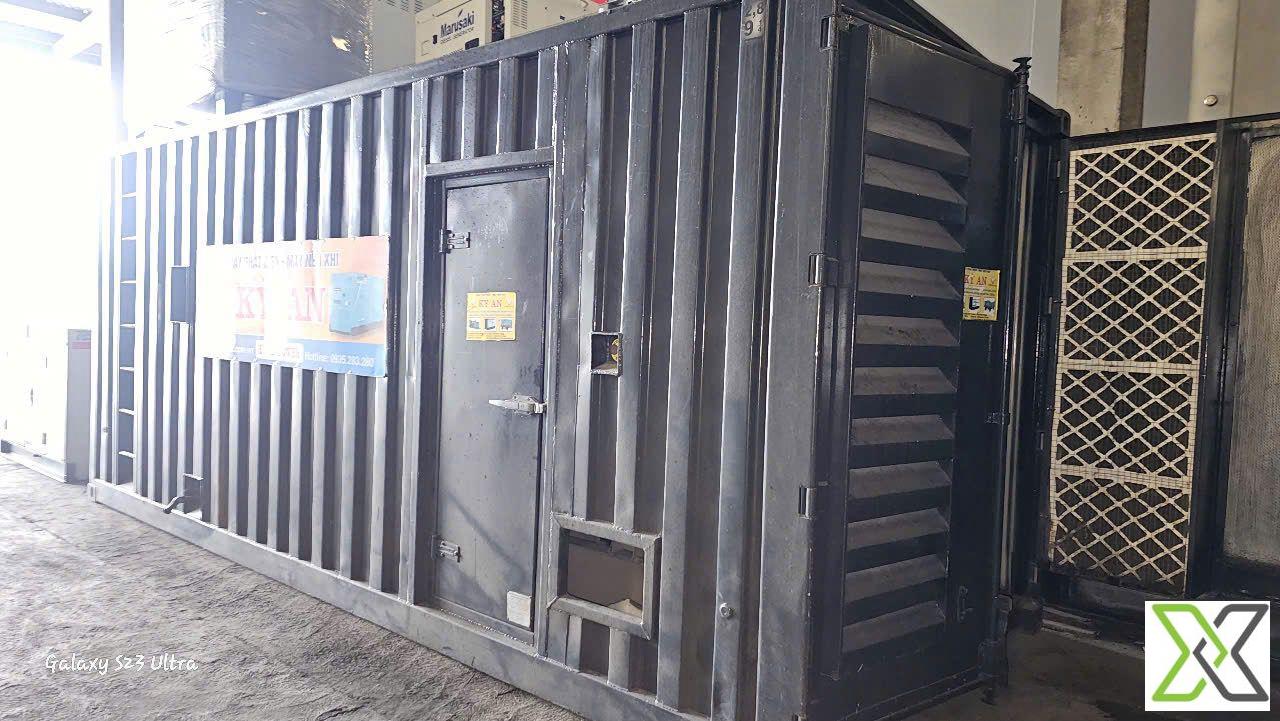

– Enclosure: Containerized (with canopy)
– Insulation Class: H (typical for Cummins alternators)
– Generator Model: Stamford or equivalent (exact model not specified on plate)
– Connection Type: WYE (Star)

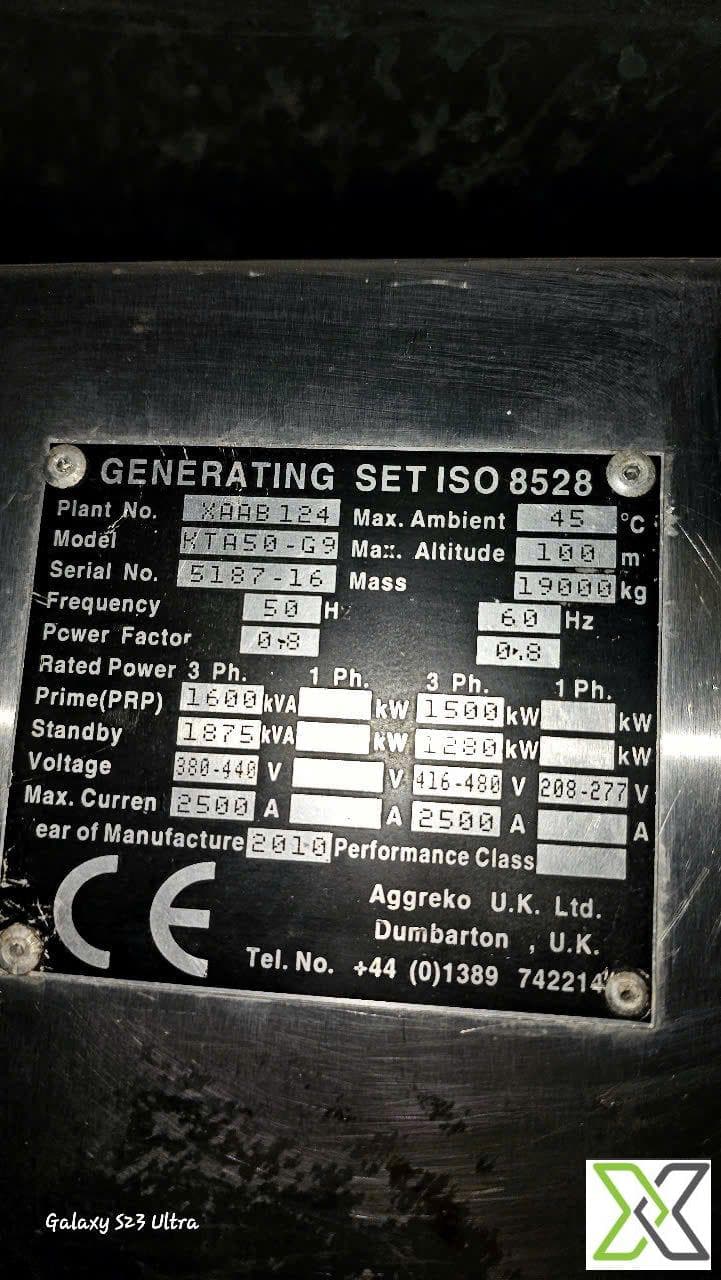

– Rating Standard: ISO 8528 (Standby Duty)
– Excitation Voltage: Approx. 60 V (typical for Stamford alternators)
– Excitation Current: Approx. 4.5–5.0 A
– Mass (Weight): Approx. 19,000 kg (containerized)
– Max Ambient Temperature: 45°C
– Max Altitude: 1000 m
– Manufacture Date: 2010
– Condition: Used – 209 Operating Hours Only
– Made in: USA (Engine), United Kingdom (Assembly – Aggreko Dumbarton)
– Color: Grey (Aggreko standard paint)
– Direction of Rotation: Standard (Clockwise viewed from drive end – assumed)
– Operation: Standby
– Explosion Protection: Not applicable (standard industrial model)
– Temperature Range: Up to 45°C ambient
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
