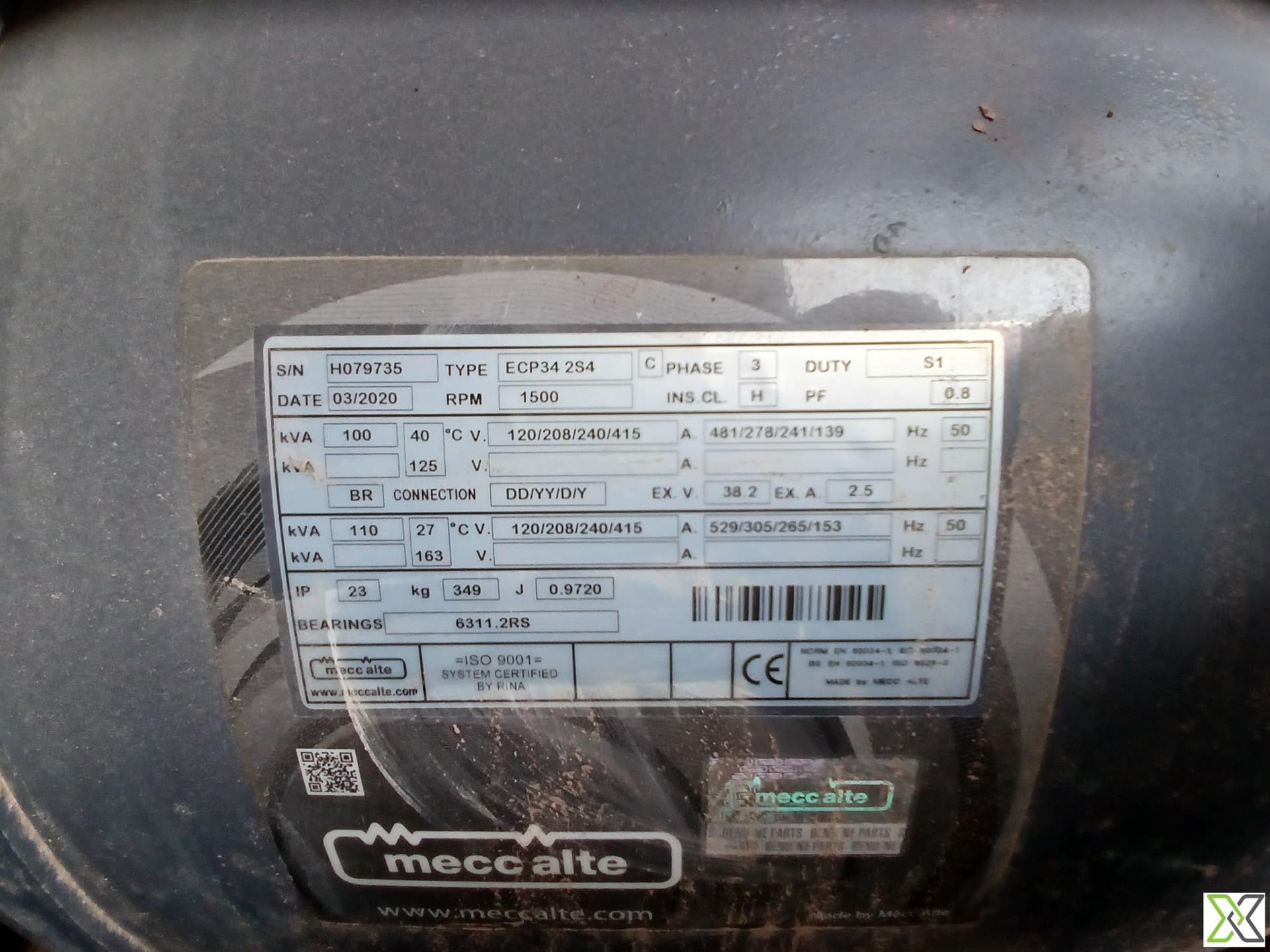

MECC ALTE ALTERNATOR — ECP34 2S4

ReflowX SKU: REF-5807

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Mecc Alte
Equipment code

gen-d

Get Quotation Whatsapp Chat With Seller

Short Description

The ECP34 2S4 is a high-efficiency, compact brushless synchronous alternator developed by Mecc Alte S.p.A. for integration into diesel and gas generating sets. Designed for reliability in demanding industrial environments, it features self-excitation, digital voltage regulation, and premium insulation suitable for continuous and standby duty applications.

Description

TECHNICAL SPECIFICATIONS

ELECTRICAL PERFORMANCE

Rated Power Output (Prime): ~125 kVA (subject to configuration)

Rated Power Output (Standby): ~138 kVA

Frequency: 50 Hz / 60 Hz

Rated Speed: 1500 RPM (50 Hz) / 1800 RPM (60 Hz)

Power Factor: 0.8 (lagging)

Efficiency: Up to 94%

Voltage Regulation: ±1% (digital AVR standard)

WINDING & EXCITATION

Excitation System: Self-excited

AVR Model: DSR (Digital Standard Regulator)

Winding Configuration: 12-wire reconnectable

Winding Pitch: 2/3 pitch (to minimize harmonic distortion)

Total Harmonic Distortion (THD): < 3% on linear load

Insulation Class: H

Temperature Rise: Class H (125°C rise over 40°C ambient)

CONSTRUCTION & COOLING

Frame Size: 34

Cooling System: Self-ventilated with internal fan

Bearing Configuration: Single bearing

Mounting Type: Foot mounted, SAE coupling compatible

Degree of Protection: IP23 (standard)

Enclosure Material: Heavy-duty steel housing

Rotor Balancing: Dynamically balanced to ISO 1940 Grade G2.5

COMPLIANCE & CERTIFICATION

Standards:

IEC 60034-1

ISO 8528-3

NEMA MG1-32

CE Compliant

Thermal Protection: Optional embedded thermostats

EMC Compliance: Meets industrial emission and immunity standards

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	870 mm
Width	700 mm
Length	1000 mm
Weight	Approx. 380 kg
Voltage	Standard Voltages: 400 V / 230 V (Y-connected) 480 V / 277 V (optional)
Color	Sky Blue
ISO 15926 Pt 4	ClassOfIndividual: SynchronousAlternatingCurrentGenerator
PCA RDS Code	RDS-PP-ALT-SYNC-ECP34-2S4
CFIHOS ID	CFIHOS-EQP-ALT-SYNC-ECP34-2S4
Output Power	Prime Power: 150 kVA / 120 kW
Speed	1500 RPM (50 Hz) / 1800 RPM (60 Hz)
IFC Class	IfcElectricGeneratorType
