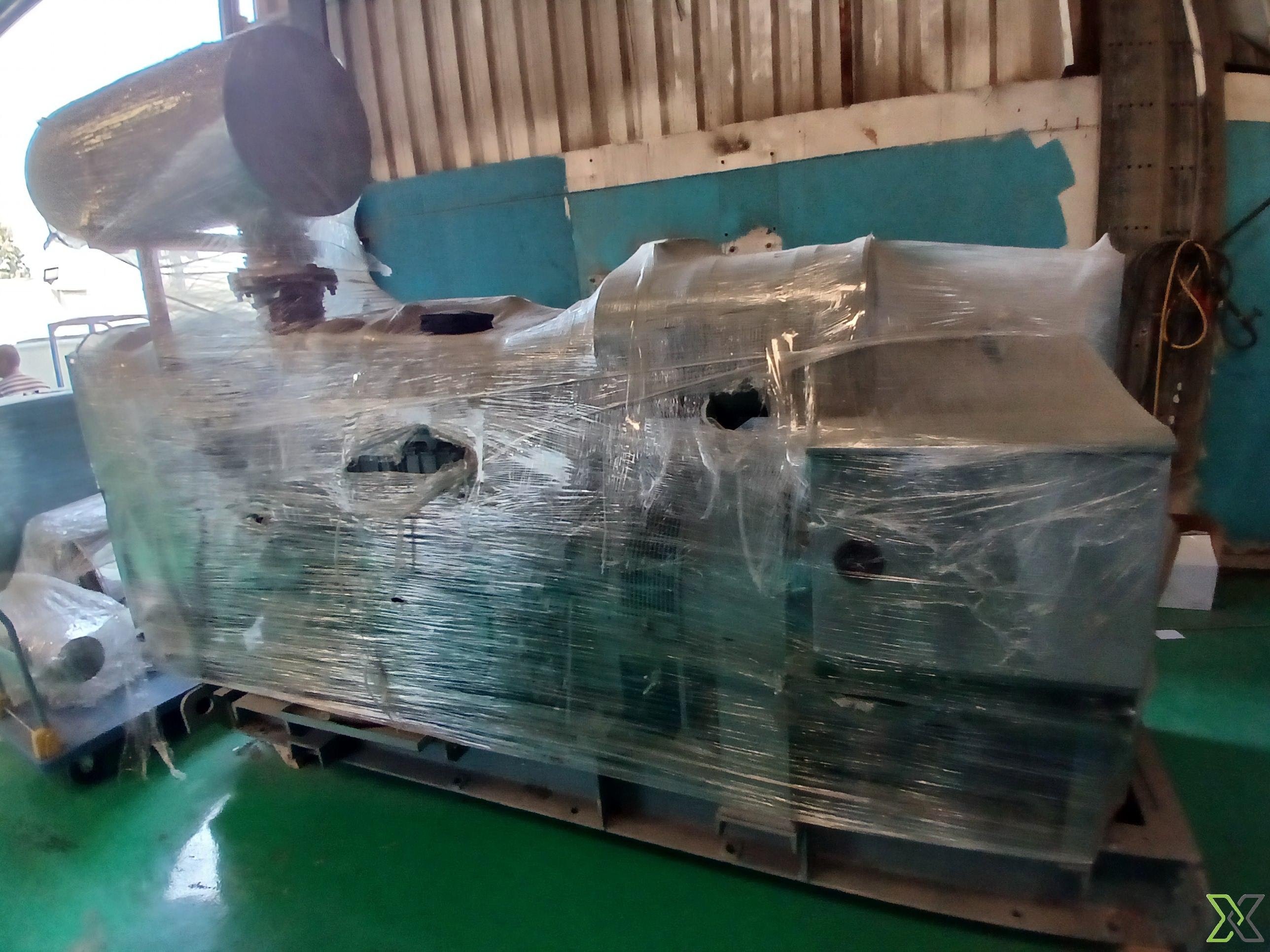

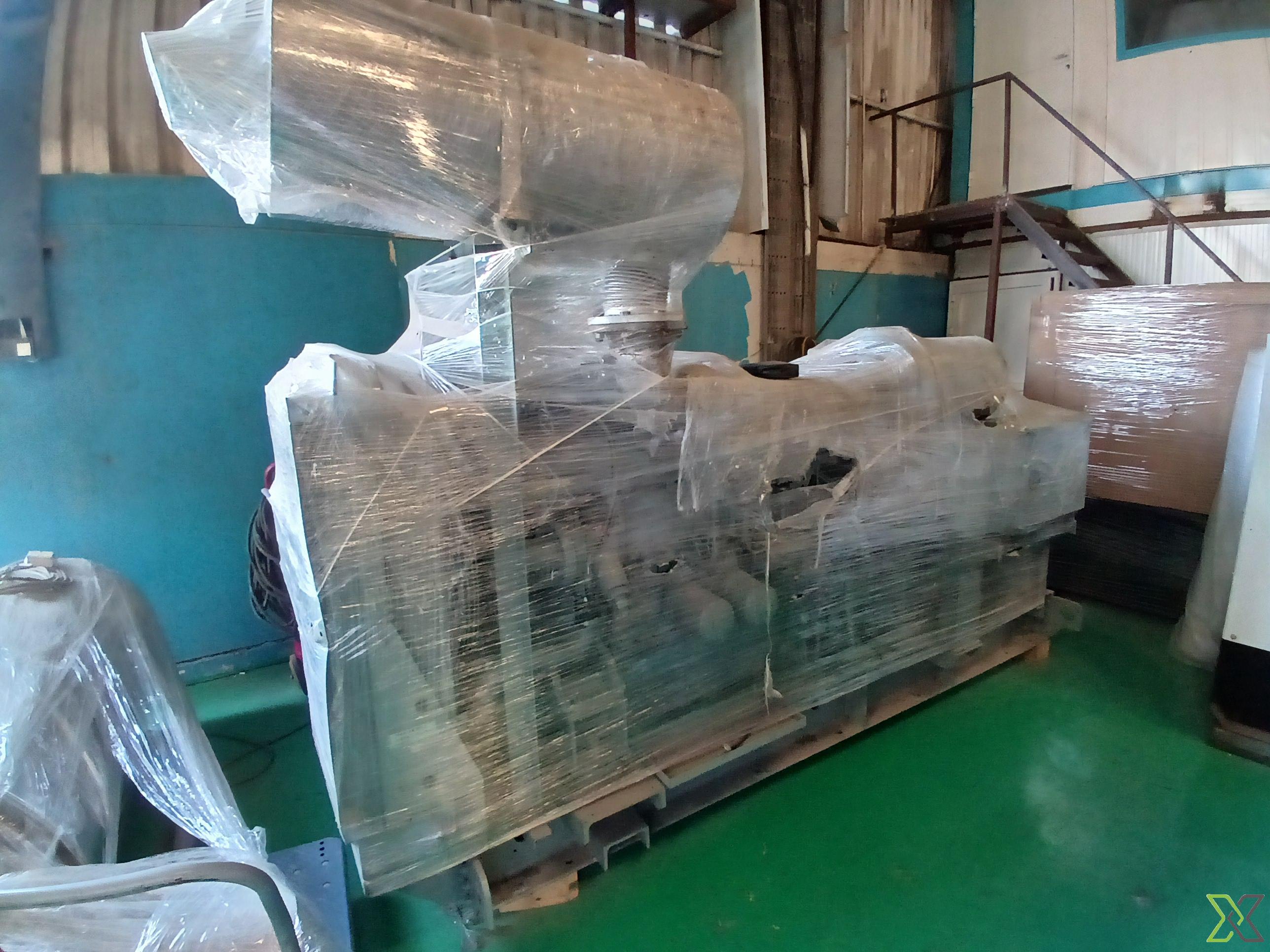

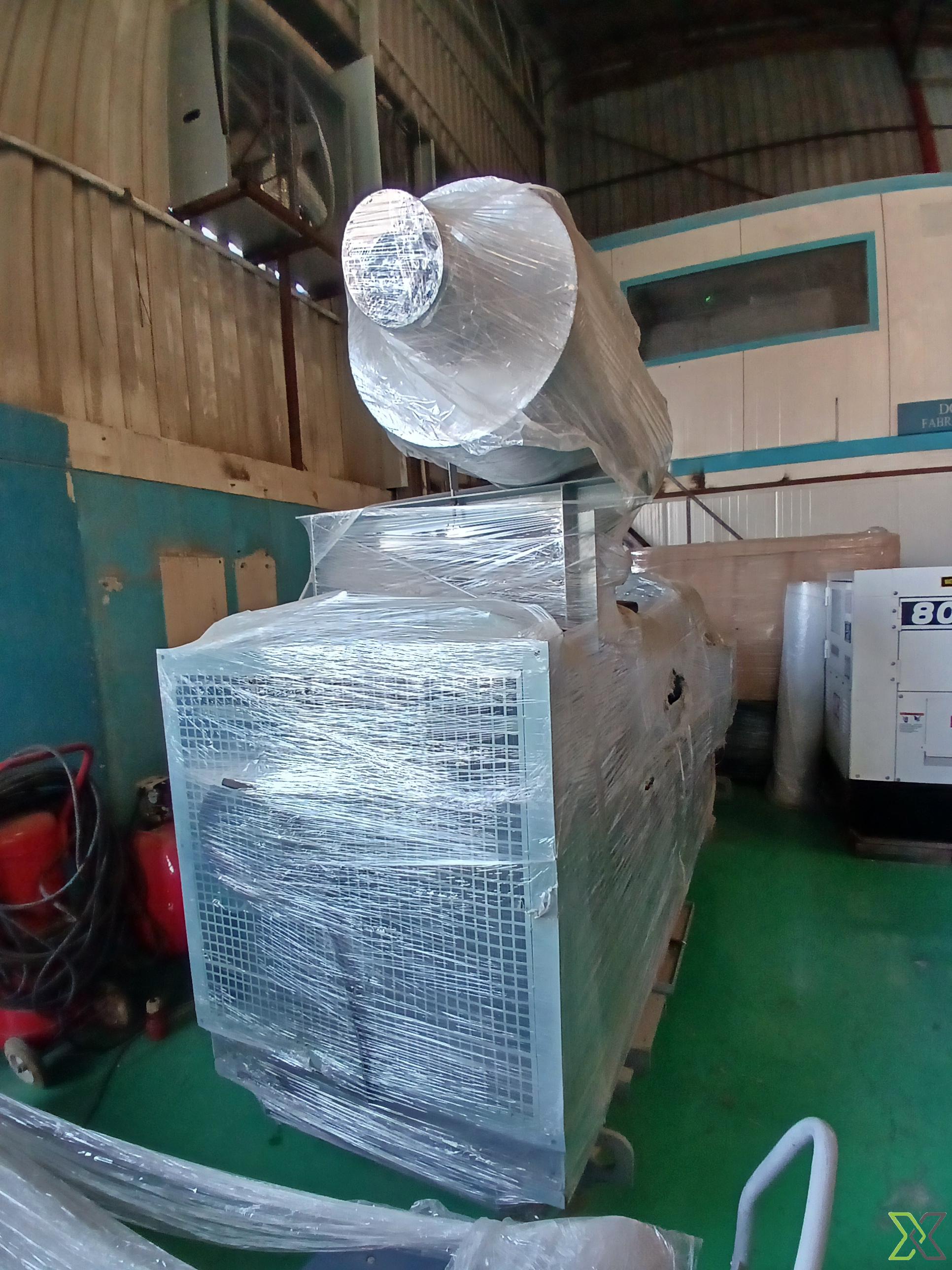

Shinko FSL-GJ-600-T Brushless AC Synchronous Generator – 300 kVA, 3-Phase, 50 Hz

ReflowX SKU: REF-1364

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Mitsubishi Heavy Industries, Ltd.
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

High-performance brushless synchronous generator with 300 kVA capacity, 3-phase output, and powered by a Mitsubishi S6B-PTA engine. Manufactured by Shinko Electric, Japan.

Description

Shinko FSL-GJ-600-T Brushless AC Synchronous Generator – 300 kVA, 3-Phase, 50 Hz

The Shinko FSL-GJ-600-T is a robust brushless AC synchronous generator designed for industrial and commercial power generation. Featuring a power output of 250/300 kVA and a rated voltage of 200/400 V, it delivers reliable three-phase power at 50 Hz with a power factor of 0.8. The unit operates at a constant speed of 1500 RPM and is driven by a Mitsubishi S6B-PTA diesel engine producing 330 PS. Manufactured in Japan by Shinko Electric Co., Ltd., this generator includes a brushless excitation system and conforms to JEC-114 standards. Ideal for continuous duty applications with stable voltage regulation and thermal performance.

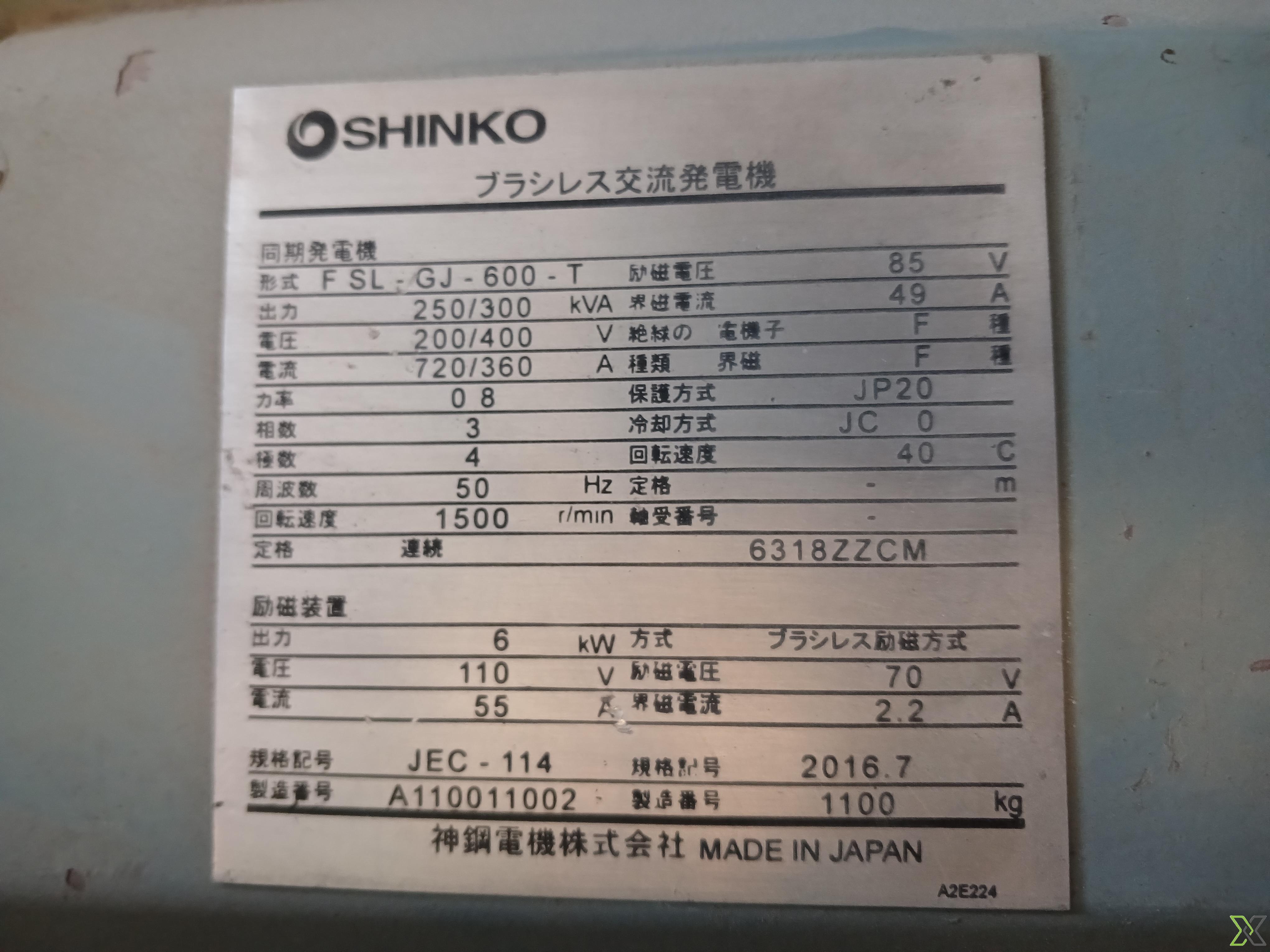

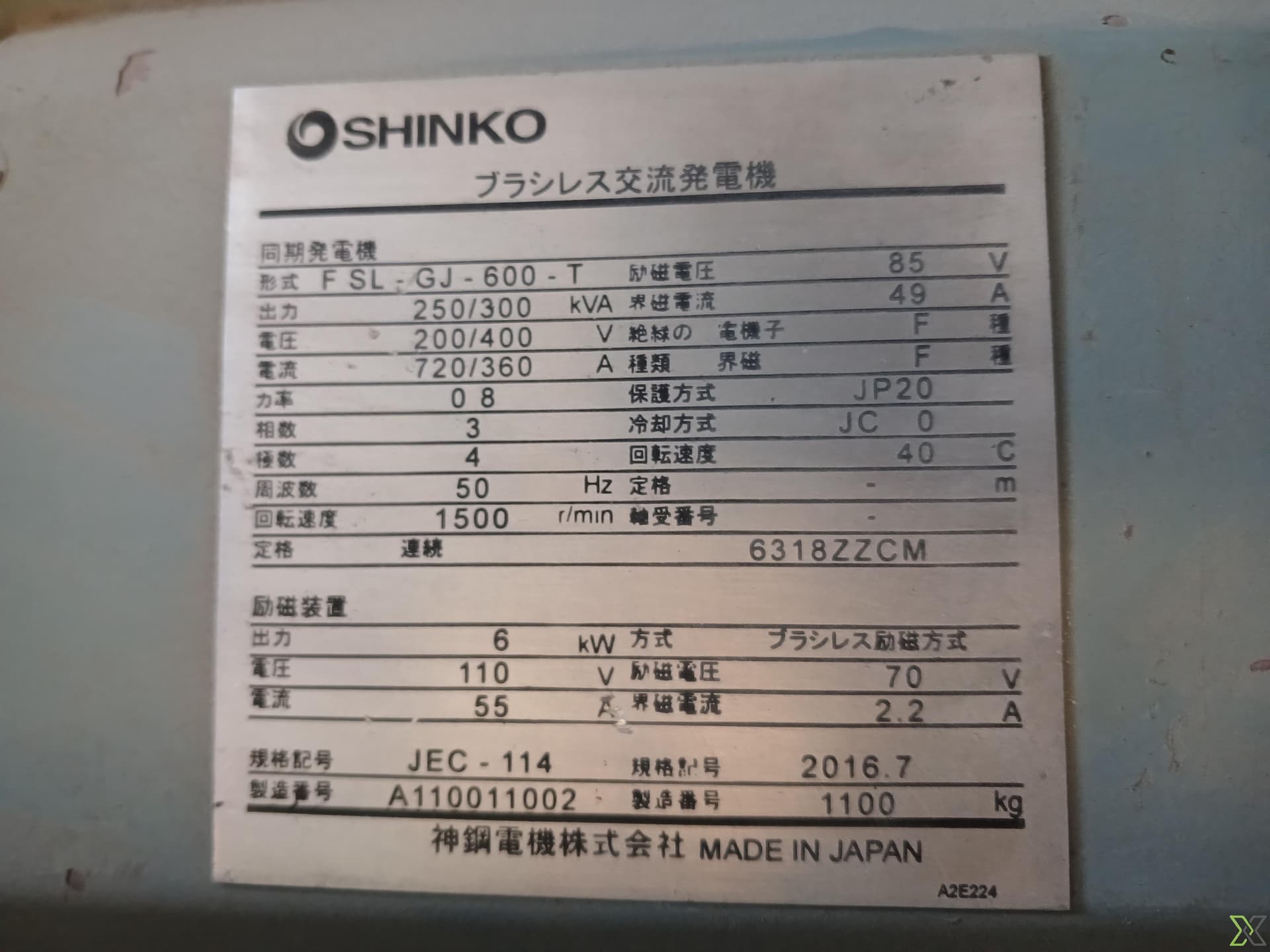

Specifications:

– Manufacturer: Shinko Electric Co., Ltd.
– Model: FSL-GJ-600-T
– Generator Type: Brushless AC Synchronous Generator
– Rated Output: 250/300 kVA
– Rated Voltage: 200/400 V
– Rated Current: 720/360 A
– Power Factor: 0.8 (lagging)
– Phase: 3-phase
– Poles: 4
– Frequency: 50 Hz
– Speed: 1500 RPM
– Cooling Method: JC0 (closed air cooling)
– Insulation Class: F
– Enclosure Protection: JP20
– Stator Connection: Series
– Ambient Temperature: 40°C
– Excitation Type: Brushless excitation
– Excitation Power: 6 kW
– Excitation Voltage (No Load/Full Load): 110 V / 70 V
– Excitation Current (Full Load): 2.2 A
– Insulation Standard: JEC-114
– Weight: 1100 kg
– Serial Number: A110011002
– Manufacture Date: July 2016
– Country of Origin: Japan

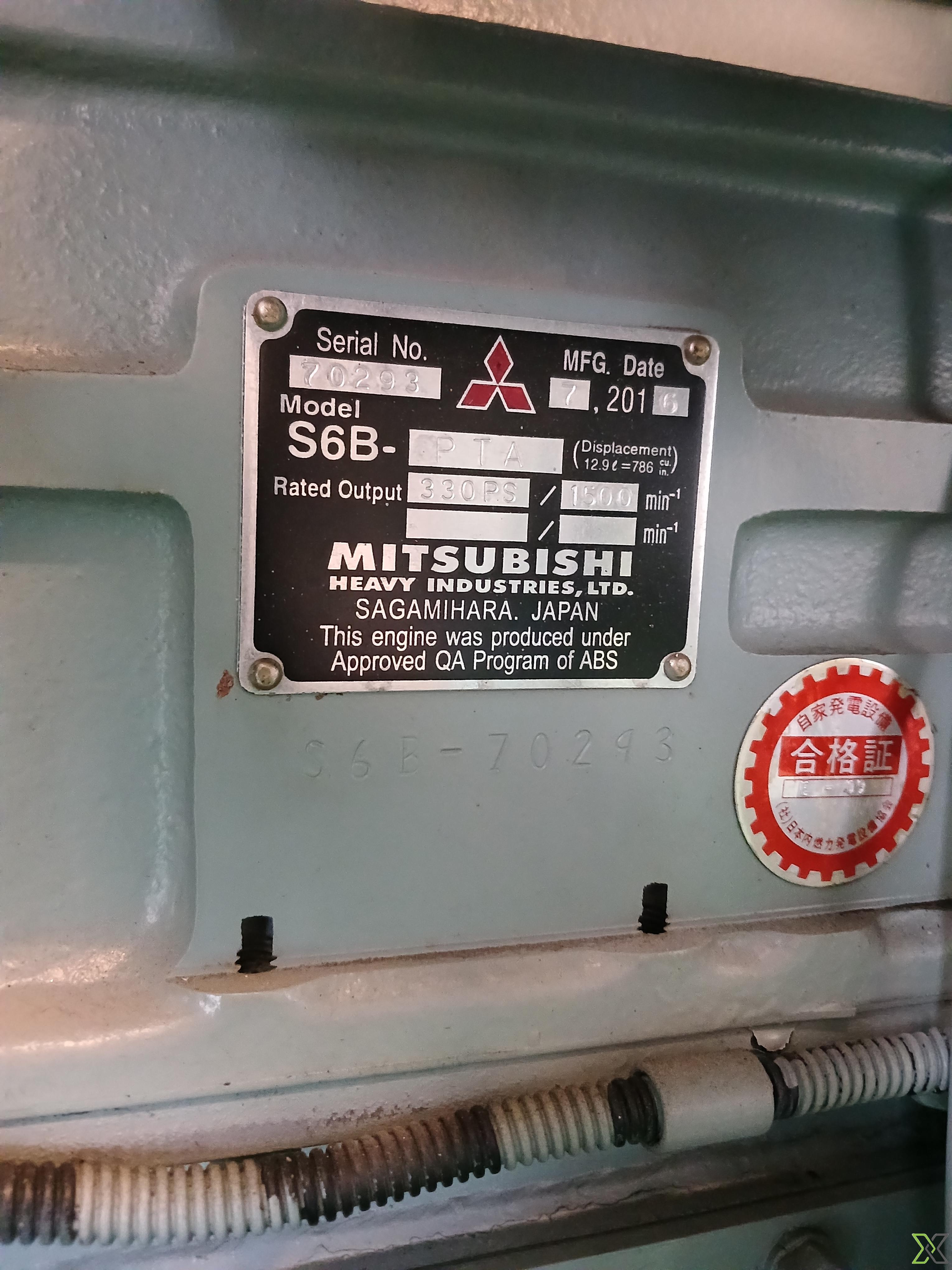

Engine Specifications
– Engine Manufacturer: Mitsubishi Heavy Industries, Ltd.
– Engine Model: S6B-PTA
– Serial Number: 70293
– Rated Output: 330 PS @ 1500 RPM
– Displacement: 12.9 L
– Manufacture Date: July 2011
– Manufacturing Location: Sagamihara, Japan

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	S6B-PTA
Year of Manufacturing	2011
Model Number	S6B-PTA
Year of Manufacturing	2011
Height	1,643 mm
Width	862 mm
Length	1,263 mm
Weight	1,550 kg
Voltage	200 / 400 V
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Speed	1,500 rpm (50 Hz)
Direction of Rotation	Counterclockwise
IFC Class	IfcEngineGenerator
Lower Limit Operating Temperature	-15°C (5°F)
Normal Output Power	324 kWm (385 kVA)
Operation Continuous Intermittent	continuous and intermittent operation
Upper Limit Operating Temperature	50°C (122°F)
