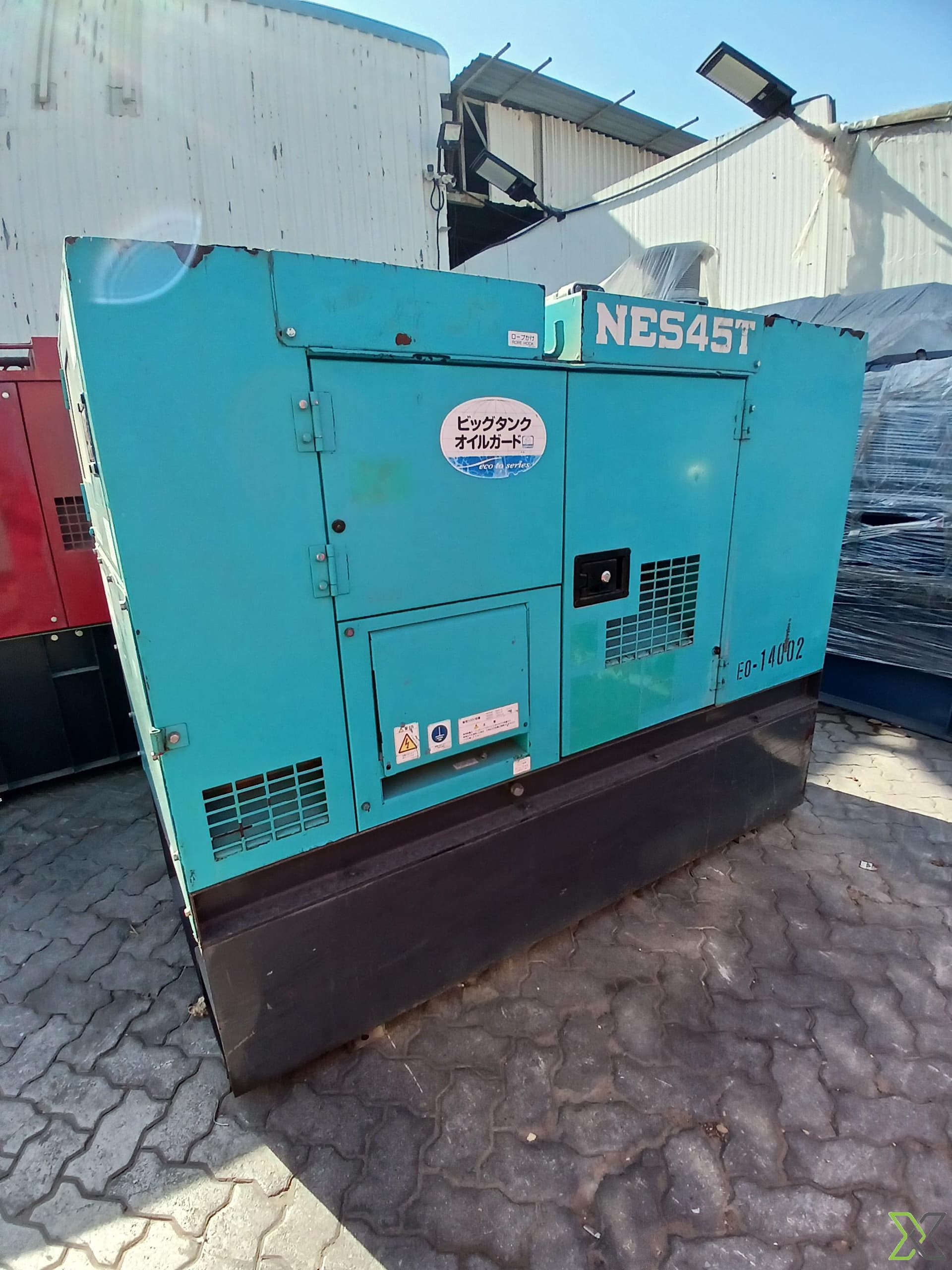

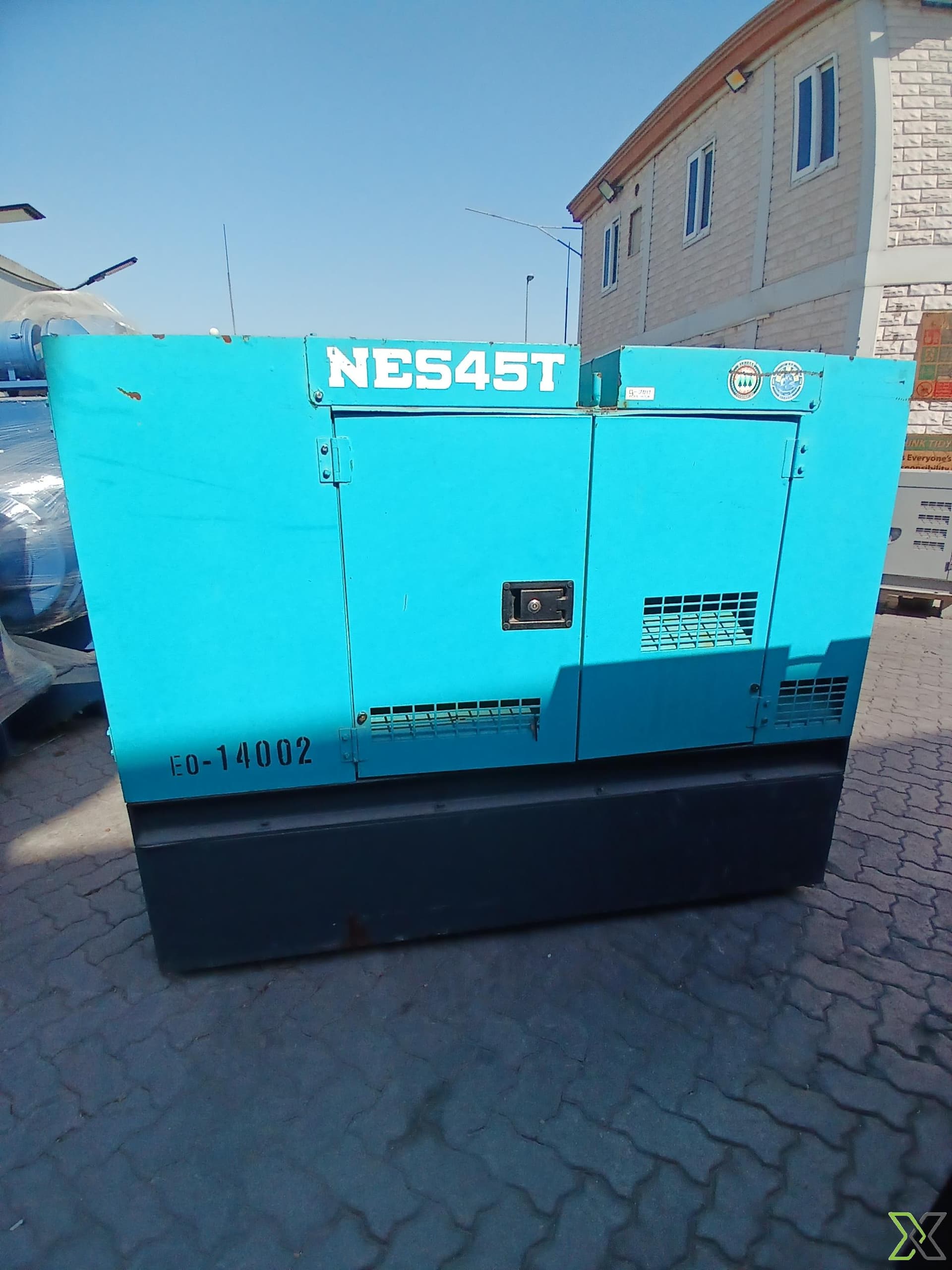

Nippon Sharyo NES45TYL Diesel Generator – 45 kVA, 3-Phase Silent Genset

ReflowX SKU: REF-446

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Nippon Sharyo Ltd.
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

Silent diesel generator set from Nippon Sharyo, Japan, offering 45 kVA output, with Yanmar engine and brushless alternator, suitable for reliable 3-phase power in both 50 Hz and 60 Hz environments.

Description

Nippon Sharyo NES45TYL Diesel Generator – 45 kVA, 3-Phase Silent Genset

The Nippon Sharyo NES45TYL diesel generator is a compact, low-noise power solution designed for industrial and commercial use. Equipped with a reliable Yanmar 3-4TNV98TG engine and NEA-3504 brushless alternator, this unit supports both 50 Hz and 60 Hz operations, delivering consistent power output of up to 45 kVA. Manufactured in Japan, the NES45TYL complies with JEM1398 standards and is designed for continuous duty applications. Its generous fuel tank capacity and efficient performance make it ideal for long-duration use in demanding environments.

Specifications:

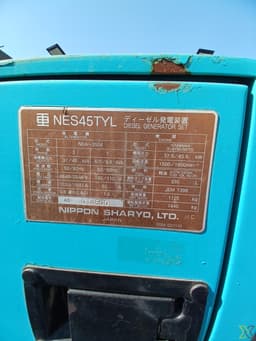

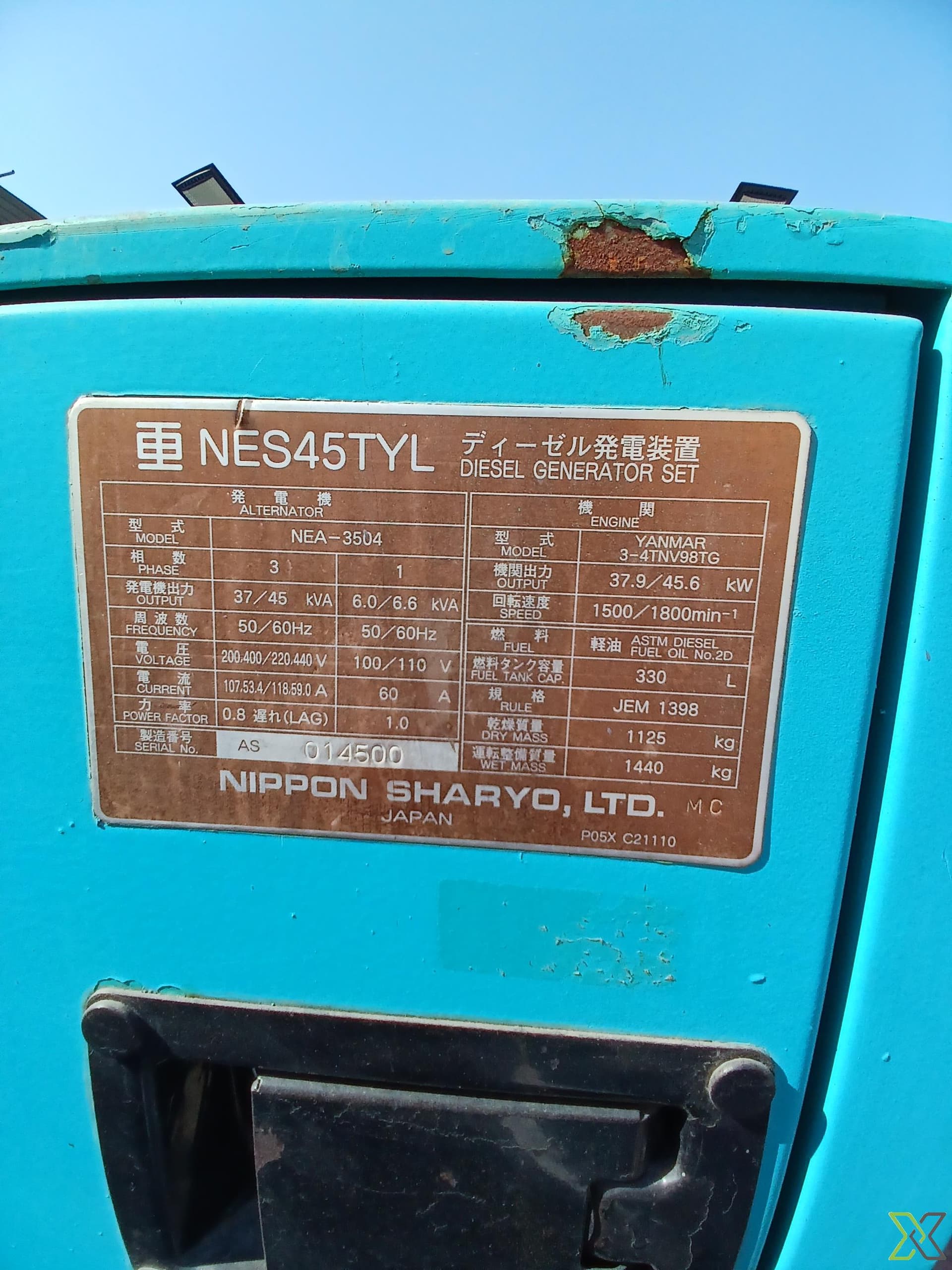

– Brand: Nippon Sharyo Ltd.
– Model: NES45TYL
– Serial Number: AS 014500
– Country of Origin: Japan
– Compliance Standard: JEM1398

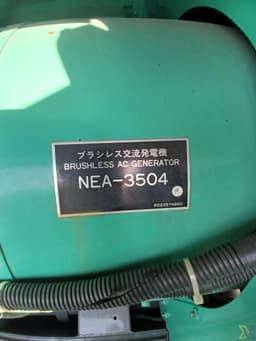

– Alternator Model: NEA-3504
– Type: Brushless AC Generator
– Phase: 3 Phase
– Rated Output: 37 / 45 kVA
– Voltage: 200/400 V or 220/440 V
– Frequency: 50 / 60 Hz
– Current (A):
• 50 Hz: 107.5 A / 53.7 A
• 60 Hz: 118.5 A / 59.0 A
– Power Factor: 0.8 (lagging)

Engine Specifications
– Engine Model: Yanmar 3-4TNV98TG
– Rated Output:
• 1500 RPM: 37.9 kW
• 1800 RPM: 45.6 kW
– Fuel Type: ASTM Diesel Fuel Oil No. 2D
– Fuel Tank Capacity: 330 L
– Dry Mass: 1125 kg
– Wet Mass: 1440 kg
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	1,350 mm
Width	950 mm
Length	2,100 mm
Weight	1,200 kg
Temperature Range	−10°C to +50°C
Pressure Rating	Not pressure-rated
Voltage	400 V, 3-phase
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Explosion Protection Gas Group	Not applicable
Explosion Protection Temperature Class	Not applicable
Explosion Protection Zone	Not applicable
Lower Limit Operating Temperature	−10°C
Normal Output Power	45 kVA
Operation Continuous Intermittent	Continuous operation supported
Upper Limit Operating Temperature	+50°C
