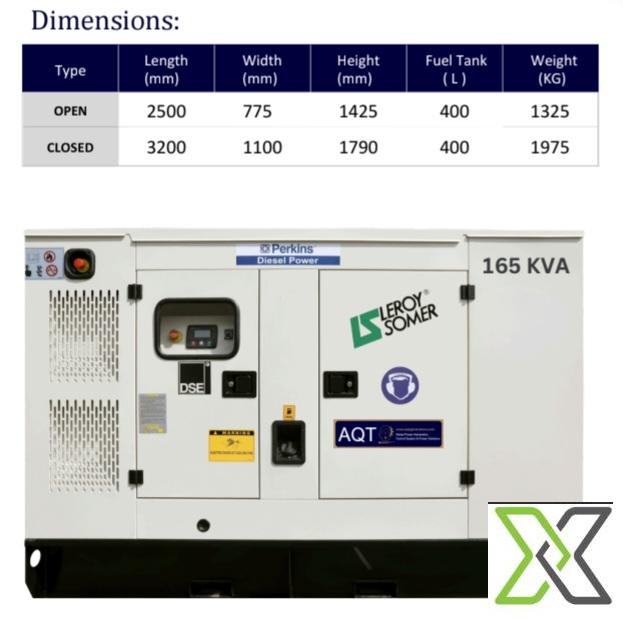

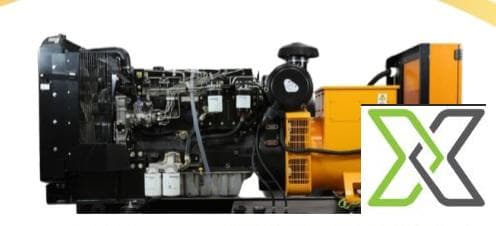

165 kVA Diesel Generator Set – Perkins 1106A-70TG1 Engine with Alternator

The 165 kVA diesel generator set delivers robust and reliable power output using the trusted Perkins 1106A-70TG1 engine, a six-cylinder, water-cooled, turbocharged unit engineered for superior efficiency and durability. Operating at 1500 RPM and 50 Hz frequency, it meets ISO 8528-1 G2 governing standards, making it suitable for both prime and standby power usage. The engine is integrated with a high-efficiency alternator—either the Leroy Somer TAL-044-H or Stamford UCDI274J—offering consistent voltage regulation, minimal harmonic distortion, and high thermal stability. This generator is ideal for industrial, commercial, or critical applications.

Specifications:

– Prime Power: 165 kVA / 132 kW
– Standby Power: 180 kVA / 144 kW
– Frequency: 50 Hz
– Speed: 1500 RPM
– Voltage: 400V, 3-Phase
– Engine Make: Perkins
– Engine Model: 1106A-70TG1
– Number of Cylinders: 6 (Vertical In-line)
– Cycle: 4-Stroke Diesel
– Aspiration: Turbocharged
– Cooling Method: Water Cooled
– Governing Type: Mechanical / Electronic (optional)
– Governing Class: G2 – ISO 8528-1
– Compression Ratio: 16.0:1
– Displacement: 7.01 litres
– Bore / Stroke: 105 mm x 135 mm
– Fuel System: Direct Injection
– Fuel Filters: Spin-on Fuel Filters with Water Separator
– Lube Oil Filter & Capacity: Full Flow Filter, 16.5 Litres
– Starting System: 24V Electric
– Charging Alternator: 45 Amp, 24V
– Alternator Make: Leroy Somer / Stamford
– Alternator Model: TAL-044-H (Leroy Somer) / UCDI274J (Stamford)
– Type: Brushless, Self-Excited
– Excitation System: Self Excited
– AVR Model: R150
– Number of Poles: 4
– Winding Leads: 6
– Type of Bearing: Single Bearing
– Insulation Class / Temp Rise: H Class / 125°C (at 40°C Ambient)
– Ingress Protection: IP23
– Voltage Regulation: ±1%
– Over Speed: 2250 RPM
– Harmonic Coefficient (THF): < 2.5%
– Telephone Influence Factor (TIF): < 50
– Cooling Air Flow: 0.40 m³/sec

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
