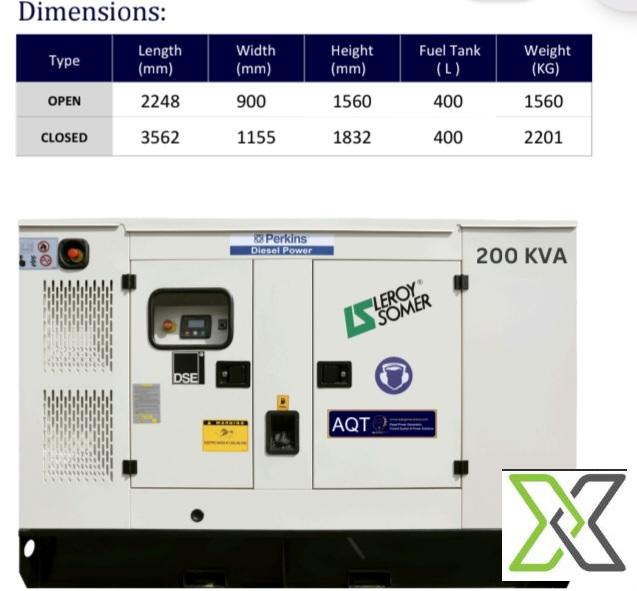

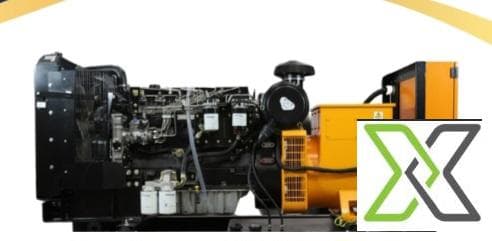

200 kVA Diesel Generator Set – Perkins 1106A-70TAG2 Engine with Alternator

This 200 kVA diesel generator set is built for dependable performance, utilizing the powerful Perkins 1106A-70TAG2 engine, a turbocharged and air-to-air charge cooled, six-cylinder diesel engine with electronic governing for precision control. With a 7.01-litre displacement and direct injection fuel system, it delivers robust power output for both prime (160 kW) and standby (176 kW) applications. Matched with either a Leroy Somer TAL-044-H or Stamford UCDI274K alternator, this genset provides excellent voltage regulation, thermal endurance, and low harmonic distortion, all within a compact and durable construction ideal for industrial and commercial operations.

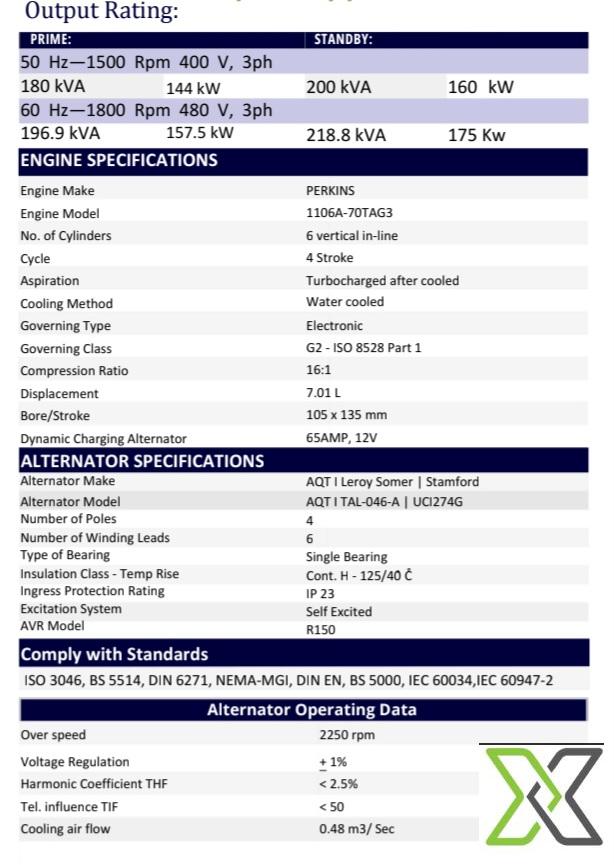

Specifications:

– Prime Power: 200 kVA / 160 kW
– Standby Power: 220 kVA / 176 kW
– Frequency: 50 Hz
– Speed: 1500 RPM
– Voltage: 400V, 3-Phase

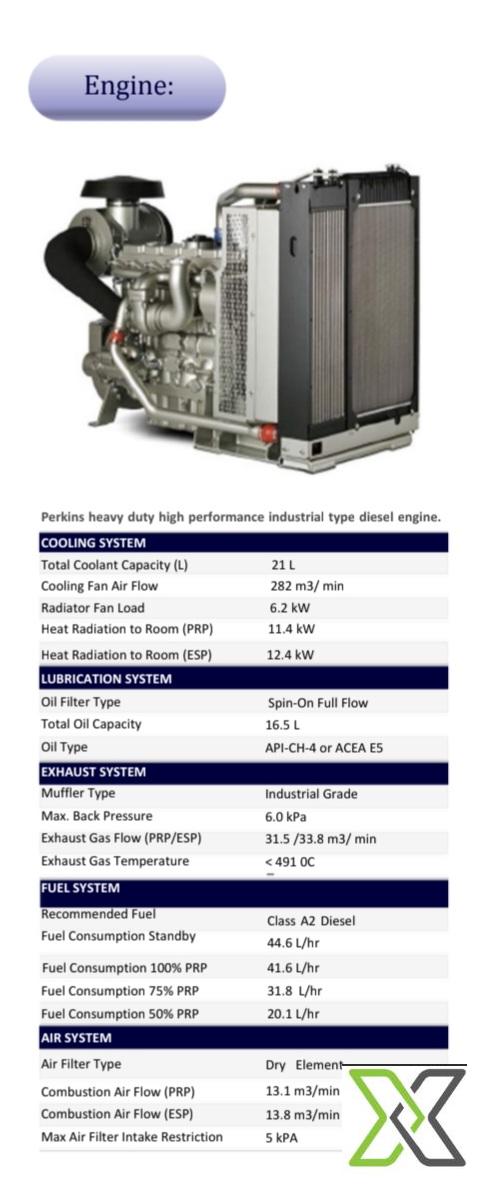

– Engine Make: Perkins
– Engine Model: 1106A-70TAG2
– Number of Cylinders: 6 (Vertical In-line)
– Cycle: 4-Stroke Diesel
– Aspiration: Turbocharged & Air-to-Air Charge Cooled
– Cooling Method: Water Cooled
– Governing Type: Electronic
– Governing Class: G2 – ISO 8528-1
– Compression Ratio: 16.0:1
– Displacement: 7.01 litres
– Bore / Stroke: 105 mm x 135 mm
– Fuel System: Direct Injection
– Fuel Filters: Spin-on Fuel Filters with Water Separator
– Lube Oil Filter & Capacity: Full Flow Filter, 16.5 Litres
– Starting System: 24V Electric
– Charging Alternator: 45 Amp, 24V
– Alternator Make: Leroy Somer / Stamford
– Alternator Model: TAL-044-H (Leroy Somer) / UCDI274K (Stamford)
– Type: Brushless, Self-Excited
– Excitation System: Self Excited
– AVR Model: R150
– Number of Poles: 4
– Winding Leads: 6
– Type of Bearing: Single Bearing
– Insulation Class / Temp Rise: H Class / 125°C (at 40°C Ambient)
– Ingress Protection: IP23
– Voltage Regulation: ±1%
– Over Speed: 2250 RPM
– Harmonic Coefficient (THF): < 2.5%
– Telephone Influence Factor (TIF): < 50
– Cooling Air Flow: 0.45 m³/sec

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
