Lean JP 30 Diesel Generator Set – 30 kVA - 2024

ReflowX SKU: REF-8506

Product Details

Quantity

10
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Lean Industries LLC (Jubaili Bros Group)
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

The Lean JP 30 diesel generator from Jubaili Bros delivers 30 kVA of dependable power using a Perkins 1103A-33G engine and Stamford/Mecc Alte alternator, ideal for prime and standby use.

Description

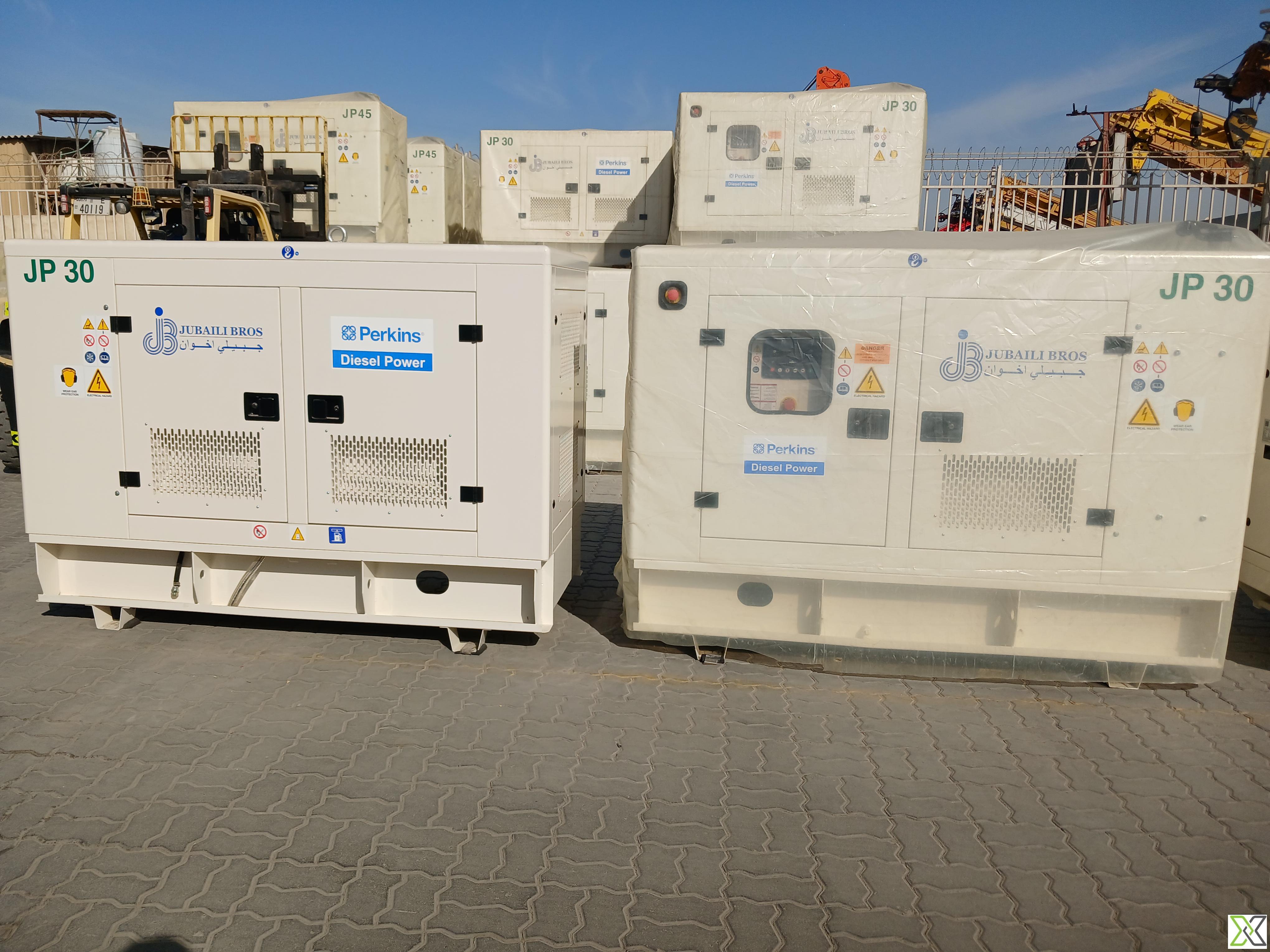

Lean JP 30 Diesel Generator Set – 30 kVA

The Lean JP 30 diesel generator is a robust power solution manufactured by Lean Industries LLC, part of the Jubaili Bros Group, and made in the United Arab Emirates (UAE). This 30 kVA / 24 kW unit is designed for prime and standby applications, offering reliable 3-phase, 50 Hz power at 400/230V with a lagging power factor of 0.8. Available in open frame or soundproof canopied configurations, the unit is skid-mounted with a base-integrated fuel tank for ease of installation and transport.

At the heart of this generator is the Perkins 1103A-33G engine, delivering approximately 29.3 kW gross power at 1500 RPM. It is a 3-cylinder inline, naturally aspirated, 3.3-liter, diesel-powered engine with a 12V DC electric starting system and water-cooled radiator. Fuel consumption is rated at approximately 6.8 L/h at 100% load and 4.8 L/h at 75% load.

The generator is coupled with a Stamford or Mecc Alte alternator, featuring brushless self-excited technology for stable performance. Voltage regulation is ±1%, supported by an AVR (Automatic Voltage Regulator). The alternator includes Class H insulation, IP23 enclosure protection, and a 4-pole design.

Control and monitoring are handled through a Deep Sea (DSE) or ComAp digital controller, providing advanced protection and user-friendly interface. The base frame is constructed from heavy-duty steel and equipped with anti-vibration mounts to enhance durability and minimize operational noise and wear.

The generator’s compact design offers two installation options:
– Open Type Dimensions: 1700 mm (L) × 800 mm (W) × 1150 mm (H), ~750 kg
– Silent Type Dimensions: 2100 mm (L) × 1000 mm (W) × 1250 mm (H), ~900–1000 kg

Specifications:
– Brand: Lean (Jubaili Bros)
– Model: JP 30
– Manufacturer: Lean Industries LLC (Jubaili Bros Group)
– Country of Origin: United Arab Emirates (UAE)
– Year of Manufacture: 2024
– Generator Type: Diesel-powered, Prime/Standby Rated
– Mounting: Skid-Mounted with Base Fuel Tank
– Configuration: Open Frame or Soundproof Canopy
– Rated Power: 30 kVA / 24 kW
– Power Factor: 0.8 (Lagging)
– Frequency: 50 Hz
– Voltage: 400/230 V (3-Phase, 4-Wire)
– Phase: 3 Phase
– Speed: 1500 RPM
– Voltage Regulation: ±1% (with AVR)
– Engine Brand: Perkins
– Engine Model: 1103A-33G
– Engine Power Output: ~29.3 kW @ 1500 RPM
– No. of Cylinders: 3 (Inline)
– Displacement: 3.3 L
– Aspiration: Naturally Aspirated
– Fuel Type: Diesel
– Starting System: 12V DC Electric Start
– Cooling System: Water-Cooled Radiator
– Fuel Consumption:
• ~6.8 L/h @ 100% Load
• ~4.8 L/h @ 75% Load
– Alternator Brand: Stamford or Mecc Alte
– Excitation System: Brushless, Self-Excited
– Voltage Regulation: ±1%
– Insulation Class: H
– Enclosure Protection: IP23
– Poles: 4
– Control Panel: Deep Sea (DSE) or ComAp Digital Controller
– Base Frame: Heavy-Duty Steel with Anti-Vibration Pads
– Dimensions (Open Type): 1700 × 800 × 1150 mm
– Dimensions (Silent Type): 2100 × 1000 × 1250 mm
– Dry Weight (Open Type): ~750 kg
– Dry Weight (Silent Type): ~900–1000 kg

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	Perkins JP 30
Year of Manufacturing	2024
Model Number	Perkins JP 30
Year of Manufacturing	2024
Height	1,200 mm
Width	750 mm
Length	1,860 mm
Weight	1,500 kg
Usage Hours	00
Temperature Range	–10°C to +50°C (standard configuration)
Voltage	400/230 V
Color	White
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	~29.3 kW
Speed	1500 RPM
Direction of Rotation	Anti-clockwise
IFC Class	IfcEngineGenerator
Explosion Protection Gas Group	Not applicable
Explosion Protection Temperature Class	Not applicable
Explosion Protection Zone	Not applicable
Lower Limit Operating Temperature	-10°C
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	+50°C
