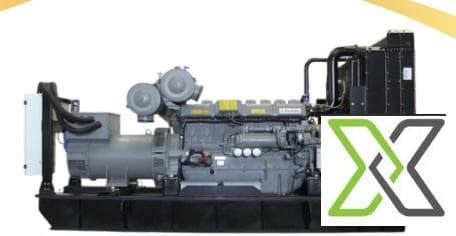

Perkins GENERATING SET AQT — 2000 kVA

ReflowX SKU: REF-1074

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Perkins
Equipment code

gen-d

Get Quotation Whatsapp Chat With Seller

Short Description

The CU500 diesel generating set is engineered for industrial-grade, commercial, and backup power applications. It integrates the highly reliable Perkins 2506C-E15TAG2 engine with a Stamford or Leroy Somer brushless alternator delivering consistent, stable power with precise voltage regulation and high efficiency.

Description

TECHNICAL SPECIFICATIONS

POWER OUTPUT

Prime Power: 2000 kVA / 1600 kW

Standby Power: 2250 kVA / 1800 kW

Frequency: 50 Hz

Speed: 1500 RPM

Voltage: 400V, 3-Phase

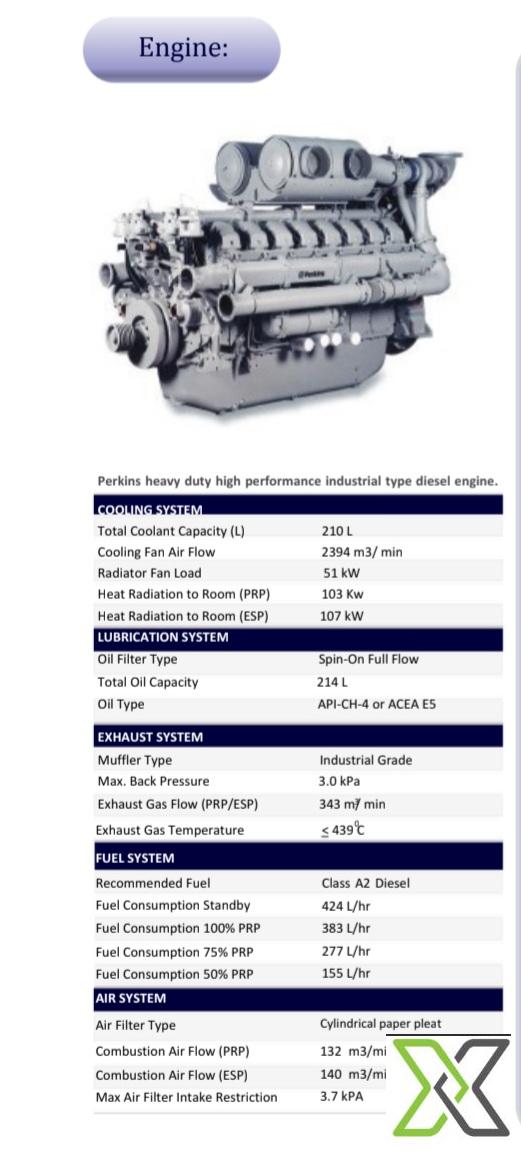

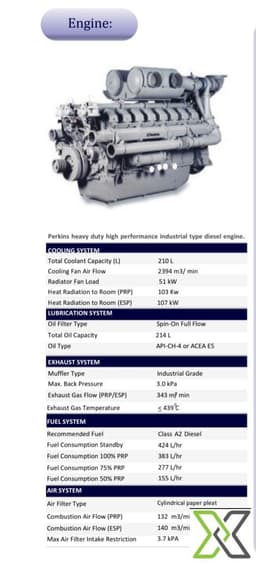

ENGINE SPECIFICATIONS

Engine Make: Perkins

Engine Model: 4016-61TRG3

Number of Cylinders: 16 (Vee configuration)

Cycle: 4-Stroke Diesel

Aspiration: Quad Turbocharged, Air-to-Water Charge Cooled

Cooling Method: Water Cooled

Governing Type: Electronic

Governing Class: G2 - ISO 8528-1

Compression Ratio: 13:1

Displacement: 61.123 litres

Bore/Stroke: 160 mm x 190 mm

Fuel System: Direct Injection, Perkins HPI

Fuel Filters: Dual Spin-on Fuel Filters with Water Separator

Lube Oil Filter & Capacity: Spin-on Full Flow Filter, 280 Litres

Starting System: 24V Electric

Dynamic Charging Alternator: 55 Amp, 24V

ALTERNATOR SPECIFICATIONS

Alternator Make: Leroy Somer / Stamford

Alternator Model: LSA 52.3 L9 (Leroy Somer) / Equivalent Stamford

Type: Brushless, Self-Excited

Excitation System: AREP + PMI

AVR Model: D510C

Number of Poles: 4

Winding Leads: 12

Type of Bearing: Single Bearing

Insulation Class / Temp Rise: H Class / 125°C (40°C Ambient)

Ingress Protection Rating: IP23

Voltage Regulation: ±0.5%

Over Speed: 2250 RPM

Harmonic Coefficient THF: < 2%

Telephone Influence Factor TIF: < 50

Cooling Air Flow: 2.5 m³/sec

STANDARDS COMPLIANCE

ISO 3046

BS 5514

DIN 6271

NEMA-MG1

DIN EN

BS 5000

IEC 60034

IEC 60947-2

FEATURES

High-performance Perkins 4016-61TRG3 engine

Heavy-duty brushless alternator for reliable voltage stability

Quad turbocharged engine with air-to-water charge cooling

AREP+PMI excitation for superior transient response

Advanced electronic governor for precise load control

24V electric start system

Integrated 55A battery charging alternator

Optimized for prime and standby applications

Large capacity fuel, oil, and cooling systems

Compliance with international standards for safety and performance

Perkins @ 50 Hz (1500 RPM)
Model	Engine	Alternator	Rating		Rating
		Leroy somer	Prime	SBY	Prime	SBY
		Leroy somer	kVA		Kw
AQT- 10	403A-11G1	TAL-040-C	9	10	7	8
AQT- 15	403A-15G1	TAL-040-C	13	15	10.4	11.4
AQT- 22	404D-22G1	TAL-040-F	20	22	16	18
AQT- 33	1103A-33G	TAL-042-C	30	33	24	26
AQT-50	1103-33TG1	TAL-042-F	45	50	36	40
AQT-66	1103A-33TG2	TAL-042-H	60	66	48	53
AQT-88	1104A-44TAG2	TAL-044-C	80	88	64	70.4
AQT-110	1104C-44TAG2	TAL-044-D	100	110	80	88
AQT-150	1106A-70TAG1	TAL-044-H	135	150	108	120
AQT-165	1106A-70TAG2	TAL-044-J	150	165	120	132
AQT-200	1106A-70TAG3	TAL-046-A	180	200	144	160
AQT-220	1106A-70TAG4	TAL-046-B	200	220	160	176
AQT-250	1506A-E88TAG2 / 1206A-E70TTAG2	TAL-046-C	230	250	184	200
AQT-275	1506A-E88TAG3 / 1206A-E70TTAG3	TAL-046-D	250	275	200	220
AQT-330	1506A-E88TAG5	TAL-046-F	300	330	240	264
AQT-400	2206A-E13TAG2	TAL-046-H	350	400	280	320
AQT-450	2206A-E13TAG3	TAL-047-A	400	450	320	360
AQT-500	2506A-E15TAG1 / 2506D-E15TAG1	TAL-047-B	455	500	364	400
AQT-550	2506A-E15TAG2	TAL-047-C	500	550	400	440
AQT-650	2806A-E18TAG3	TAL-047-F	600	650	480	520
AQT-660	2806C-E18TAG1A	TAL-047-E	600	660	480	528
AQT-700	2806A-E18TAG2	TAL-047-F	650	700	520	560
AQT-825	4006-23TAG2A	TAL-049-B	750	825	600	660
AQT-850	2806A-E18TTAG5	TAL-049-B	771	850	617	678
AQT-900	4006-23TAG3A	TAL-049-C	800	900	640	720
AQT-1000	4008-TAG1	TAL-049-D	900	1000	720	800
AQT-1100	4008-TAG2	TAL-049-E	1000	1100	800	880
AQT- 1385	4012-46TWG2A	LSA50.2M	1253	1385	1002	1108
AQT-1650	4012-46TAG2A	LSA50.2 L8	1500	1650	1200	1320
AQT-1856	4012-46TAG3A	LSA53.3 S5	1688	1856	1350	1485
AQT-2000	4016-TAG1A	LSA52.3 S5	1844	2028	1476	1622
AQT-2250	4016-TAG2A	LSA52.3 S6	2000	2250	1600	1800
AQT-2500	4016-61TRG3	LSA52.3 L9	2250	2500	1800	2000

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	Perkins 4016-61TRG3
Model Number	Perkins 4016-61TRG3
Height	2700 mm
Width	2200 mm
Length	5800 mm
Model Number	Perkins 4016-61TRG3
Weight	~9500 kg
Height	2700 mm
Width	2200 mm
Voltage	400V / 480V
Length	5800 mm
Weight	~9500 kg
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Voltage	400V / 480V
Output Power	1818 kVA / 1455 kW
Speed	1500 RPM
Direction of Rotation	Clockwise
ISO 15926 Pt 4	2353
IFC Class	IfcElectricGenerator
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Explosion Protection Temperature Class	T3 or T4
Output Power	1818 kVA / 1455 kW
Explosion Protection Zone	Zone 2
Speed	1500 RPM
Lower Limit Operating Temperature	–15°C (with standard coolant heater)
Direction of Rotation	Clockwise
IFC Class	IfcElectricGenerator
Operation Continuous Intermittent	Continuous or Intermittent
Upper Limit Operating Temperature	+50°C (de-rating may apply above 40°C)
Explosion Protection Temperature Class	T3 or T4
Explosion Protection Zone	Zone 2
Lower Limit Operating Temperature	–15°C (with standard coolant heater)
Operation Continuous Intermittent	Continuous or Intermittent
Upper Limit Operating Temperature	+50°C (de-rating may apply above 40°C)
