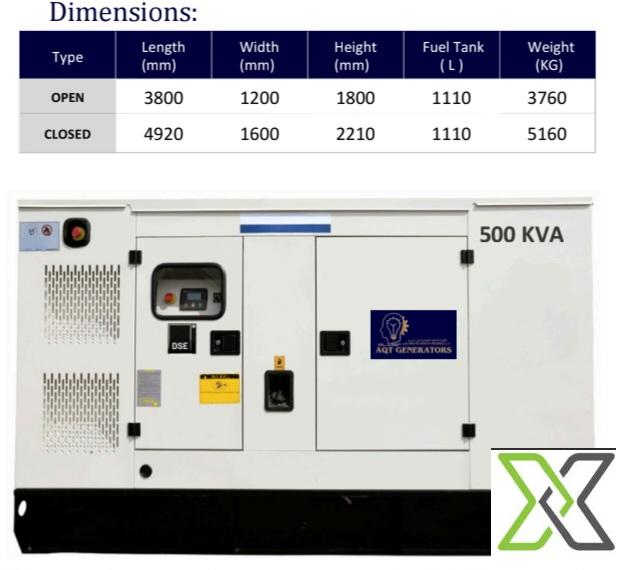

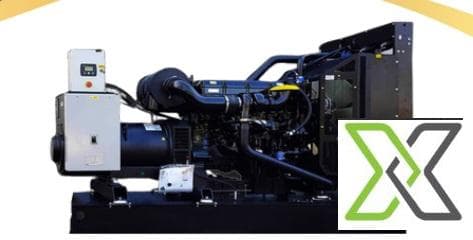

500 kVA Diesel Generator Set – Perkins 2506C-E15TAG2 Engine with Alternator

The 500 kVA (400 kW) diesel generator set equipped with the Perkins 2506C-E15TAG2 engine and Stamford or Leroy Somer alternator delivers robust, continuous, and standby power for demanding industrial and commercial applications. The 15.2-litre, turbocharged and aftercooled Perkins engine ensures high combustion efficiency, while the self-excited brushless alternator offers ±1% voltage regulation and low harmonic distortion. With IP23-rated protection, Class H insulation, and high cooling airflow capacity, this generator is built for long-term operation in harsh environments, providing both performance and reliability in prime or backup mode.

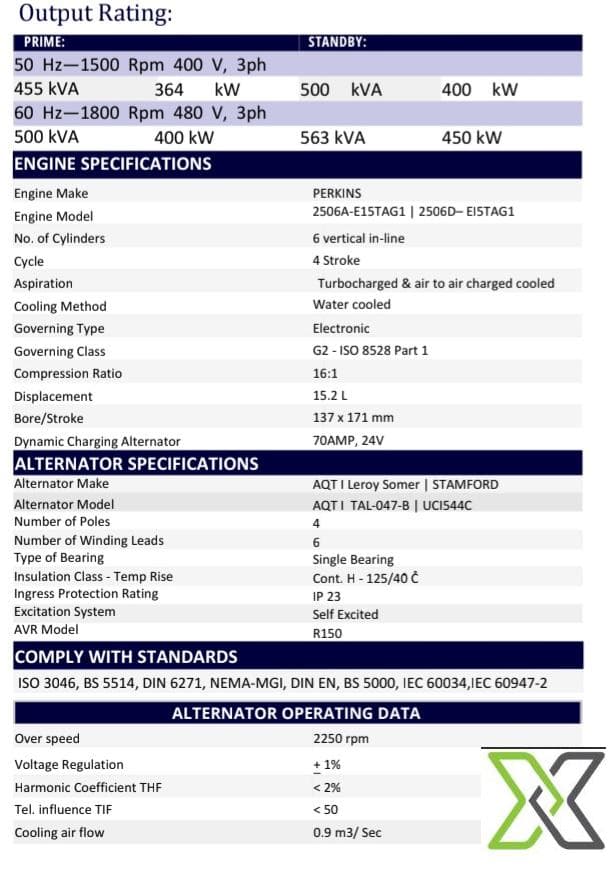

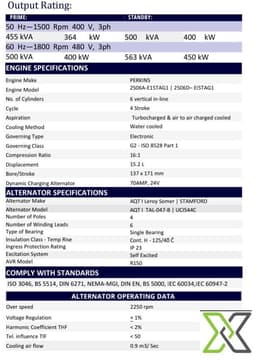

Specifications:

– Prime Power: 400 kW / 500 kVA
– Standby Power: 440 kW / 550 kVA
– Voltage: 400V, 3-Phase
– Frequency: 50 Hz
– Speed: 1500 rpm
– Power Factor: 0.8 (lagging)
– Rated Current: 721 A

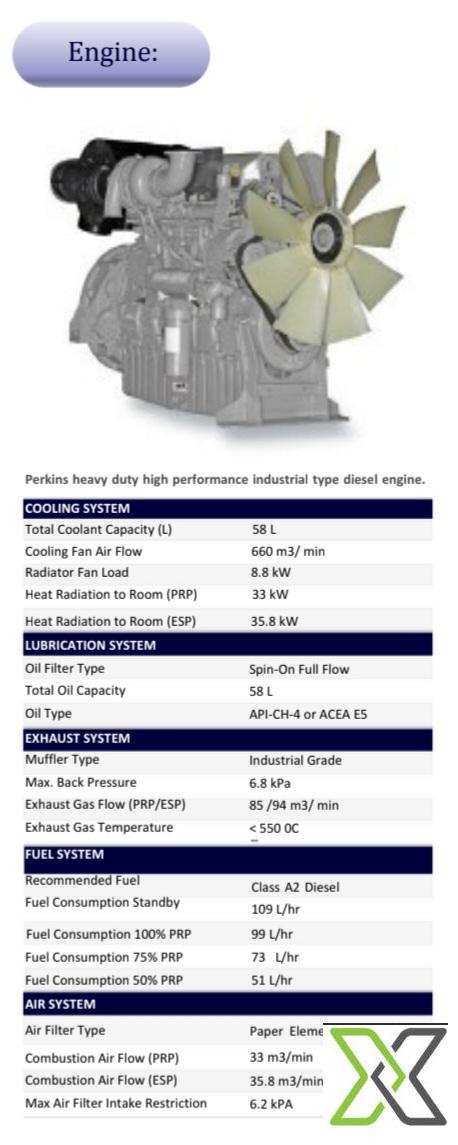

– Engine Make: Perkins
– Engine Model: 2506C-E15TAG2
– Configuration: 6-Cylinder, In-line
– Cycle: 4-Stroke
– Aspiration: Turbocharged & Aftercooled
– Cooling Method: Water Cooled
– Governing Type: Electronic
– Governing Class: G2 – ISO 8528 Part 1
– Compression Ratio: 16.0:1
– Displacement: 15.2 Litres
– Bore x Stroke: 137 mm x 171 mm
– Fuel System: Direct Injection
– Starting Voltage: 24V DC
– Battery Charging Alternator: 45 Amp, 24V
– Fuel Filters: Replaceable spin-on type with water separator
– Lube Oil Filter: Full flow, spin-on type
– Oil Capacity: 62 Litres
– Alternator Make: Stamford / Leroy Somer
– Alternator Model: HCI544D (Stamford) / TAL-046-F (Leroy Somer)
– Number of Poles: 4
– Winding Leads: 12
– Type: Single Bearing, Brushless
– Winding Pitch: 2/3
– Insulation Class: H
– Temperature Rise: 125°C at 40°C Ambient
– Ingress Protection: IP23
– Excitation System: Self-Excited
– AVR Model: R450 / D510C
– Voltage Regulation: ±1%
– Harmonic Distortion (THF): < 2%
– Telephone Influence Factor (TIF): < 50
– Cooling Air Flow: 1.0 m³/sec

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
