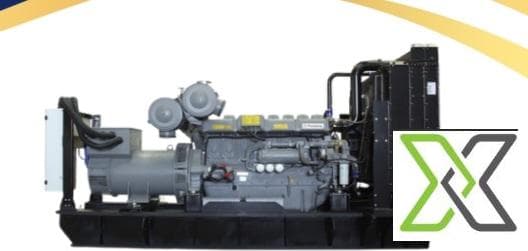

AQT-850 Diesel Generator Set – 850 kVA with Perkins 2806A-E18TTAG5 Engine & Leroy Somer / Stamford Alternator

The AQT-850 diesel generator set delivers 850 kVA prime and 940 kVA standby power, making it ideal for heavy-duty industrial and commercial installations. It is driven by the robust Perkins 2806A-E18TTAG5 6-cylinder inline engine, featuring turbocharged, air-to-air charge-cooled aspiration and electronic governing for stable operation. Coupled with a Leroy Somer TAL-049-B or Stamford HCI634G alternator, this genset offers ±1% voltage regulation, IP23 ingress protection, and Class H insulation. With generous 1170-litre fuel capacity, this unit supports extended operation in both open and containerized configurations. Two units are available for deployment.

Specifications:

– Model: AQT-850
– Power Output (Prime): 850 kVA / 680 kW
– Power Output (Standby): 940 kVA / 752 kW
– Voltage: 400 V, 3-Phase
– Frequency: 50 Hz
– Speed: 1500 RPM

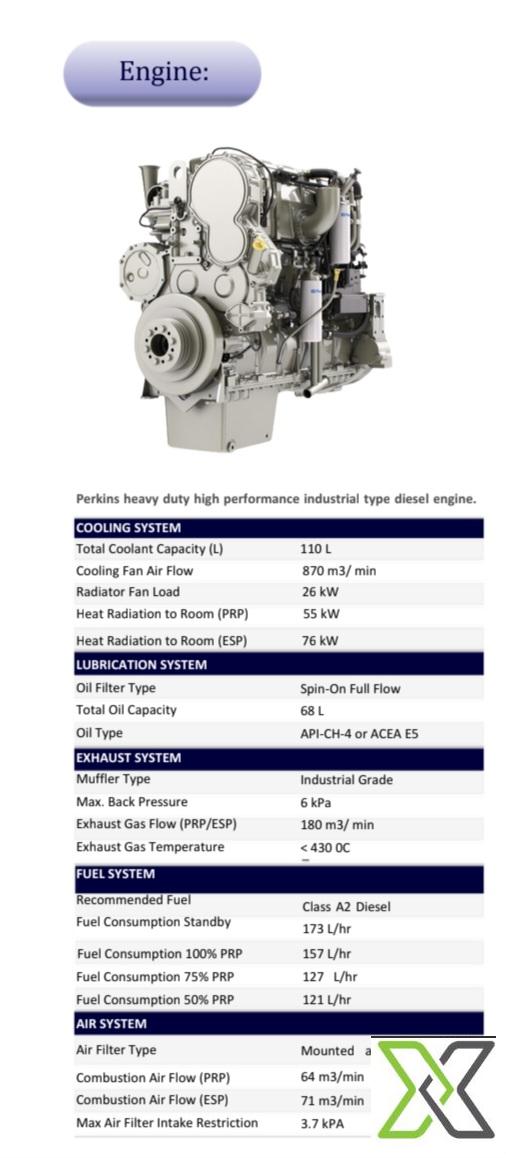

– Engine Make: Perkins
– Engine Model: 2806A-E18TTAG5
– Cylinders: 6 Vertical In-line
– Cycle: 4-Stroke Diesel
– Aspiration: Turbocharged, Air-to-Air Charge Cooled
– Cooling Method: Water Cooled
– Governing Type: Electronic
– Displacement: 18.1 Litres
– Bore x Stroke: 145 mm x 183 mm
– Starting System: 24V Electric
– Alternator Make: Leroy Somer / Stamford
– Alternator Model: TAL-049-B / HCI634G
– Bearing Type: Single Bearing
– Insulation Class: H Class
– Ingress Protection: IP23
– AVR Model: R150
– Voltage Regulation: ±1%
– Harmonic Distortion (THF): < 2%
– Telephone Influence Factor (TIF): < 50
– Cooling Air Flow: 1.0 m³/sec
– Fuel Tank Capacity: 1170 Litres

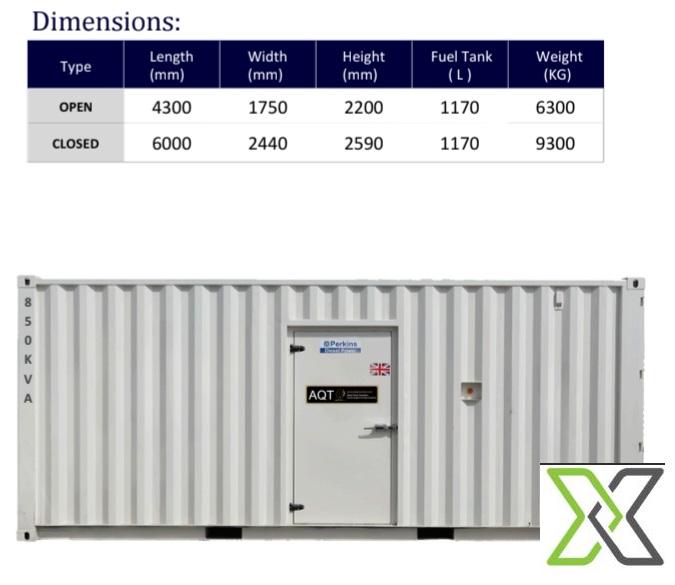

– Dimensions (Open): 4300 x 1750 x 2200 mm
– Dimensions (Closed): 6000 x 2440 x 2590 mm
– Weight (Closed): 9300 KG
– Quantity: 2 Units

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com
