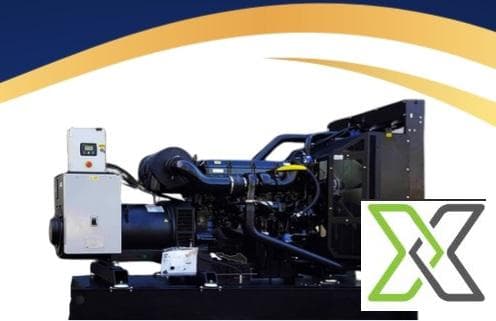

Perkins GENERATING SET AQT- 88KVA

ReflowX SKU: REF-8843

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Perkins
Equipment code

gen-d

Get Quotation Whatsapp Chat With Seller

Short Description

AQT-88 GENERATING SET 88KVA

Description

GENERAL DESCRIPTION

The AQT-88 diesel generator is designed for dependable, continuous, or standby applications. Powered by the trusted Perkins 1104A-44TG2 engine and coupled with a reliable brushless alternator from Leroy Somer or Stamford, it offers superior performance, long service life, and highly stable power output for various industrial, commercial, and backup needs.

TECHNICAL SPECIFICATIONS

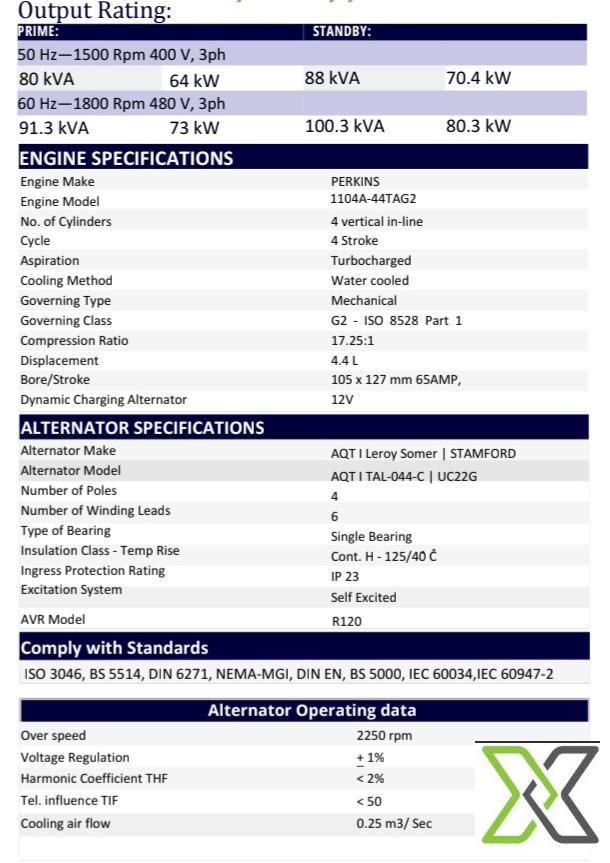

POWER OUTPUT

Prime Power: 80 kVA / 64 kW

Standby Power: 88 kVA / 70 kW

Frequency: 50 Hz

Speed: 1500 RPM

Voltage: 400V, 3-Phase

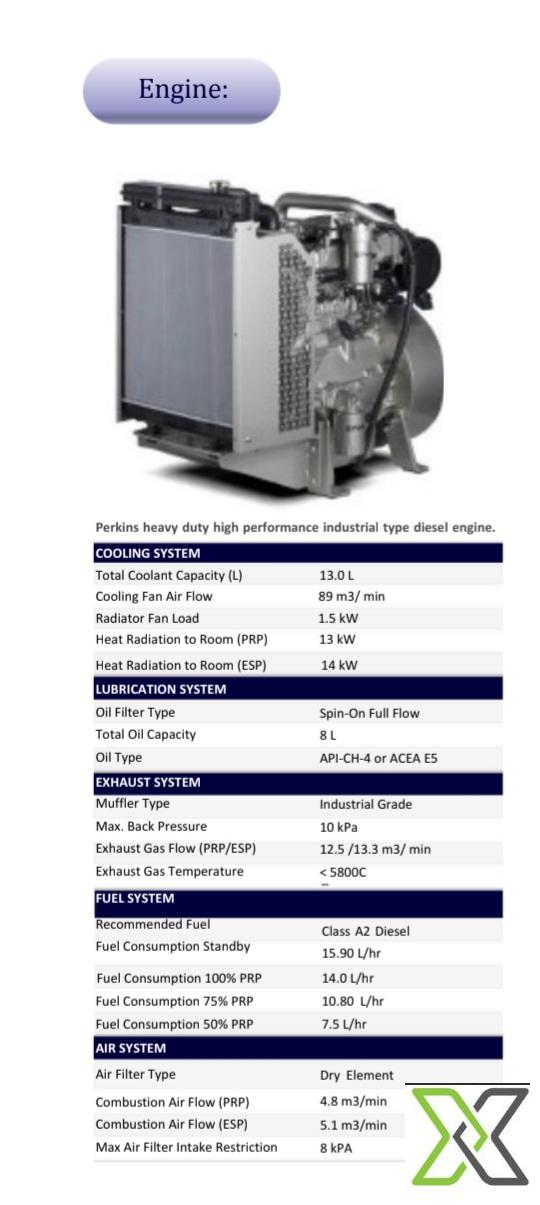

ENGINE SPECIFICATIONS

Engine Make: Perkins

Engine Model: 1104A-44TG2

Number of Cylinders: 4 (Vertical In-line)

Cycle: 4-Stroke Diesel

Aspiration: Turbocharged

Cooling Method: Water Cooled

Governing Type: Mechanical / Electronic (optional)

Governing Class: G2 - ISO 8528-1

Compression Ratio: 18.23:1

Displacement: 4.4 litres

Bore/Stroke: 105 mm x 127 mm

Fuel System: Direct Injection

Fuel Filters: Spin-on Fuel Filters with Water Separator

Lube Oil Filter & Capacity: Full Flow Filter, 8.3 Litres

Starting System: 12V Electric

Dynamic Charging Alternator: 45 Amp, 12V

ALTERNATOR SPECIFICATIONS

Alternator Make: Leroy Somer / Stamford

Alternator Model: TAL-044-C (Leroy Somer) / UCI224G (Stamford)

Type: Brushless, Self-Excited

Excitation System: Self Excited

AVR Model: R150

Number of Poles: 4

Winding Leads: 6

Type of Bearing: Single Bearing

Insulation Class / Temp Rise: H Class / 125°C (40°C Ambient)

Ingress Protection Rating: IP23

Voltage Regulation: ±1%

Over Speed: 2250 RPM

Harmonic Coefficient THF: < 2.5%

Telephone Influence Factor TIF: < 50

Cooling Air Flow: 0.28 m³/sec

STANDARDS COMPLIANCE

ISO 3046

BS 5514

DIN 6271

NEMA-MG1

DIN EN

BS 5000

IEC 60034

IEC 60947-2

FEATURES

Robust Perkins 1104A-44TG2 turbocharged engine

High-performance Leroy Somer or Stamford alternator

IP23 protection with H class insulation

Precise ±1% voltage regulation

Compact design, ideal for small-to-medium power applications

Optional mechanical or electronic governing

Low fuel consumption and reliable operation

Perkins @ 50 Hz (1500 RPM)
Model	Engine	Alternator	Rating		Rating
		Leroy somer	Prime	SBY	Prime	SBY
		Leroy somer	kVA		Kw
AQT- 10	403A-11G1	TAL-040-C	9	10	7	8
AQT- 15	403A-15G1	TAL-040-C	13	15	10.4	11.4
AQT- 22	404D-22G1	TAL-040-F	20	22	16	18
AQT- 33	1103A-33G	TAL-042-C	30	33	24	26
AQT-50	1103-33TG1	TAL-042-F	45	50	36	40
AQT-66	1103A-33TG2	TAL-042-H	60	66	48	53
AQT-88	1104A-44TAG2	TAL-044-C	80	88	64	70.4
AQT-110	1104C-44TAG2	TAL-044-D	100	110	80	88
AQT-150	1106A-70TAG1	TAL-044-H	135	150	108	120
AQT-165	1106A-70TAG2	TAL-044-J	150	165	120	132
AQT-200	1106A-70TAG3	TAL-046-A	180	200	144	160
AQT-220	1106A-70TAG4	TAL-046-B	200	220	160	176
AQT-250	1506A-E88TAG2 / 1206A-E70TTAG2	TAL-046-C	230	250	184	200
AQT-275	1506A-E88TAG3 / 1206A-E70TTAG3	TAL-046-D	250	275	200	220
AQT-330	1506A-E88TAG5	TAL-046-F	300	330	240	264
AQT-400	2206A-E13TAG2	TAL-046-H	350	400	280	320
AQT-450	2206A-E13TAG3	TAL-047-A	400	450	320	360
AQT-500	2506A-E15TAG1 / 2506D-E15TAG1	TAL-047-B	455	500	364	400
AQT-550	2506A-E15TAG2	TAL-047-C	500	550	400	440
AQT-650	2806A-E18TAG3	TAL-047-F	600	650	480	520
AQT-660	2806C-E18TAG1A	TAL-047-E	600	660	480	528
AQT-700	2806A-E18TAG2	TAL-047-F	650	700	520	560
AQT-825	4006-23TAG2A	TAL-049-B	750	825	600	660
AQT-850	2806A-E18TTAG5	TAL-049-B	771	850	617	678
AQT-900	4006-23TAG3A	TAL-049-C	800	900	640	720
AQT-1000	4008-TAG1	TAL-049-D	900	1000	720	800
AQT-1100	4008-TAG2	TAL-049-E	1000	1100	800	880
AQT- 1385	4012-46TWG2A	LSA50.2M	1253	1385	1002	1108
AQT-1650	4012-46TAG2A	LSA50.2 L8	1500	1650	1200	1320
AQT-1856	4012-46TAG3A	LSA53.3 S5	1688	1856	1350	1485
AQT-2000	4016-TAG1A	LSA52.3 S5	1844	2028	1476	1622
AQT-2250	4016-TAG2A	LSA52.3 S6	2000	2250	1600	1800
AQT-2500	4016-61TRG3	LSA52.3 L9	2250	2500	1800	2000

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	Perkins 1104A-44TG2
Model Number	Perkins 1104A-44TG2
Height	1300 mm
Width	950 mm
Length	2300 mm
Weight	Approx. 1000 kg
Usage Hours	00
Voltage	400V / 480V
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	79.2 kVA / 63.36 kW
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcElectricGenerator
Explosion Protection Temperature Class	T3 or T4
Explosion Protection Zone	Zone 2
Lower Limit Operating Temperature	–10°C (standard), –25°C with optional cold weather kit
Operation Continuous Intermittent	Continuous (Prime) / Intermittent (Standby)
Upper Limit Operating Temperature	+50°C (derating applies above 40°C)
