Perkins 2206A-E13TAG2 Diesel Generator - 2024

This 350 kVA diesel-powered generator is driven by the high-performance Perkins 2206A-E13TAG2 engine and paired with a Leroy Somer TAL 046H alternator, delivering efficient and reliable power output at 400/230V, 3-phase, 50 Hz. Engineered for heavy-duty applications, the genset operates at 1500 RPM and maintains stable voltage through a brushless excitation system managed by an R250 Automatic Voltage Regulator (AVR).

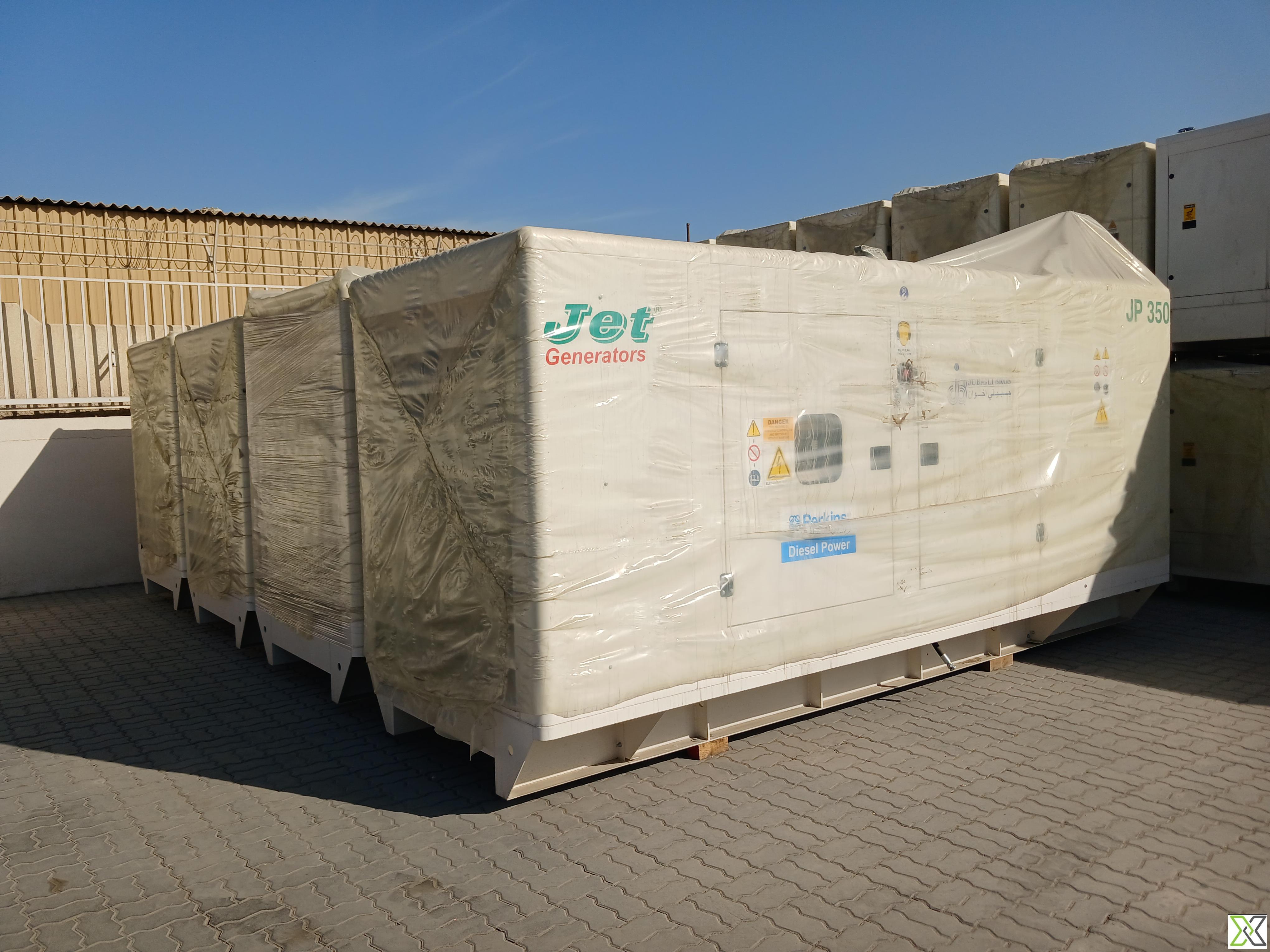

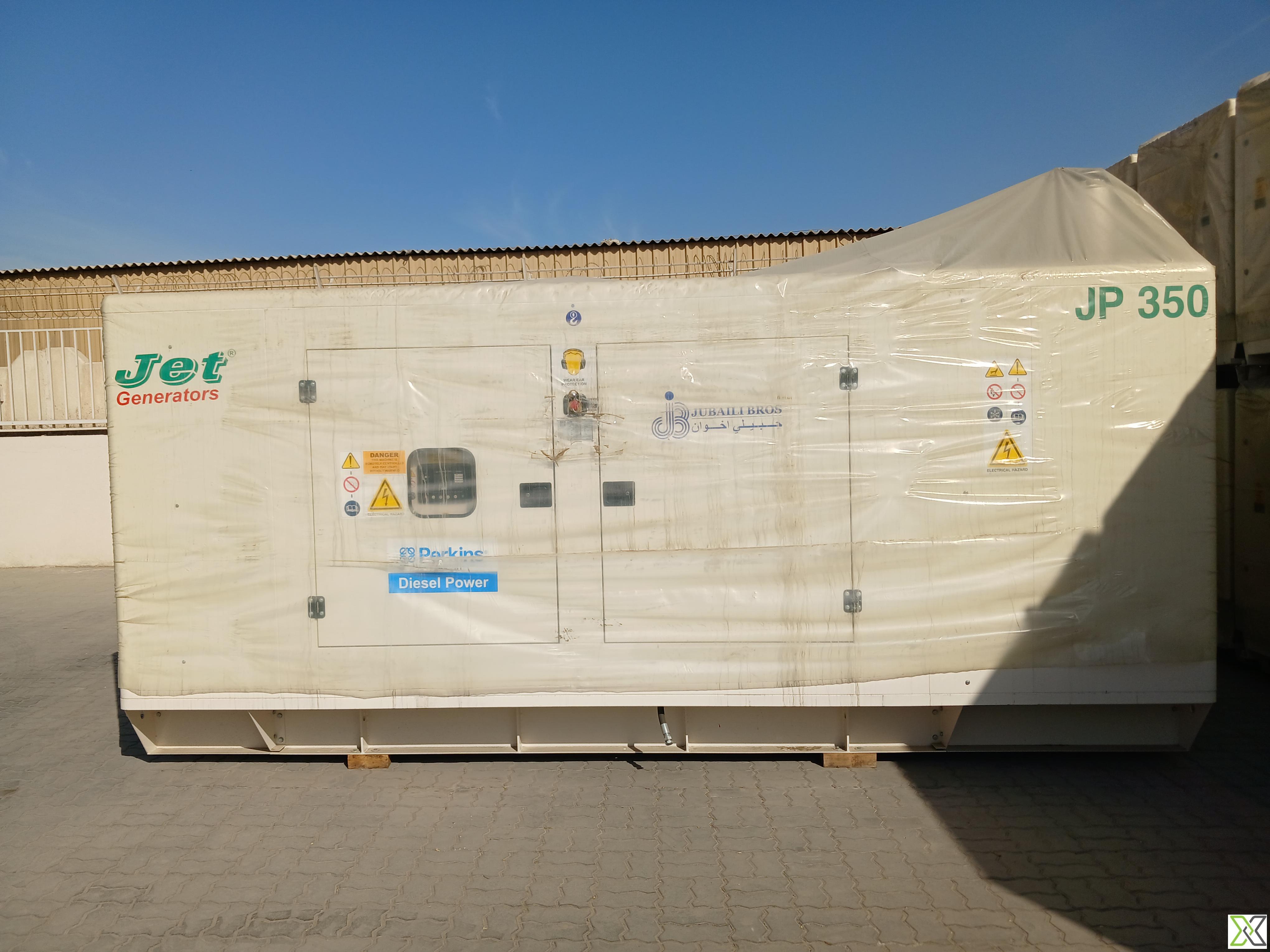

Equipped with a Deep Sea Electronics (DSE) or smart control panel, the unit features full protection, auto-start/stop, and comprehensive fault diagnostics. The generator can be supplied in an open skid-mounted frame or enclosed in a soundproof and weatherproof canopy, achieving noise levels of ≤75 dB(A) at 7 meters.

The fuel tank capacity ranges from 500–600 liters, supporting long runtimes with a fuel consumption of approximately 55–65 L/h at 75% load. The system includes a water-cooled radiator with fan, an electric 24V DC starting system, and complies with IEC 60034 performance standards (Class G2).

Specifications:

– Power Type: Diesel
– Rated Power Output: 350 kVA
– Frequency: 50 Hz
– Output Voltage: 400V / 230V, 3-phase
– Power Factor: 0.8 (lagging)
– Engine Speed: 1500 RPM
– Fuel Tank Capacity: Approx. 500–600 Liters
– Fuel Consumption: 55–65 L/h at 75% load
– Cooling System: Water-cooled with radiator and fan
– Starting System: Electric start, 24V DC
– Canopy Type: Soundproof and weatherproof enclosure (optional open type)
– Noise Level: ≤75 dB(A) @ 7 meters (enclosed type)

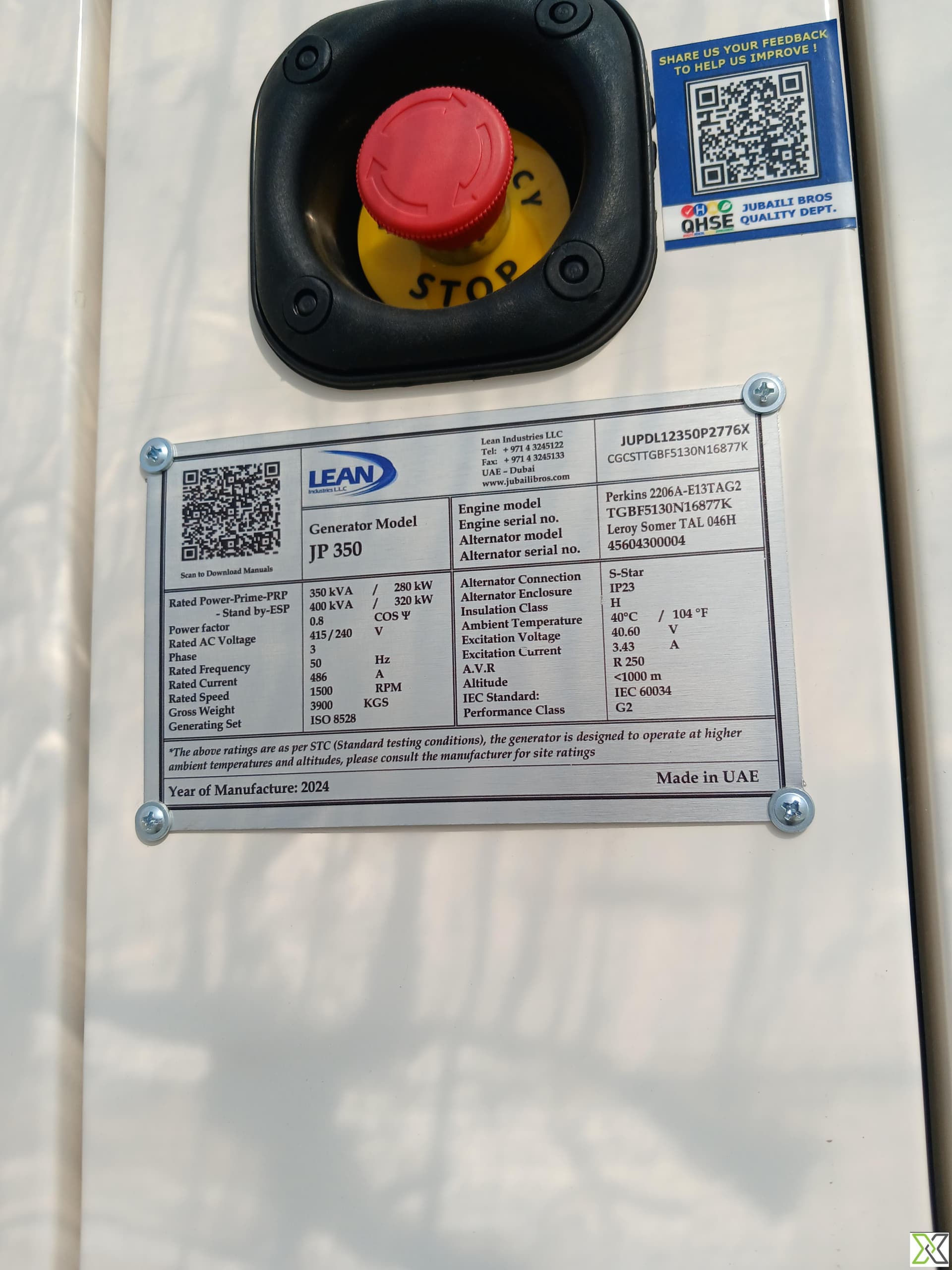

Engine Details:
– Engine Manufacturer: Perkins
– Engine Model: 2206A-E13TAG2
– Engine Serial No.: TGFB5130N16877K

Alternator Details:
– Alternator Manufacturer: Leroy Somer
– Alternator Model: TAL 046H
– Alternator Serial No.: 456043000004
– Connection Type: S-Star
– Enclosure: IP23
– Insulation Class: H
– Ambient Temperature Rating: 40°C
– Excitation Voltage: 104 V
– Excitation Current: 3.43 A
– Automatic Voltage Regulator (AVR): R250

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
