Stamford S16R-PTA Generator Set with Alternator – 1800/2000 kVA, 3-Phase - 2016

ReflowX SKU: REF-9358

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Mitsubishi Heavy Industries, Ltd.
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

Stamford HC.I734F2 alternator coupled with Mitsubishi S16R-PTA engine delivers 1800–2000 kVA output for continuous duty, featuring PMG excitation, Class H2 insulation, and dual-frequency support.

Description

Stamford S16R-PTA Generator Set with Alternator – 1800/2000 kVA, 3-Phase - 2016

This high-capacity Stamford generator set combines a Stamford HC.I734F2 alternator with a powerful Mitsubishi S16R-PTA diesel engine for continuous-duty operation. Manufactured in 2016, the alternator is built in England by Newage International Ltd. and features a brushless synchronous design with permanent magnet generator (PMG) excitation for precise voltage control and superior transient performance. With dual-frequency capability (50/60 Hz), the generator supports flexible integration across global applications. Its three-phase configuration delivers up to 2000 kVA (1600 kW) at a power factor of 0.8, protected by IP22-rated enclosure and insulated to Class H2 standards. The S16R-PTA engine, made in Japan by Mitsubishi Heavy Industries, offers 1590 kW of rated output with 65.32 liters displacement, ensuring reliable heavy-duty performance in demanding power generation environments.

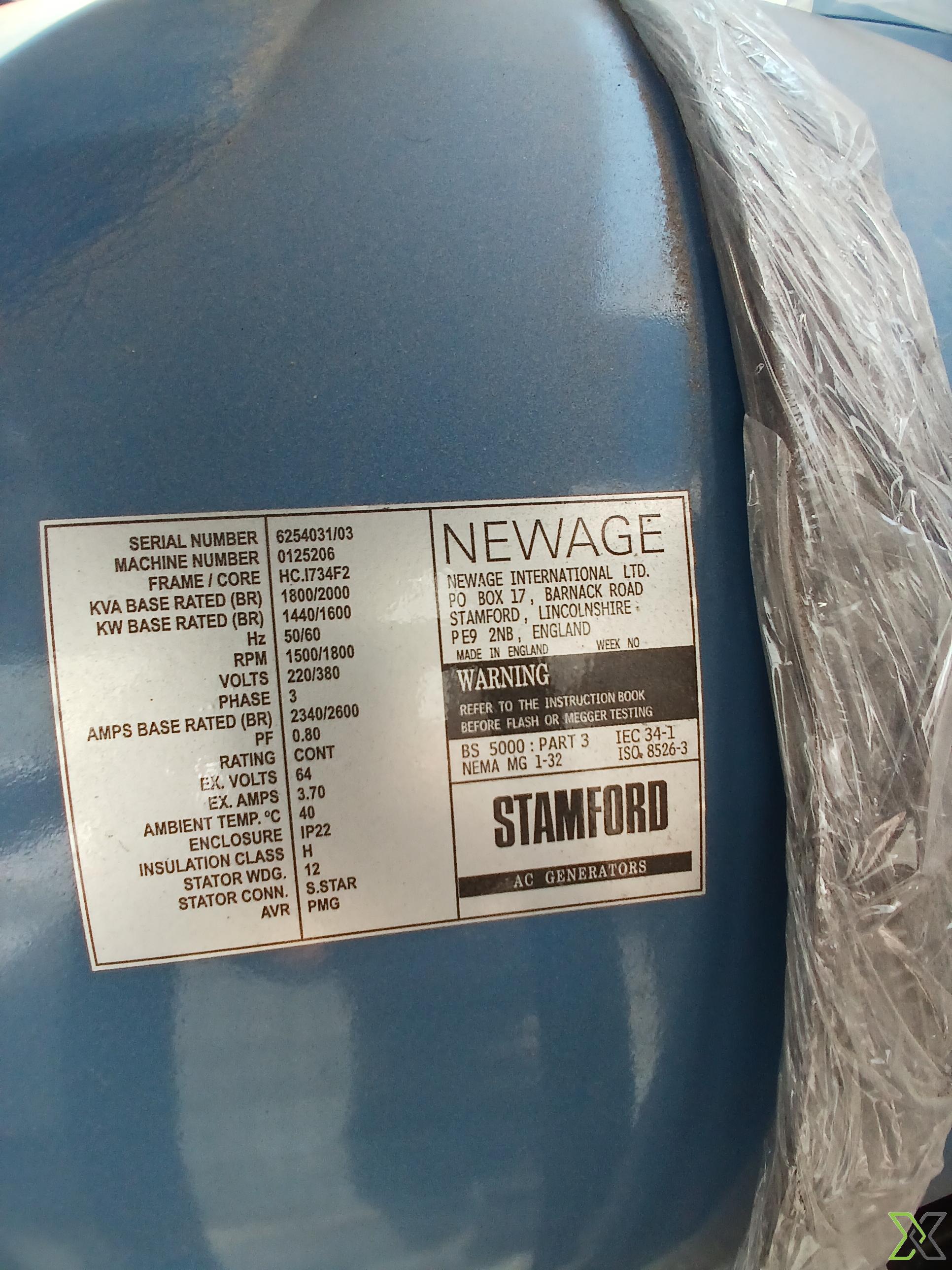

Specifications:

– Brand: Stamford (by Newage International Ltd.)
– Alternator Frame / Core: HC.I734F2
– Machine Number: 0125206
– Serial Number: 6254031/03
– Rated Power: 1800 / 2000 kVA (Base Rated)
– Rated Output: 1440 / 1600 kW (Base Rated)
– Frequency: 50 / 60 Hz
– RPM: 1500 / 1800
– Voltage: 220 / 380 V
– Current: 2340 / 2600 A
– Power Factor: 0.8
– Duty Rating: Continuous
– Excitation Type: PMG (Permanent Magnet Generator)
– Excitation Voltage: 64 V
– Excitation Current: 3.70 A
– Enclosure Protection: IP22
– Insulation Class: H2
– Stator Winding: 12
– Stator Connection: Series Star (S. Star)
– AVR Type: PMG-regulated
– Ambient Temperature Rating: 40°C
– Compliance Standards: BS 5000 Part 3, IEC 34-1, NEMA MG 1-32, ISO 8528-3
– Manufactured in: England

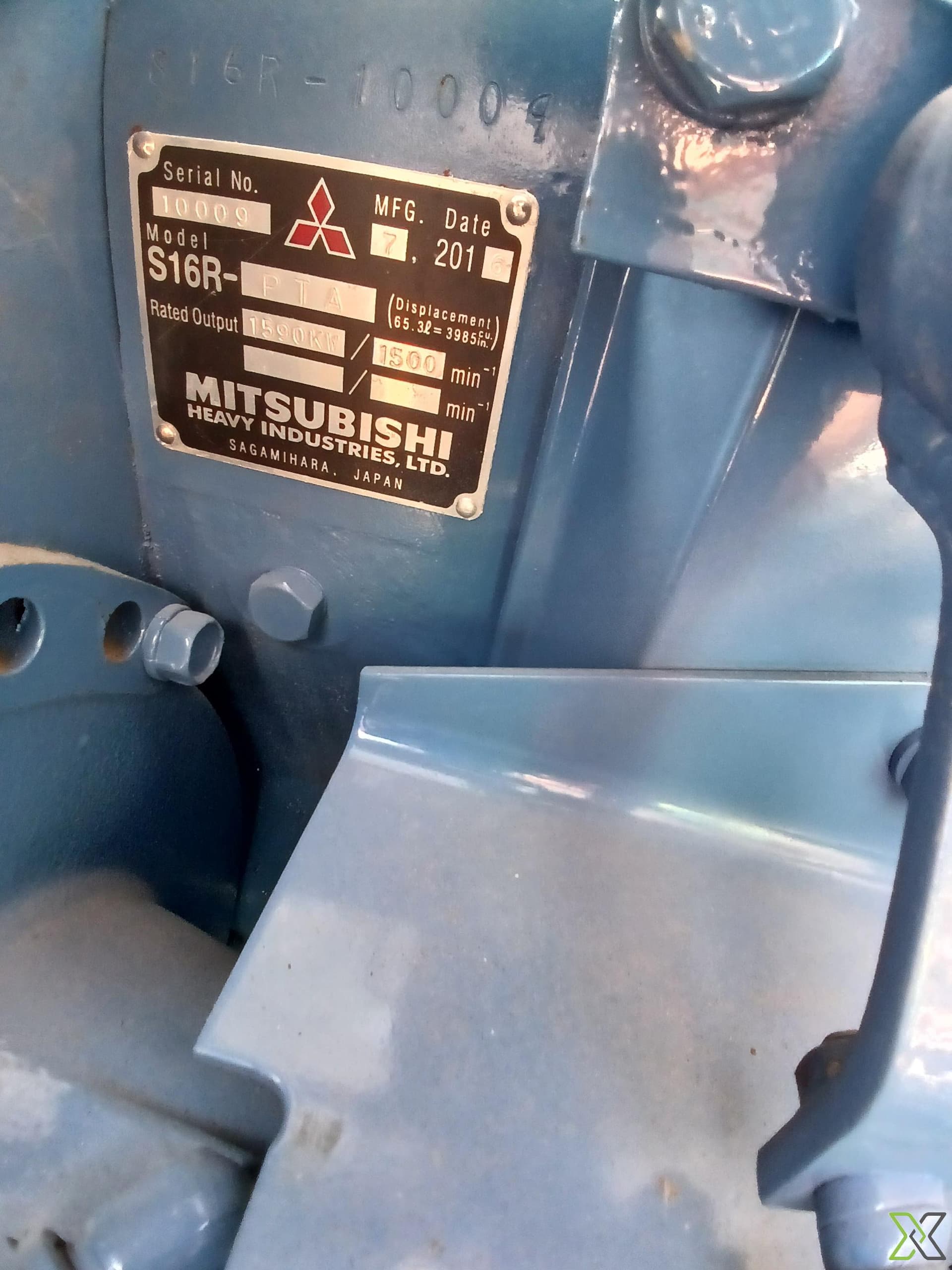

Engine Specifications:
– Engine Brand: Mitsubishi Heavy Industries, Ltd.
– Model: S16R-PTA
– Serial Number: 10009
– Rated Output: 1590 kW @ 1500 rpm
– Displacement: 65.32 L (3985 cu.in)
– Country of Manufacture: Japan (Sagamihara)
– Manufacture Date: July 2016
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	0125206
Year of Manufacturing	2016
Model Number	0125206
Year of Manufacturing	2016
Height	2300 mm
Width	1900 mm
Length	5300 mm
Weight	12,500 kg
Usage Hours	00
Temperature Range	-10°C to +50°C
Pressure Rating	Not applicable
Voltage	220 / 380 V
Color	Blue
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Speed	1500 / 1800 RPM
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Explosion Protection Gas Group	Not applicable
Explosion Protection Temperature Class	Not applicable
Explosion Protection Zone	Not applicable
Lower Limit Operating Temperature	-10°C
Normal Output Power	1600 kW
Operation Continuous Intermittent	Continuous Duty
Upper Limit Operating Temperature	+50°C
