TECO TEG-40S Diesel Generator Set – 40 kW – WEICHAI K4100ZD1-2 Engine – 60 Hz

ReflowX SKU: REF-7479

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

TECO
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

TECO TEG-40S open skid diesel generator set delivering 40 kW of prime power at 220 V and 60 Hz, powered by a WEICHAI K4100ZD1-2 engine, ideal for continuous industrial or commercial use.

Description

TECO TEG-40S Diesel Generator Set – 40 kW – WEICHAI K4100ZD1-2 Engine – 60 Hz
Description

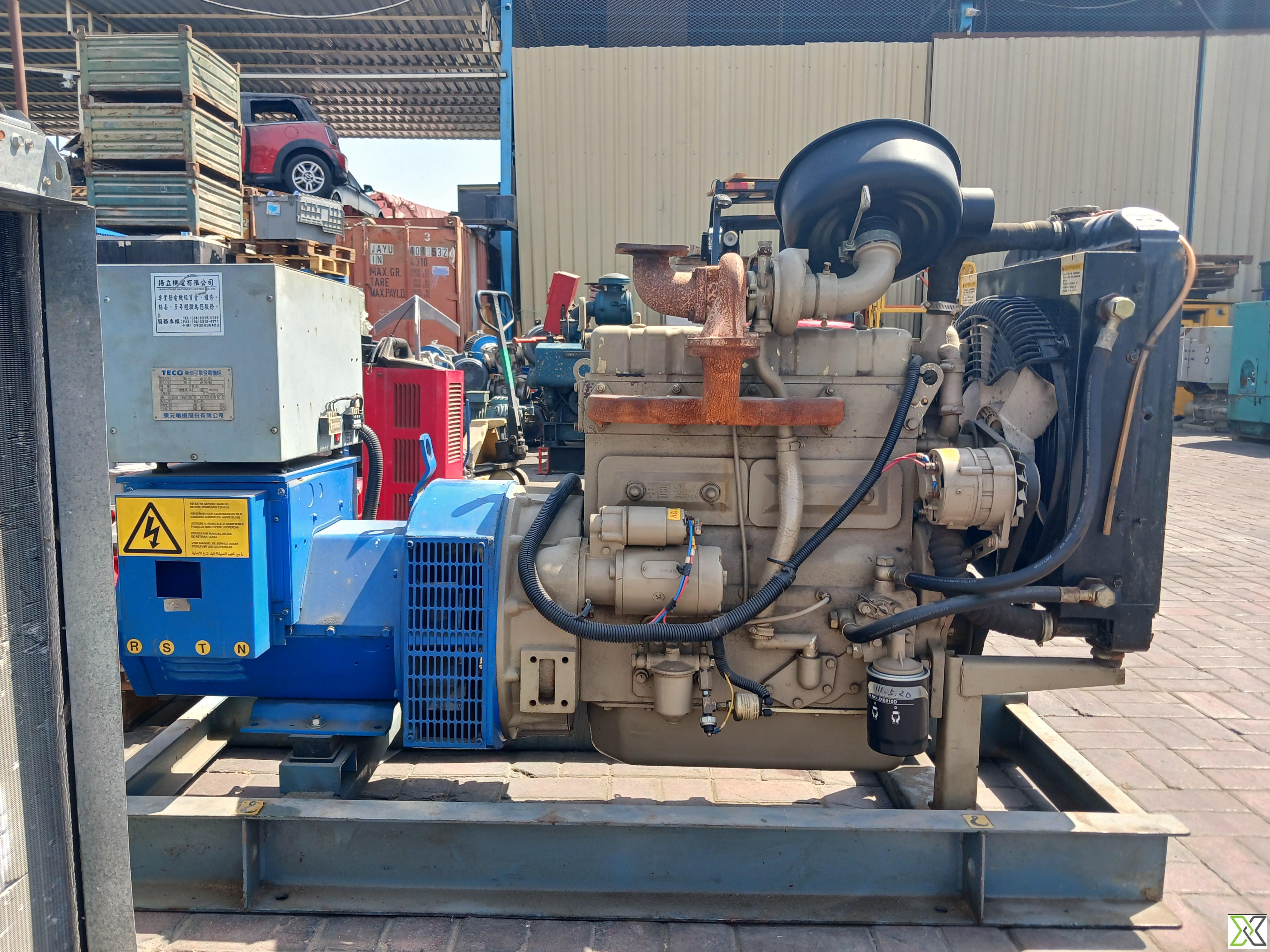

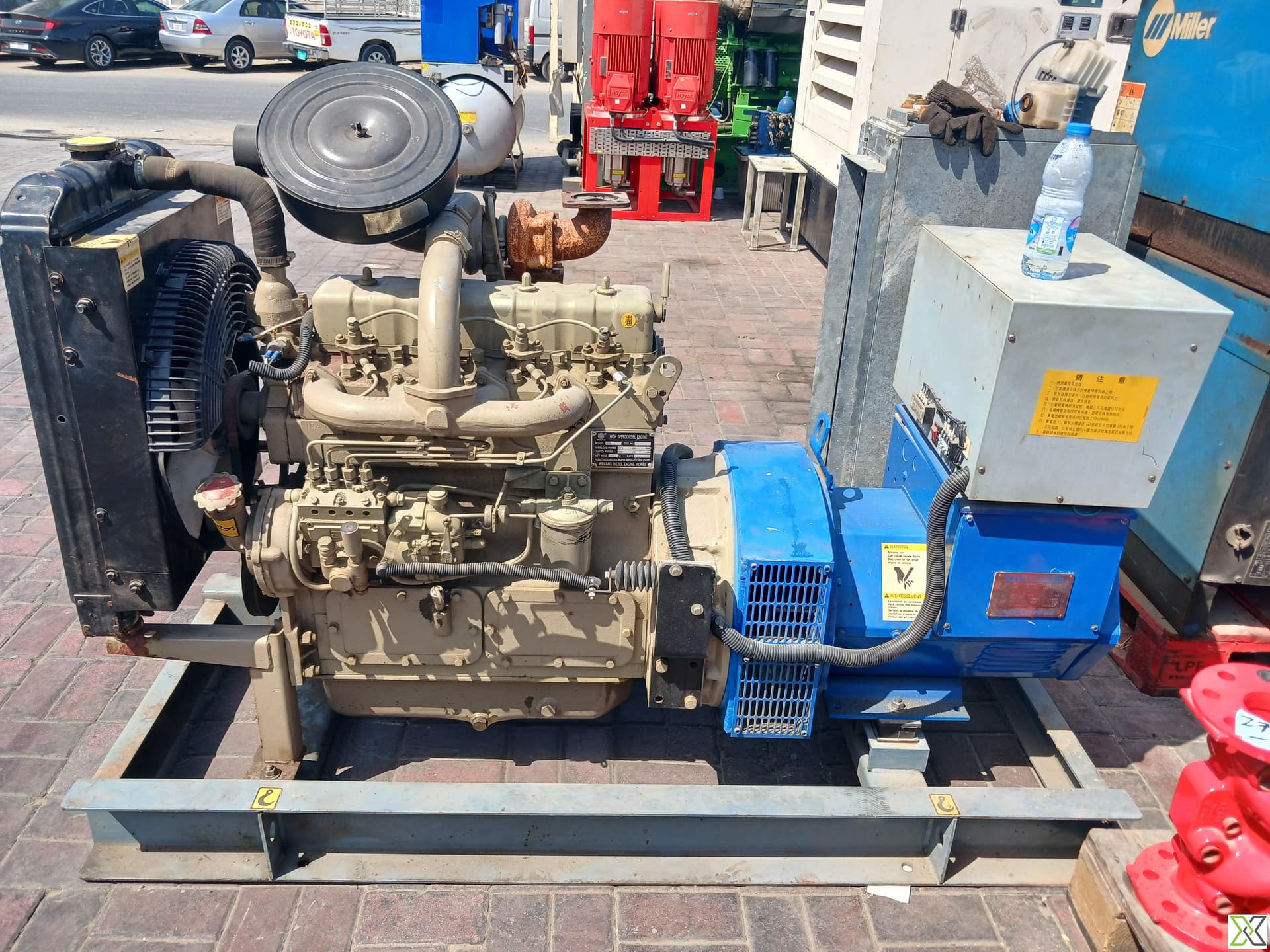

The TECO TEG-40S diesel generator set is a reliable power generation solution built for continuous-duty (prime) applications. Equipped with a WEICHAI K4100ZD1-2 diesel engine, this generator delivers 40 kW of power at 220 V, 60 Hz, and 1800 RPM. It features a compact open skid-mounted design for flexible installation and ease of maintenance.

Manufactured in 2010, the unit is powered by ASTM No. 2D grade diesel and lubricated with SAE 15W/40 engine oil. The generator operates on a 12V DC battery system and supports a rated current of 131 A at a 0.8 power factor. Its overload capability reaches 50 kW. With a rugged construction and straightforward configuration, the TEG-40S is a practical choice for light industrial, backup, or field power applications.

Specifications

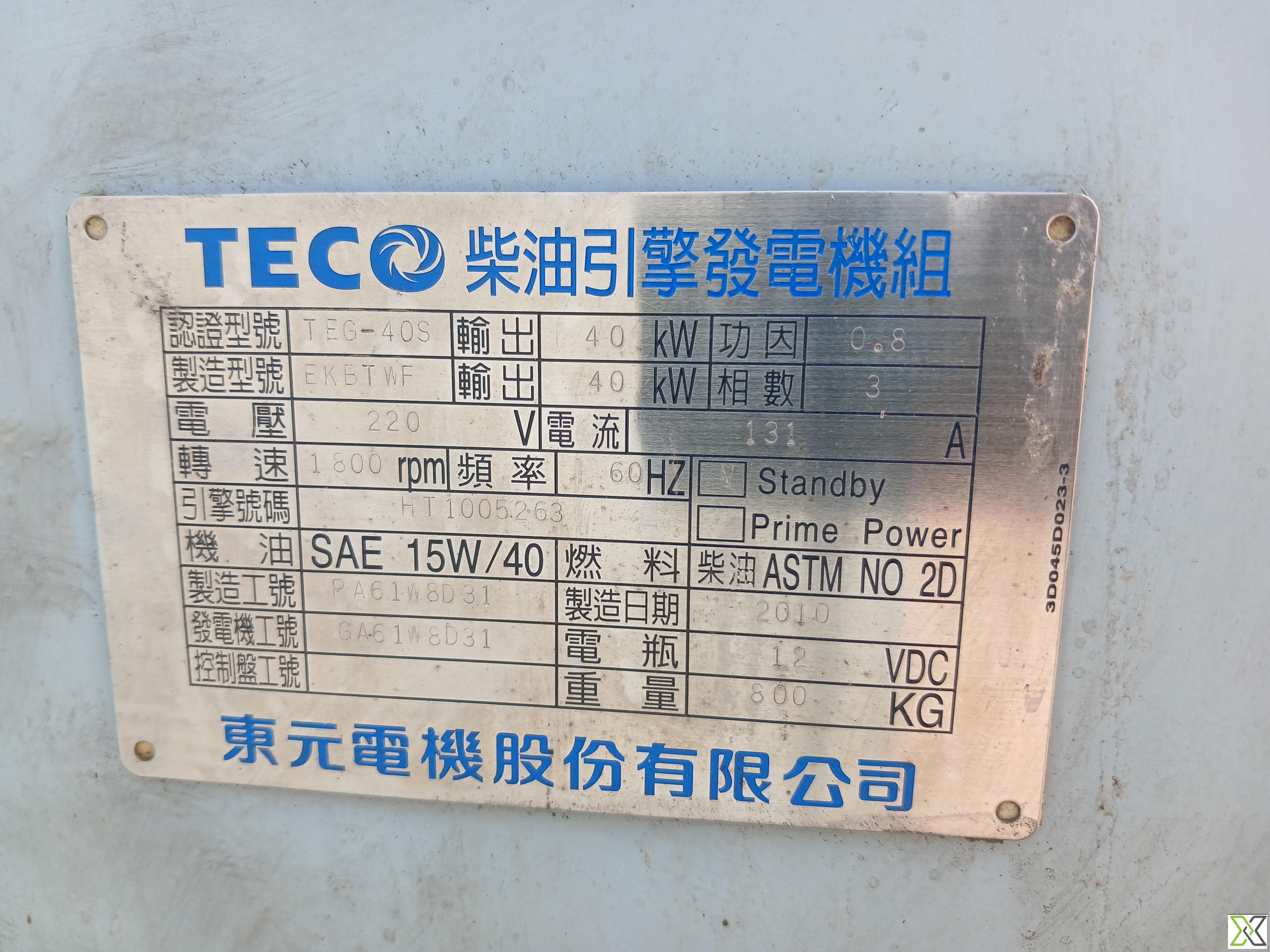

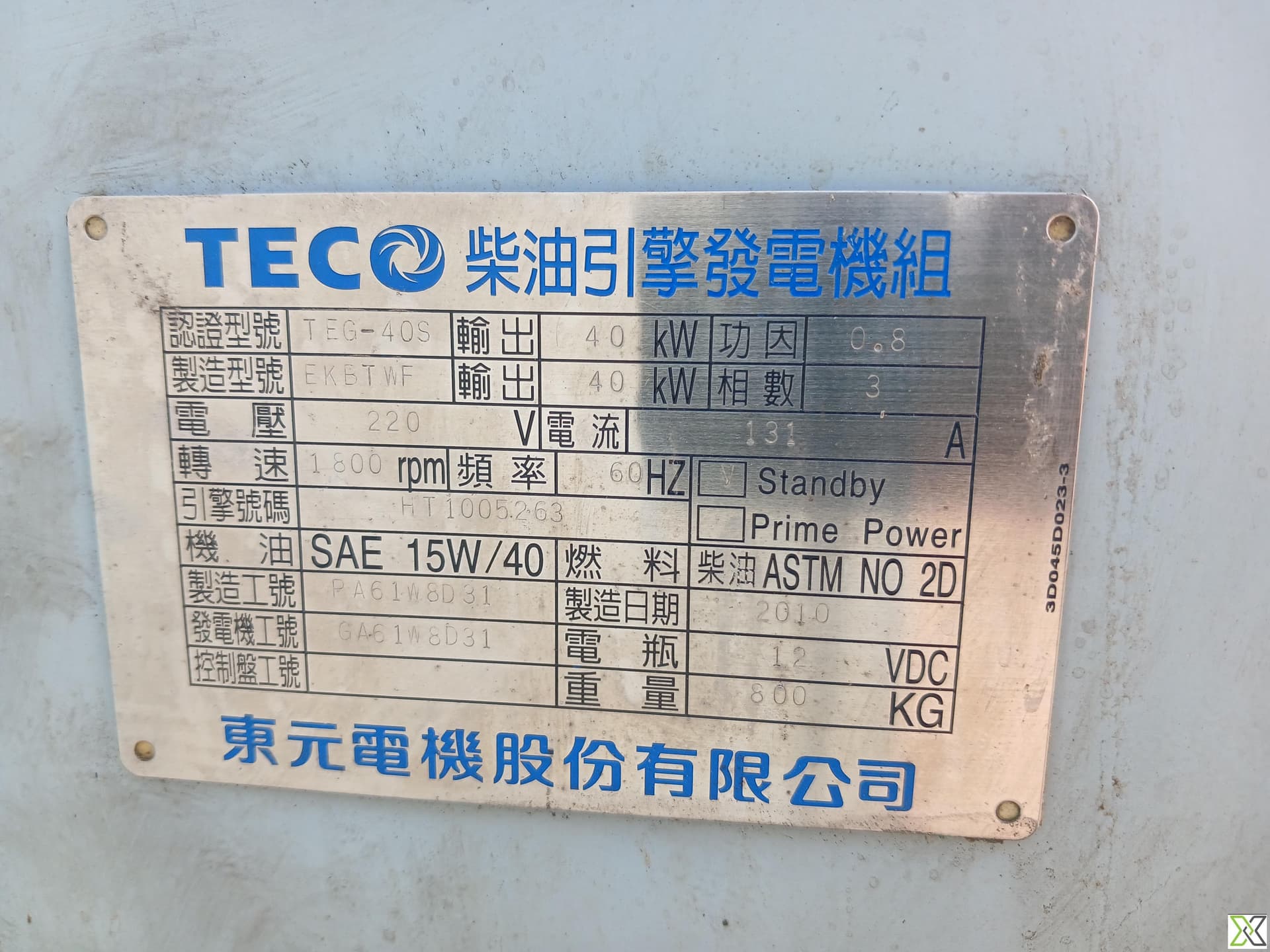

Generator Unit:

– Brand: TECO
– Model: TEG-40S
– Power Output: 40 kW
– Power Factor: 0.8
– Phases: 3
– Voltage: 220 V
– Frequency: 60 Hz
– Rated Current: 131 A
– RPM: 1800
– Fuel Type: Diesel – ASTM No. 2D
– Engine Oil Type: SAE 15W/40
– Battery Voltage: 12V DC
– Weight: 800 kg
– Production Year: 2010
– Configuration: Prime Power
– Mounting: Open skid

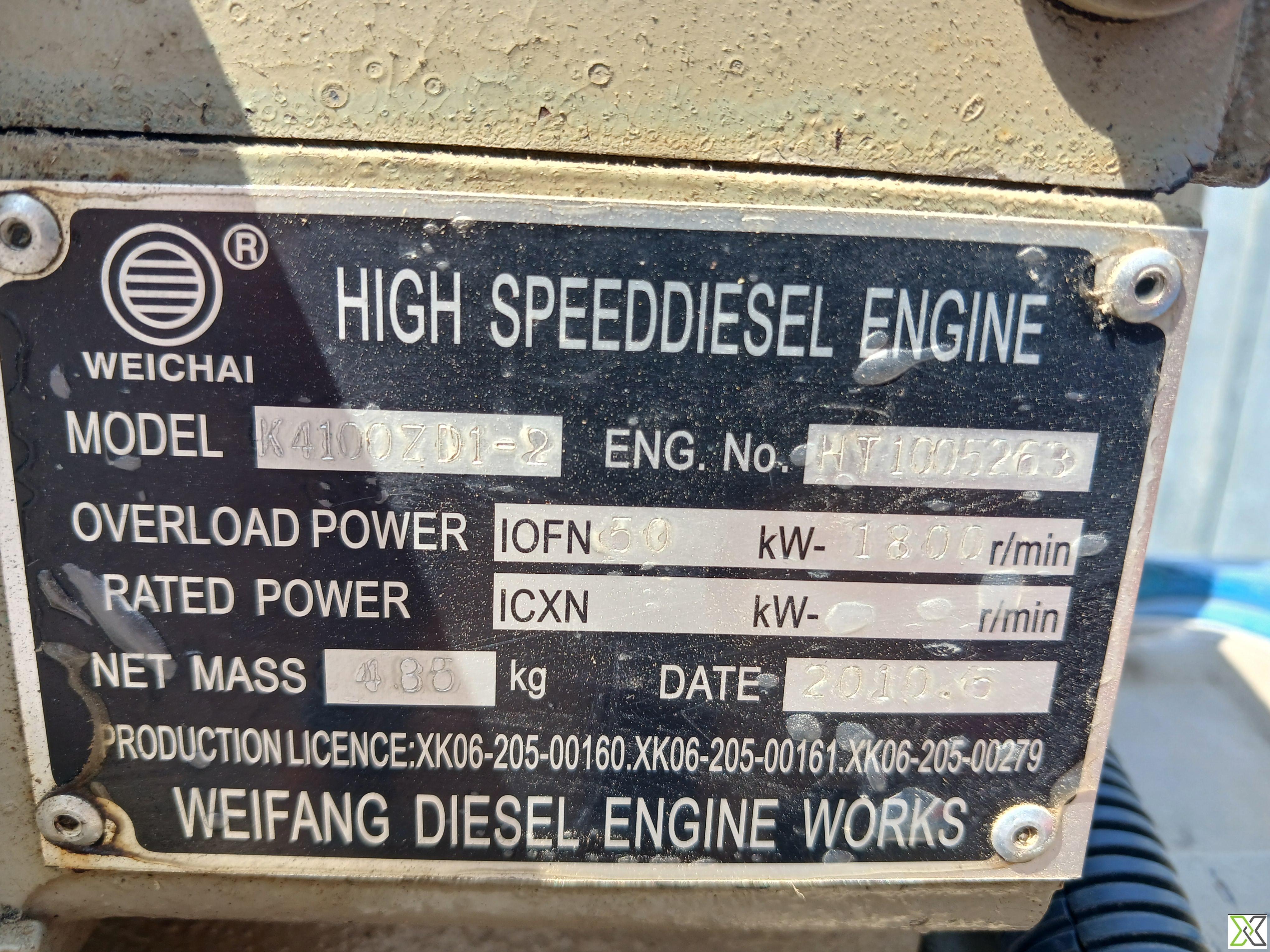

Engine Unit:

– Brand: WEICHAI
– Model: K4100ZD1-2
– Rated Power: Matches generator rating (40 kW expected)
– Overload Power: 50 kW
– Speed: 1800 RPM
– Engine No.: HT1005263
– Net Mass: 488 kg
– Manufacturing Date: June 2010
– Origin: Weifang Diesel Engine Works
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	TEG-40S
Year of Manufacturing	2010
Model Number	TEG-40S
Year of Manufacturing	2010
Manufacturer Name	TECO
Height	1,100 mm
Width	950 mm
Length	2,100 mm
Weight	850 kg
Temperature Range	–10°C to +50°C
Pressure Rating	Atmospheric
Voltage	220 V
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	40 kW
Speed	1800 RPM
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Lower Limit Operating Temperature	–10°C
Normal Output Power	40 kW
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	+50°C
