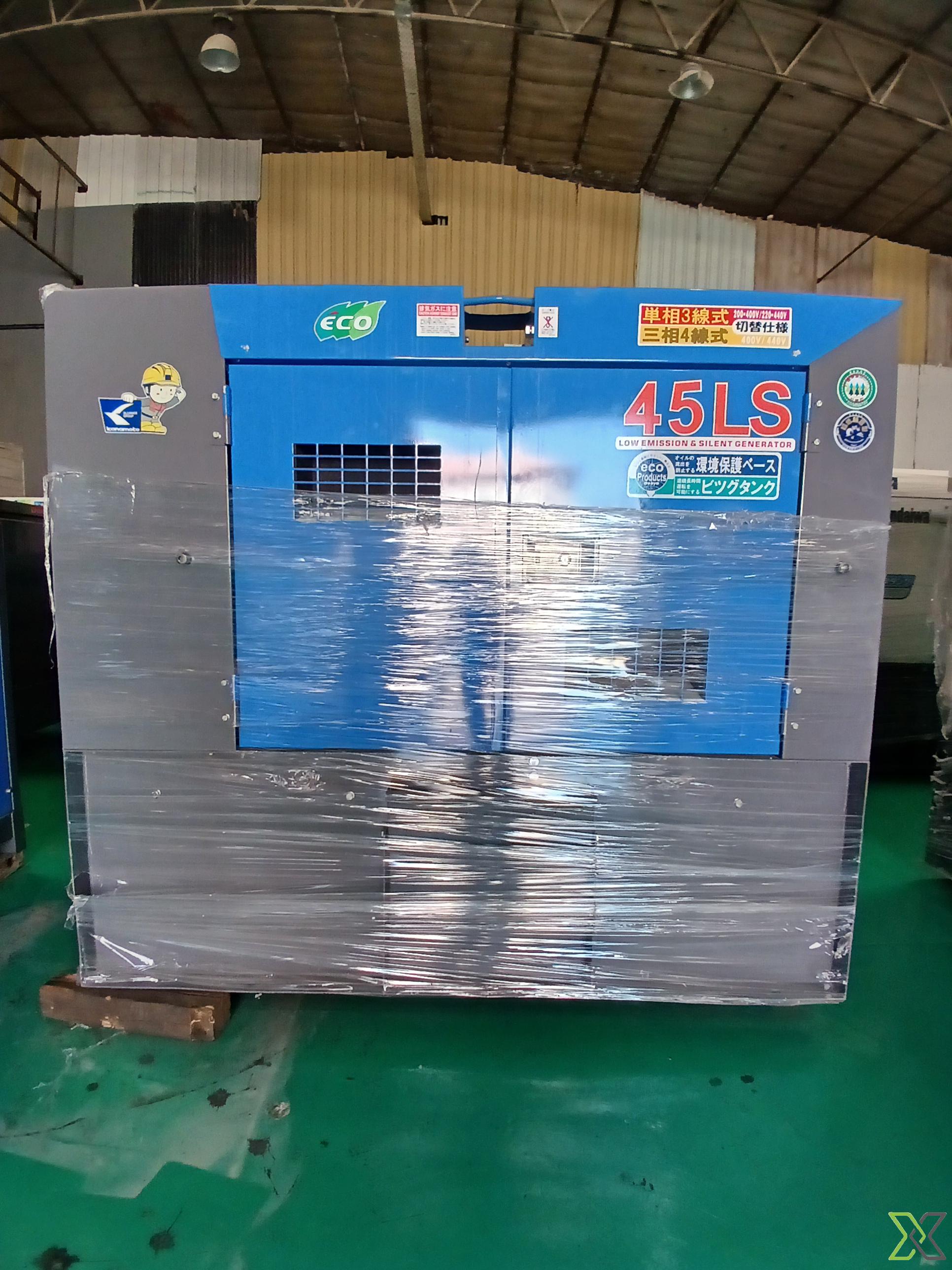

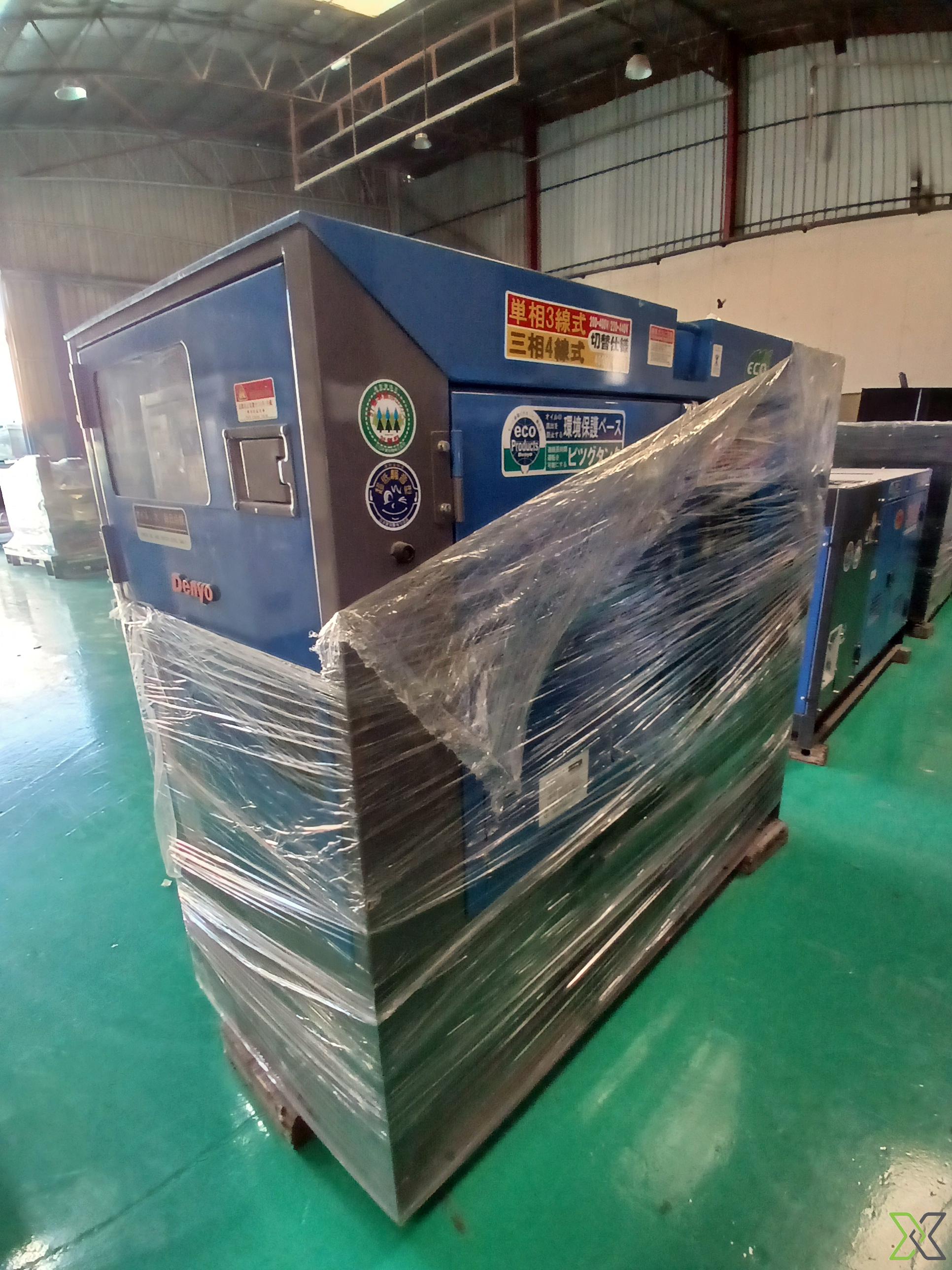

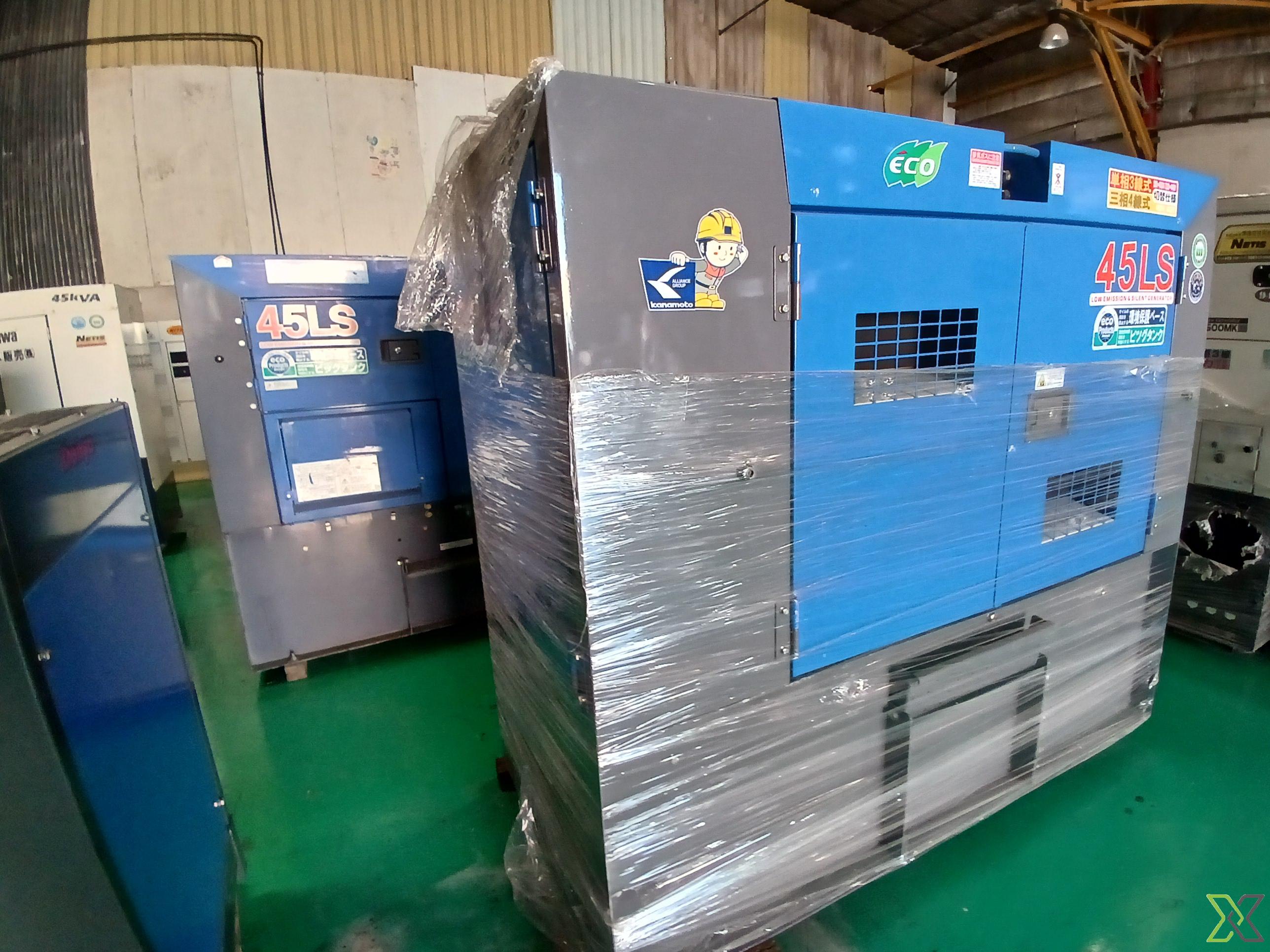

Denyo DCA-45LSKB Diesel Generator – 2020

ReflowX SKU: REF-6106

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Denyo Co., Ltd.
Equipment code

gen-d
Total Price
Per Unit Price

$ 15,000.00

Short Description

High-performance Denyo DCA-45LSKB brushless AC generator with Kubota V3800 diesel engine, offering stable 3-phase output and dual single-phase capacity.

Description

Denyo DCA-45LSKB Diesel Generator – 2020

The Denyo DCA-45LSKB is a robust diesel-powered brushless A.C. generator, equipped with a Kubota V3800-01-T-K3A engine. Designed for reliable continuous duty, the unit features multi-voltage three-phase output (380V/220V) and dual single-phase output capacity (100/110V), making it ideal for construction, backup, or industrial applications. The generator model DB-0501KU ensures regulated and stable performance under a wide range of environmental conditions, in accordance with JIC/JEC standards.

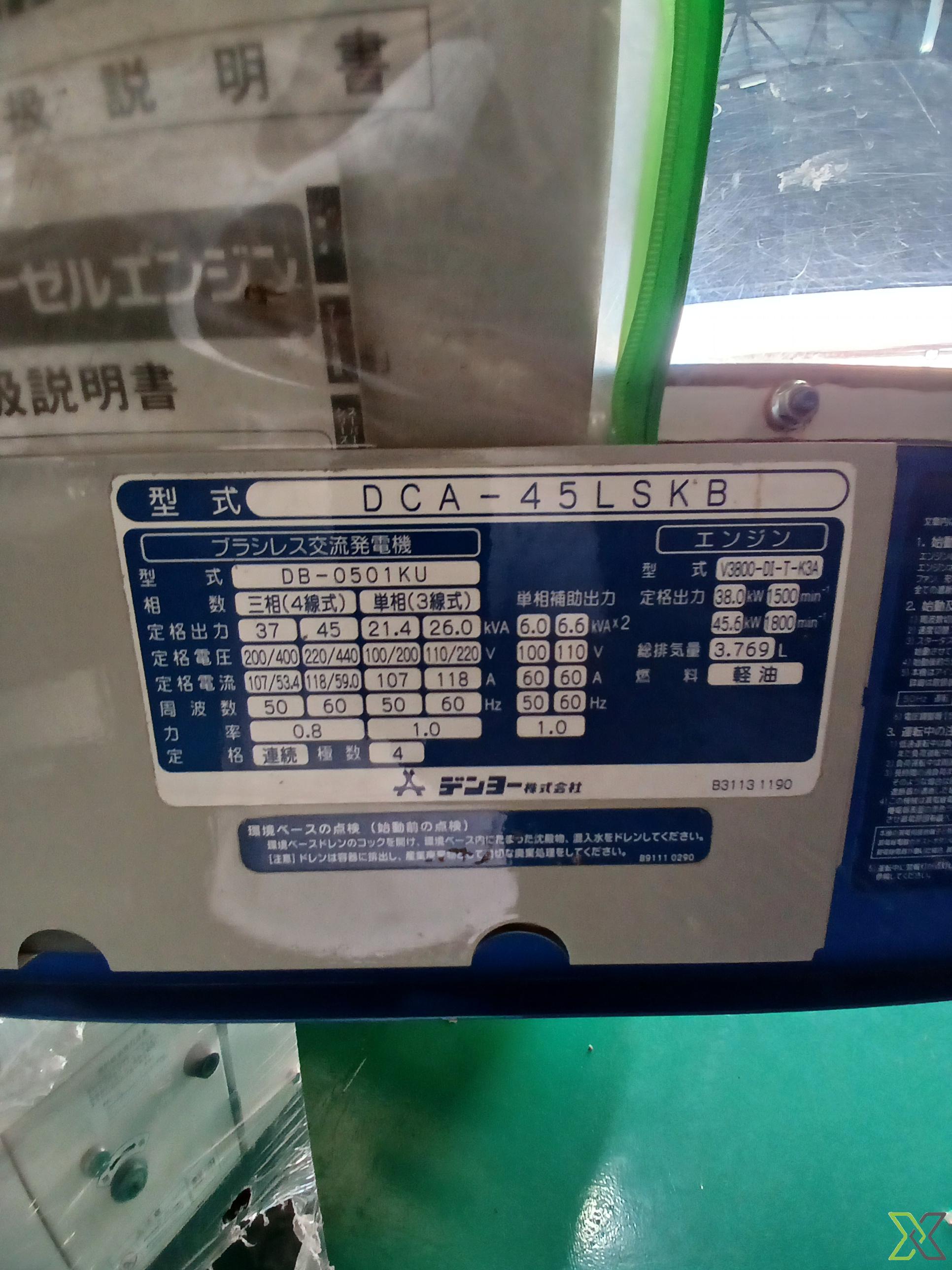

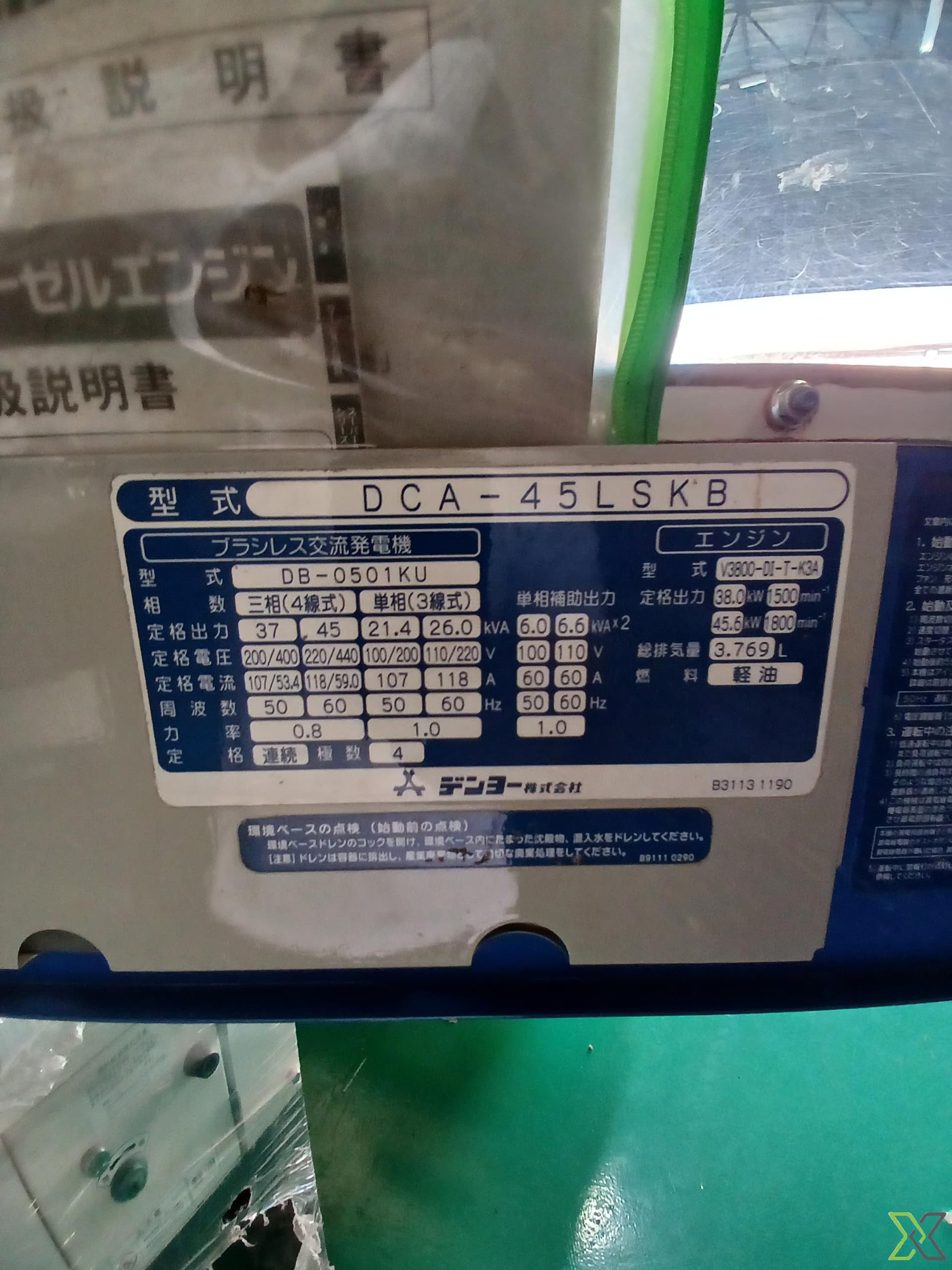

Specifications:

– Generator Type: Brushless A.C. Generator
– Generator Model: DB-0501KU
– Manufacturer: Denyo Co., Ltd.
– Engine Model: Kubota V3800-01-T-K3A
– Fuel Type: Diesel (軽油)
– Displacement: 3.769 L
– Rated Power Output: 45 kVA class
– Voltage Output Options:
• Three-phase: 380V / 220V
• Single-phase 1: 100/110V, 10.0 kVA
• Single-phase 2: 100/110V, 10.0 kVA
– Phase Configuration: 3-phase and single-phase outputs
– Excitation System: Brushless
– Insulation Class: Likely Class F (as standard for similar units)
– Frequency: 50 Hz or 60 Hz depending on version
– Operating Temperature: Up to 40°C ambient
– Standard Compliance: JIC / JEC (Japan Industrial/Engineering Codes)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	DCA-45LSKB
Year of Manufacturing	2020
Model Number	DCA-45LSKB
Year of Manufacturing	2020
Height	1,250 mm
Width	880 mm
Length	1,850 mm
Weight	Approximately 935 kg
Usage Hours	00
Temperature Range	up to 40°C
Pressure Rating	Standard atmospheric pressure
Voltage	190–220V
Color	Green
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	37 kVA (50 Hz)
Speed	1,500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Explosion Protection Gas Group	Not applicable
Explosion Protection Temperature Class	Not applicable
Explosion Protection Zone	Not applicable
Lower Limit Operating Temperature	-15°C
Upper Limit Operating Temperature	40°C
