Fuji Electric AC Generator – Model TPW003799A, 450 kVA

ReflowX SKU: REF-3295

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

富士電機株式会社 (Fuji Electric Co., Ltd.)
Equipment code

CFIHOS-30000338
Total Price
Per Unit Price

$ 39,500.00

Short Description

Heavy-duty Fuji Electric AC synchronous generator rated at 450 kVA, 3-phase, 4-pole, with brushless excitation, suitable for 50/60 Hz dual frequency operation.

Description

Fuji Electric AC Generator – Model TPW003799A, 450 kVA

This Fuji Electric alternating current generator, model TPW003799A, is a robust 3-phase synchronous machine designed for industrial and continuous power generation applications. It features dual-frequency compatibility (50/60 Hz), operates at speeds of 1500/1800 RPM, and delivers a rated output of 400/450 kVA with a power factor of 0.8. The unit is equipped with a brushless excitation system providing stable voltage regulation and reduced maintenance. The stator and rotor insulation is class F, with IP20 protection, and it includes a forced air-cooling system. Manufactured in June 2011, this generator meets JEC-114 standard and is ideal for integration into power generation systems.

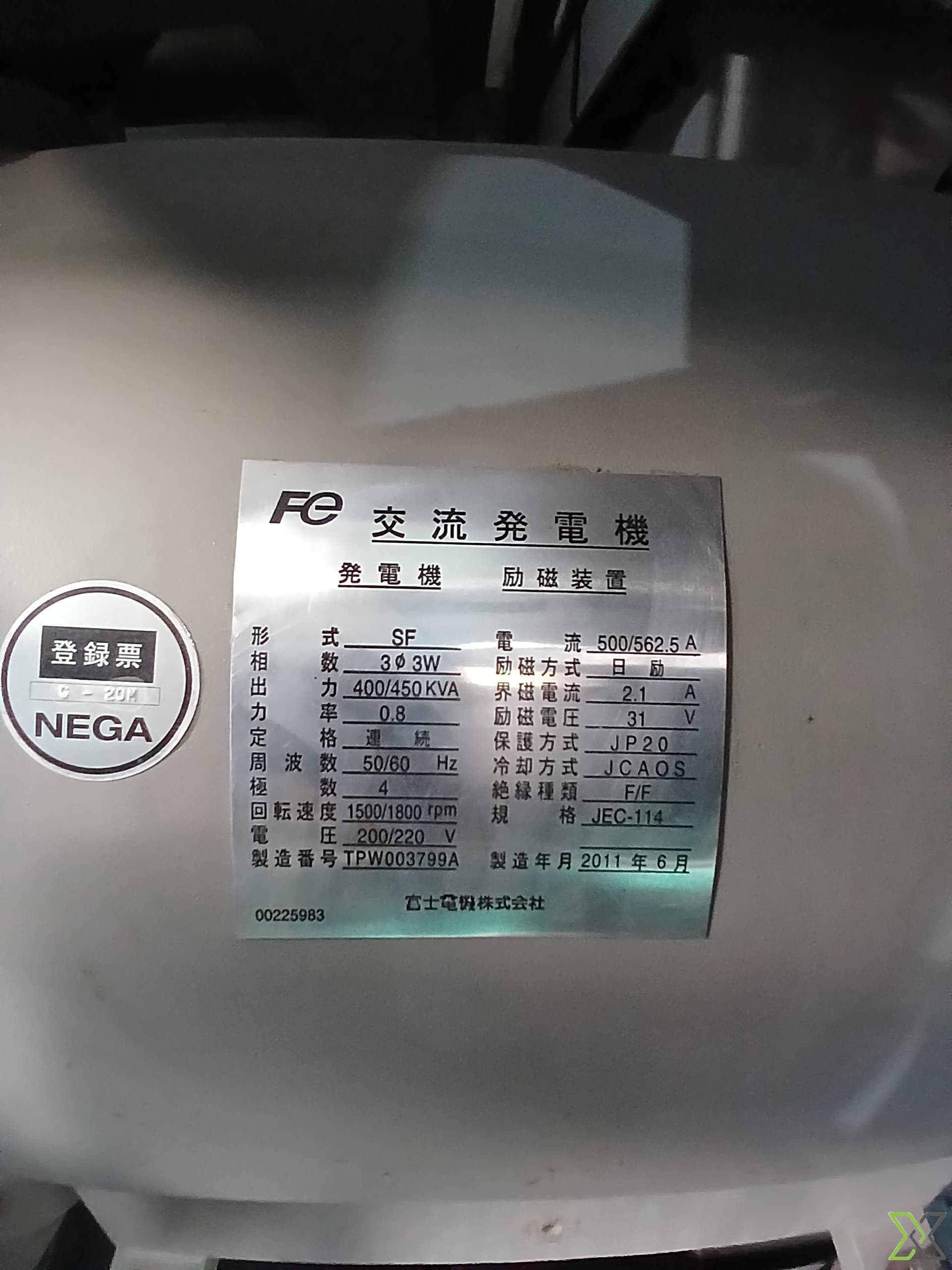

Specifications:

– Manufacturer: Fuji Electric Co., Ltd.
– Model Number: TPW003799A
– Serial Number: Not listed
– Output Power: 400 / 450 kVA
– Rated Voltage: 200 / 220 V
– Rated Frequency: 50 / 60 Hz
– Rated Speed: 1500 / 1800 RPM
– Phase: 3-phase
– Power Factor: 0.8
– Poles: 4
– Excitation Type: Brushless (Self-excited)
– Excitation Voltage: 31 V
– Excitation Current: 2.1 A
– Output Current: 500 / 562.5 A
– Cooling Method: Forced Air (F/F)
– Insulation Class: F
– Protection Class: IP20
– Regulation Standard: JEC-114
– Manufacturing Date: June 2011
– Manufacturer Code: 00225983

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	SF
Year of Manufacturing	2011
Model Number	SF
Year of Manufacturing	2011
Voltage	200 / 220 V
ISO 15926 Pt 4	2744
PCA RDS Code	RDS415709
CFIHOS ID	CFIHOS-30000338
Direction of Rotation	Clockwise
IFC Class	IfcElectricGenerator
Explosion Protection Gas Group	Not applicable
Explosion Protection Temperature Class	Not applicable
Explosion Protection Zone	Not applicable
Lower Limit Operating Temperature	10°C (14°F)
Normal Output Power	60 kW (75 kVA)
Operation Continuous Intermittent	continuous and intermittent operation
Upper Limit Operating Temperature	50°C (122°F)
