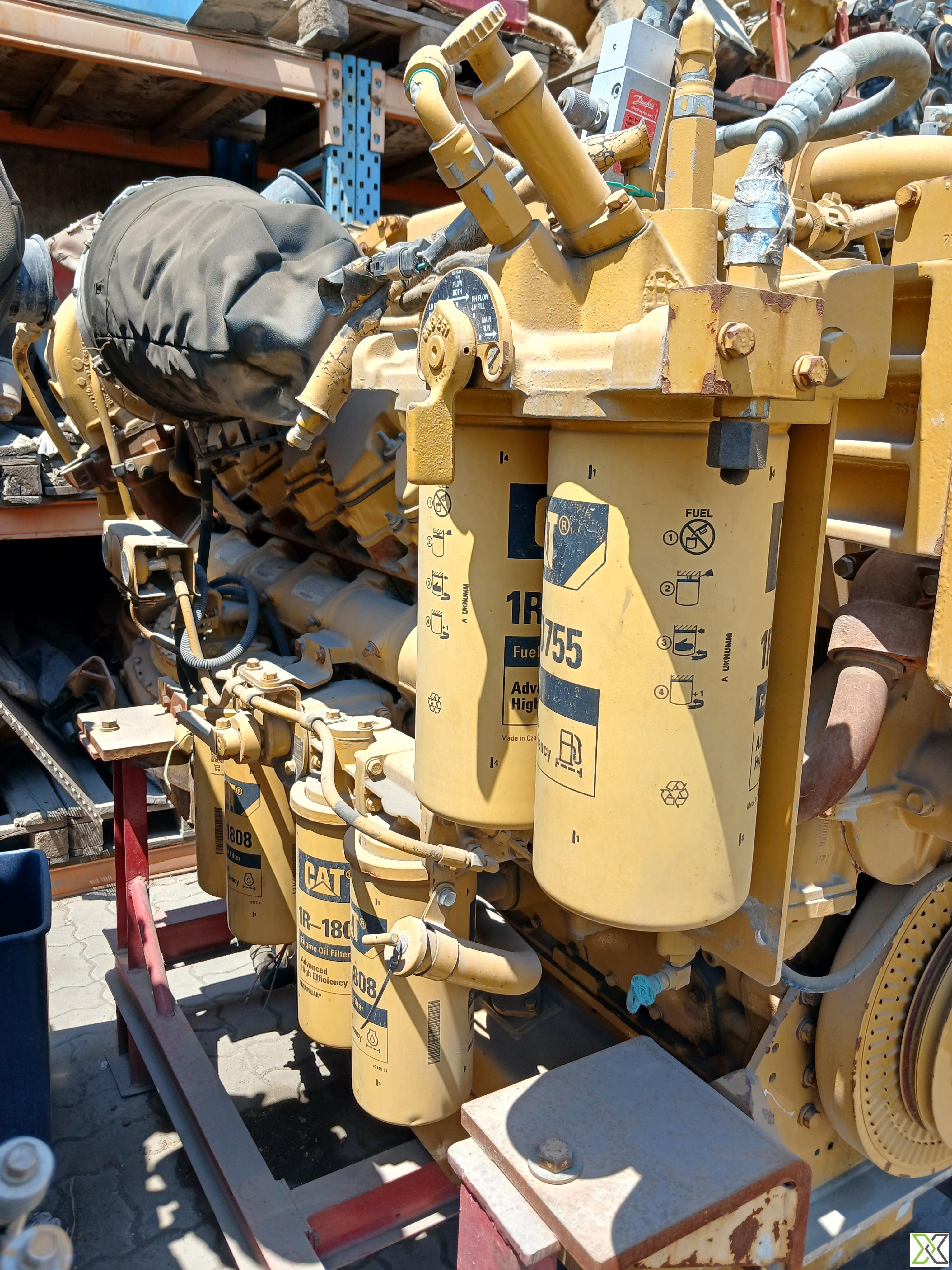

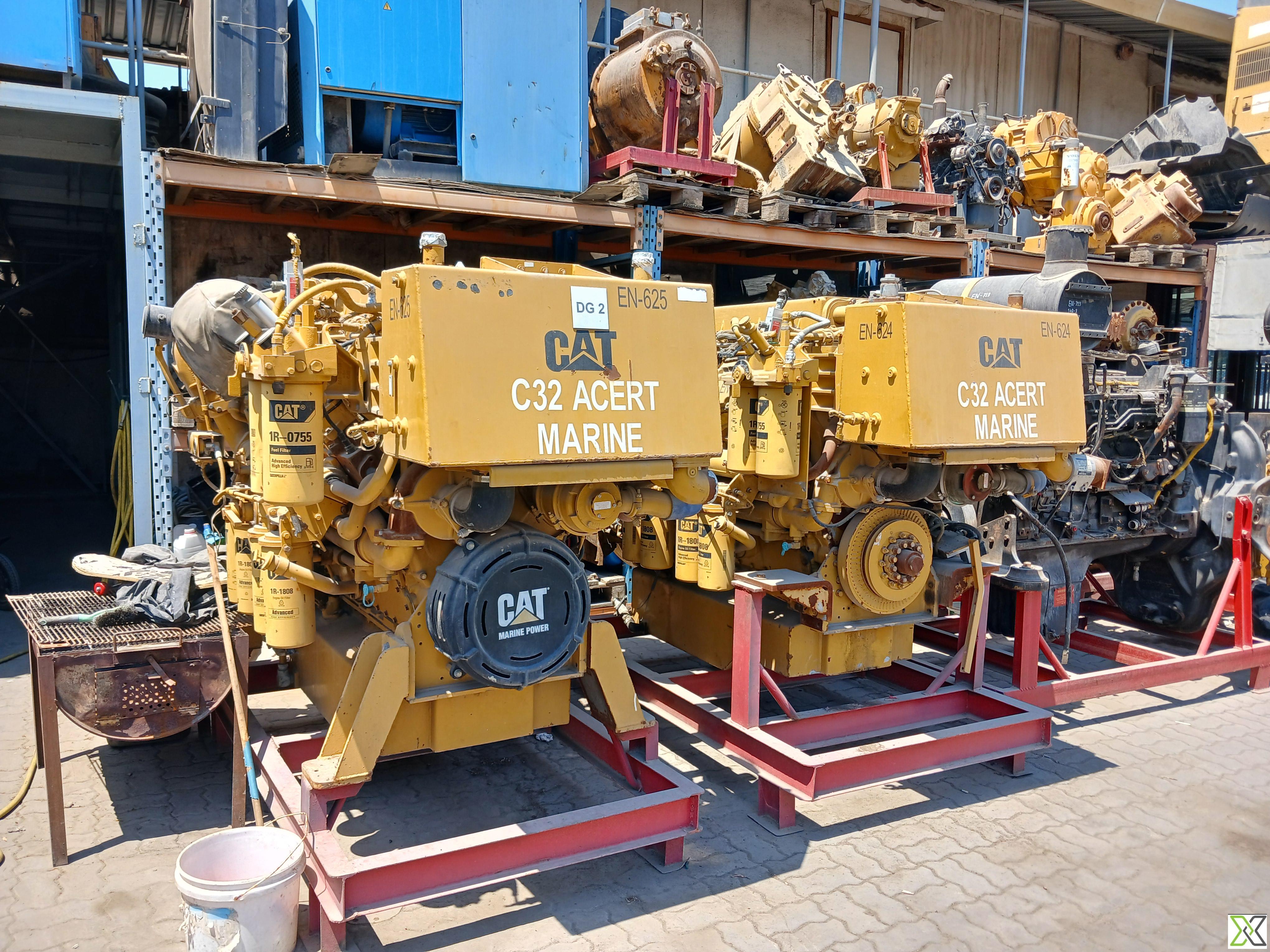

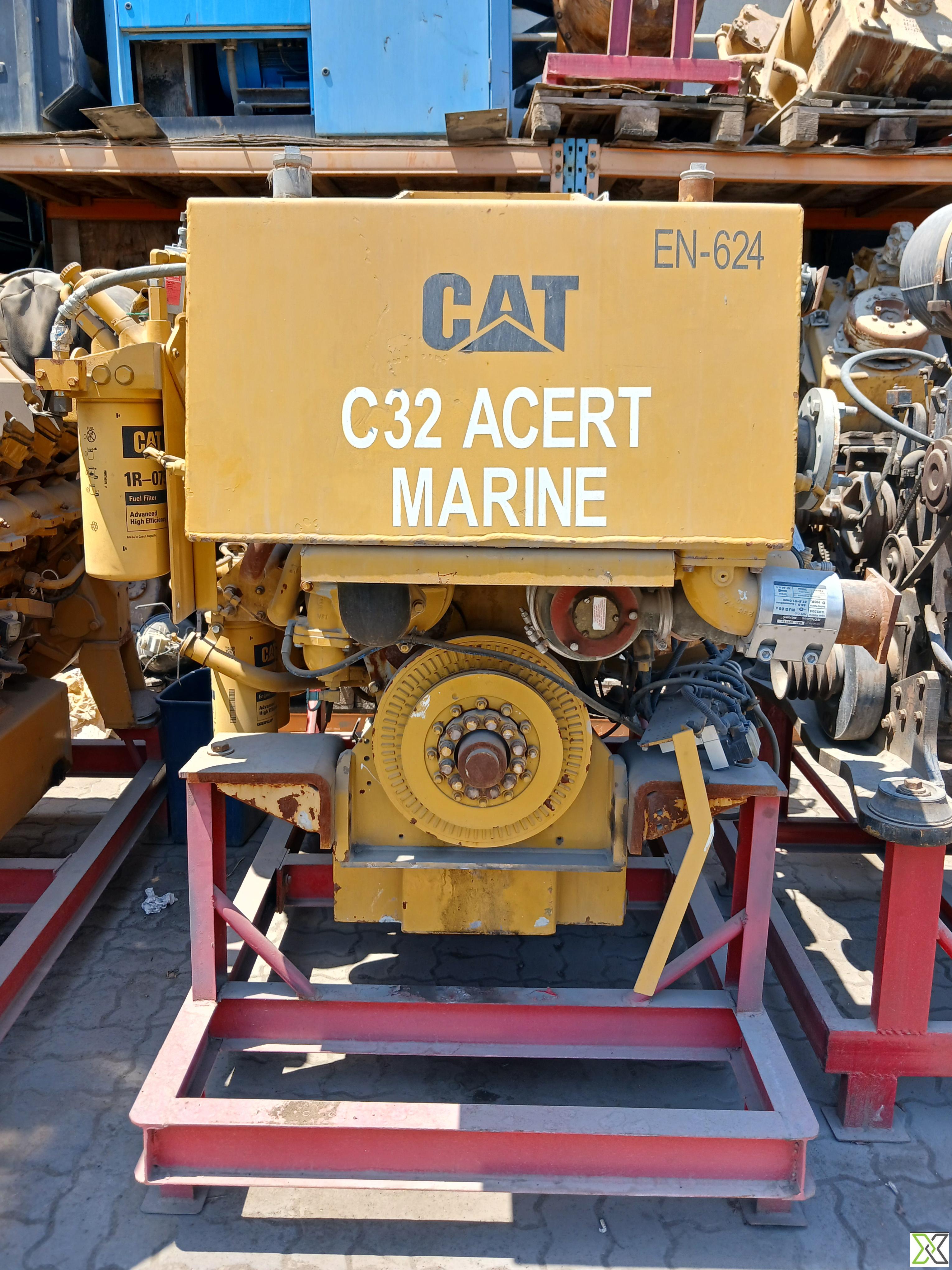

Caterpillar C32 Diesel Engine – V12 Turbocharged Power Unit

ReflowX SKU: REF-6558

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Caterpillar Inc.
Equipment code

CFIHOS-30000683

Get Quotation Whatsapp

Short Description

The CAT C32 is a 32.1-liter V12 diesel engine built for heavy-duty applications, offering turbocharged and aftercooled performance across industrial, marine, and power generation sectors.

Description

Caterpillar C32 Diesel Engine – V12 Turbocharged Power Unit

The Caterpillar C32 engine is a high-performance, 4-stroke V12 diesel powerhouse with a displacement of 32.1 liters, designed to deliver robust power in a wide range of demanding applications. Engineered with a 60° bank angle, a bore of 145 mm, and a stroke of 162 mm, the C32 offers a compression ratio of 15.0:1 and advanced aspiration via turbocharging and aftercooling. Available in both mechanically and electronically controlled unit injector configurations, the C32 supports diverse emission compliance levels across industrial (EPA Tier 2–4 Final, EU Stage V), marine (IMO II / III), and power generation (EPA Tier 2) applications. With horsepower ranging from 800 to 1,900 HP depending on use-case, and supported RPMs from 1,500 to 2,300, this engine exemplifies versatility, reliability, and high-performance output.

Specifications:

– Manufacturer: Caterpillar (CAT)
– Model: C32
– Engine Type: 4-Stroke, V12 Diesel Engine
– Displacement: 32.1 L (1,959 in³)
– Configuration: V12, 60° Bank Angle
– Bore x Stroke: 145 mm × 162 mm (5.71 in × 6.38 in)
– Compression Ratio: 15.0:1
– Aspiration: Turbocharged & Aftercooled
– Fuel Type: Diesel
– Fuel Injection System: Mechanically or Electronically Controlled Unit Injectors

Power Output:
– Industrial Applications: 800 – 1,200 HP (597 – 895 kW) @ 1,800 – 2,100 RPM
– Marine Applications: 1,000 – 1,900 HP (746 – 1,417 kW) @ 2,300 RPM
– Generator Set Applications: 830 – 1,250 ekW @ 1,500 / 1,800 RPM

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	1,370 mm (53.9 in)
Width	1,600 mm (63 in)
Length	1,874 mm (73.78 in)
Weight	3,004 kg (6,625 lbs)
Color	Yellow
ISO 15926 Pt 4	7622
PCA RDS Code	RDS13068410
CFIHOS ID	CFIHOS-30000683
Fuel type	Diesel
Output Power	746 to 895 bkW
Speed	1,800 rpm
Direction of Rotation	Counterclockwise
IFC Class	IfcEngine
Explosion Protection Gas Group	Not specified for this model
Explosion Protection Temperature Class	Not specified for this model
Explosion Protection Zone	Not specified for this model
