CUMMINS Diesel Engine Set - 2015

ReflowX SKU: REF-500

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

Indonesia
Condition

Surplus
OEM

Cummins Engine Co. Ltd. – Great Britain S.O. No.: 2690867
Equipment code

CFIHOS-30000683
Total Price
Per Unit Price

$ 154,000.00

Whatsapp Chat With Seller

Description

ENGINE DETAILS

Manufacturer: CUMMINS

Model: (Specify exact engine model if known — e.g., QSK38-G5, KTA50-G3, etc.)

Serial Number: A15K465307

Year of Manufacture: 2015

Running Hours: 617 Hours

Engine Type: 4-Stroke, Water-Cooled, Turbocharged, Direct Injection

Configuration: V12 / V16 (Confirm based on model)

Displacement: (Confirm based on model)

Bore x Stroke: (Confirm based on model)

Compression Ratio: Typically 13.5:1 – 14.5:1

Cooling System: Water-cooled with heavy-duty radiator

Aspiration: Turbocharged and Aftercooled

Governor Type: Electronic

Starting System: Electric Start (24V DC)

Fuel Type: Diesel

Fuel System: Direct Injection

Lube Oil System: Forced lubrication by gear pump

Exhaust System: Industrial Grade Muffler with Flexible Bellow

Emission Compliance: Dependent on application location

Rated Speed: 1500 RPM

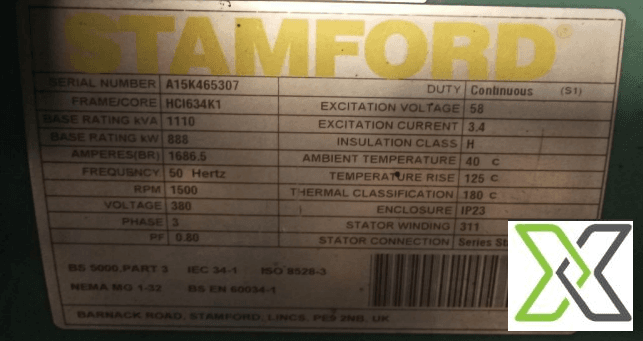

GENERATOR (ALTERNATOR) SPECIFICATIONS

Type: Brushless, Synchronous, 4-Pole

Voltage: 380 V

Frequency: 50 Hz

Power Factor: 0.8 (Lagging)

Rated Power (Standby): 1110 KVA

Rated Power (Prime): Approx. 1000 KVA

Rated Active Power: 888 KW

Insulation Class: H

Protection Class: IP23

Excitation System: Self-excited, Automatic Voltage Regulator (AVR)

Voltage Regulation: ±1%

Connection Type: Star (Wye)

Speed: 1500 RPM

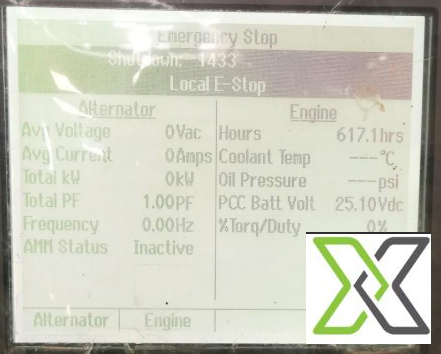

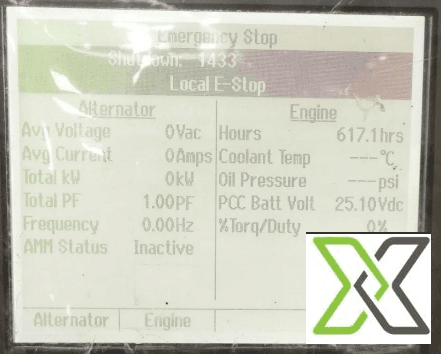

CONTROL SYSTEM

Control Panel Type: Digital, Auto / Manual Control

Main Features:

Automatic start/stop

Alarm and shutdown for low oil pressure, high coolant temperature, overspeed

Real-time display of parameters: voltage, current, frequency, power, power factor, engine readings

Emergency stop button

Integrated battery charger

COOLING SYSTEM

Cooling Type: Water Cooled, Closed Circuit

Radiator Type: Heavy-duty industrial radiator with pusher fan

Thermostatic Control: Provided

FUEL SYSTEM

Fuel Type: Diesel

Fuel Consumption (approximate):

At 100% Load: 200-220 L/hr

At 75% Load: 150-165 L/hr

Fuel Tank: External (client-specified capacity)

Fuel Supply System: Dual Stage Filtration with Water Separator

LUBRICATION SYSTEM

Lubrication Method: Forced lubrication by gear pump

Oil Pressure: 3.5 - 5.0 bar

Oil Capacity: (Confirm based on engine model)

EXHAUST SYSTEM

Exhaust Gas Flow: Approx. (Confirm based on engine model)

Exhaust Gas Temperature: Max. 480°C

Silencer: Industrial Grade with Flexible Connection

DIMENSIONS & WEIGHT

Overall Length: Approx. 5000 mm

Overall Width: Approx. 2200 mm

Overall Height: Approx. 2600 mm

Dry Weight: Approx. 9500 kg

OPTIONAL FEATURES

Weatherproof or soundproof container canopy

Automatic Transfer Switch (ATS)

Remote monitoring system

Fuel day tank

Synchronizing panel for multi-generator operation

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	Cummins KTA50-G3
Year of Manufacturing	2015
Height	1780 mm
Width	2080 mm
Length	2978 mm
Weight	Approximately 4858 kg
Usage Hours	617 Hours
Color	Green
Fuel type	Diesel
Output Power	1097 kW (1470 HP)
Speed	1500 RPM (50 Hz) or 1800 RPM (60 Hz)

General Terms

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
