Ford 6OBA-U Inline Gasoline Engine – 73 HP @ 2400 RPM

The Ford 6OBA-U is a robust inline 6-cylinder, 4-stroke gasoline engine built for industrial applications such as generator sets and pump drives. With a displacement of 3.7 liters (223 cubic inches), this engine delivers 73 horsepower at 2400 RPM, supported by a carburetor fuel system and distributor ignition with spark plugs. It features a pressurized lubrication system with a replaceable oil filter, a liquid-cooled radiator-based cooling system, and a 12-volt negative ground electrical system. Designed for reliability and ease of service, the engine includes an oil bath air cleaner for the intake system, a durable cast-iron construction, and easy electric starting. Its compact footprint and industrial mounting configuration make it well-suited for stationary power solutions.

Specifications:

– Engine Type: Inline 6-Cylinder, 4-Stroke, Liquid-Cooled Gasoline Engine
– Manufacturer: Ford Motor Company
– Engine Model: 6OBA-U

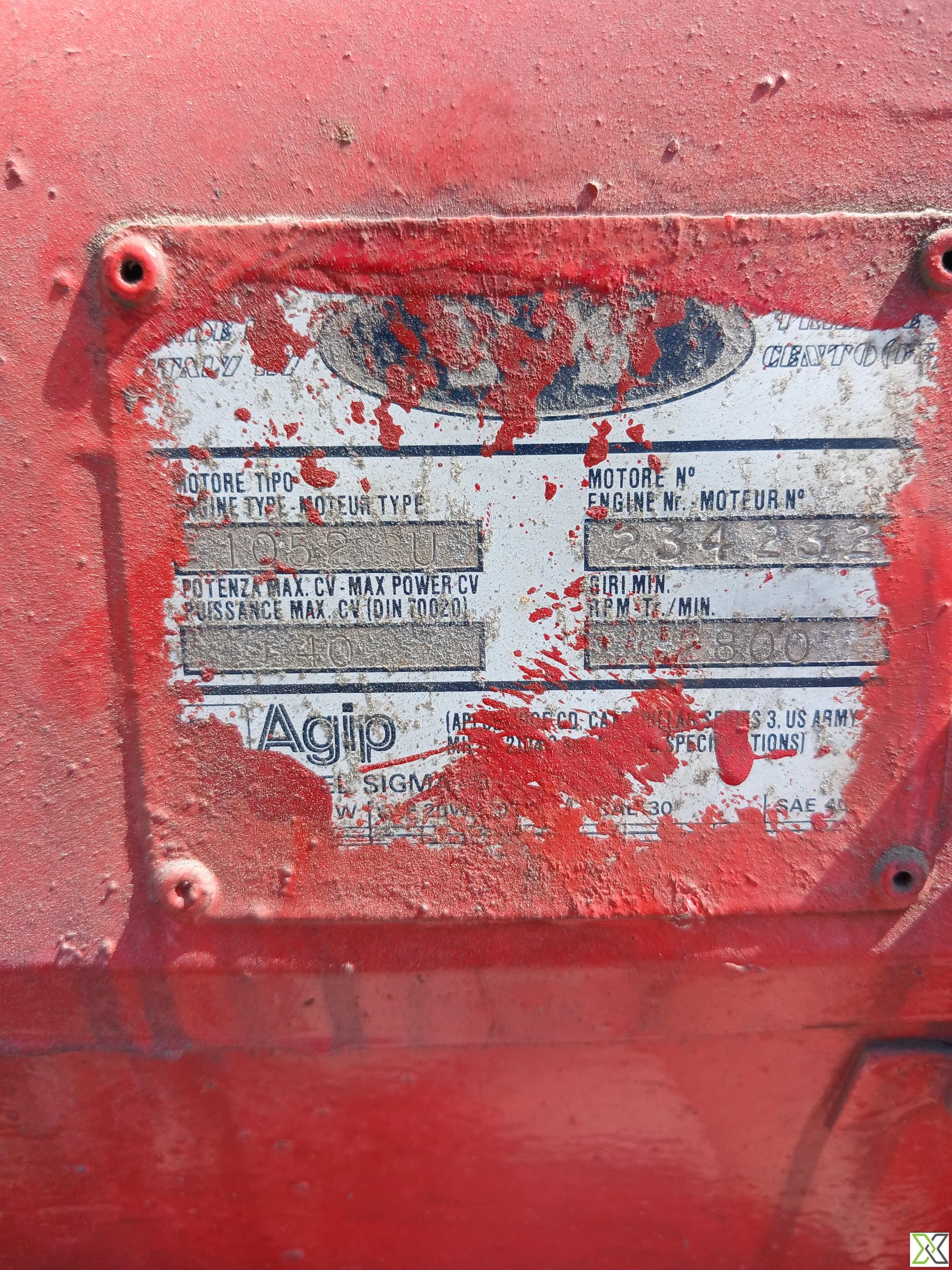

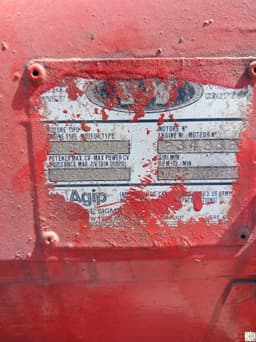

– Engine Number: 254252
– Displacement: 223 cubic inches (3.7 liters)
– Bore x Stroke: 3.62 in (92.0 mm) x 3.60 in (91.0 mm)
– Compression Ratio: 8.4:1
– Rated Power Output: 73 HP (54.1 kW) @ 2400 RPM
– Fuel System: Carburetor
– Air Intake System: Oil Bath Air Cleaner
– Ignition System: Distributor with Spark Plugs
– Firing Order: 1-5-3-6-2-4
– Lubrication System: Pressurized with Oil Filter
– Cooling System: Liquid-Cooled with Radiator
– Electrical System: 12-Volt Negative Ground
– Starting System: Electric Starter Motor
– Mounting Configuration: Industrial Applications (Pump Sets, Generators)
– Overall Dimensions: 40 in (L) x 28 in (W) x 35 in (H)
– Dry Weight: ~650 lbs (295 kg)
– Max Operating Temp: Up to 212°F (100°C)
– Optimal Operating Temp Range: 180°F to 200°F (82°C to 93°C)
– Fuel Type: Unleaded Gasoline
– Oil Capacity: 5.0 quarts (4.7 liters)
– Coolant Capacity: 21.0 quarts (19.9 liters)
– Recommended Oil: SAE 10W-30
– Oil Change Interval: Every 100 Operating Hours
– Valve Clearance: 0.015 inches (0.38 mm)

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com
