JENBACHER J320 GS C105 Gas Engine – 1095 kW, 50 Hz - 2008

ReflowX SKU: REF-1235

Product Details

Quantity

10
Availability (Lead Time)

0-2 Weeks
Product Location

Indonesia
Condition

Used
OEM

JENBACHER GAS ENGINES
Equipment code

CFIHOS-30000683
Total Price
Per Unit Price

$ 241,500.00

Short Description

Reliable Jenbacher J320 GS C105 gas engines rated at 1095 kW, 50 Hz. Manufactured in 2008, each unit has under 10,000 operating hours. Ten units available in good condition, with immediate delivery from Asia.

Description

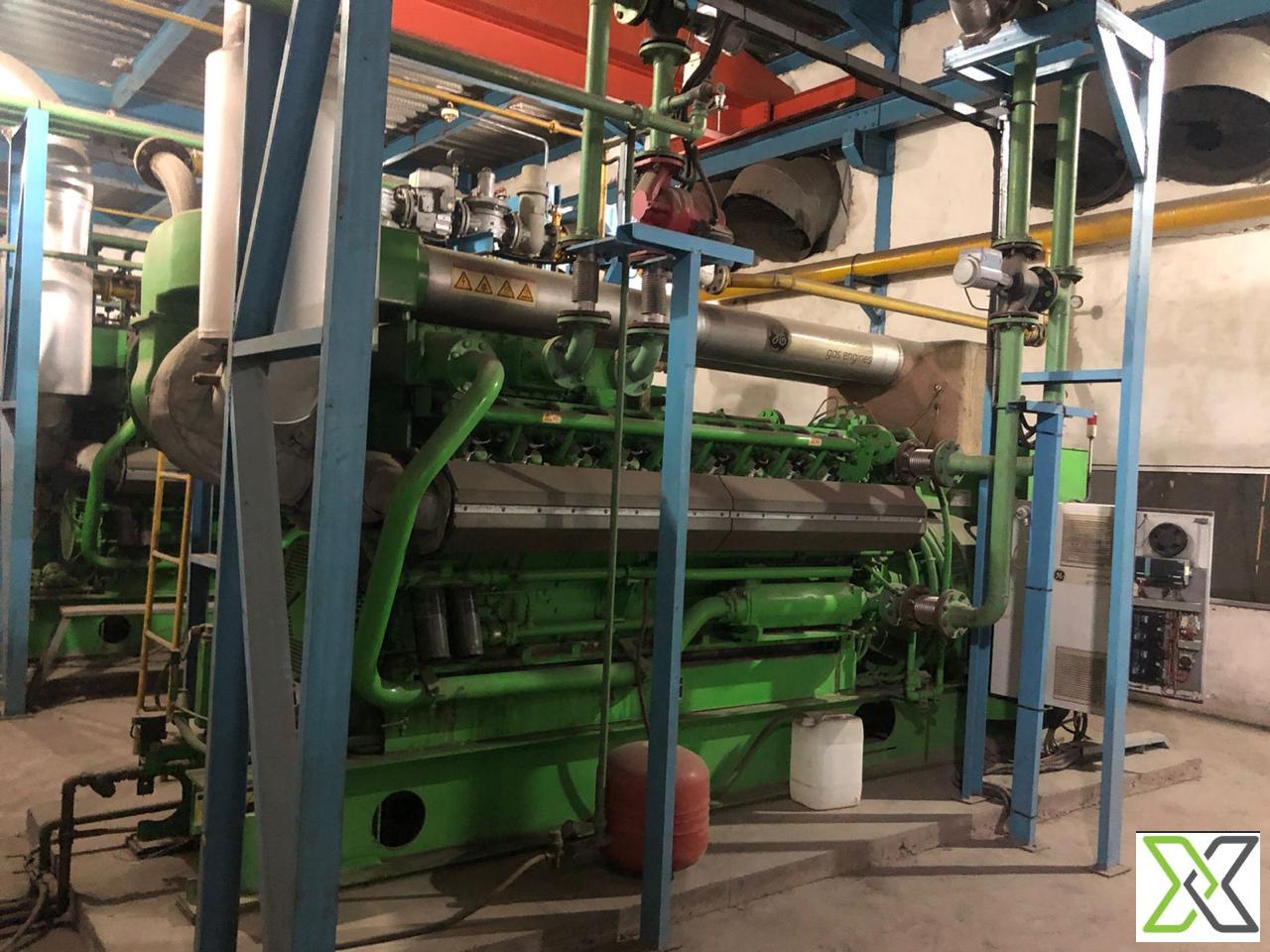

JENBACHER J320 GS C105 Gas Engine – 1095 kW, 50 Hz - 2008

The JENBACHER J320 GS C105 is a high-efficiency, medium-output natural gas engine engineered for industrial and commercial power generation. Delivering 1095 kW of electrical power at 50 Hz and 1500 RPM, this engine is a proven solution for distributed generation, CHP systems, and backup power in critical applications.

Manufactured in 2008, these units have less than 10,000 operating hours each—indicating low usage and significant remaining service life. Their water-cooled, forced-lubrication design ensures durability and stable thermal performance, while the 14.5:1 compression ratio maximizes combustion efficiency.

The J320 offers 39–41% electrical efficiency and is fully capable of supporting combined heat and power (CHP) installations. It operates with a fuel consumption of 0.30–0.33 m³/kWh and emits less than 250 mg/Nm³ NOx, making it environmentally compliant. Exhaust flow and temperature figures support heat recovery options, boosting total energy utilization.

Each engine features electric start, a standard alternator, and low-noise performance in the range of 85–90 dB(A). With ten units available and immediate delivery from Asia, these engines are a strong fit for both large centralized projects and multi-site deployments.

Specifications:
– Model: Jenbacher J320 GS C105
– Manufacturer: Jenbacher
– Year of Manufacture: 2008
– Engine Type: Inline 6-cylinder, four-stroke, spark-ignited gas engine
– Rated Output (Electrical): 1095 kW
– Frequency: 50 Hz
– Engine Speed: 1500 RPM
– Fuel Type: Natural Gas
– Cooling System: Water-cooled
– Lubrication System: Forced lubrication with oil cooler
– Compression Ratio: 14.5:1
– Electrical Efficiency: ~39–41%
– Heat Rate: ~11,000 kJ/kWh
– Exhaust Gas Temperature: 450–500°C
– Exhaust Flow: ~7,000–8,500 Nm³/h
– Fuel Consumption: ~0.30–0.33 m³/kWh
– NOx Emissions: <250 mg/Nm³
– CO₂ Emissions: ~190–210 g/kWh
– Piston Stroke: ~190 mm
– Cylinder Bore: ~160 mm

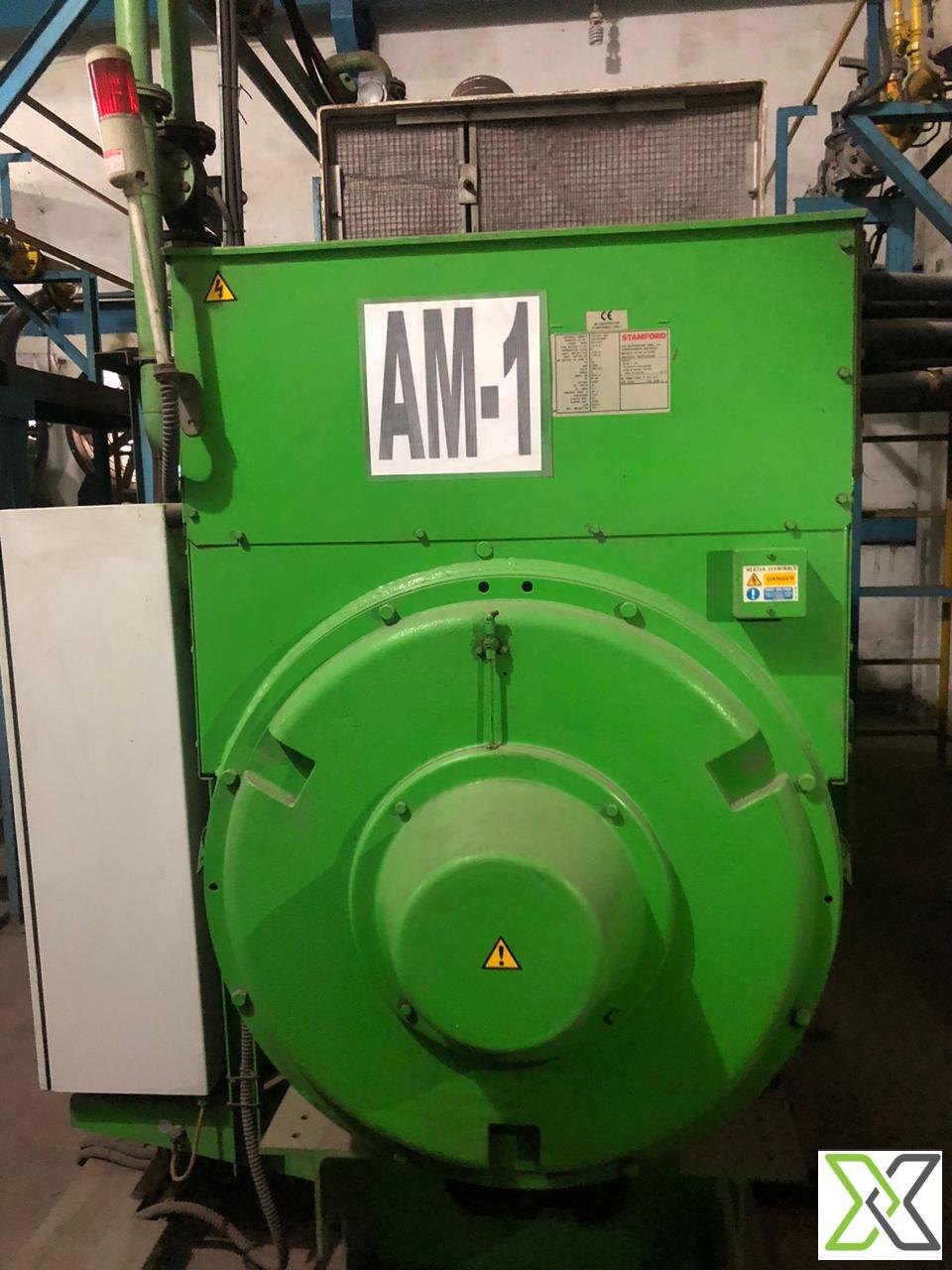

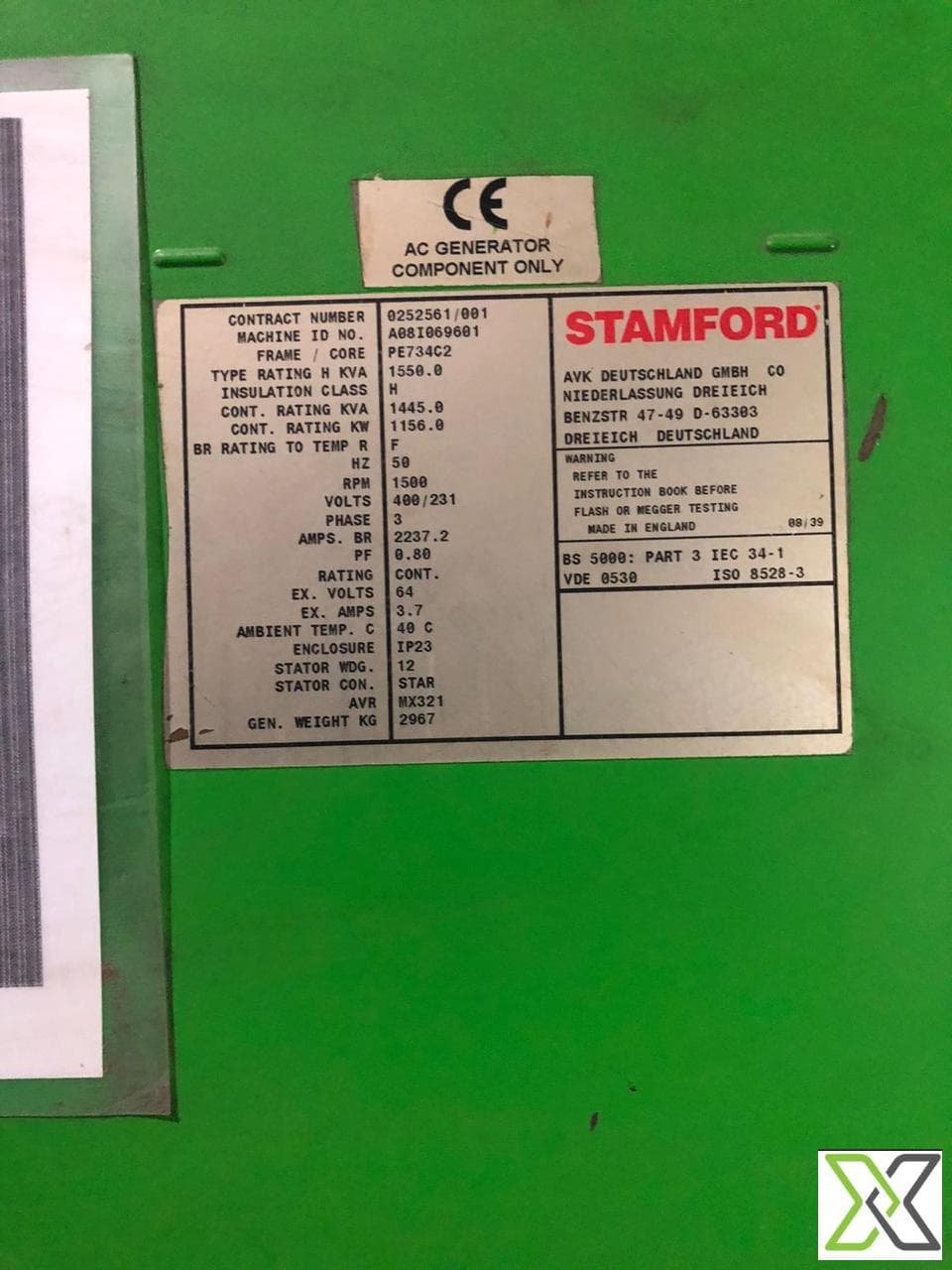

– Alternator: Standard, high-efficiency
– Starting System: Electric start
– Noise Level: ~85–90 dB(A)
– CHP Capability: Yes – ideal for heat recovery systems
– Industrial Suitability: Yes – for base load and process energy
– Utility/Grid Support: Yes – for distributed power networks
– Backup Power Suitability: Yes – for critical operations
– Condition: Good condition (each with <10,000 hours)
– Quantity Available: 10 units
– Location: Asia
– Delivery: Immediate availability

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	J320 GS C 105
Year of Manufacturing	2008
Manufacturer Name	Jenbacher
Usage Hours	less than 10,000 hours
ISO 15926 Pt 4	7622
PCA RDS Code	RDS13068410
CFIHOS ID	CFIHOS-30000683
Fuel type	Natural Gas
Output Power	1095 kW
Speed	1500 RPM
IFC Class	IfcEngine
