MITSUBISHI S16 R - ENGINE - 2014

ReflowX SKU: REF-5061

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

Indonesia
Condition

Surplus
OEM

Mitsubishi Power
Equipment code

CFIHOS-30000683
Total Price
Per Unit Price

$ 176,000.00

Whatsapp Chat With Seller

Description

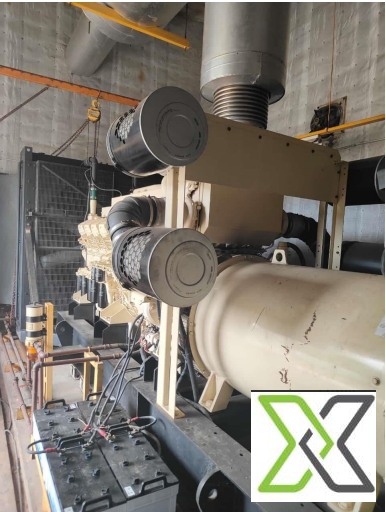

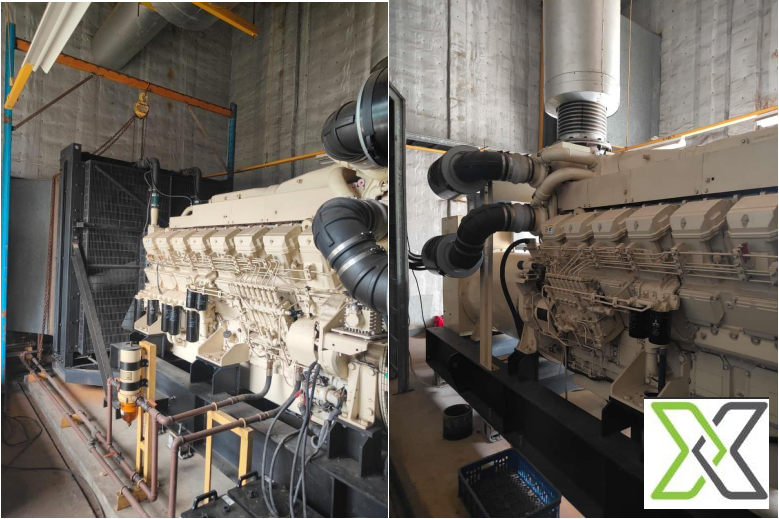

MITSUBISHI S16R Diesel Engine Set – Full Technical Specification

ENGINE DETAILS

Manufacturer: MITSUBISHI

Model: S16R

Engine Type: 4-Stroke, Water-Cooled, Turbocharged, Direct Injection

Configuration: V16 Cylinder

Displacement: 65.37 Liters

Bore x Stroke: 170 mm x 180 mm

Compression Ratio: 14.0:1

Cooling System: Water-cooled with radiator

Aspiration: Turbocharged and Aftercooled

Governor Type: Electronic

Starting System: Electric Start (24V DC)

Fuel Type: Diesel

Fuel System: Direct Injection

Lube Oil System: Forced lubrication by gear pump

Exhaust System: Industrial Grade Muffler with Flexible Bellow

Emission Compliance: Dependent on application location (please specify)

Year of Manufacture: 2014

Running Hours: Below 1000 Hours

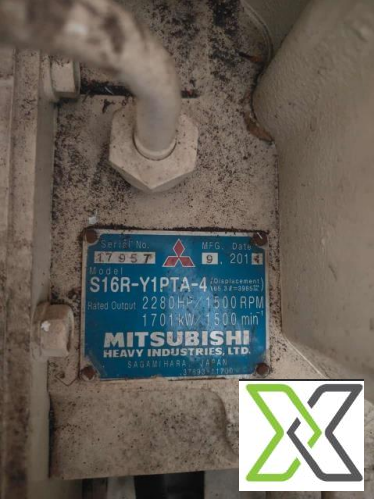

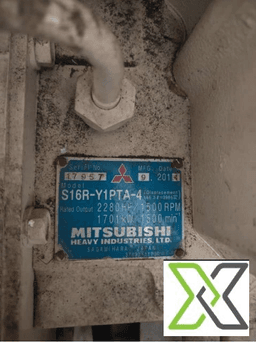

Serial Number: 17957

GENERATOR (ALTERNATOR) SPECIFICATIONS

Type: Brushless, Synchronous, 4-Pole

Voltage: 220 / 380 V

Frequency: 50 Hz

Power Factor: 0.8 (Lagging)

Rated Power (Standby): 1710 KVA

Rated Power (Prime): 1550 KVA

Rated Active Power: 1368 KW

Insulation Class: H

Protection Class: IP23

Excitation System: Self-excited, Automatic Voltage Regulator (AVR)

Voltage Regulation: ±1%

Connection Type: Star (Wye)

Speed: 1500 RPM

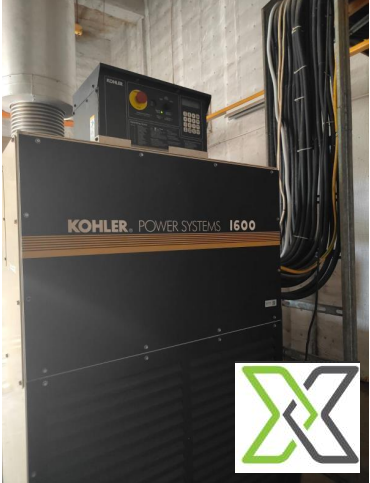

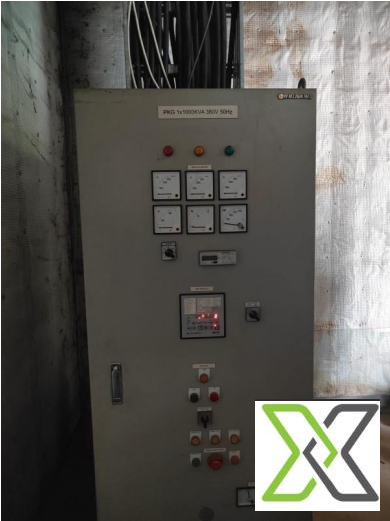

CONTROL SYSTEM

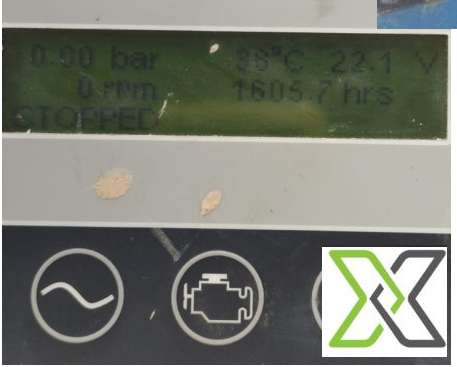

Control Panel Type: Digital, Auto / Manual Control

Main Features:

Automatic start/stop

Alarm and shutdown for low oil pressure, high coolant temperature, overspeed

Real-time display of parameters: voltage, current, frequency, power, power factor, engine parameters

Emergency stop button

Battery charging system

COOLING SYSTEM

Cooling Type: Water Cooled, Closed Circuit

Coolant Capacity: Approx. 220 Liters

Radiator Type: Heavy-duty industrial radiator with pusher fan

Thermostatic Control: Provided

FUEL SYSTEM

Fuel Type: Diesel

Fuel Consumption (approximate):

At 100% Load: 320-340 L/hr

At 75% Load: 240-260 L/hr

Fuel Tank: External (customer-specified capacity)

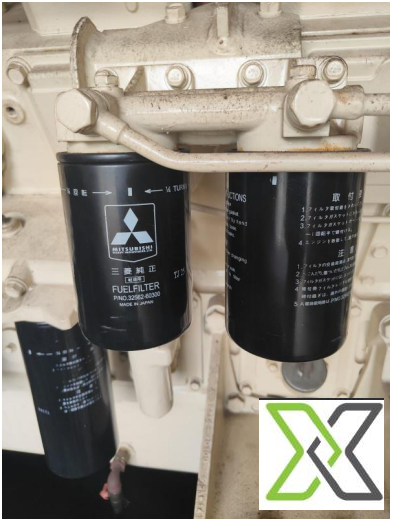

Fuel Supply System: Dual Stage Filtration with Water Separator

LUBRICATION SYSTEM

Oil Capacity: Approx. 230 Liters

Lubrication Method: Forced lubrication by gear pump

Oil Pressure: 3.5 - 5.0 bar

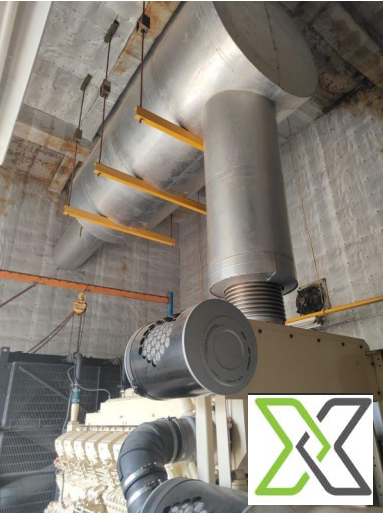

EXHAUST SYSTEM

Exhaust Gas Flow: Approx. 370 m³/min

Exhaust Gas Temperature: Max. 480°C

Silencer: Industrial Grade with Flexible Connection

DIMENSIONS & WEIGHT

Overall Length: Approx. 5800 mm

Overall Width: Approx. 2300 mm

Overall Height: Approx. 2800 mm

Dry Weight: Approx. 11,500 kg

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	S16R
Year of Manufacturing	2014
Height	Approx. 2,000 mm
Width	Approx. 1,500 mm
Length	Approx. 3,740 mm
Weight	Approx. 6,200 kg
Usage Hours	1000 Hours
Voltage	24V DC
ISO 15926 Pt 4	7551
PCA RDS Code	RDS421154
CFIHOS ID	CFIHOS-30000527
Fuel type	Diesel
Direction of Rotation	Counterclockwise
IFC Class	IfcEngine
Explosion Protection Gas Group	Not inherently explosion-proof
Explosion Protection Temperature Class	Not Applicable
Explosion Protection Zone	Not Applicable
Operation Continuous Intermittent	Designed for Continuous Operation
