FG Wilson RPES6 Diesel Generator – 1375 kVA Standby - 2012

The FG Wilson RPES6 is a robust, UK-engineered diesel generator set designed for dependable operation in demanding industrial and commercial environments. Manufactured by FG Wilson (Engineering) Ltd in 2012, this unit delivers a prime output of 1250 kVA (1000 kW) and a standby capacity of 1375 kVA (1100 kW) at 50 Hz, with a rated voltage of 400V in a 3-phase configuration.

Built for durability and long service life, the generator is equipped with a self-excited alternator featuring a 60V excitation voltage and 4.3A excitation current, delivering stable power under varying loads. The machine runs at 1500 RPM and supports continuous operation at ambient temperatures up to 40°C and altitudes up to 1000 meters. With a power factor of 0.8 lagging and an anti-clockwise rotation direction, the generator is suitable for integration with standard industrial systems.

The alternator is IP23 protected and insulated to Class H standards, ensuring resilience in harsh conditions. This makes the RPES6 an ideal solution for prime or backup power in factories, data centers, large commercial facilities, and infrastructure applications.

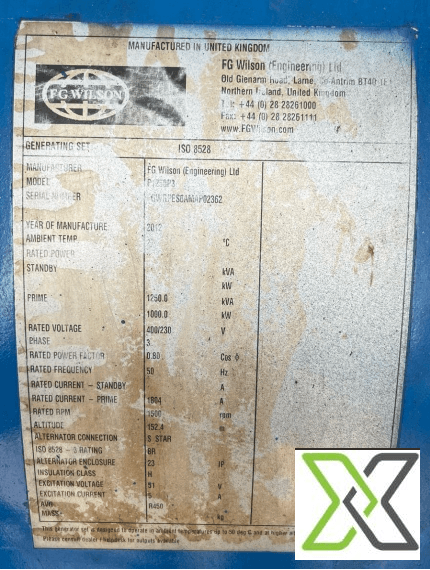

Specifications:

– Model Number: RPES6
– Manufacturer: FG Wilson (Engineering) Ltd, United Kingdom

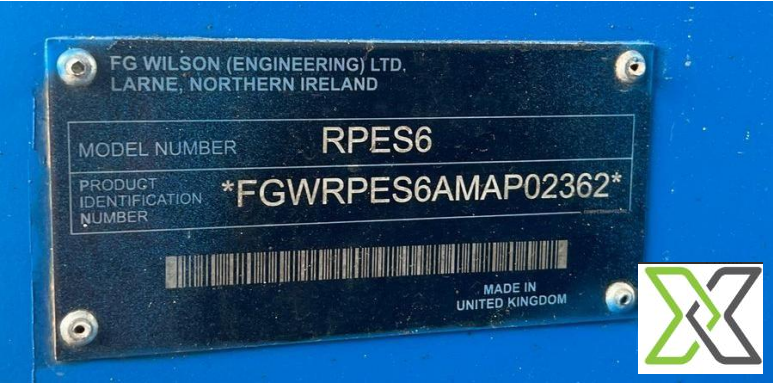

– Product Serial Number: FGWRPES6AMAP02362
– Year of Manufacture: 2012
– Rated Output – Prime: 1250 kVA / 1000 kW
– Rated Output – Standby: 1375 kVA / 1100 kW
– Rated Voltage: 400V, 3-Phase
– Rated Power Factor: 0.8 (Lagging)
– Frequency: 50 Hz
– Rated Speed: 1500 rpm
– Rated Current (Prime): 1804 A
– Rated Current (Standby): 1984 A
– Alternator Connection: Star
– Excitation Voltage: 60V
– Excitation Current: 4.3A
– Excitation System: Self-excited
– Altitude Rating: 1000 m
– Ambient Temp Rating: 40°C
– Insulation Class: H
– Protection Class: IP23
– Direction of Rotation: Anti-clockwise (confirmed from system input)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
