PERKINS 1250 KVA Diesel Generator | FG Wilson | 400V | 50 Hz | 2012 | 1605 Hours

PERKINS Diesel Engine Set - 2012 (2)

ReflowX SKU: REF-4574

Product Details

  • Quantity
    1
  • Availability (Lead Time)
    0-2 Weeks
  • Product Location
    Indonesia
  • Condition
    New
  • OEM
    ReflowX
  • Equipment code
    CFIHOS-30000683
  • Total Price
  • Per Unit Price
    $ 165,000.00
Whatsapp Chat With Seller

Description

Full Technical Specification

ENGINE DETAILS

Engine Manufacturer: PERKINS

Generator Manufacturer: FG Wilson (Engineering) Ltd

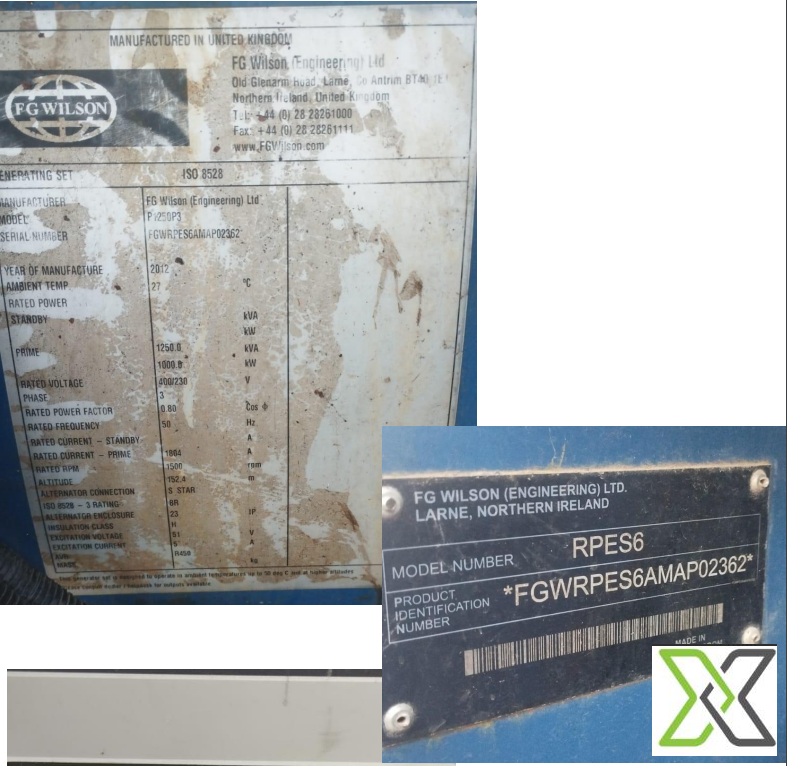

Serial Number: FGWRPES6AMAP02362

Year of Manufacture: 2012

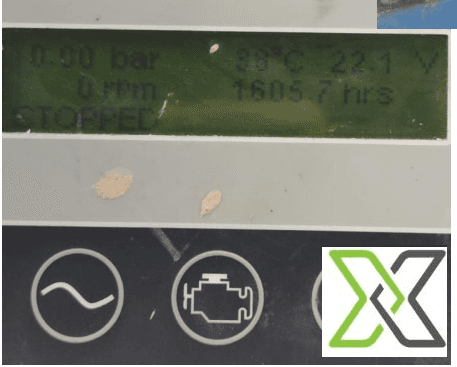

Running Hours: 1605 Hours

Engine Type: 4-Stroke, Water-Cooled, Turbocharged, Direct Injection

Configuration: V16

Displacement: (Estimated around 61.12 L for Perkins 4016TAG series)

Bore x Stroke: 160 mm x 190 mm

Compression Ratio: 13.6:1

Aspiration: Turbocharged and Air-to-Air Aftercooled

Cooling System: Water-cooled, heavy-duty radiator

Governor Type: Electronic

Starting System: Electric Start (24V DC)

Fuel Type: Diesel

Fuel System: Direct Injection

Lube Oil System: Full-flow filter with bypass

Exhaust System: Industrial Grade Muffler with Flexible Bellows

Rated Speed: 1500 RPM

GENERATOR (ALTERNATOR) SPECIFICATIONS

Type: Brushless, Synchronous, 4-Pole

Voltage: 400 V

Frequency: 50 Hz

Power Factor: 0.8 (Lagging)

Rated Power (Standby): 1250 KVA

Rated Power (Prime): Approx. 1130 KVA

Rated Active Power: 1000 KW

Insulation Class: H

Protection Class: IP23

Excitation System: Self-excited, Automatic Voltage Regulator (AVR)

Voltage Regulation: ±1%

Connection Type: Star (Wye)

Speed: 1500 RPM

CONTROL SYSTEM

Control Panel Type: Digital Auto/Manual Control

Features:

Auto start/stop operation

Emergency stop button

Digital display of voltage, current, frequency, active and reactive power

Engine monitoring: oil pressure, coolant temperature, RPM

Alarm and shutdown protection for critical parameters

Integrated battery charger

Event and fault history log

COOLING SYSTEM

Type: Water Cooled, Closed Circuit

Radiator Type: Industrial-grade with electric fans

Thermostatic Control: Included

Coolant Capacity: Approx. 220 L

FUEL SYSTEM

Fuel Type: Diesel

Fuel Consumption (approximate):

At 100% Load: ~265 L/hr

At 75% Load: ~200 L/hr

Fuel Tank: External, as per installation

Filtration: Duplex fuel filter with water separator

LUBRICATION SYSTEM

Method: Forced lubrication by gear pump

Oil Pressure: 3.5 - 5.0 bar

Oil Capacity: Approx. 230 L

Filter Type: Full-flow, replaceable

EXHAUST SYSTEM

Exhaust Gas Flow: Approx. 260 m³/min

Exhaust Gas Temperature: Max. 520°C

Silencer: Industrial muffler with flexible connections

DIMENSIONS & WEIGHT

Overall Length: Approx. 5500 mm

Overall Width: Approx. 2200 mm

Overall Height: Approx. 2700 mm

Dry Weight: Approx. 11,500 kg

OPTIONAL FEATURES

Soundproof or weatherproof container

Synchronizing and load-sharing functionality

Remote monitoring capability

Automatic Transfer Switch (ATS)

Fuel day tank with automatic refill

Control panel event and fault logging

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number
4012-46TWG3A
Year of Manufacturing
2012
Height
2255 mm
Width
1780 mm
Length
3714 mm
Weight
Dry weight approximately 5220 kg
Usage Hours
1605 Hours
Voltage
400 V
ISO 15926 Pt 4
7551
PCA RDS Code
RDS421154
CFIHOS ID
CFIHOS-30000527
Fuel type
Diesel
Output Power
1149 kWm
Speed
1500 rpm
Direction of Rotation
Anti-clockwise
IFC Class
IfcEngine
