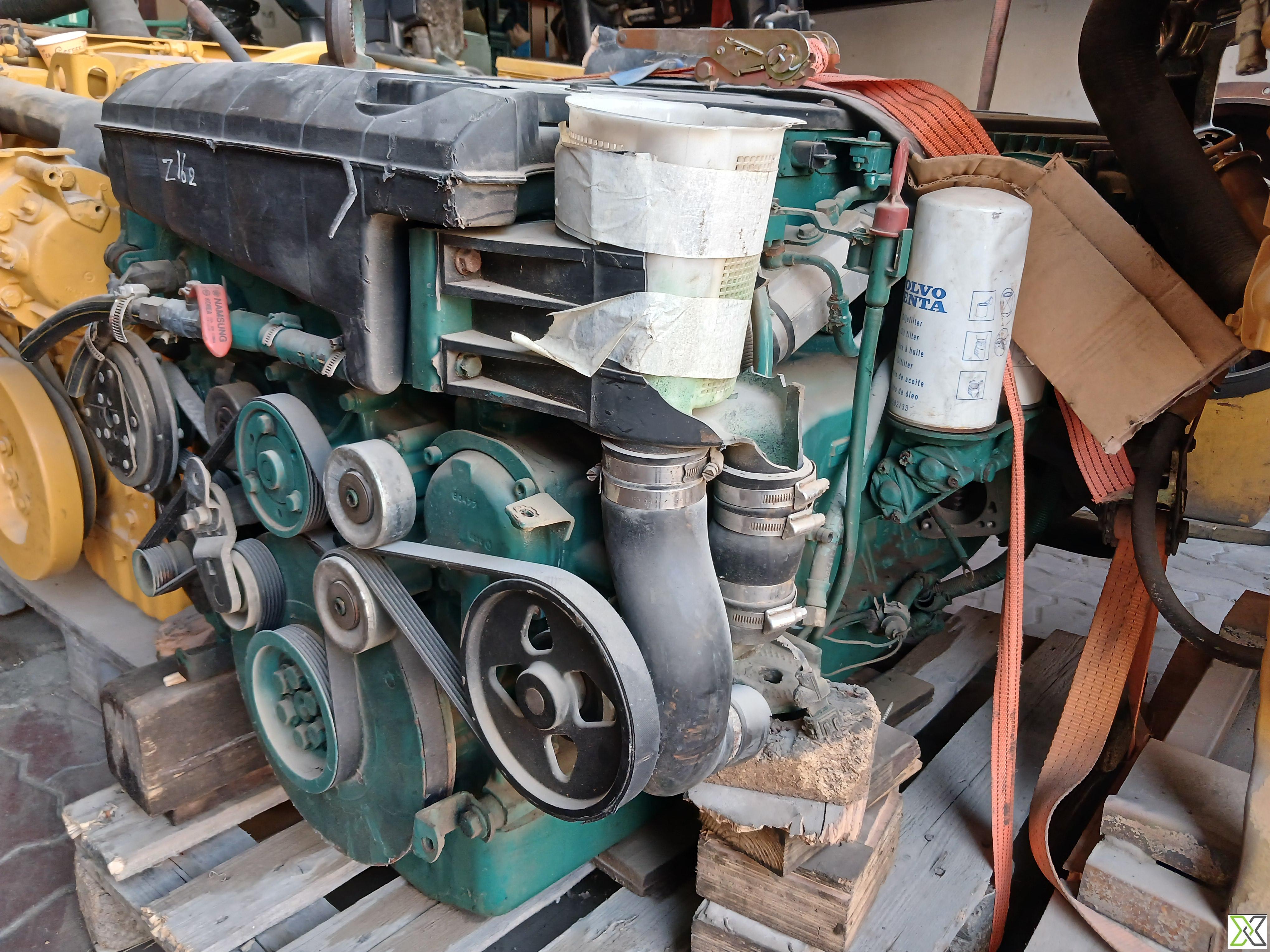

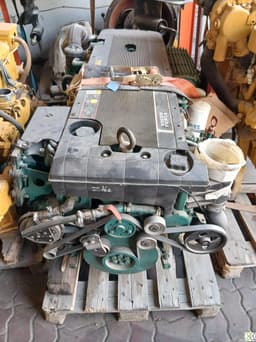

Volvo Penta D6-435 KA Marine Diesel Engine – 435 HP, 5.5L, Common Rail

The Volvo Penta D6-435 KA is a high-performance in-line 6-cylinder marine diesel engine developed for modern vessels requiring responsive power, fuel efficiency, and environmental compliance. With a displacement of 5.5 liters and a rated power output of 435 hp (320 kW) at 3500 rpm, this 4-stroke engine is designed with advanced features such as a common rail direct injection system, turbocharging with aftercooler, and water-cooled exhaust manifold and turbocharger for optimal thermal management. The D6-435 KA meets EPA Tier 2 emission standards and is identified under the engine family AVPXN055DAC. Its compact size and dry weight of approximately 640 kg make it ideal for a range of marine propulsion applications where space, weight, and reliability are critical.

Specifications:

– Manufacturer: Volvo Penta AB
– Model: D6-435 KA

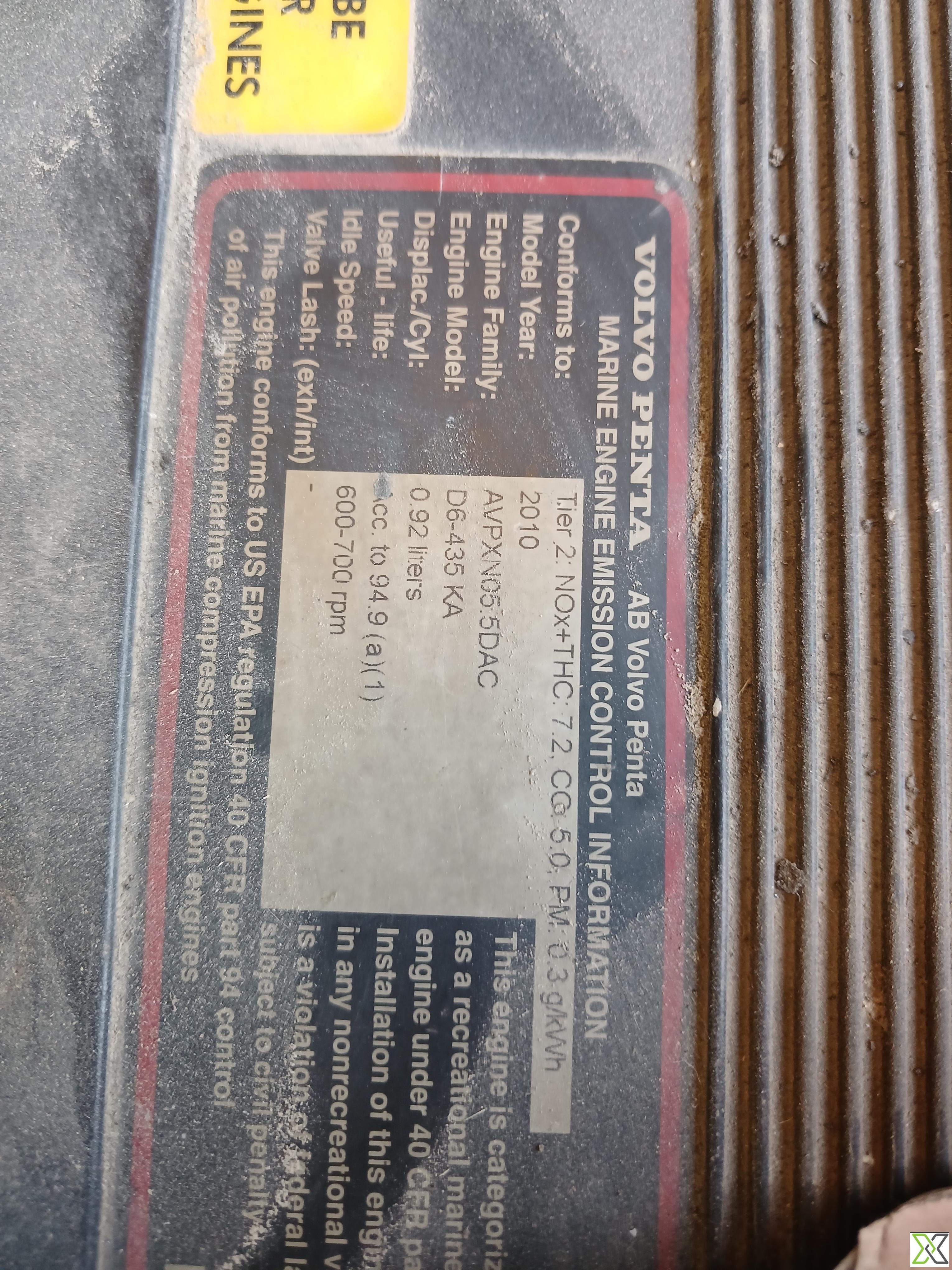

– Engine Family: AVPXN055DAC
– Model Year: 2010
– Emission Standard: EPA Tier 2
  • NOx + THC: 7.2 g/kWh
  • CO: 5.0 g/kWh
  • PM: 0.3 g/kWh
– Engine Type: 4-stroke, turbocharged, aftercooled marine diesel
– Displacement: 5.5 liters (5,500 cc)
– Number of Cylinders: 6, in-line
– Bore x Stroke: [Not specified, can be added if needed]
– Valve Lash (Exh/Int): 0.46 mm / 0.46 mm
– Idle Speed: 600–700 rpm
– Maximum Power Output: 435 hp (320 kW) @ 3500 rpm
– Fuel System: Common rail direct injection
– Cooling System: Heat exchanger cooled
– Aspiration: Turbocharged with aftercooler
– Lubrication System: Forced lubrication with oil cooler
– Exhaust System: Water-cooled exhaust manifold and turbocharger
– Weight (Dry): Approx. 640 kg
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
