Product Description
ReflowX is pleased to offer for sale a complete 535 MW multi-unit power plant package, comprising four (4) GE Alsthom 9001E gas turbines (Units 5–8, 82 MW each) and two (2) Alsthom/Rateau VEGA209 110B steam turbines (Units 11–12, 103.4 MW each). The package is offered direct from the equipment owner through ReflowX, providing the buyer with clean provenance and no broker chain.
Why This Package Stands Out
- Six-unit power station in one package — four gas turbines plus two steam turbines, giving a buyer an entire multi-unit plant rather than a single asset. Ideal for full-site relocation or partial fleet acquisition.
- Documented life-extension work already completed — GT-5/6/7/8 underwent hot gas path life extensions in 2010–11, with Stage 1, 2, and 3 buckets, nozzles, and shrouds replaced using upgraded materials for improved rupture strength. This is exactly the kind of capital work buyers usually have to budget for themselves.

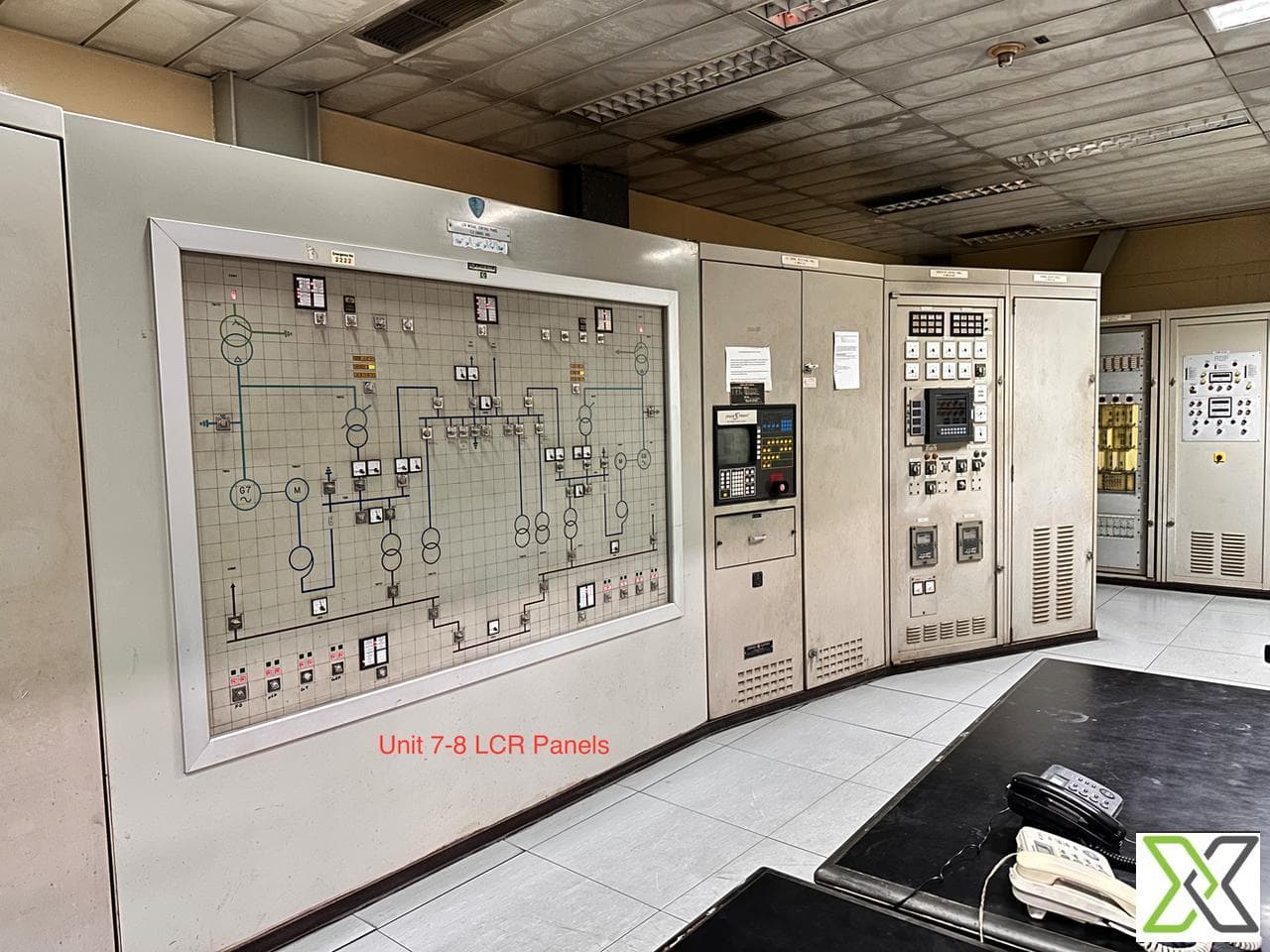

- Modern digital controls on key units — GT-5 & GT-6 upgraded to GE Speedtronic Mark VIe (2015); STG-11 upgraded to a new RX3i & PCVue-based control system (2020); STG-12 runs ALSTOM ALSPA Controsteam V3 (commissioned 2011). Buyers inherit modern, supportable control architecture rather than legacy systems on every unit.
- Multi-fuel capability — gas turbines rated for natural gas, HSD, and fuel oil (FO), giving the buyer fuel flexibility depending on the redeployment site.
- Preserved condition — laid up under preservation since October 2022.
Technical Specifications Table — Package Overview
| Parameter | Details |
|---|---|
| Manufacturer | M/S Alsthom / Rateau, France |
| Gas Turbine Model | 9001E (GE/Alsthom design) |
| Steam Turbine Model | VEGA209 110B (Alsthom/Rateau) |
| Year of Manufacture | 1990 (GT) & 1995 (ST) |
| Condition | Used — preserved, with documented life-extension upgrades |
| Location | Asia |
| Quantity Available | 4x Gas Turbines (Units 5, 6, 7, 8) & 2x Steam Turbines (Units 11, 12) |
| Total Package Output | ~535 MW combined (4x 82 MW GT + 2x 103.4 MW ST) |
| Power Output (per unit) | 82 MW per Gas Turbine; 103.4 MW per Steam Turbine |
| Fuel Type | Multi-fuel — Natural Gas, HSD, Fuel Oil (FO) / LSFO |
| Frequency | 50 Hz |
| Configuration | Multi-engine combined-cycle power station |
| Generator Manufacturer | Alsthom |
| Gas Turbine Operating Hours | ~157,232 hours |
| Steam Turbine Operating Hours | ~130,000 hours |
| Gas Turbine Total Starts | 8,500 |
| Steam Turbine Total Starts | 2,900 |
| Current Status | Preserved since October 2022 |

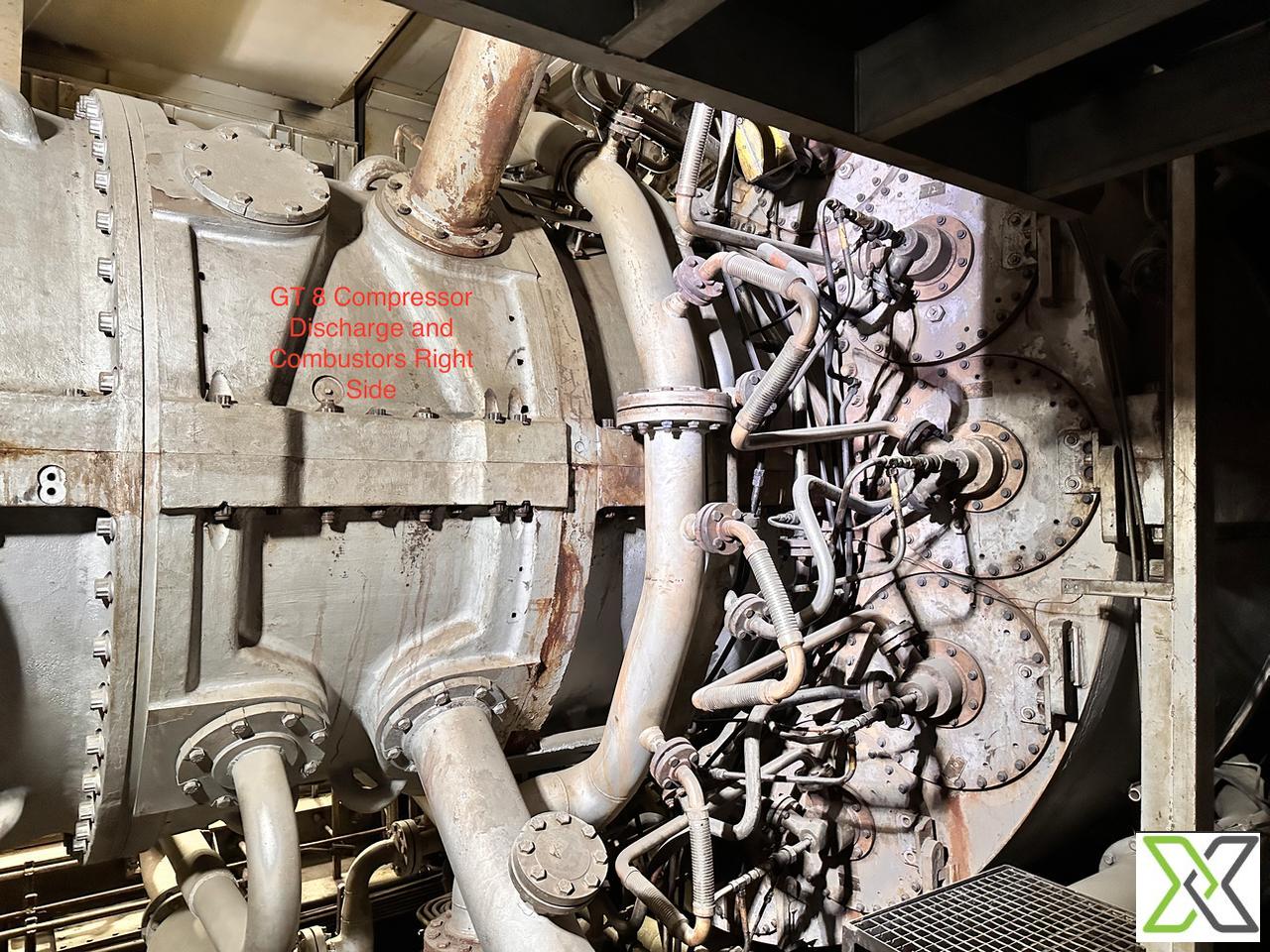

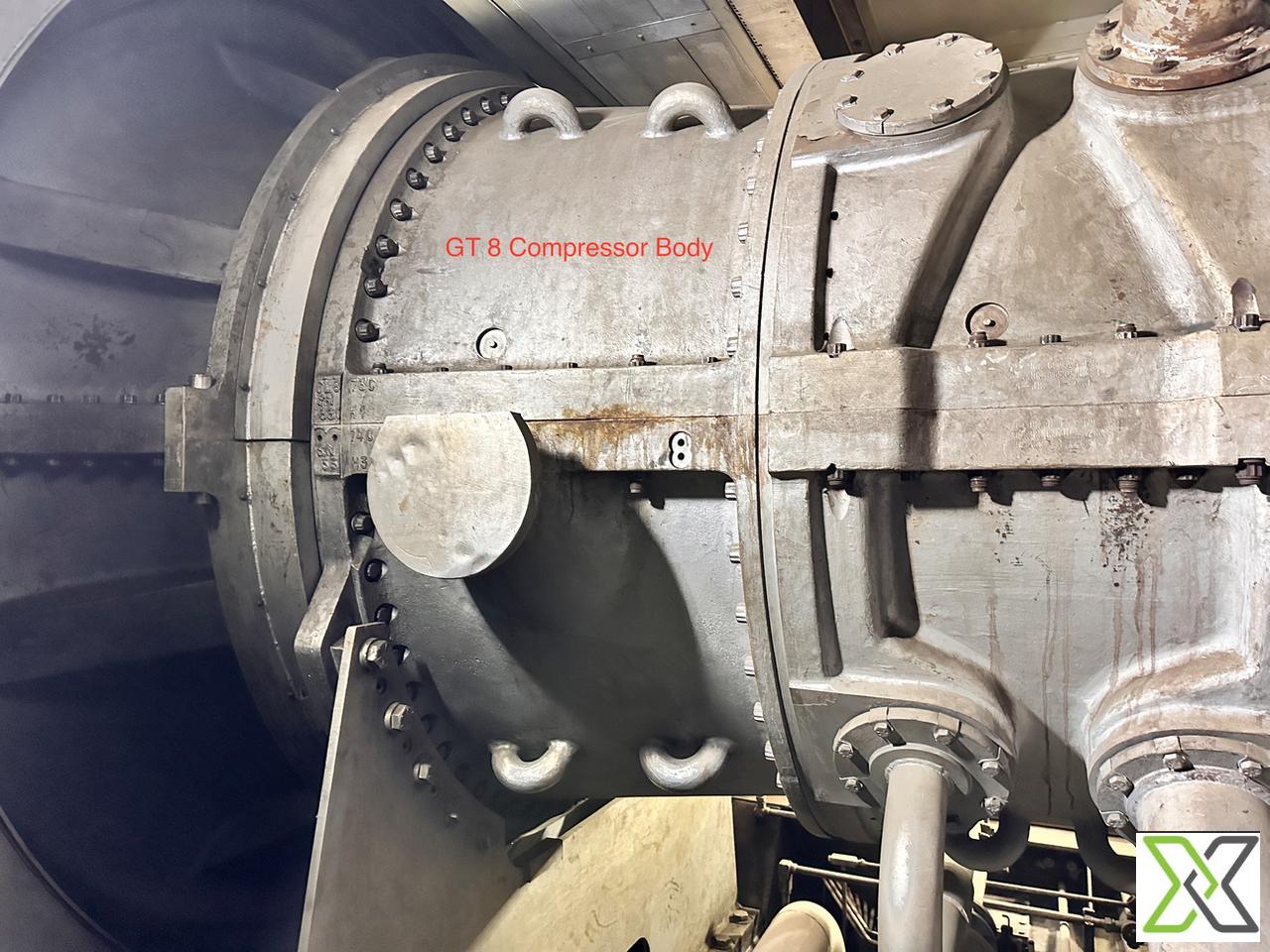

Gas Turbine Detail — GE Alsthom 9001E (Units 5, 6, 7, 8)
| Item | Specification |
|---|---|
| Base Load Rating (Gas) | 82 MW |
| Base Load Rating (HSD) | 79 MW |
| Base Load Rating (Fuel Oil) | 79 MW |
| Turbine Inlet Temperature (HSD) | 1,093 °C |
| Turbine Inlet Temperature (FO) | 1,029 °C |
| Turbine Exhaust Temperature (HSD) | 528 °C |
| Turbine Exhaust Temperature (FO) | 509 °C |
| Compressor Stages | 17 |
| Turbine Stages | 3 |
| Combustors | 14 |
| Starting System | 6.6 kV, 1,000 kW Induction Motor (GEC Alsthom) |

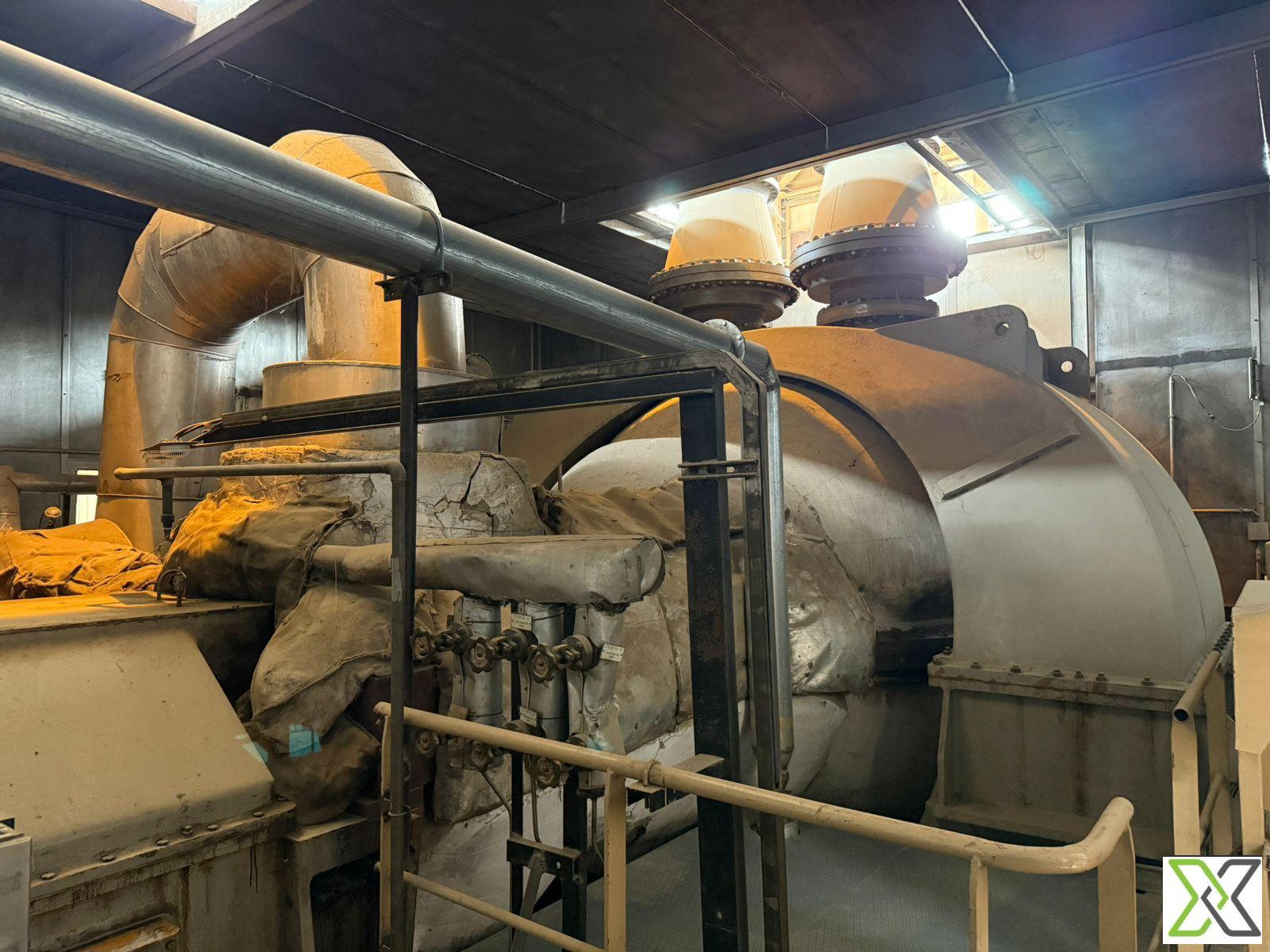

Steam Turbine Detail — Alsthom/Rateau (Units 11, 12)
| Item | Specification |
|---|---|
| Configuration | Single cylinder — 12 HP stages & 5 LP stages |
| HP Steam Inlet Pressure | 40 bar |
| Rated Power | 103.4 MW per unit |

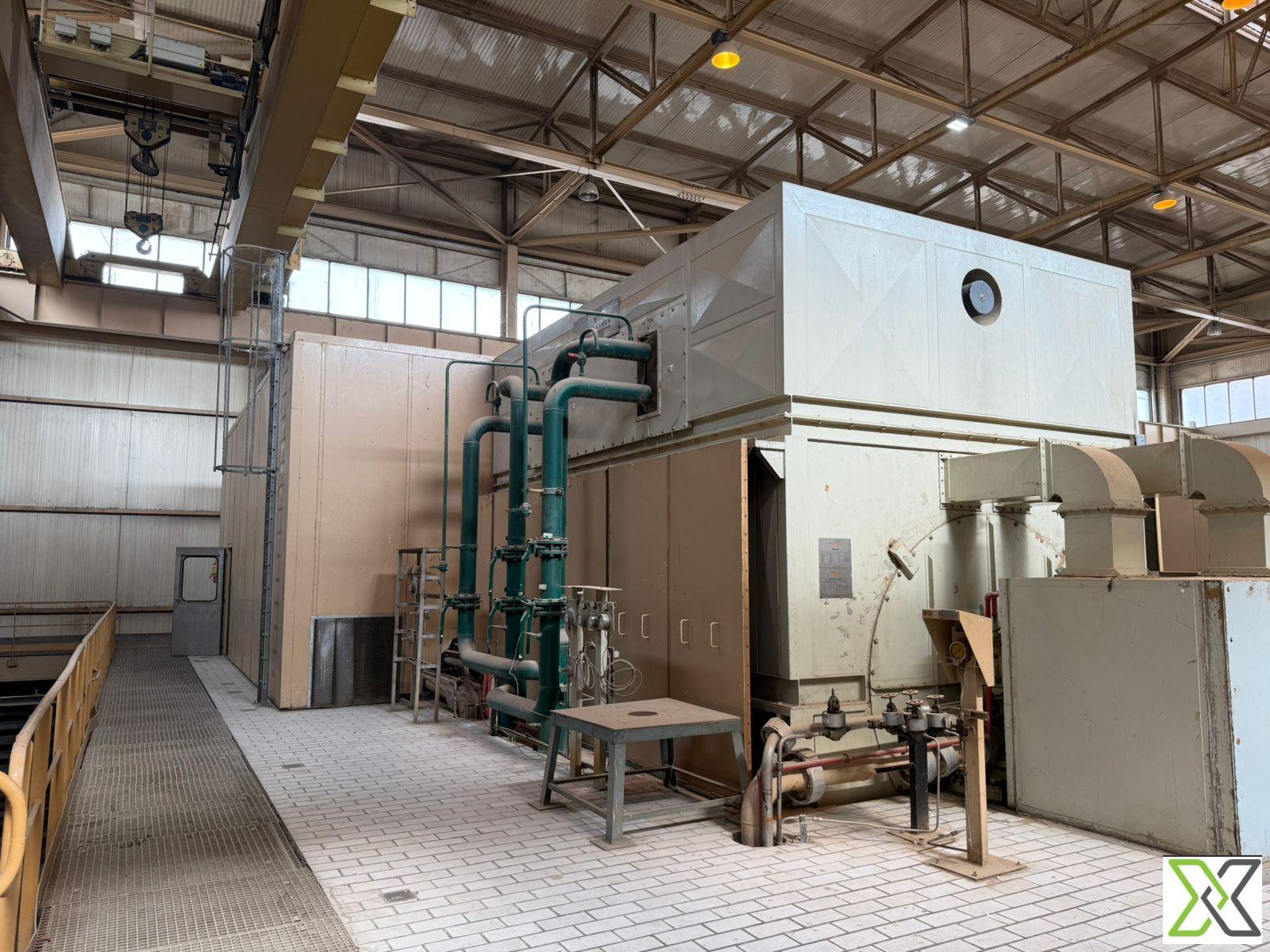

Generators
| Item | Specification |
|---|---|
| Gas Turbine Generators (Units 5–8) — Manufacturer | Alsthom |
| Gas Turbine Generator Type | T 229-320 |
| Gas Turbine Generator Rated Output | 125.95 MVA |
| Gas Turbine Generator Rated Voltage | 11.5 kV |
| Steam Turbine Generators (Units 11 & 12) — Manufacturer | Alsthom |
| Steam Turbine Generator Type | T-229-320 |
| Steam Turbine Generator Rated Output | 121.647 MVA |
| Steam Turbine Generator Rated Voltage | 11.5 kV |
If you require any further information on this listing please contact info@reflowx.com.
Technical Details
| Fuel type | Multi-fuel capable; rated for Gas, HSD, and FO / LSFO |
|---|---|
| Usage Hours | ~ 157,232 OH GT, ~ 130,000 OH ST |
| Manufacturer Name | M/S ALSTHOM / RATEAU, France |
| Year of Manufacturing | 1990 & 1995 |
| Model Number | 9001 E & VEGA209 110B |
Supporting Documents
General Terms
- ReflowX and the seller retain the right to evaluate and approve offers.
- Buyers should verify quantities and conditions upon delivery.
- After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
- All parties agree to adhere to ReflowX Terms and Conditions in transactions.
- Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
