ALSTOM MS9001E Gas Turbine Generator – 100 MW, 50 Hz, Multi-Fuel with Generator

ReflowX SKU: REF-2691

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

Pakistan
Condition

Used
OEM

ALSTOM
Equipment code

CFIHOS-30000534

Get Quotation Whatsapp

Short Description

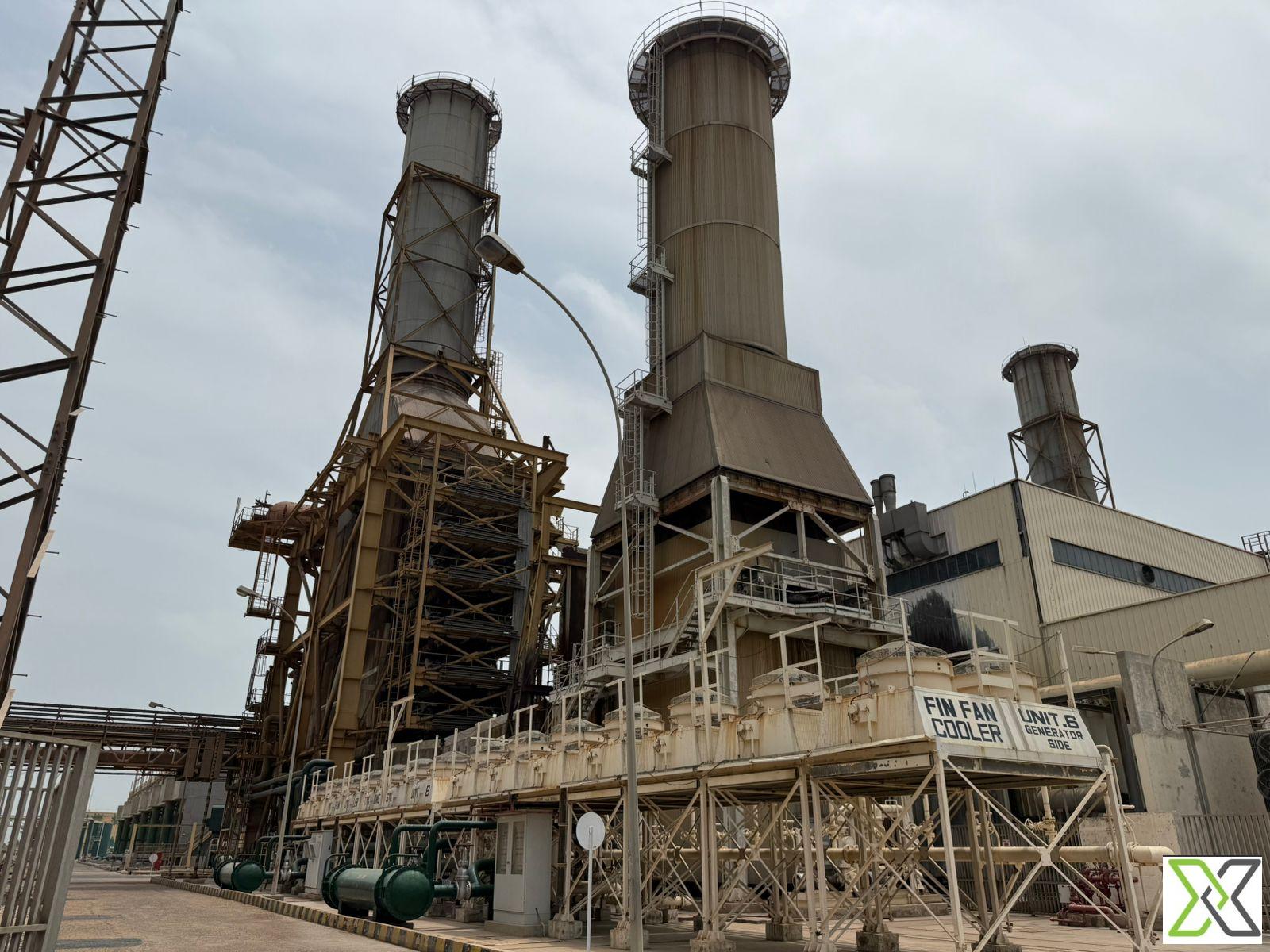

Preserved ALSTOM MS9001E 100 MW industrial gas turbine generator set, operating at 50 Hz with multi-fuel capability, including alternator and exciter. Complete with BOP. Located in Kot Addu, Pakistan.

Description

ALSTOM MS9001E Gas Turbine Generator – 100 MW, 50 Hz, Multi-Fuel with Generator

The ALSTOM MS9001E is a heavy-duty 100 MW gas turbine generator system built for utility-scale and industrial power production. Commissioned in December 1988 and currently located in Kot Addu, Pakistan, the unit is installed but de-synchronized and preserved in good condition. It has recorded 157,232 operating hours with 8,716 starts and 314,101 equivalent hours.

This multi-fuel turbine is paired with a high-capacity ALSTOM T229-320 synchronous generator rated at 130 MVA, featuring a power factor of 0.85, 11,500 V output, and 6,527 A rated current. The unit operates at 3000 rpm with continuous duty classification under IEC standards. The generator uses indirect air cooling for the stator and direct air cooling for the rotor, with Class F insulation.

Excitation is handled by an ALSTOM TKJ 86.15 rotating diodes exciter rated at 318 kW, 151 V, and 2110 A, with separate 49 V excitation voltage and 98 A current. The exciter is multiphase and designed for continuous operation with IP44 protection.

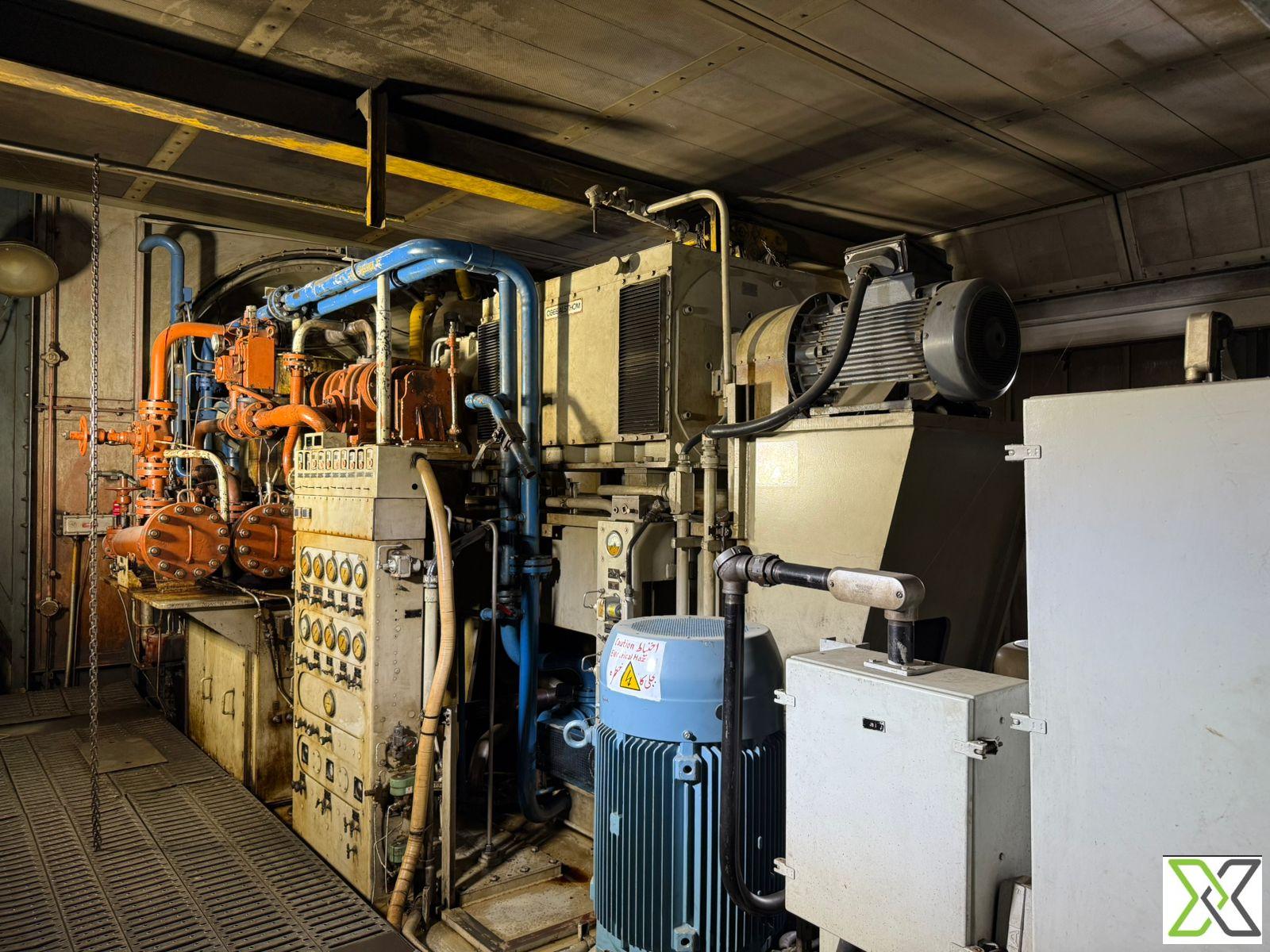

The complete system includes the turbine, gearbox, generator, exciter, HRSG, transformers, control systems, and all associated Balance of Plant (BOP). It underwent a major overhaul and uprating in Nov–Dec 2011. Full inspection reports are available.

Specifications:

– Equipment Type: Heavy-duty Gas Turbine Generator Set
– Model: ALSTOM MS9001E
– Manufacturer: ALSTOM
– Year of Manufacture / Commissioning: 1988 / Nov 1988
– Rated Power Output: 100 MW
– Frequency: 50 Hz
– Fuel Type: Multi-fuel (liquid and gaseous fuels)
– Operating Hours: 157,232
– Equivalent Operating Hours: 314,101
– Number of Starts: 8,716
– Unit Status: Installed, de-synchronized, preserved
– Location: Kot Addu, Punjab, Pakistan

Generator (Alternator):
– Type: T229-320
– Serial Number: 411921
– Year of Manufacture: 1984
– Apparent Power: 130 MVA
– Rated Voltage: 11,500 V
– Rated Current: 6,527 A
– Frequency: 50 Hz
– Speed: 3000 rpm
– Power Factor: 0.85
– Cooling of Stator: Indirect (Air-cooled)
– Cooling of Rotor: Direct (Air-cooled)
– Class of Insulation (Stator/Rotor): F
– Type of Protection: IP44
– Standard: IEC
– Duty: Continuous

Exciter (Rotating Diodes Exciter):
– Type: TKJ 86.15 (Multiphase)
– Serial Number: 411956
– Year of Manufacture: 1987
– Output Power: 318 kW
– Rated Voltage: 151 V
– Rated Current: 2110 A
– Speed: 3000 rpm
– Excitation Voltage: 49 V
– Excitation Current: 98 A
– Class of Insulation: F
– Protection Class: IP44
– Duty: Continuous
– Excitation Source: Separated

Included Components:
– Turbine + Gearbox + Generator (Alternator) + Exciter
– HRSG (Heat Recovery Steam Generator)

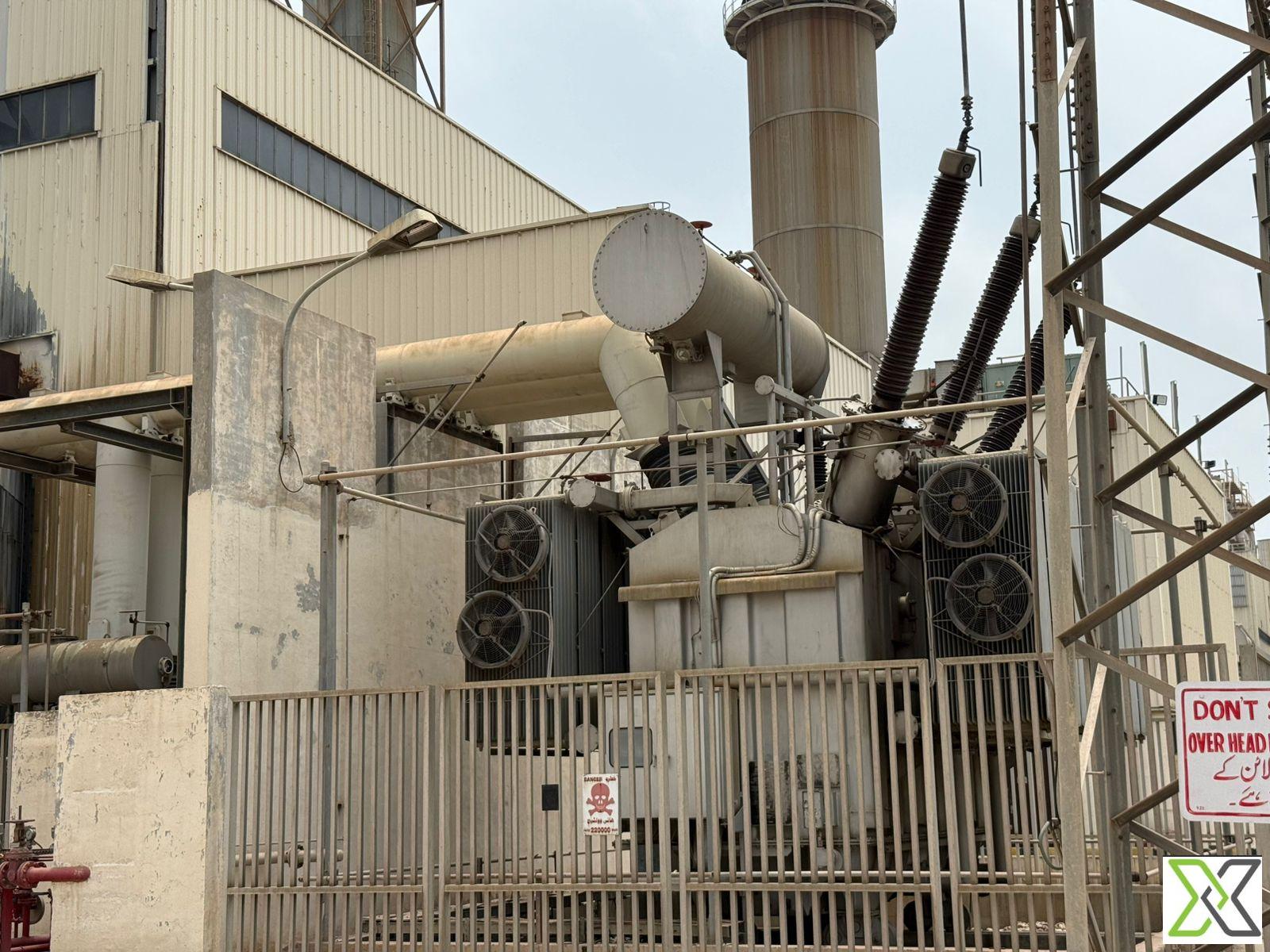

– Transformers, Control Panels, BOP Systems
– Last Major Overhaul: Nov–Dec 2011 (Uprated)
– Inspection Reports: Available
– Quantity: 1 Set

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	MS9001E
Year of Manufacturing	1988
Manufacturer Name	ALSTOM
Usage Hours	157,232
Voltage	11,500 V
Fuel type	Multi-fuel (liquid and gaseous fuels)
Output Power	318 kW
Speed	3000 rpm
Insulation Class	Class F
