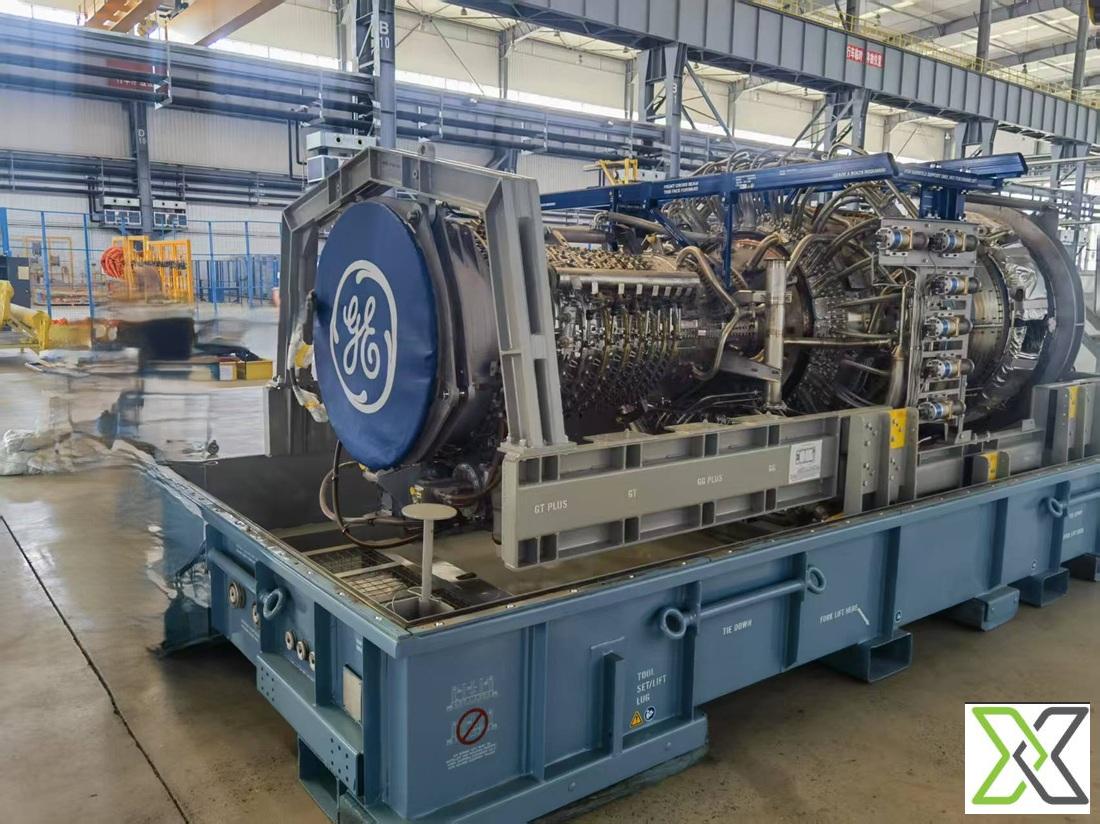

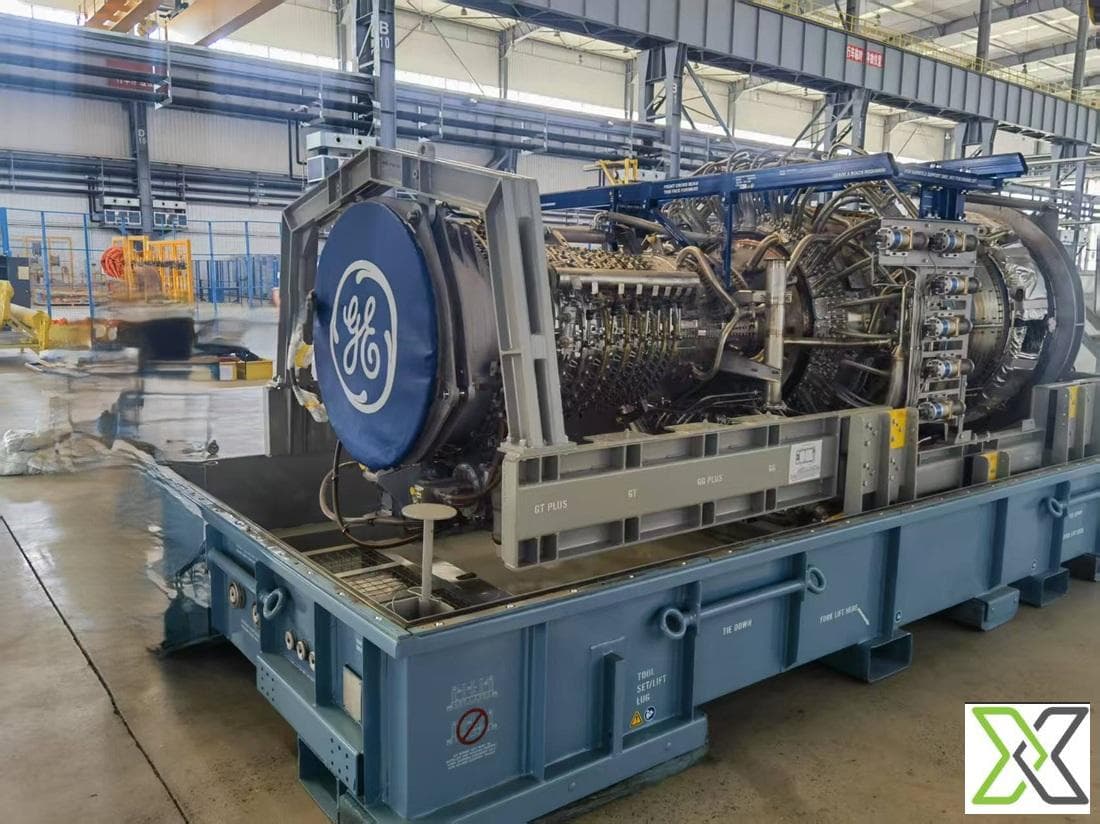

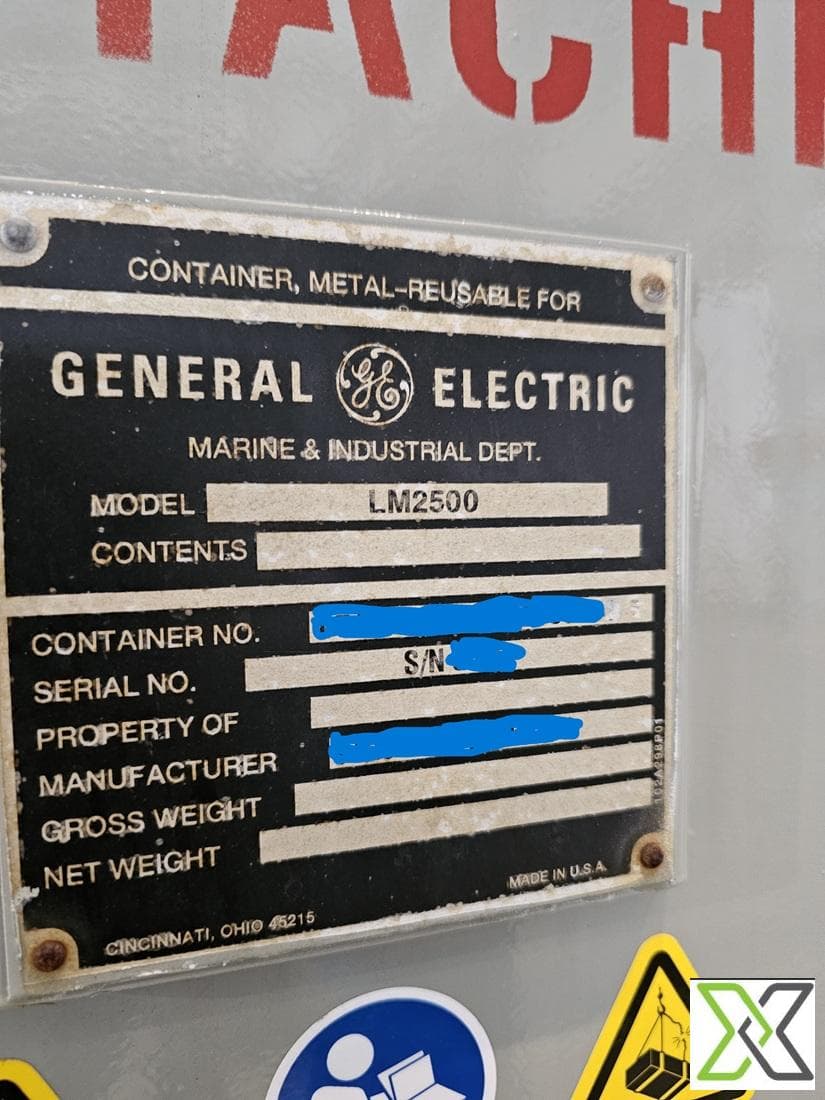

GE LM2500+G4 Gas Turbine - 2025

ReflowX SKU: REF-2180

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

Indonesia
Condition

New
OEM

GE OIL & GAS
Equipment code

CFIHOS-30000534
Total Price
Per Unit Price

$ 29,975,000.00

Whatsapp Chat With Seller

Description

GENERAL OVERVIEW

Model: GE LM2500+G4

Type: Aeroderivative Gas Turbine

Manufacturer: GE Vernova

Year of Manufacture: 2025

Application: Power Generation

Fuel: Natural Gas (primary), capable of dual fuel (optional)

Mounting: Modular skid or containerized package

Drive Configuration: Single-shaft with free power turbine

Compressor Type: Axial, 17-stage with variable stator vanes

PERFORMANCE DATA (ISO CONDITIONS)

Net Output Power: 33.6 to 34.2 MW (at 50 Hz)

Thermal Efficiency (LHV): ~37.0%

Heat Rate (LHV): ~9,750 kJ/kWh

Exhaust Gas Temperature: 543°C (1,009°F)

Exhaust Mass Flow Rate: 93.1 kg/s

Power Turbine Speed: 3,000 rpm (synchronous generator for 50 Hz)

Start Time: <10 minutes to full load

PHYSICAL DIMENSIONS (GENERATOR PACKAGE)

Length: ~16,000 mm

Width: ~3,400 mm

Height: ~4,000 mm

Dry Weight (complete skid): ~135,000 kg

COMBUSTION SYSTEM

Type:

Standard: Single Annular Combustor (SAC)

Optional: Dry Low Emissions (DLE) system

NOx Emissions:

SAC: <50 ppm

DLE: ≤25 ppm (natural gas, @15% O₂)

CO Emissions (DLE): ≤50 ppm

OPERATING CONDITIONS

Ambient Temperature Range: -30°C to +50°C (with appropriate inlet conditioning)

Altitude Limit: Up to 1,000 m without performance degradation

Relative Humidity: 0–100% non-condensing

Cooling Air Requirements: Ambient air or conditioned air intake system

MAINTENANCE INTERVALS

Minor (Borescope) Inspection: ~8,000 operating hours

Hot Section Inspection: ~25,000 operating hours

Major Overhaul: ~50,000 operating hours

Typical Availability: >98%

Typical Capacity Factor: >92%

INTEGRATION & AUXILIARIES

Control System: GE Mark VIe or newer

Startup System: Automatic with black-start capability (optional)

Generator: Brushless, synchronous, 10.5 kV (or 11/13.8 kV), 3-phase, 50 Hz

Lube Oil System: Duplex filtration, reservoir, pump motor

Inlet Air System: Weather hoods, filters, silencer, anti-icing (optional)

Exhaust System: Silencer, diverter damper (for cogeneration setups)

SAFETY & COMPLIANCE

Applicable Standards: ISO 3977, API 616, IEC 60034, ASME B31.3

Safety Systems: Flame detection, over-temperature, over-speed trip, emergency shutdown

Fire Suppression: Integrated system (CO₂, FM-200, or water mist – based on configuration)

ENVIRONMENTAL & EMISSIONS OPTIONS

Low-NOx Combustion System: DLE combustion for <25 ppm NOx

SCR System: Optional for further NOx reduction

CO Catalyst: Optional oxidation catalyst for CO reduction

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	GE LM2500+G4
Year of Manufacturing	2025
Usage Hours	00
Temperature Range	-30°C to +50°C
Pressure Rating	~1,430 kPa
Voltage	10.5 kV (standard)
ISO 15926 Pt 4	7686
PCA RDS Code	RDS820799
CFIHOS ID	CFIHOS-30000534
Fuel type	Natural Gas
Output Power	33.6 – 34.2 MW
Speed	3,000 rpm
Direction of Rotation	Clockwise
Design Specification	API 616, ASME B31.3, IEC 60034
Normal Operating Temperature	~1,470°C
Explosion Protection Gas Group	IIA/IIB/IIC
Explosion Protection Temperature Class	T3 to T4
Explosion Protection Zone	Zone 2
Lower Limit Operating Temperature	-30°C
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	+50°C
Number Of Shafts	Two
Test Medium	Air or Natural Gas
Test Pressure	~1.5 × design pressure
Turbine Cycle	Brayton Cycle
Insulation Class	Class F

General Terms

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
