Siemens SGT-50DLE 2MW Natural Gas Turbine Generator | 10.5kV | 2022 | Zero Hours | DLE

Siemens SGT-50DLE Gas Turbine Generator Package - 2022

ReflowX SKU: REF-1102

Product Details

  • Quantity
    1
  • Availability (Lead Time)
    0-2 Weeks
  • Product Location
    China
  • Condition
    New
  • OEM
    ReflowX
  • Equipment code
    CFIHOS-30000534
  • Total Price
  • Per Unit Price
    $ 1,650,000.00
Whatsapp Chat With Seller

Description

FULL TECHNICAL SPECIFICATION

Siemens SGT-50DLE Gas Turbine Generator Package (2 MW)

GENERAL INFORMATION

Turbine Model: Siemens SGT-50DLE

Year of Manufacture: 2022

Operating Hours: Zero (Brand New)

Configuration: Single Shaft

Fuel Type: Natural Gas

Emission Control: Dry Low Emission (DLE)

Quantity: 1 Unit

Delivery Term: FOB China Port

PERFORMANCE DATA

Power Output (Electrical): 2 MW

Output Voltage: 10.5 kV

Frequency: 50 Hz

Power Factor: 0.8 (typical for industrial generators)

Efficiency: ~30-35% at ISO conditions (depending on site specifics)

ISO Standard Conditions: 15°C, 1.013 bar, 60% relative humidity

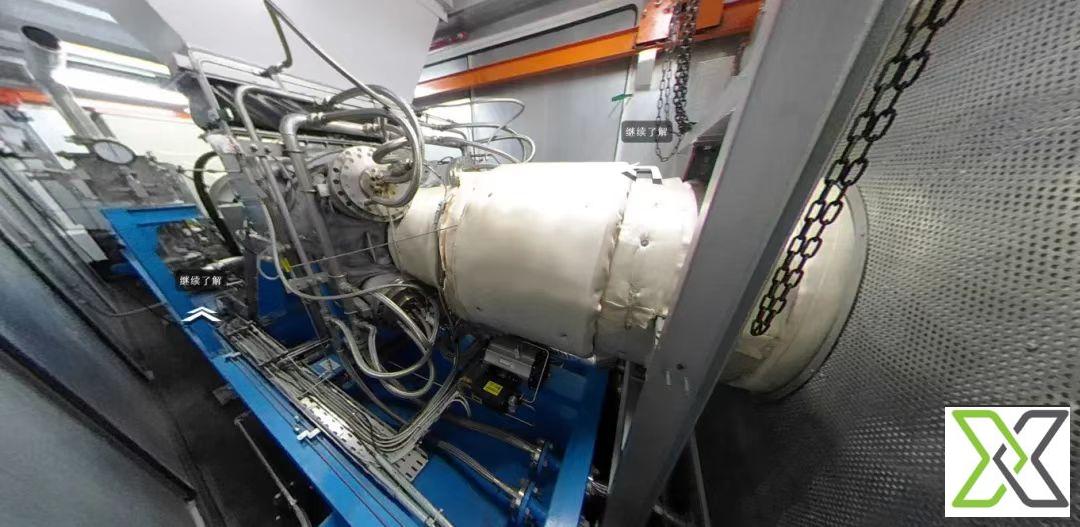

GAS TURBINE DETAILS

Type: Industrial Single-Shaft Gas Turbine

Design: Modular, compact, continuous duty

Fuel System: Natural Gas

Combustion Type: Dry Low Emission (DLE) — No water or steam injection required

Control System: Siemens turbine control panel with PLC-based logic

Starting Method: Electric motor or pneumatic (as per Siemens standard)

Cooling System: Closed-loop air/oil cooler for turbine and lube systems

Exhaust Temperature: Approx. 500-550°C (depending on load)

Exhaust System: High-efficiency, insulated chimney (included)

GENERATOR DETAILS

Type: High-Voltage Synchronous Generator

Output: 10.5 kV

Rated Power: 2 MW

Frequency: 50 Hz

Speed: 3000 RPM

Excitation System: Brushless

Cooling Type: Air-Cooled

Insulation Class: F

Protection Rating: IP23 or better

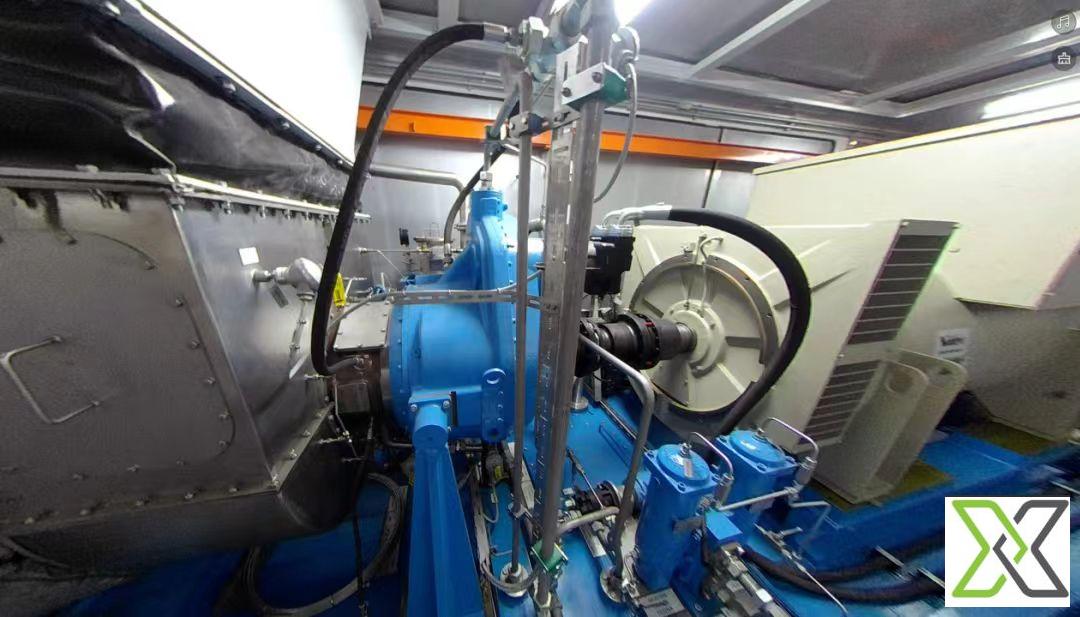

GEARBOX DETAILS

Type: Reduction Gearbox

Manufacturer: Siemens-approved or equivalent

Input Speed: Turbine rated speed

Output Speed: Generator synchronous speed (3000 RPM)

Lubrication: Integrated oil lubrication system

Cooling: Oil cooler, integrated with the turbine package

LUBRICATION SYSTEM

Type: Forced circulation oil system

Components:

Lube oil pump

Oil reservoir

Oil cooler

Filters

Pressure and temperature monitoring

Oil Type: As recommended by Siemens for gas turbine service

Flow Monitoring: With alarms and interlocks

COOLING SYSTEM

Type: Closed-loop air/oil heat exchanger

Cooling Medium: Air-cooled

Purpose: Cools turbine, generator, and gearbox lubricating oils

Control: Automatic temperature control and interlocks

CONTROL & MONITORING SYSTEM

Control Panel: Siemens integrated digital control

PLC/SCADA: Optional interface available

Functions:

Turbine startup/shutdown sequence

Load control

Fuel management

Lube oil and cooling system monitoring

Vibration, temperature, and pressure monitoring

Alarm and trip management

Remote Operation: Available via HMI or optional SCADA

CHIMNEY/EXHAUST SYSTEM

Type: Insulated steel stack

Exhaust Flow Capacity: Sized for 2MW gas turbine exhaust

Temperature Rating: 550°C

Emission Control: DLE (low NOx without water/steam injection)

Height: As per site requirements and emission dispersion norms

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number
Siemens SGT-50DLE
Year of Manufacturing
2022
Usage Hours
00
Temperature Range
-20°C - 40°C
Pressure Rating
30 bar (Max)
Voltage
2,000 kW (2 MW)
ISO 15926 Pt 4
7686
PCA RDS Code
RDS820799
CFIHOS ID
CFIHOS-30000534
Fuel type
Natural Gas
Output Power
10.5 kV
Speed
3000 RPM
Direction of Rotation
Clockwise
Design Specification
SGT-50DLE is designed for high-efficiency
Normal Operating Temperature
15°C to 40°C
Explosion Protection Gas Group
IIA
Explosion Protection Temperature Class
T3
Explosion Protection Zone
Zone 2
Lower Limit Operating Temperature
-20°C
Operation Continuous Intermittent
Continuous operation
Upper Limit Operating Temperature
40°C
Number Of Shafts
Single Shaft
Test Medium
Air
Test Pressure
30 bar
Turbine Cycle
Open Cycle
Insulation Class
Class H

General Terms

  • ReflowX and the seller retain the right to evaluate and approve offers.
  • Buyers should verify quantities and conditions upon delivery.
  • After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
  • All parties agree to adhere to ReflowX Terms and Conditions in transactions.
  • Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
