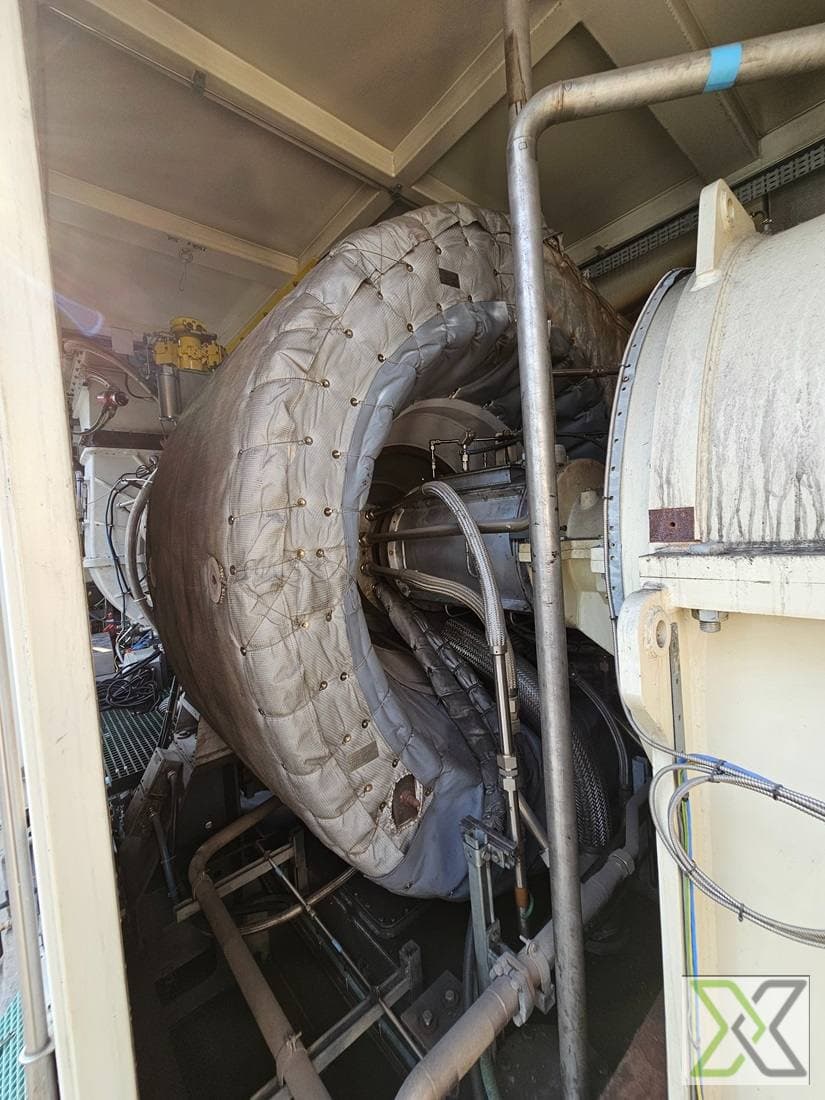

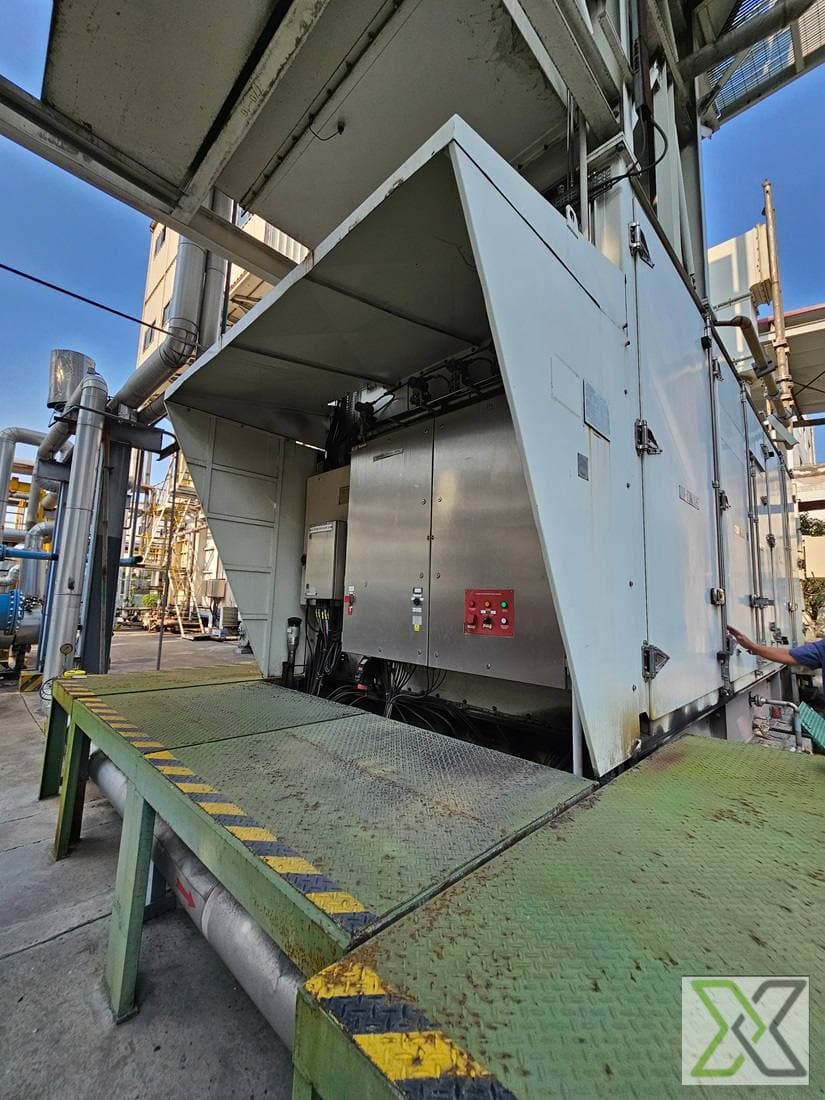

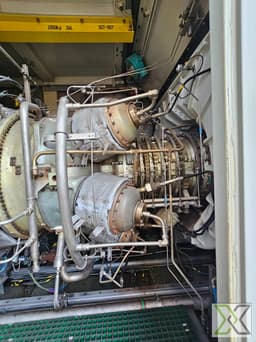

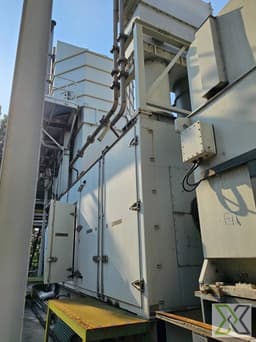

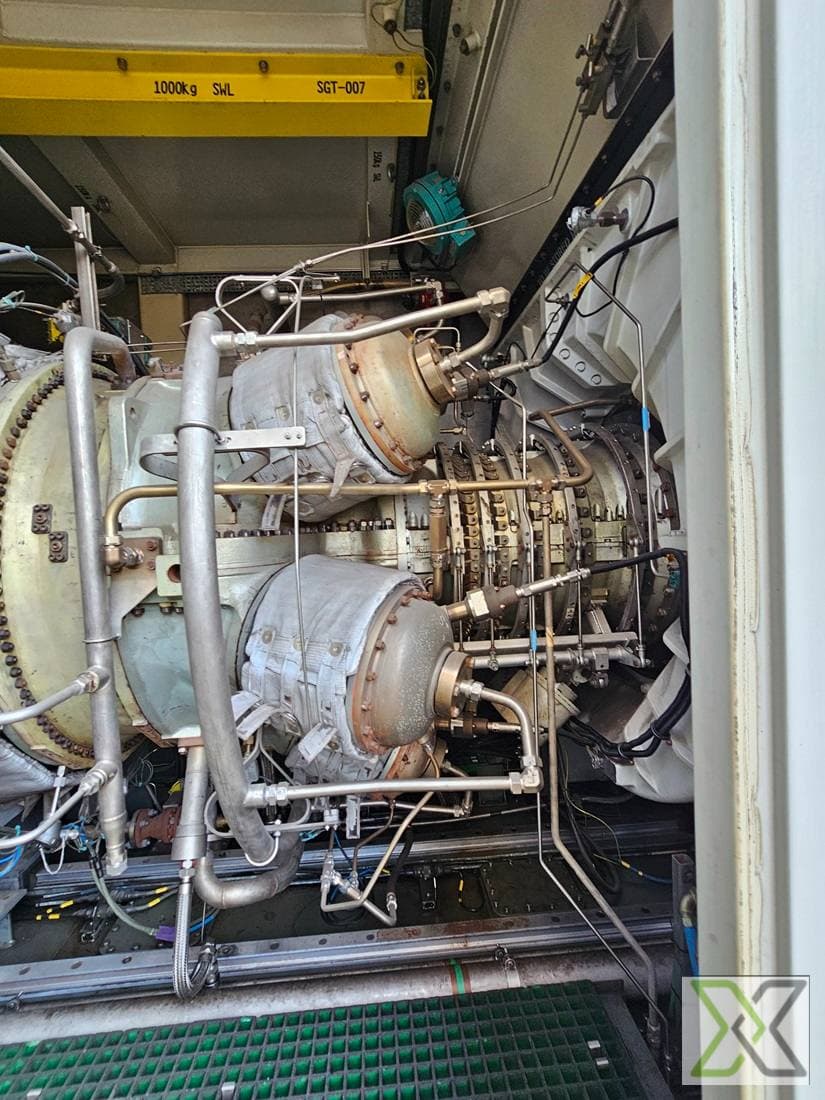

#1. SIEMENS SGT5-400DLE Gas Turbine – 540 MW Combined-Cycle Turbine - 2013

ReflowX SKU: REF-7038

Product Details

Quantity

1
Availability (Lead Time)

N/A
Product Location

China
Condition
OEM

Siemens Germany
Equipment code

CFIHOS-30000534

Get Quotation Whatsapp

Short Description

The Siemens SGT5-400DLE (2013) is a heavy-duty gas turbine offering up to 540 MW in combined-cycle configurations. It features dry low emission (DLE) combustion, a 15-stage axial compressor, and supports a wide range of fuels including natural gas, LNG, and liquid fuels, making it ideal for flexible, efficient, and environmentally conscious power generation.

Description

SIEMENS SGT5-400DLE Gas Turbine – 540 MW Combined-Cycle Turbine - 2013

The SGT5-400DLE Gas Turbine, developed by Siemens in 2013, delivers reliable, high-capacity power generation with advanced emissions control, wide fuel compatibility, and rapid start-up capabilities. Designed for both simple and combined-cycle applications, it features a two-shaft design with a 15-stage axial compressor and an approximate compression ratio of 20:1.

The turbine offers simple-cycle efficiency up to 39% and combined-cycle efficiency up to 61%, helping power producers meet stringent emissions and efficiency requirements. Its flexible operating range (30% to 100% load) and fast 10–15 minute start-up time make it well-suited for both base-load and grid-following roles.

The SGT5-400DLE is compatible with a variety of gaseous and liquid fuels, including natural gas, LNG, distillate oils, and heavy fuels, ensuring operability in diverse regions and fuel environments.

Specifications:

– Model: Siemens SGT5-400DLE
– Year of Manufacture: 2013
– Turbine Type: Heavy-duty industrial gas turbine
– Application: Simple-cycle and combined-cycle power generation
– Design: Two-shaft, axial-flow configuration
– Compressor Type: Axial-flow, 15-stage
– Compression Ratio: ~20:1
– Start-Up Time: ~10–15 minutes to full load
– Operating Load Range: 30% – 100%
– Load Response: Excellent load-following capability for grid support
– Cooling: Air-cooled turbine, high-performance thermal design
– Control System: Siemens proprietary digital control with real-time diagnostics and remote capability

Power Output (ISO Conditions):
– Simple Cycle Output: ~290 MW – 350 MW
– Combined Cycle Output: ~460 MW – 540 MW

Thermal Efficiency:
– Simple Cycle Efficiency: ~38–39%
– Combined Cycle Efficiency: ~60–61%

Fuel Flexibility:
– Supported Fuels: Natural Gas, LNG, Distillate Oil, Heavy Fuel Oil, and other gaseous/liquid fuels
– Fuel Consumption (Natural Gas): ~230–270 g/kWh at full load
– Fuel Consumption (Liquid Fuels): Varies based on fuel composition and quality

Emissions Control:
– Dry Low Emissions (DLE) system for minimized NOx, CO, and UHC
– Complies with global emissions standards including EU Stage V and EPA Tier 4

Dimensions:
– Length: ~14.0 meters
– Width: ~3.1 meters
– Height: ~4.3 meters
– Weight: ~40,000 kg (excluding auxiliaries)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
