Aeroderivative Gas Turbine – LM2500 Mobile Power Unit

ReflowX SKU: REF-7427

Product Details

Quantity

4
Availability (Lead Time)

0-2 Weeks
Product Location

India
Condition

New
OEM

ReflowX
Equipment code

CFIHOS-30000534
Per Unit Price

$ 24,750,000.00

Get Quotation Whatsapp

Short Description

Mobile aeroderivative gas turbine package delivering ~35–36 MW at ISO conditions with dual-fuel capability, trailer-mounted configuration, and fast-start performance. Suitable for rapid deployment in grid support and industrial power generation.

Description

Aeroderivative Gas Turbine – LM2500 Mobile Power Unit

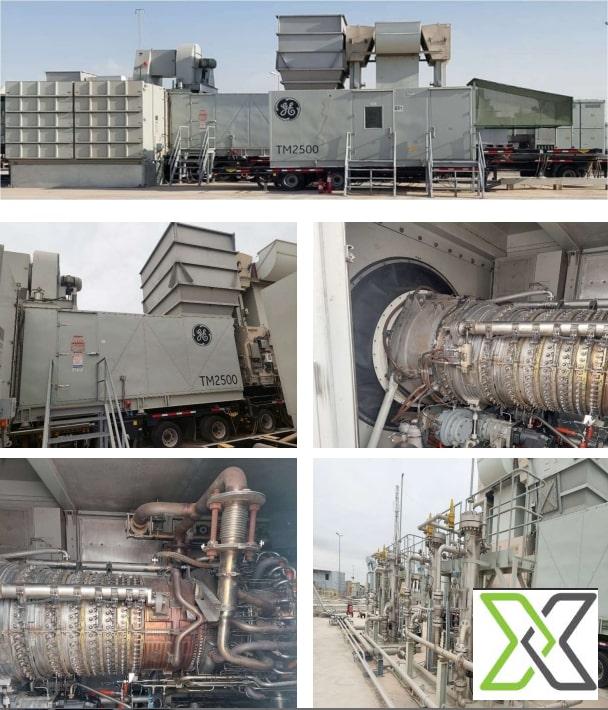

This mobile gas turbine package is powered by the proven LM2500 aeroderivative engine, designed to deliver approximately 35–36 MW of power at ISO conditions. Featuring dual-fuel capability (natural gas and liquid fuels like diesel or Jet A1), it supports operational flexibility across various field conditions.

Operating at 3,600 RPM for 60 Hz or 3,000 RPM for 50 Hz via a reduction gearbox, the unit achieves a compression ratio of 18:1 and an exhaust temperature between 500–540°C. The turbine system operates with an efficiency of ~37–40% in simple cycle mode and includes a dry low NOx (DLN) combustion system limiting emissions to ≤25 ppm on natural gas.

Fuel consumption rates are approximately 9,000 Nm³/h for natural gas and 8,200 kg/h for liquid fuels at full load. Natural gas pressure requirements range between 350–650 psi (24–45 bar). The system is cooled via an air-cooled mechanism and uses synthetic turbine oil (ISO VG 46) in a pressurized lubrication system with a total oil capacity of ~1,500 liters.

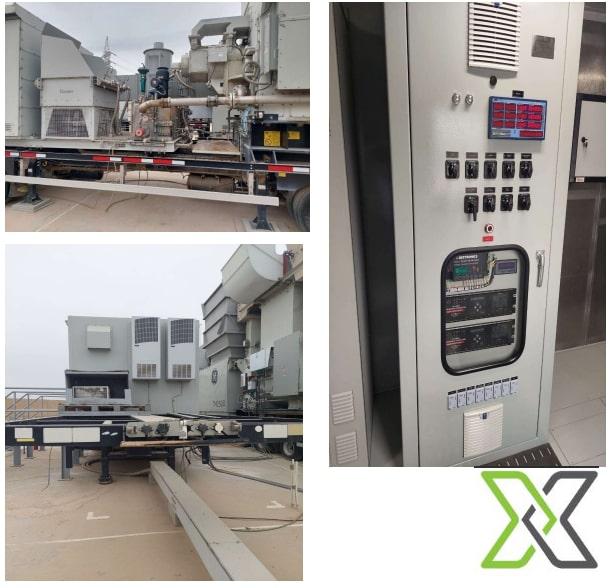

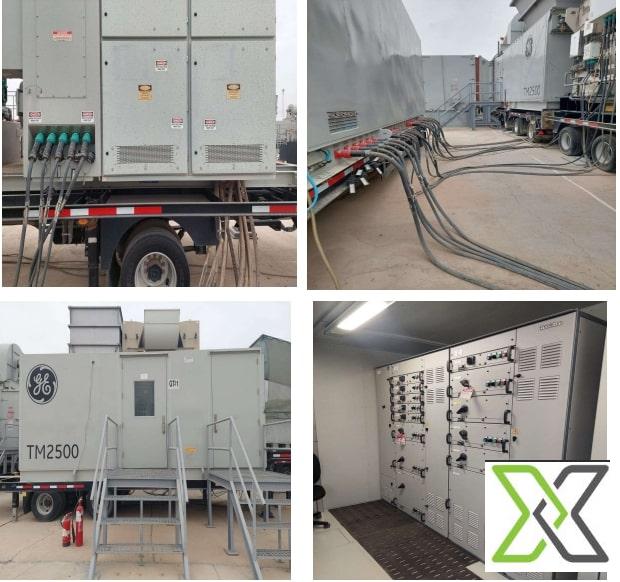

The turbine is paired with a brushless AC synchronous generator, featuring optional black start capability. Controlled by GE’s Mark VIe or VI+ digital automation system, the unit ensures high reliability, monitoring, and diagnostics.

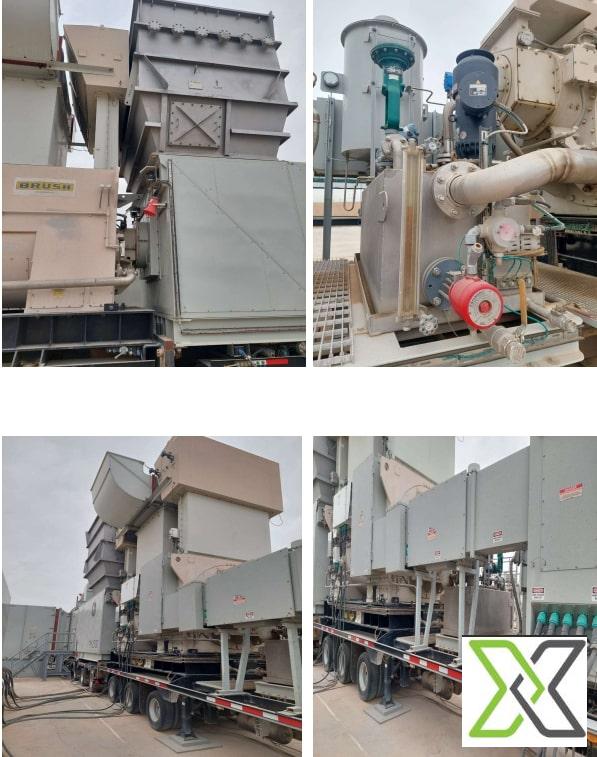

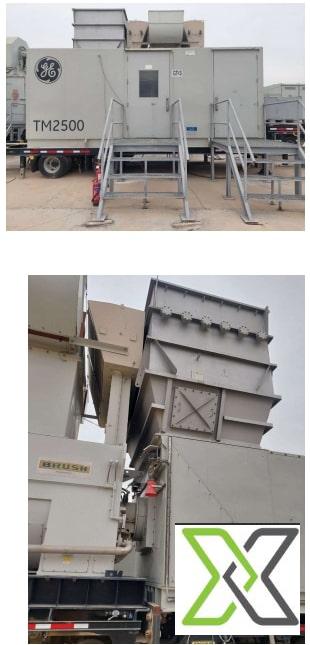

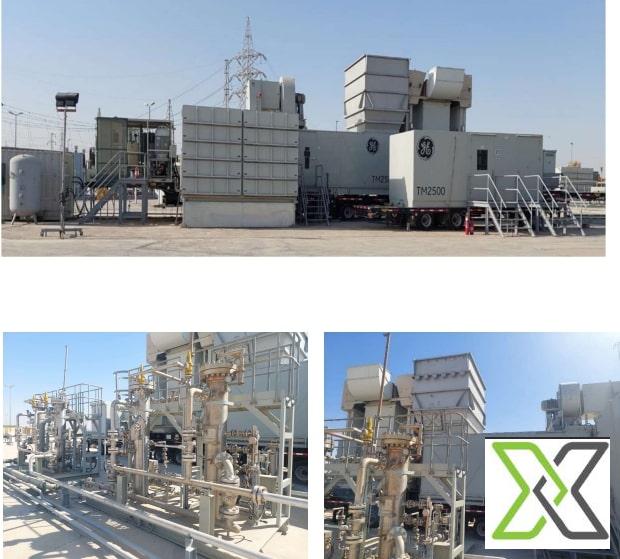

Housed in a trailer-mounted configuration, the complete unit weighs approximately 100,000 kg and is transportable by road, rail, or military cargo aircraft such as the C-5 or Antonov 124. Typical dimensions range from 13–15 meters in length, 3 meters in width, and 4.2 meters in height.

Specifications:

– Rated Power Output: ~35–36 MW (ISO Conditions)
– Voltage Options: 6.6 kV / 11 kV / 13.8 kV
– Frequency: 50 Hz / 60 Hz
– Power Factor: 0.8 (Typical)
– Efficiency: ~37–40% (Simple Cycle Mode)
– Fuel Type: Dual-Fuel (Natural Gas / Diesel / Jet A1 / Kerosene)
– Natural Gas Consumption: ~9,000 Nm³/h at full load
– Liquid Fuel Consumption: ~8,200 kg/h at full load
– Fuel Pressure Requirement: 350–650 psi (24–45 bar) for Natural Gas
– Turbine Type: LM2500 Aeroderivative Gas Turbine
– Rotational Speed: 3,600 RPM (60 Hz) / 3,000 RPM (50 Hz) with Gearbox
– Compression Ratio: ~18:1
– Exhaust Temperature: ~500–540°C
– Exhaust Flow: ~126 kg/s
– Startup Time: <10 minutes
– Cooling System: Air-Cooled
– Lubrication System: Pressurized, Synthetic Turbine Oil (ISO VG 46)
– Oil Capacity: ~1,500 liters
– Control System: GE Mark VIe / VI+
– Generator Type: Brushless Synchronous AC Generator
– NOx Emissions: ≤25 ppm (Natural Gas, DLN Combustion)
– Black Start Capability: Optional
– Mounting Configuration: Trailer-Mounted
– Weight (Total Package): ~100,000 kg
– Dimensions (L × W × H): 13–15m × 3m × 4.2m
– Transportability: Road / Rail / Air (C-5 / Antonov 124 Compatible)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	TM2500
Usage Hours	00
ISO 15926 Pt 4	7686
PCA RDS Code	RDS820799
CFIHOS ID	CFIHOS-30000534
Fuel type	Natural Gas
Output Power	Up to 35 MW
Speed	3,600 RPM
Direction of Rotation	Counterclockwise
Design Specification	Aeroderivative gas turbine
Normal Operating Temperature	0°C to 40°C
Explosion Protection Gas Group	IIC
Explosion Protection Temperature Class	T6
Explosion Protection Zone	Zone 2
Lower Limit Operating Temperature	-5°C (23°F)
Operation Continuous Intermittent	Continuous Operation
Upper Limit Operating Temperature	50°C (122°F)
Number Of Shafts	1 Shaft
Test Medium	Air
Test Pressure	around 2.0 to 3.0 bar
Turbine Cycle	Open-Cycle Gas Turbine
Insulation Class	Class H
