GE Jenbacher JMS 320 GS-S.L Gas Generator – 587 kW – Stamford Alternator

ReflowX SKU: REF-6855

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

GE Jenbacher GmbH & Co OHG
Equipment code

Power Generation

Get Quotation Whatsapp

Short Description

GE Jenbacher JMS 320 GS-S.L gas generator set delivering 587 kW of continuous power at 400 V, featuring a Stamford PE734B2 alternator and designed for high-efficiency industrial performance.

Description

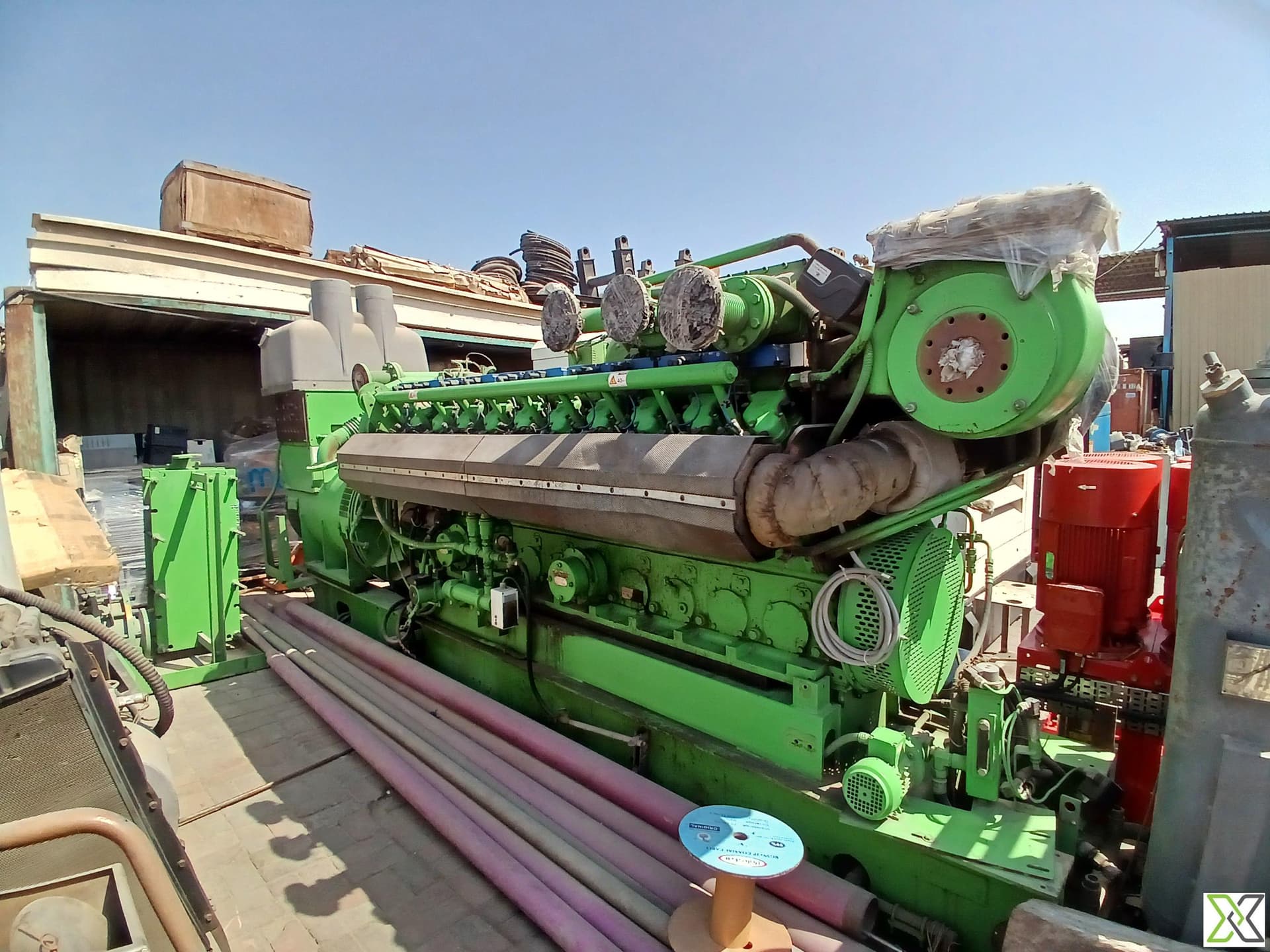

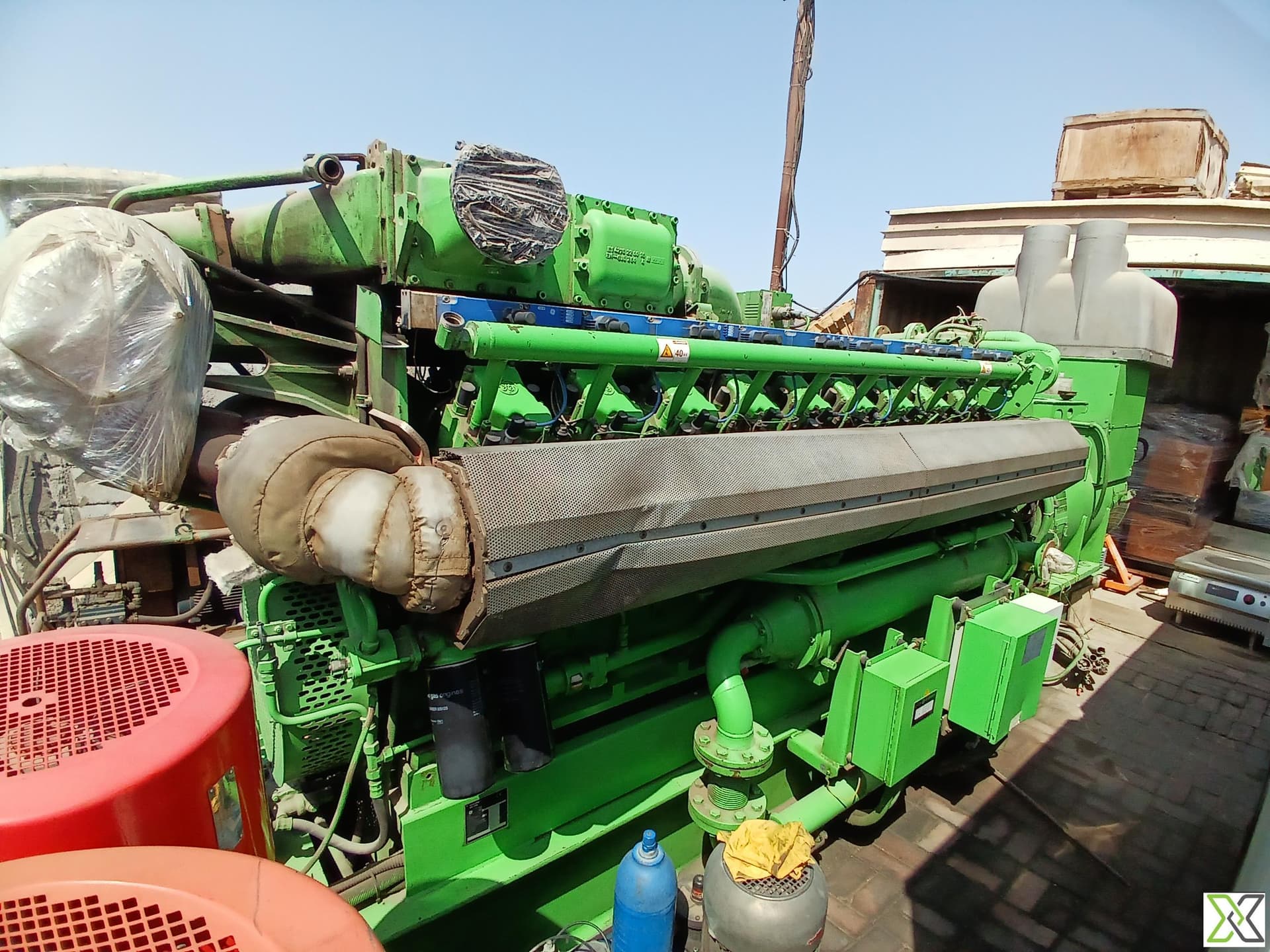

GE Jenbacher JMS 320 GS-S.L Gas Generator – 587 kW – Stamford Alternator

The GE Jenbacher JMS 320 GS-S.L is a high-efficiency industrial gas generator designed and manufactured by GE Jenbacher GmbH & Co OHG. Built in 2009, this generator provides a continuous output of 587 kW at a power factor of 1.0, making it suitable for demanding commercial and industrial power applications.

This unit is equipped with a Stamford PE734B2 alternator capable of delivering up to 1247.5 kVA at 400 V, 50 Hz, and 1500 RPM. With an insulation class of H and an IP23 enclosure, it is engineered for robust operation under ambient conditions up to 40°C. The generator is also fitted with a DM-110 automatic voltage regulator, high-performance bearing system, and supports reliable power generation at altitudes up to 100 meters.

Specifications:

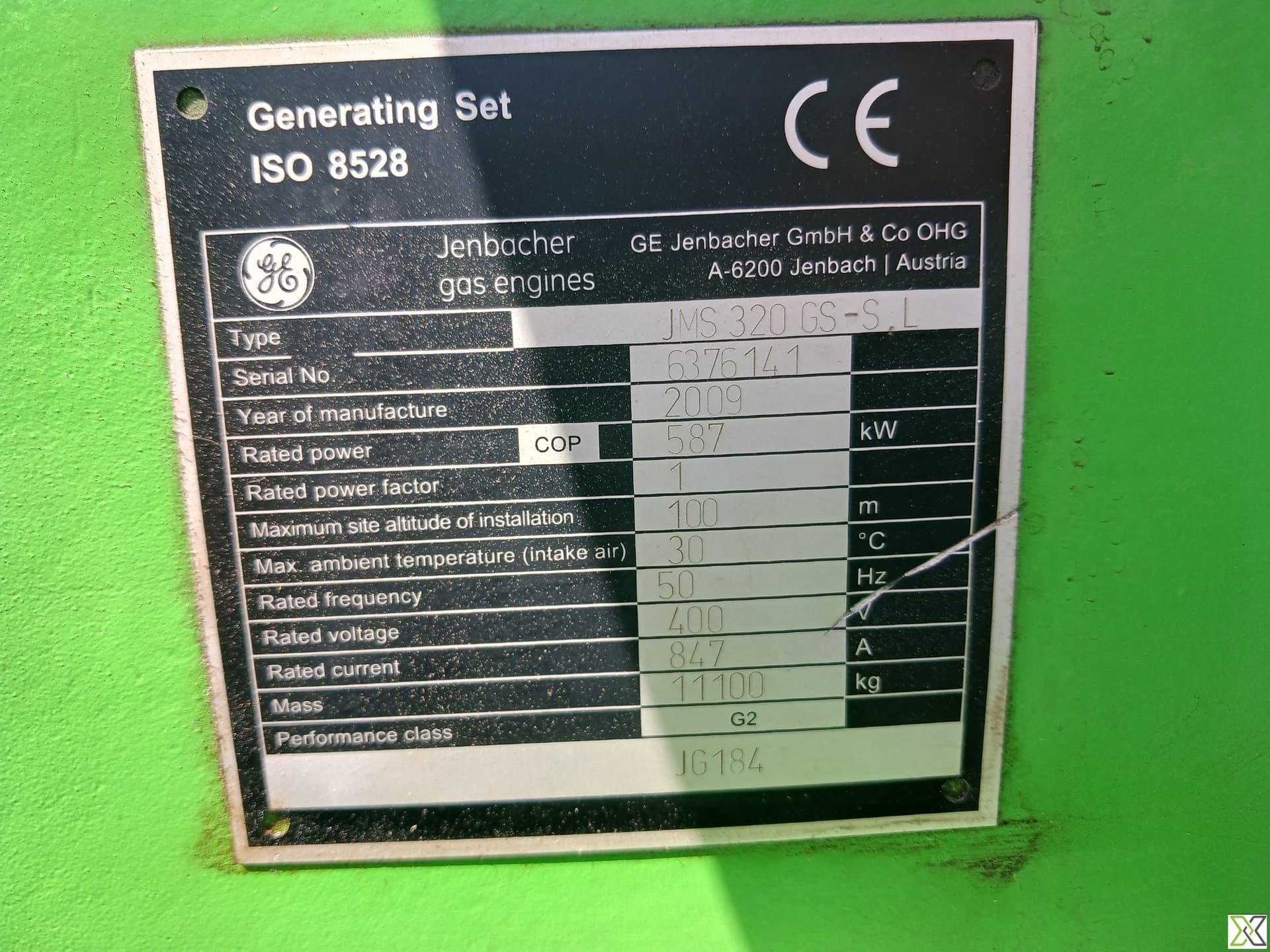

Generator Unit:

– Manufacturer: GE Jenbacher GmbH & Co OHG
– Engine Model: JMS 320 GS-S.L
– Serial Number: 6376141
– Year of Manufacture: 2009
– Rated Power (COP): 587 kW
– Power Factor: 1.0
– Altitude Limit: 100 m
– Maximum Ambient Temperature: 30°C
– Frequency: 50 Hz
– Rated Voltage: 400 V
– Rated Current: 847 A
– Weight: 11,100 kg
– Performance Class: G2

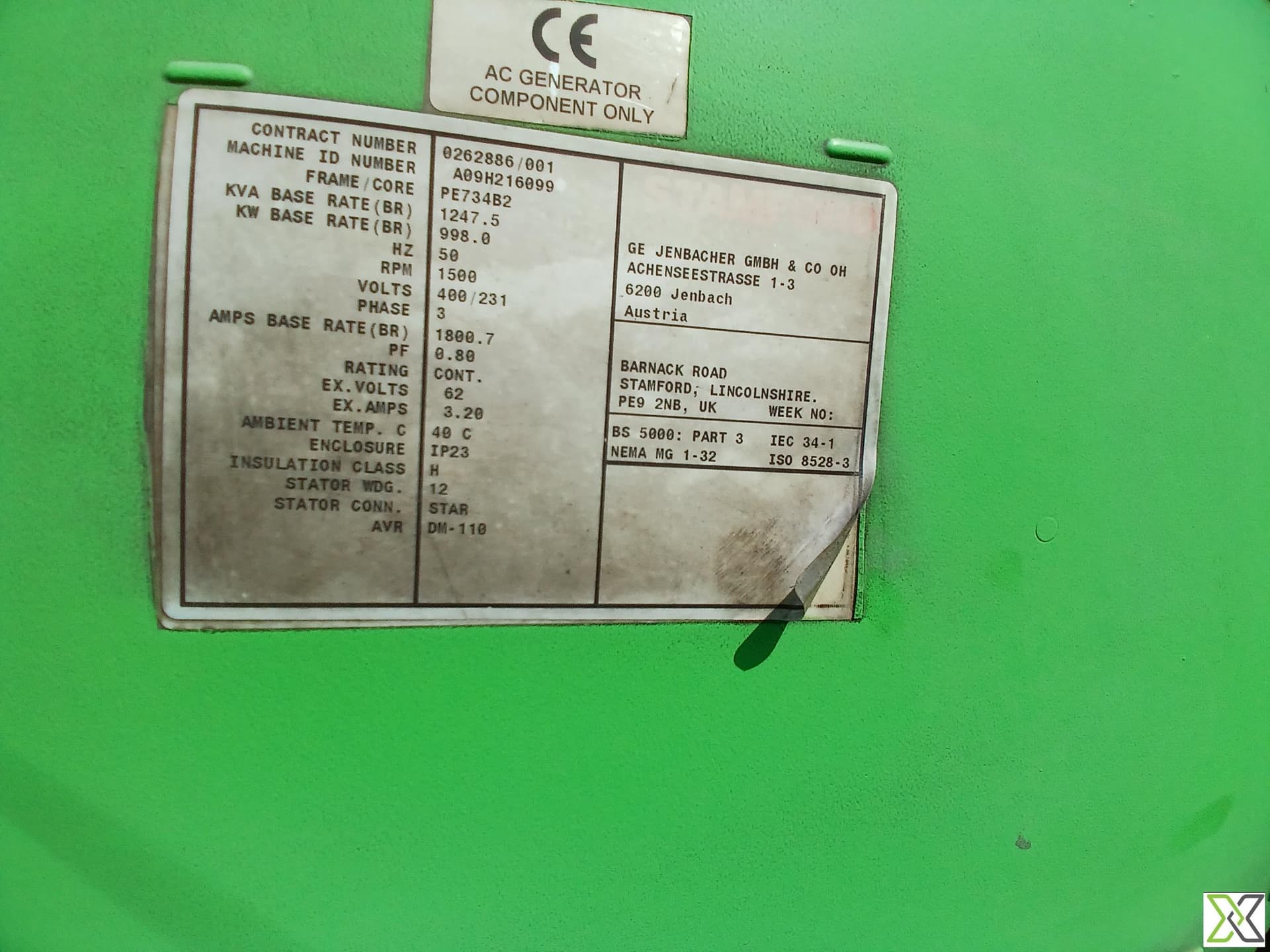

Alternator:

– Type: Stamford AC Generator
– Contract Number: 0262886/001
– Machine ID: A09H216099
– Frame/Core: PE734B2
– KVA Base Rate: 1247.5 kVA
– kW Base Rate: 998.0 kW
– Rated Amps (Base Rate): 1800.7 A
– Power Factor: 0.80
– Voltage: 400/231 V
– Phase: 3
– RPM: 1500
– Insulation Class: H
– Enclosure Protection: IP23
– Ambient Temperature: 40°C
– AVR Model: DM-110
– Stator Connection: Star
– Stator Winding: 12

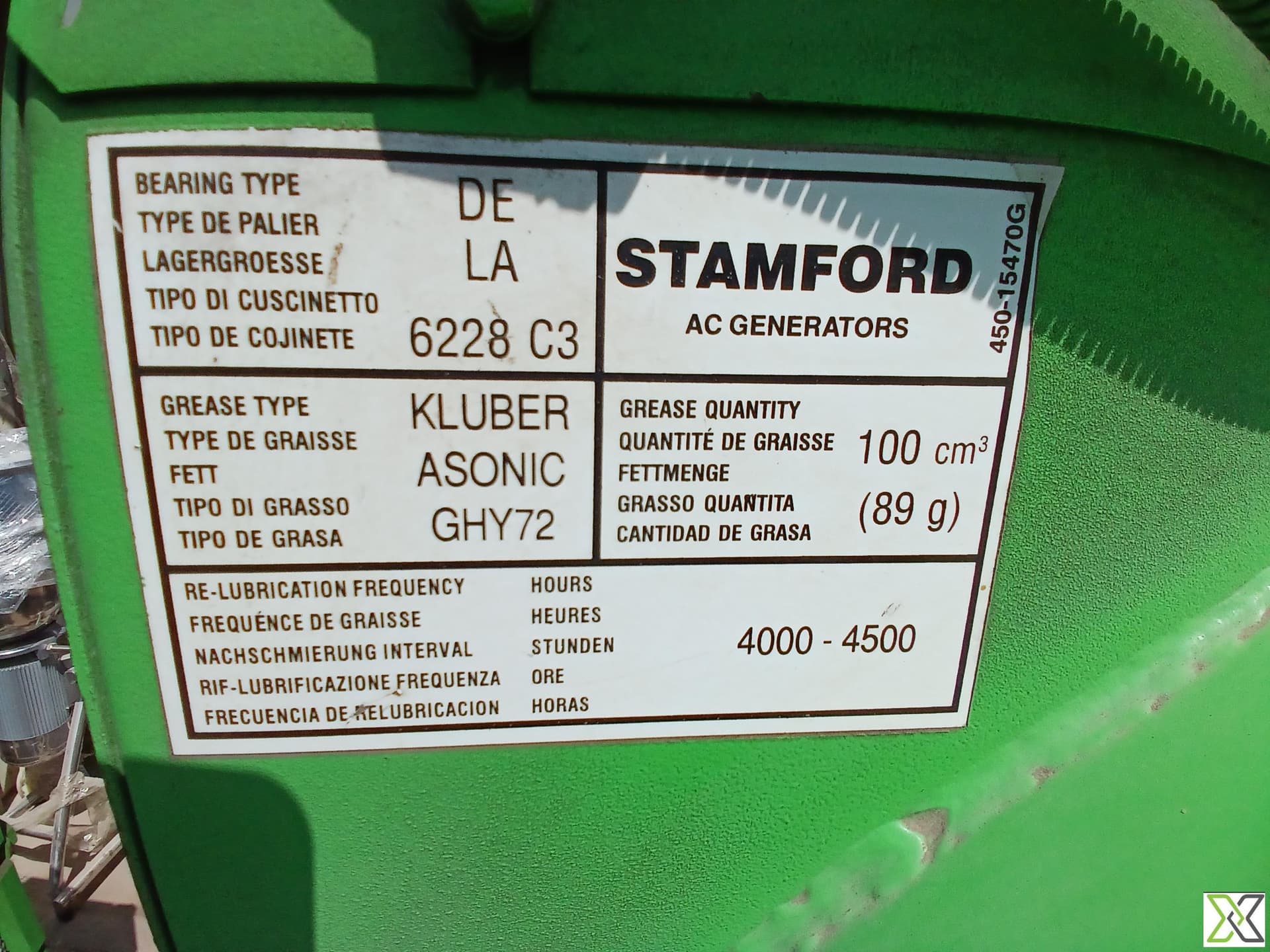

Bearing & Greasing:

– Bearing Type: 6228 C3
– Grease Type: Kluber ASONIC GHY72
– Grease Quantity: 100 cm³ (89 g)
– Relubrication Interval: 4000–4500 hours
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	JMS 320 GS-S.L
Year of Manufacturing	2009
Model Number	JMS 320 GS-S.L
Year of Manufacturing	2009
Manufacturer Name	Jenbacher
Height	2,400 mm
Width	1,500 mm
Length	6,200 mm
Weight	11,100 kg
Color	Green
ISO 15926 Pt 4	7686
PCA RDS Code	RDS820799
CFIHOS ID	CFIHOS-30000534
Fuel type	Natural Gas
Output Power	587 kW
Model Number	JMS 320 GS-S.L
Year of Manufacturing	2009
Manufacturer Name	Jenbacher
Height	2,400 mm
Width	1,500 mm
Weight	11,100 kg
Temperature Range	–10°C to +40°C
Voltage	400/231 V
Color	Green
PCA RDS Code	RDS820799
CFIHOS ID	CFIHOS-30000534
Fuel type	Natural Gas
Output Power	587 kW
Speed	1,500 RPM
Direction of Rotation	Clockwise
Normal Operating Temperature	+30°C to +40°C
Lower Limit Operating Temperature	–10°C
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	+40°C
Number Of Shafts	Single shaft
Test Medium	Natural Gas
Test Pressure	Typically 4 – 5 bar
Turbine Cycle	Otto cycle
Insulation Class	Class H
