Product Description

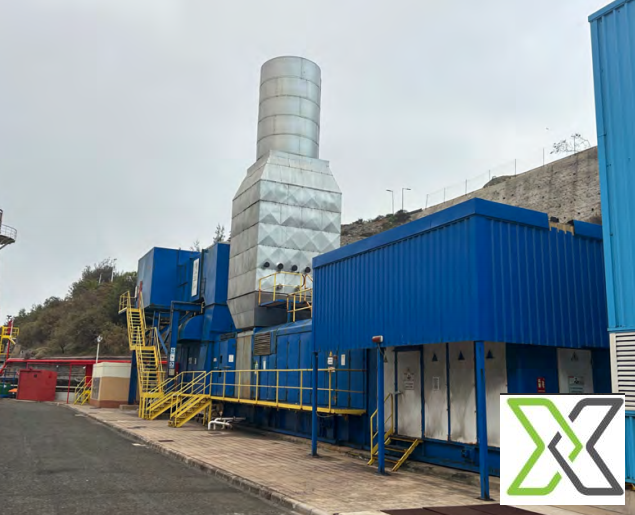

This listing consists of a General Electric Frame 5001P gas turbine generator package, originally commissioned in 1981 and operated until 2023. The unit has a nominal power output of 24.1 MW and is configured for liquid-fuel operation, supplied with key auxiliary systems required for plant operation.

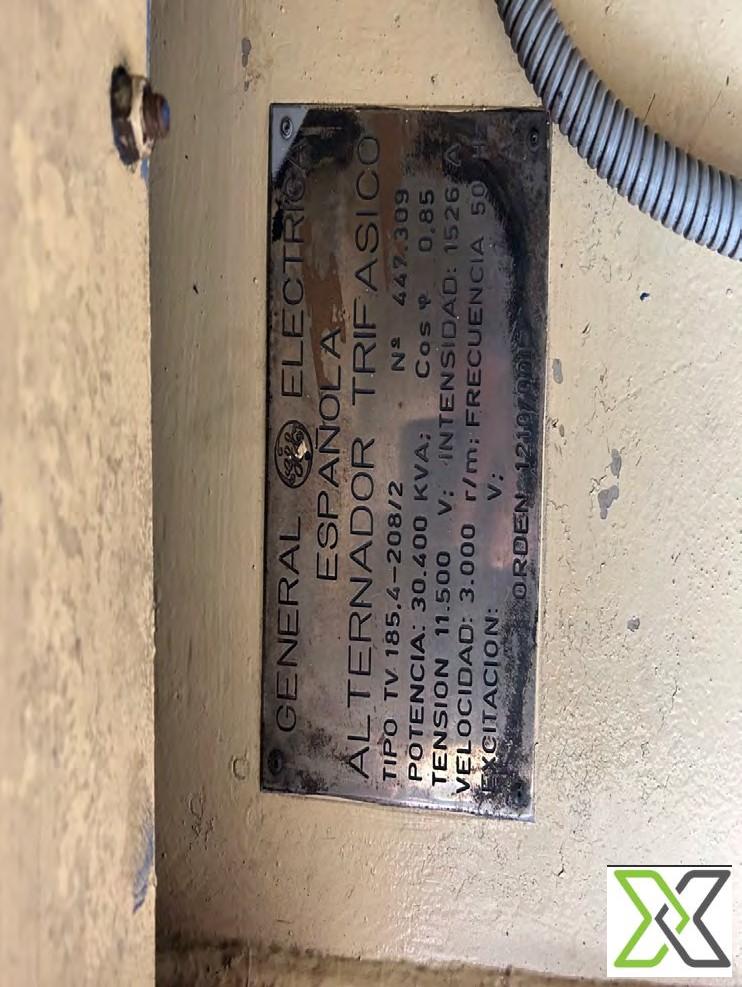

The turbine is coupled with a General Electric P5AZ synchronous generator, rated at 30.4 MVA, producing power at 11.5 kV and 50 Hz with a nominal operating speed of 3000 rpm. The turbine itself operates at 5100 rpm and is controlled through a GE Mark II control system.
Specifications
| Parameter | Details |
|---|---|
| OEM | General Electric |
| Model | Frame 5001P |
| Serial Number | 281896 |
| Nominal Power | 24.1 MW |
| Fuel Type | Liquid Fuel |
| Commissioned | 1981 |
| Decommissioned | 2023 |
| Turbine Speed | 5100 rpm |
| Generator Manufacturer | General Electric |
| Generator Model | P5AZ |
| Generator Rating | 30.4 MVA |
| Generator Voltage | 11.5 kV |
| Frequency | 50 Hz |
| Generator Speed | 3000 rpm |

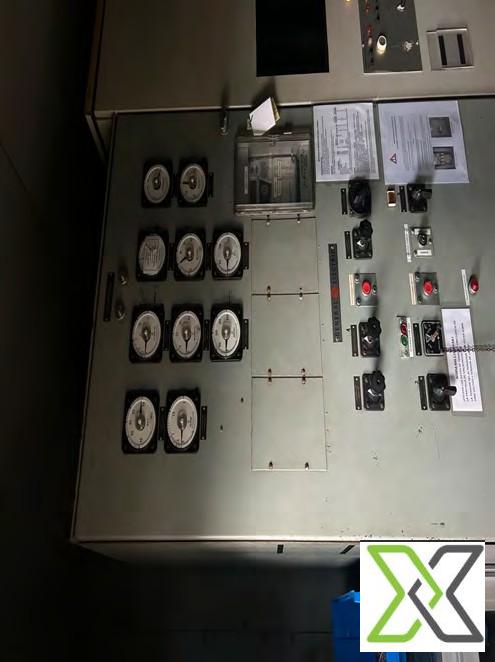

| Control System | GE Mark II |
| Operating Hours | 69,156 hours |
| Total Starts | 8,378 |
If you require any further information on this listing please contact info@reflowx.com.
