Description

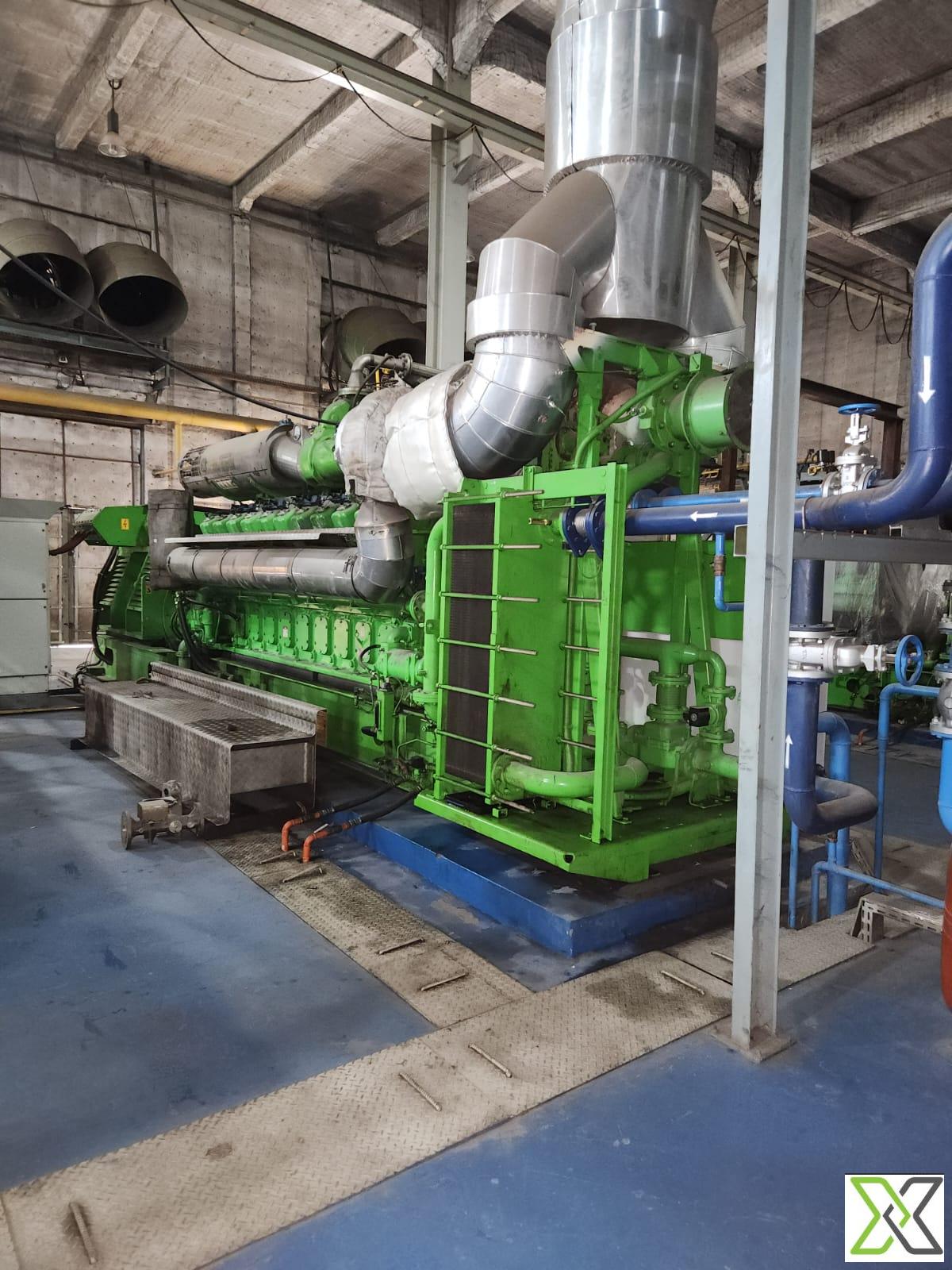

Jenbacher J620 GS-NL Gas Engine Full Specification
Engine Details:
Brand: Jenbacher (INNIO Jenbacher)
Model: J620 GS-NL
Power Output: 3431 kW (4,600 HP)
Speed: 1500 RPM
Frequency: 50 Hz
Year of Manufacture: 2011
Operating Hours: 71,000 Hours
Fuel Type: Natural Gas
Condition: Partly Dismantled
Alternator Details:
Condition: Brand New
Type: Synchronous Alternator
Cooling System: Likely Air or Water-Cooled
Voltage Output: Typically 400V - 11kV (Depending on Configuration)
Efficiency Class: Likely IE3 / IE4
Mechanical & Performance Details:
Configuration: V-Type, 20-Cylinder Gas Engine
Compression Ratio: ~12.5:1 (Approximate for Gas Engines)
Cooling System: Water-Cooled (Primary & Secondary Circuit)
Exhaust Gas Temperature: ~500-550°C
NOx Emissions: ≤250 mg/Nm³ (Depending on Tuning)
Efficiency:
Electrical Efficiency: ~44%
Overall Efficiency (CHP Mode): ~90%
Generator Set Information:
Application: Power Generation, CHP (Combined Heat & Power), Industrial Use
Mounting: Skid-Mounted or Containerized (Depending on Setup)
Control System: DIA.NE XT (Jenbacher's Digital Control System)
Condition & Notes:
The engine is partly dismantled, meaning it may require reassembly and testing before operation.
The alternator is brand new, which improves reliability.
Given 71,000 hours, it may need overhaul or maintenance on key components such as turbochargers, pistons, and cylinder heads.
Immediate Delivery
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
Technical Details
| Model Number | J620 GS-NL |
|---|---|
| Year of Manufacturing | 2011 |
| Model Number | J620 GS-NL |
| Year of Manufacturing | 2011 |
| Height | 2,400 mm |
| Width | 1,900 mm |
| Length | 7,500 mm |
| 25,000 kg | |
| Usage Hours | 71,000 Hours |
| ISO 15926 Pt 4 | 7686 |
| PCA RDS Code | RDS820799 |
| CFIHOS ID | CFIHOS-30000534 |
| Fuel type | Natural Gas |
| Output Power | 3,431 kW |
| Model Number | J620 GS-NL |
| Year of Manufacturing | 2011 |
| Height | 2,400 mm |
| Width | 1,900 mm |
| 25,000 kg | |
| Usage Hours | 71,000 Hours |
| Temperature Range | -10°C to +40°C |
| Voltage | 400V to 11kV |
| PCA RDS Code | RDS820799 |
| CFIHOS ID | CFIHOS-30000534 |
| Fuel type | Natural Gas |
| Output Power | 3,431 kW |
| Speed | 1500 RPM |
| Direction of Rotation | Clockwise |
| Design Specification | V-20, Four-Stroke, Spark-Ignited |
| Normal Operating Temperature | 85°C–95°C |
| Lower Limit Operating Temperature | -10°C |
| Operation Continuous Intermittent | Continuous |
| Upper Limit Operating Temperature | +40°C |
| Number Of Shafts | Single |
| Test Medium | Natural Gas |
| Insulation Class | Class H |
