- Jenbacher J320 Natural Gas Genset – 1067 kW - 2022
Description

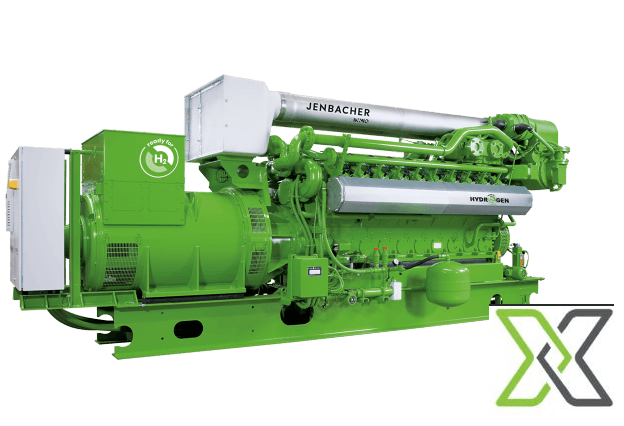

Jenbacher J320 Natural Gas Genset – 1067 kW, 2022 Model, 10,000 Hours
Offered for immediate sale is a Jenbacher J320 natural gas power generation system, commissioned in 2022. This high-efficiency genset delivers 1067 kW of continuous power output at 11 kV, operating at 50 Hz. With only 10,000 hours of logged runtime, the generator remains in excellent working condition with remaining service life suitable for extended operation in power-intensive applications.
The J320 is a trusted model from Jenbacher's Series 3 lineup, known for robust performance, high electrical efficiency, and reliability under varying load profiles. This unit is suited for a wide range of installations including captive power plants, cogeneration facilities, and industrial grid-parallel applications. Standard configuration includes an integrated control system, modular design for ease of maintenance, and capability for grid compliance.
Immediate delivery is available. The unit is maintained in clean condition and ready for inspection.
Specifications:
– Manufacturer: Jenbacher
– Model: J320
– Power Output: 1067 kW
– Fuel Type: Natural Gas
– Voltage: 11 kV
– Frequency: 50 Hz
– Phase: 3 Phase
– Runtime Hours: 10,000
– Year of Manufacture: 2022
– Condition: Used, excellent working condition
– Cooling System: Closed-loop (details available on request)
– Control System: Integrated Jenbacher system
– Configuration: Open-type or container-ready (confirm with actual delivery setup)
– Delivery: Immediate
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
Technical Details
| Model Number | J320 |
|---|---|
| Year of Manufacturing | 2022 |
| Model Number | J320 |
| Year of Manufacturing | 2022 |
| Manufacturer Name | Jenbacher |
| Height | 2.30 meters |
| Width | 2.00 meters |
| Length | 5.50 meters |
| 11,000 kg | |
| Usage Hours | 10,000 Hours |
| Color | Jenbacher Green |
| ISO 15926 Pt 4 | 7686 |
| PCA RDS Code | RDS820799 |
| CFIHOS ID | CFIHOS-30000534 |
| Fuel type | Natural Gas |
| Output Power | 1067 kW |
| Model Number | J320 |
| Year of Manufacturing | 2022 |
| Manufacturer Name | Jenbacher |
| Height | 2.30 meters |
| Width | 2.00 meters |
| 11,000 kg | |
| Usage Hours | 10,000 Hours |
| Temperature Range | -10°C to +45°C |
| Voltage | 11 kV |
| Color | Jenbacher Green |
| PCA RDS Code | RDS820799 |
| CFIHOS ID | CFIHOS-30000534 |
| Fuel type | Natural Gas |
| Output Power | 1067 kW |
| Speed | 1,500 rpm |
| Direction of Rotation | Clockwise |
| Design Specification | 4-stroke, turbocharged, lean-burn V20 gas engine |
| Normal Operating Temperature | 85°C to 95°C coolant |
| Explosion Protection Gas Group | IIA/IIB |
| Explosion Protection Temperature Class | Class T3 |
| Explosion Protection Zone | Zone 1/Zone 2 |
| Lower Limit Operating Temperature | -10°C |
| Operation Continuous Intermittent | Designed for Continuous Operation |
| Upper Limit Operating Temperature | +45°C |
| Number Of Shafts | 1 (main crankshaft) |
| Test Medium | Natural Gas |
| Test Pressure | 100–300 mbar |
| Turbine Cycle | Otto Cycle |
| Insulation Class | Class H |
