Description
Product Description:

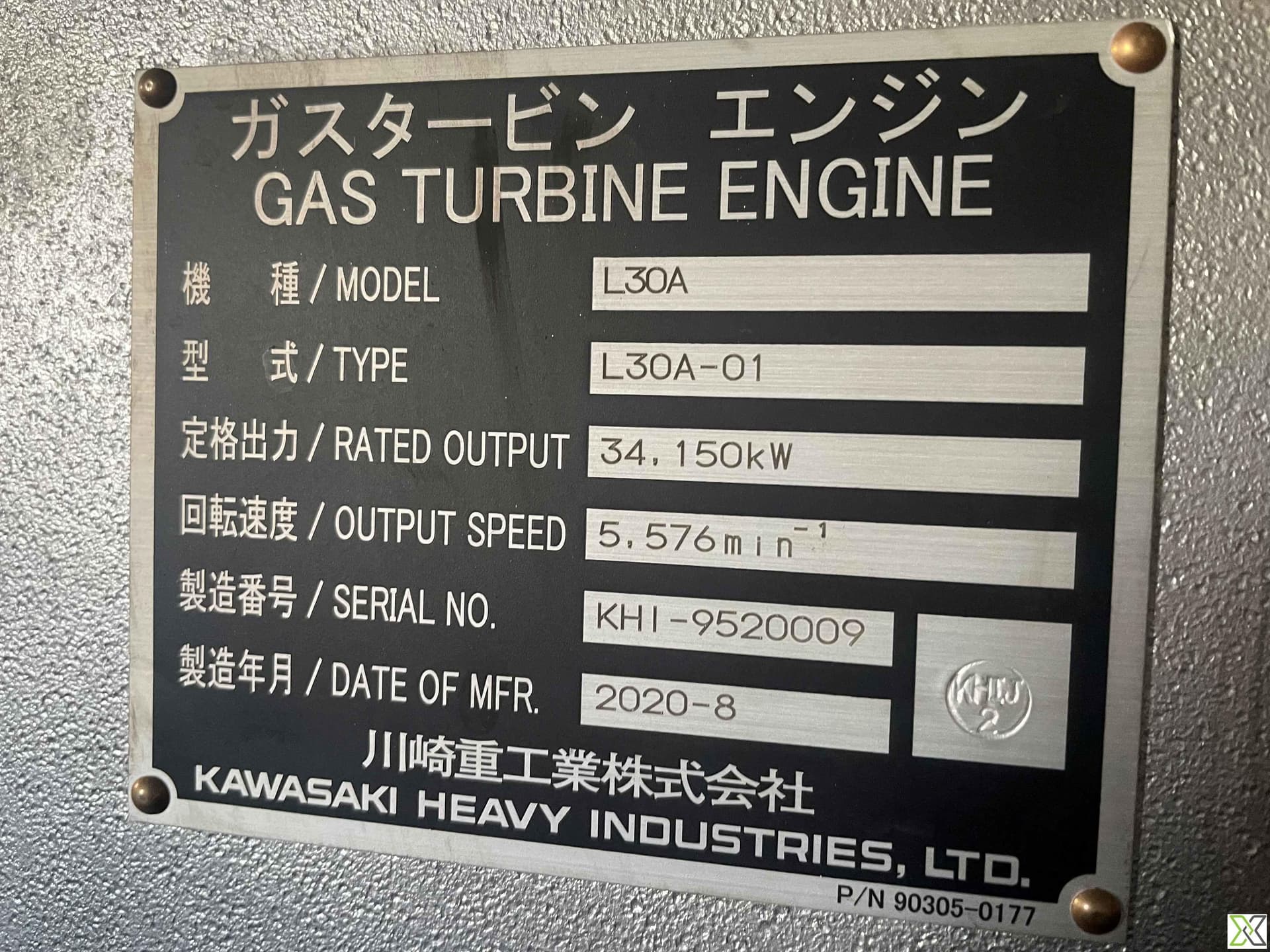

Manufacturer: Kawasaki Heavy Industries (KHI)
Model: L30A
Year: 2020
Location: Japan
Quantity Available: 1

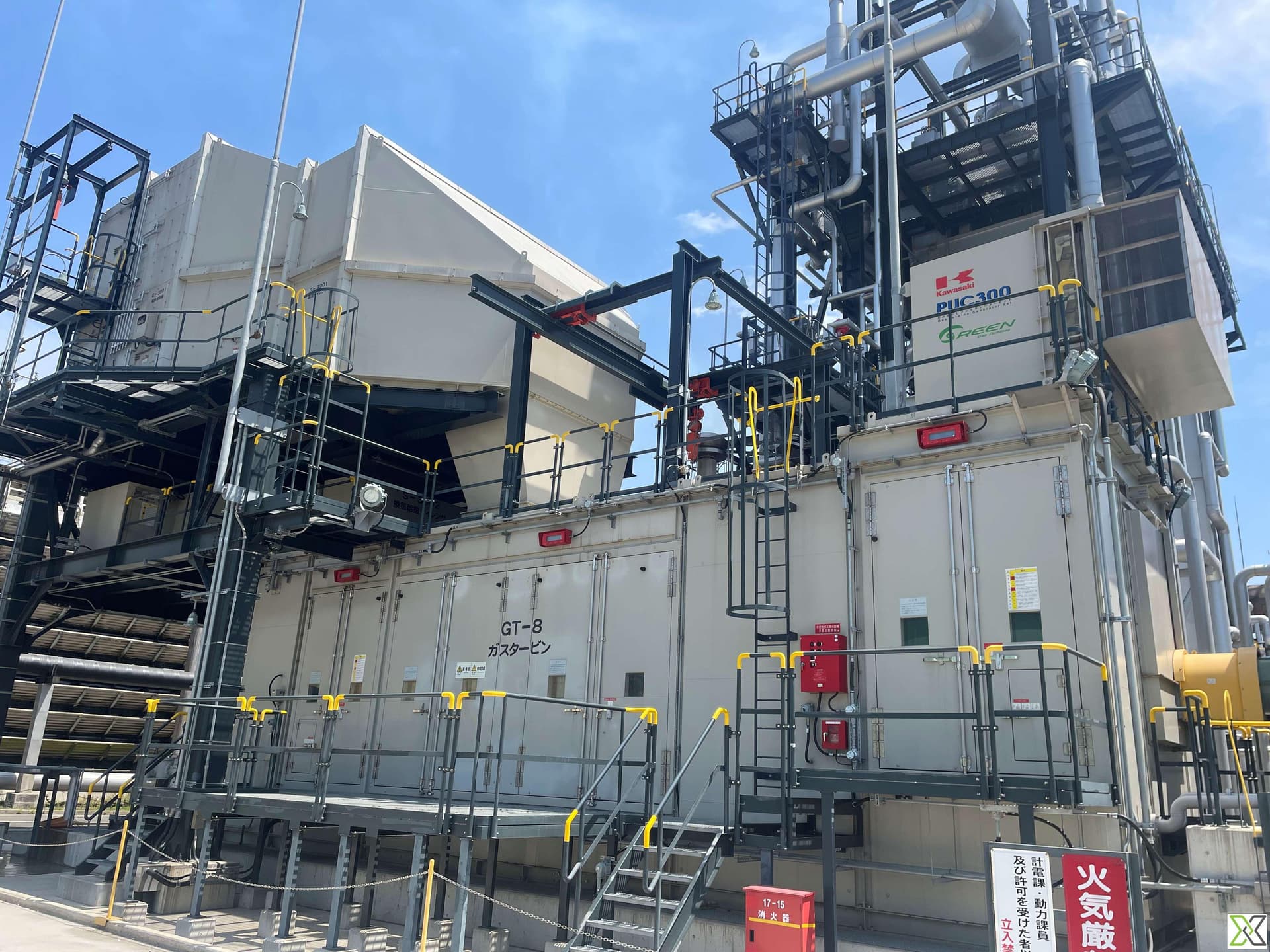

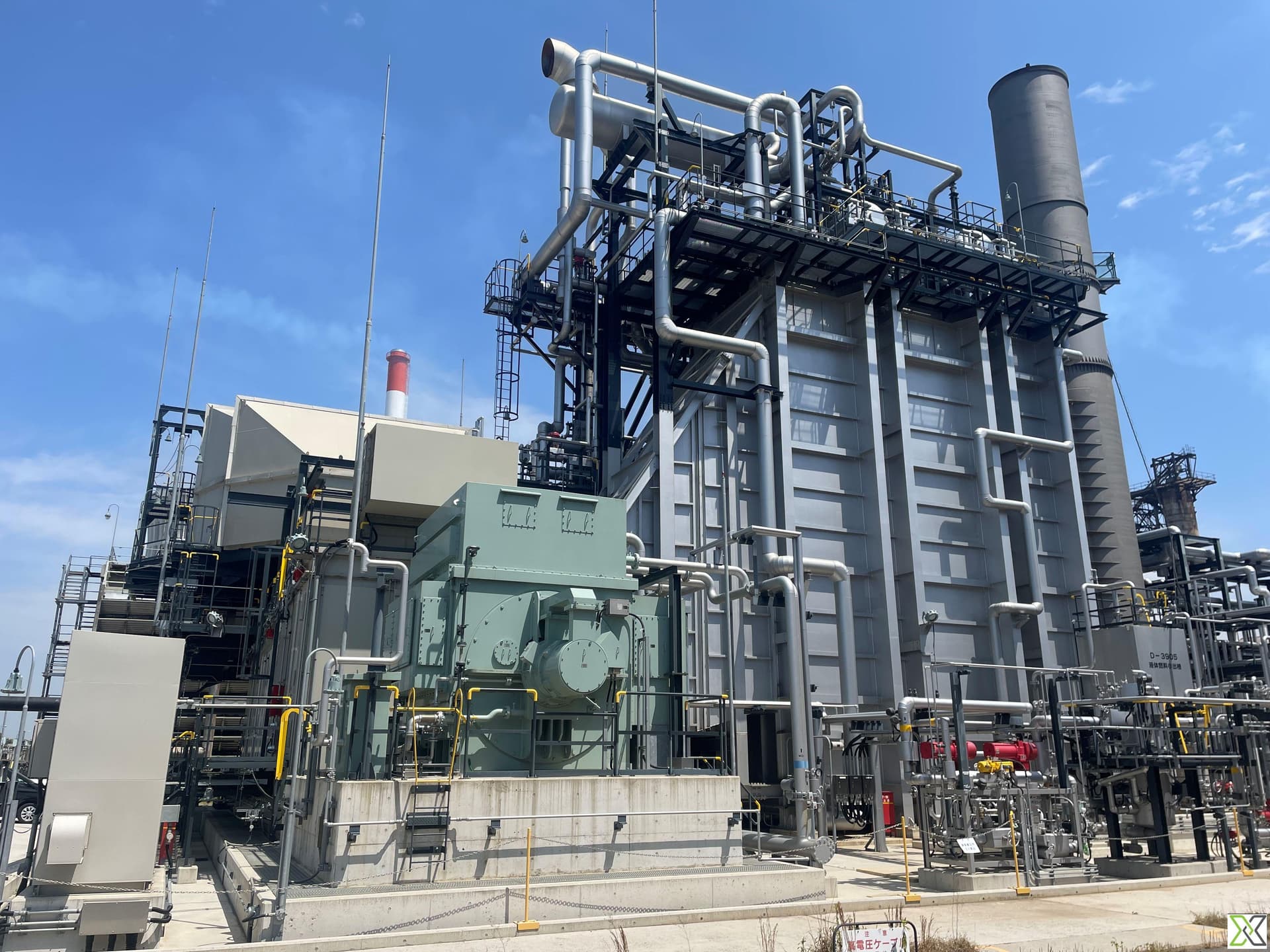

This Kawasaki L30A Gas Turbine is a complete power generation unit designed for high performance in industrial applications. It has been operational for a total of 19,596 hours on natural gas and 439 hours on liquid fuel. The turbine is equipped with a FLENDER-GRAFFENSTADEN gearbox (Type TX90/4C) and a Meiden synchronous generator, providing a rated output of 34,150 kW (approximately 34 MW).
Key Specifications:
| Specification | Details |
|---|---|
| Fuel System | Natural Gas |
| Total Work Hours (Natural Gas) | 19,596 hours |
| Total Work Hours (Liquid Fuel) | 439 hours |
| Total Starts | 67 |
| Gearbox | FLENDER-GRAFFENSTADEN, Type TX90/4C |
| Generator | Meiden, Synchronous, Rated Power: 37,945 kVA |
| Rated Output | 34,150 kW (Approx. 34 MW) |
| NOx Emissions | 15 ppm (15% O2) |
| Operating Range of DLE | 70-100% |
| Frequency | 60 Hz |
Technical Details:

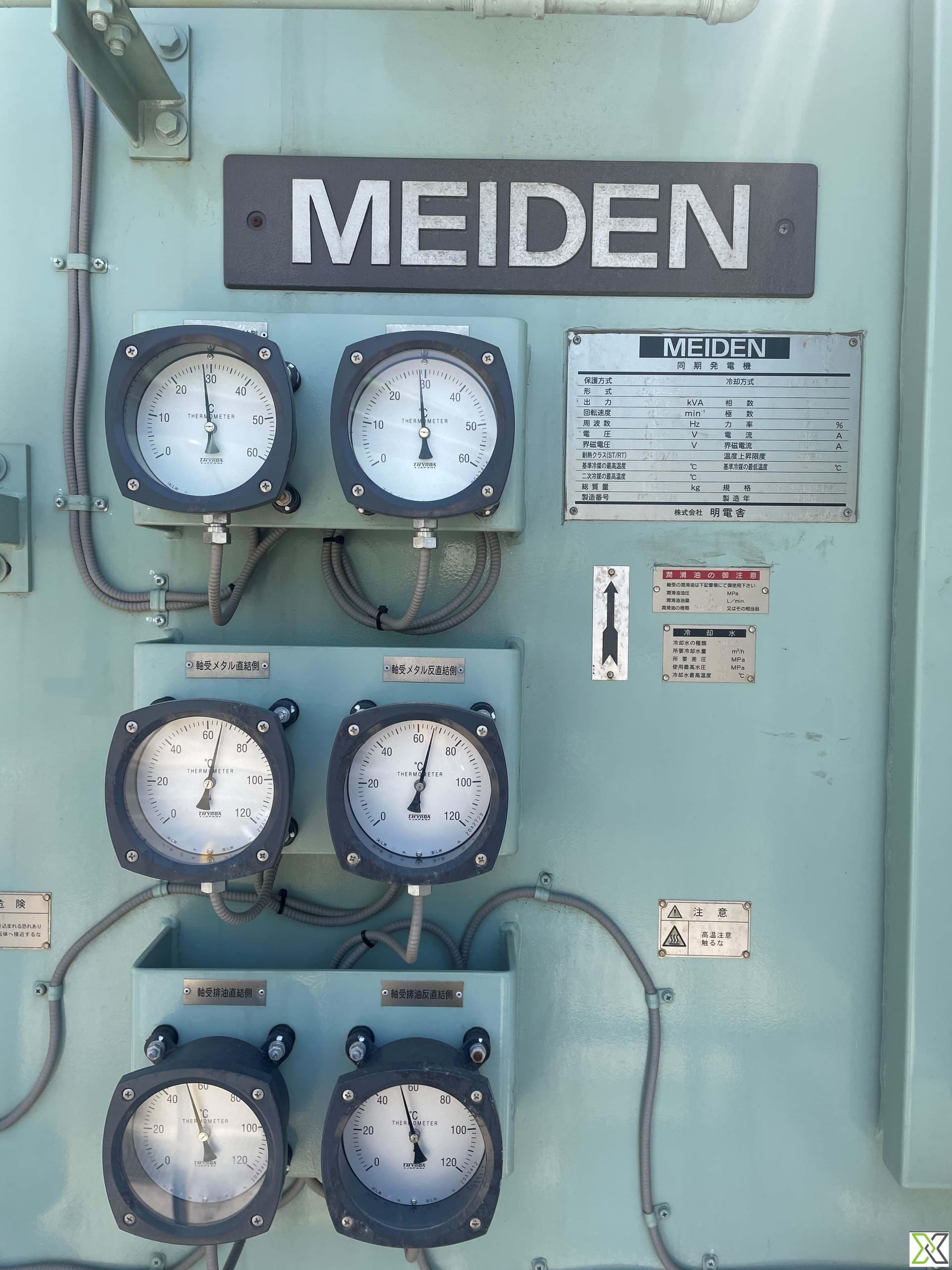

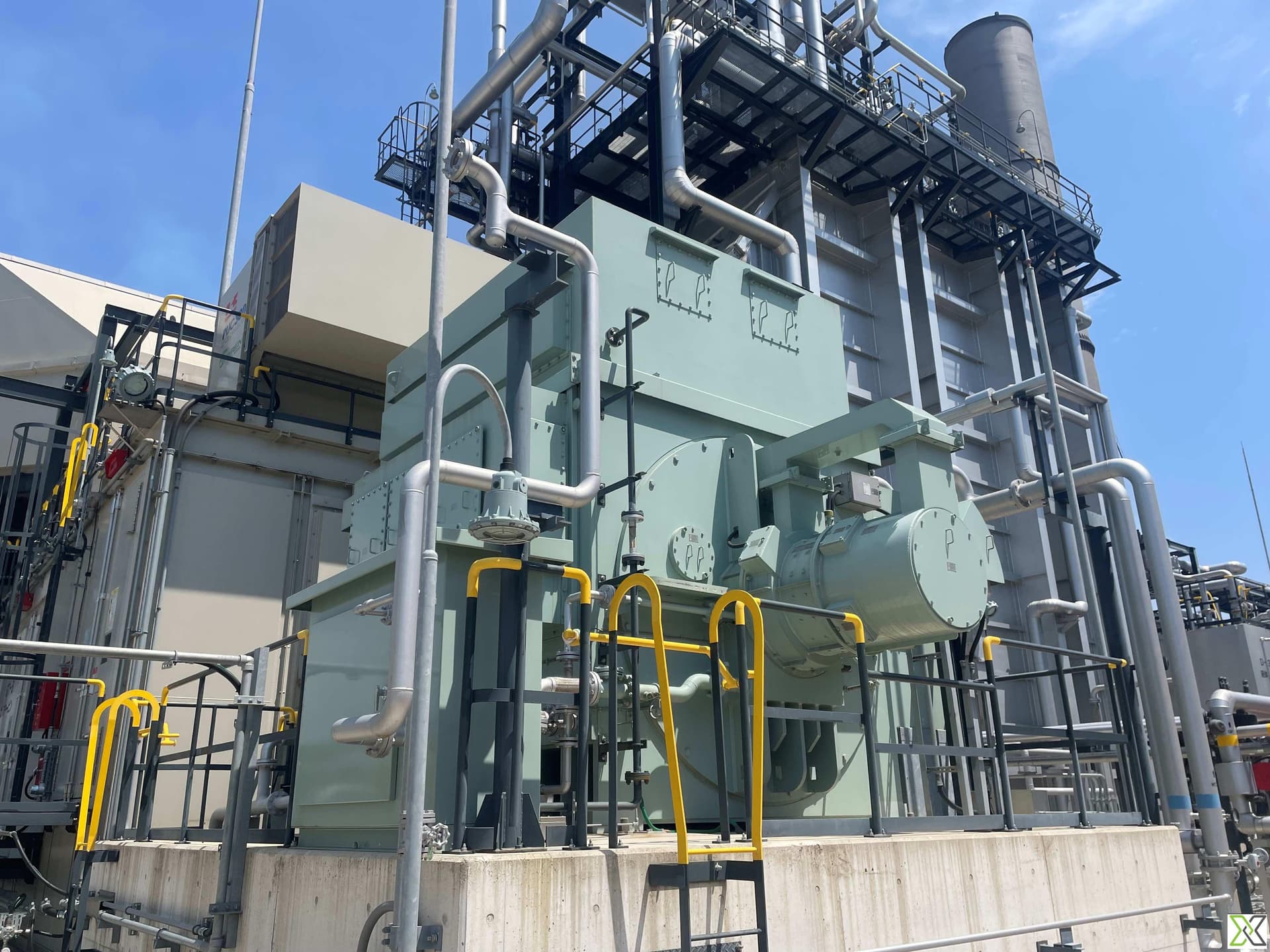

Alternator: Meiden (Manufacturer), 2020 Model, Rated Power: 37,945 kVA, Rated Voltage: 11,000 V, Rated Current: 1,992 A, RPM: 1,800, Weight: 83 tons

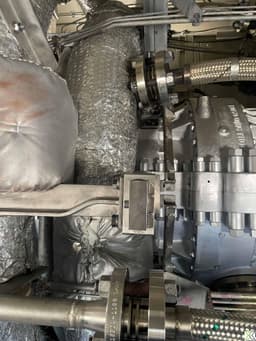

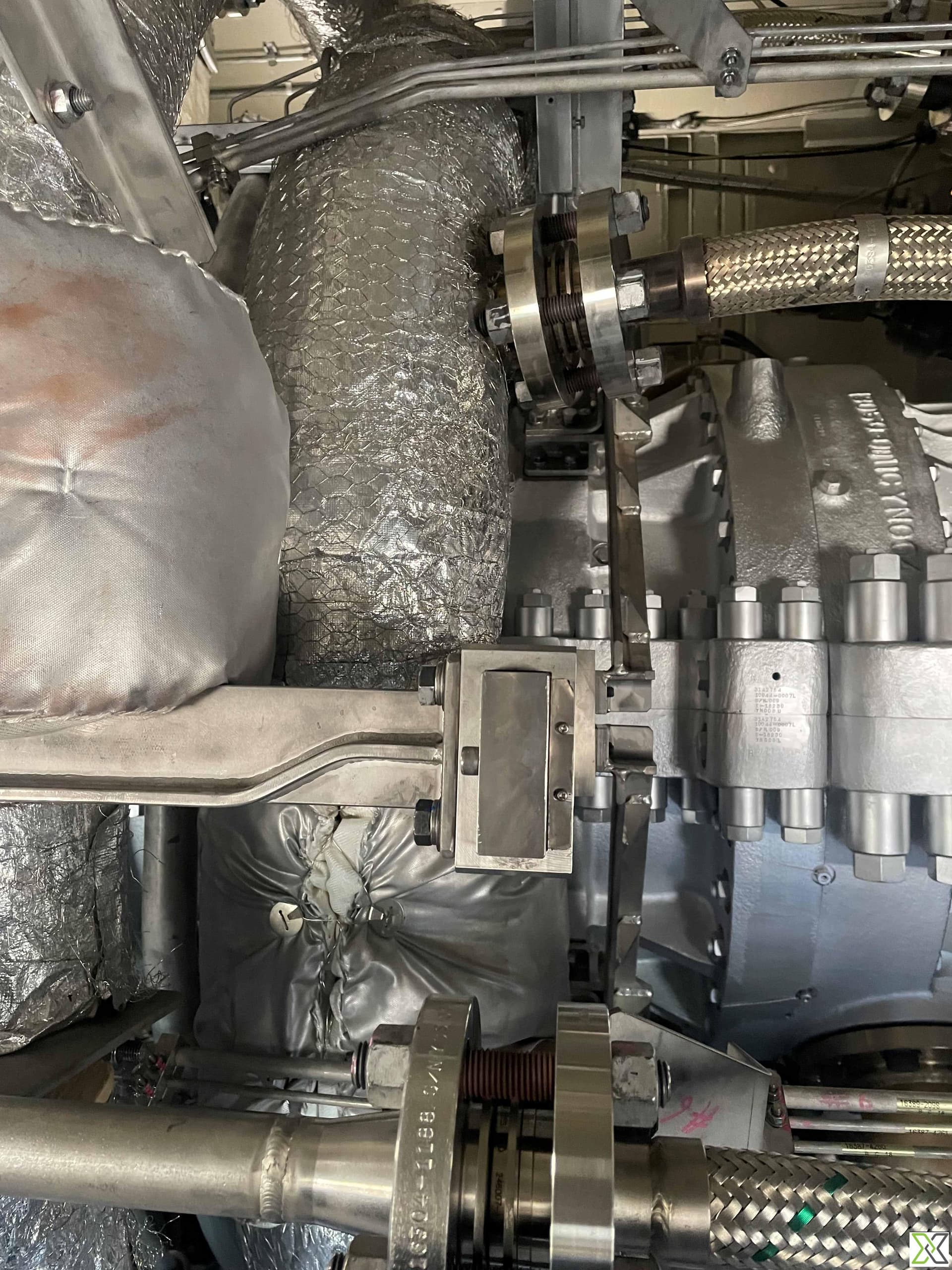

Power Turbine: Features a horizontally split casing with a multi-can combustor for reduced maintenance. Inspection ports are strategically placed for easy access. Cooling water requirements are 160 m³/h.
Steam Absorption Chiller: FCO Kawasaki (Japan), 2020 Model, Cooling Capacity: 2,462 kW, Steam Consumption: 2,695 kg/h, Power: 440V, 60Hz.
Condition: Excellent, fully operational.
Scope of Supply: Complete gas turbine unit, including gearbox, generator, and steam absorption chiller.
If you require any further information on this listing please contact info@reflowx.com
Technical Details
| Year of Manufacturing | 2020 |
|---|---|
| Manufacturer Name | Kawasaki |
| Year of Manufacturing | 2020 |
| Manufacturer Name | Kawasaki |
| Year of Manufacturing | 2020 |
