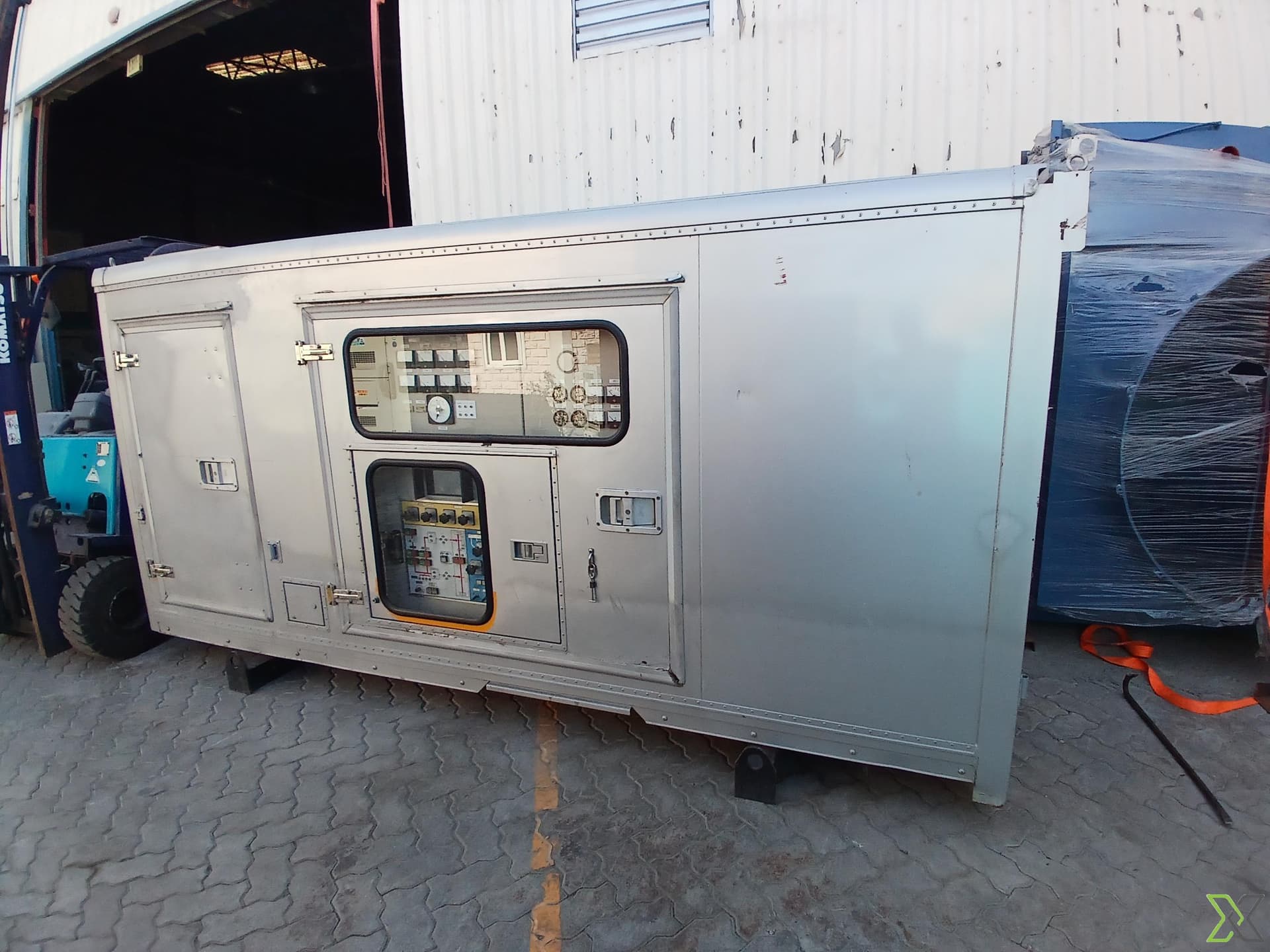

MEIDEN E-AF / E-AAT Brushless AC Generator – 125 kVA, 50 Hz, Air-Cooled Synchronous Generator

ReflowX SKU: REF-611

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

株式会社明電舎 (Meidensha Corporation)
Equipment code

Power Generation

Get Quotation Whatsapp

Short Description

High-performance brushless AC generator set comprising the MEIDEN E-AF (main generator) and E-AAT (excitation generator), rated at 125 kVA, designed for demanding applications in marine, rail, or defense.

Description

MEIDEN E-AF / E-AAT Brushless AC Generator – 125 kVA, 50 Hz, Air-Cooled Synchronous Generator

The MEIDEN E-AF and E-AAT form a robust brushless AC generator system built for reliable operation under heavy-duty conditions. Conforming to JEC-2130-2000 standards, this generator features a synchronous, single-bearing, direct-coupled design with integrated excitation via the E-AAT. Its air-cooled construction, stable voltage regulation through external AVR, and high insulation class ensure dependable performance in industrial, marine, and defense environments. With a rated power output of 125 kVA at 50 Hz and 1500 rpm, it delivers consistent power at 210 V and a rated current of 300 A, making it ideal for prime power integration with engines or turbines.

Specifications:

– Generator Models: MEIDEN E-AF (Main Generator), E-AAT (Excitation Generator)
– Type: Brushless Synchronous Generator
– Standards Compliance: JEC-2130-2000
– Design: Single-bearing, direct-coupled, with excitation generator
– Rated Output: 125 kVA
– Rated Voltage: 210 V
– Frequency: 50 Hz
– Rated Speed: 1500 rpm
– Rated Current: 300 A
– Power Factor: 0.8 (lagging)
– Excitation Voltage: 53 V
– Excitation Current: 24.9 A
– Cooling Method: Air-cooled
– Insulation Class: F
– Weight: 525 kg
– Voltage Regulation: Automatic, via external AVR

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	900 mm
Width	700 mm
Length	1,200 mm
Weight	525 kg
Output Power	125 kVA
Height	900 mm
Width	700 mm
Weight	525 kg
Temperature Range	-20°C to +45°C
Voltage	(E-AF): 210 V
Output Power	125 kVA
Speed	1500 RPM
Direction of Rotation	Clockwise
Design Specification	JEC-2130-2000
Normal Operating Temperature	Up to 45°C
Explosion Protection Gas Group	Not applicable
Explosion Protection Temperature Class	Not applicable
Explosion Protection Zone	Not applicable
Lower Limit Operating Temperature	-20°C
Operation Continuous Intermittent	Continuous Duty
Upper Limit Operating Temperature	45–50°C
Number Of Shafts	single rotating shaft system
Test Medium	Electrical Load Bank
Test Pressure	Not applicable
Turbine Cycle	Not applicable
Insulation Class	Class F
