MTU 16V4000L64F Natural Gas Genset – 2000kW, 11kV, Containerized (2020)

MTU 16V4000L64F Containerized Natural Gas Genset - 2020

ReflowX SKU: REF-1367

Product Details

  • Quantity
    1
  • Availability (Lead Time)
    0-2 Weeks
  • Product Location
    Indonesia
  • Condition
    New
  • OEM
    ReflowX
  • Equipment code
    Power Generation
  • Total Price
  • Per Unit Price
    $ 1,210,000.00
Chat With Seller

Description

 General Information

Manufacturer: MTU (Rolls-Royce Power Systems)

Engine Model: 16V4000L64F

Genset Type: Containerized

Fuel Type: Natural Gas

Year of Manufacture: 2020

Running Hours: Zero (unused)

 Electrical Specifications

Rated Power Output: 2000 kW (2 MW)

Voltage: 11 kV (Medium Voltage)

Frequency: 50 Hz

Phase: 3-Phase (Assumed)

Power Factor: 0.8 lagging (typical for industrial gensets)

 Mechanical Specifications

Engine Configuration: V16

Cooling System: Radiator-based (included)

Exhaust System: Included

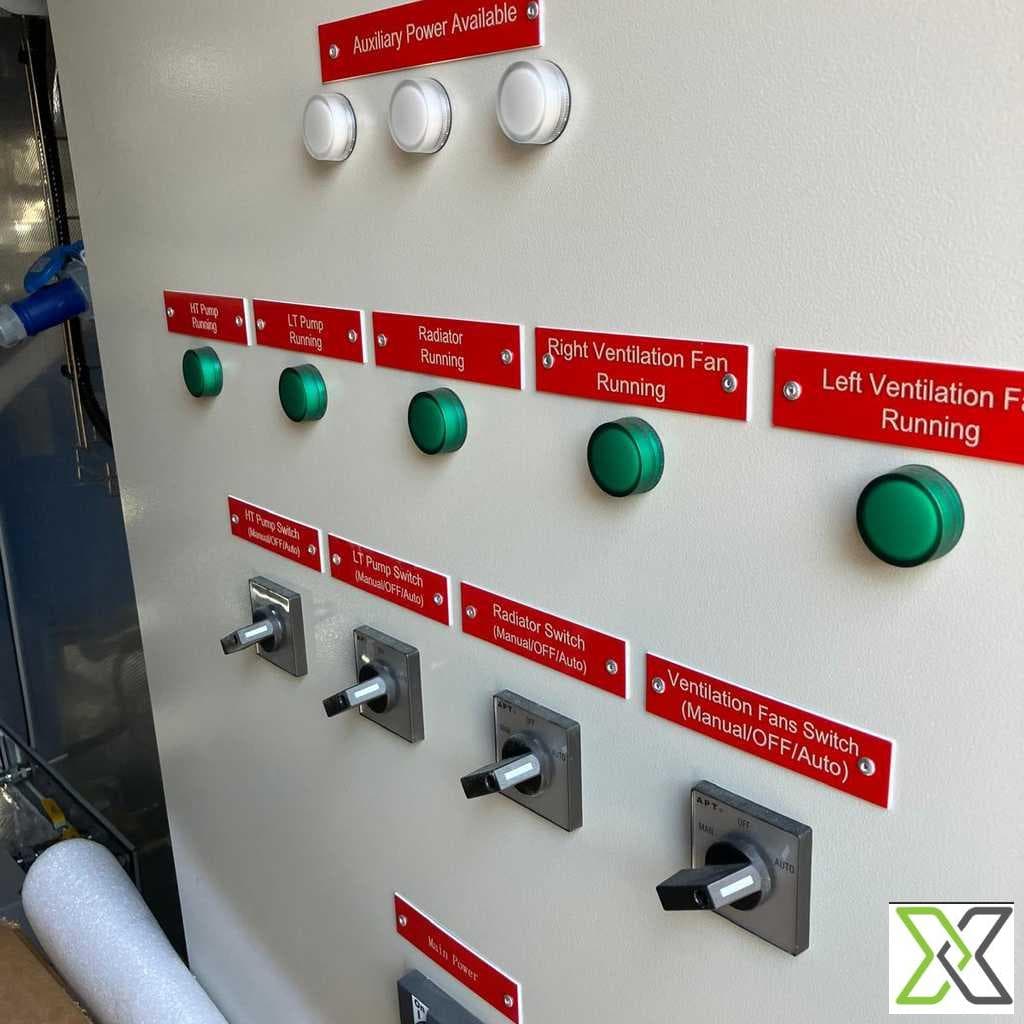

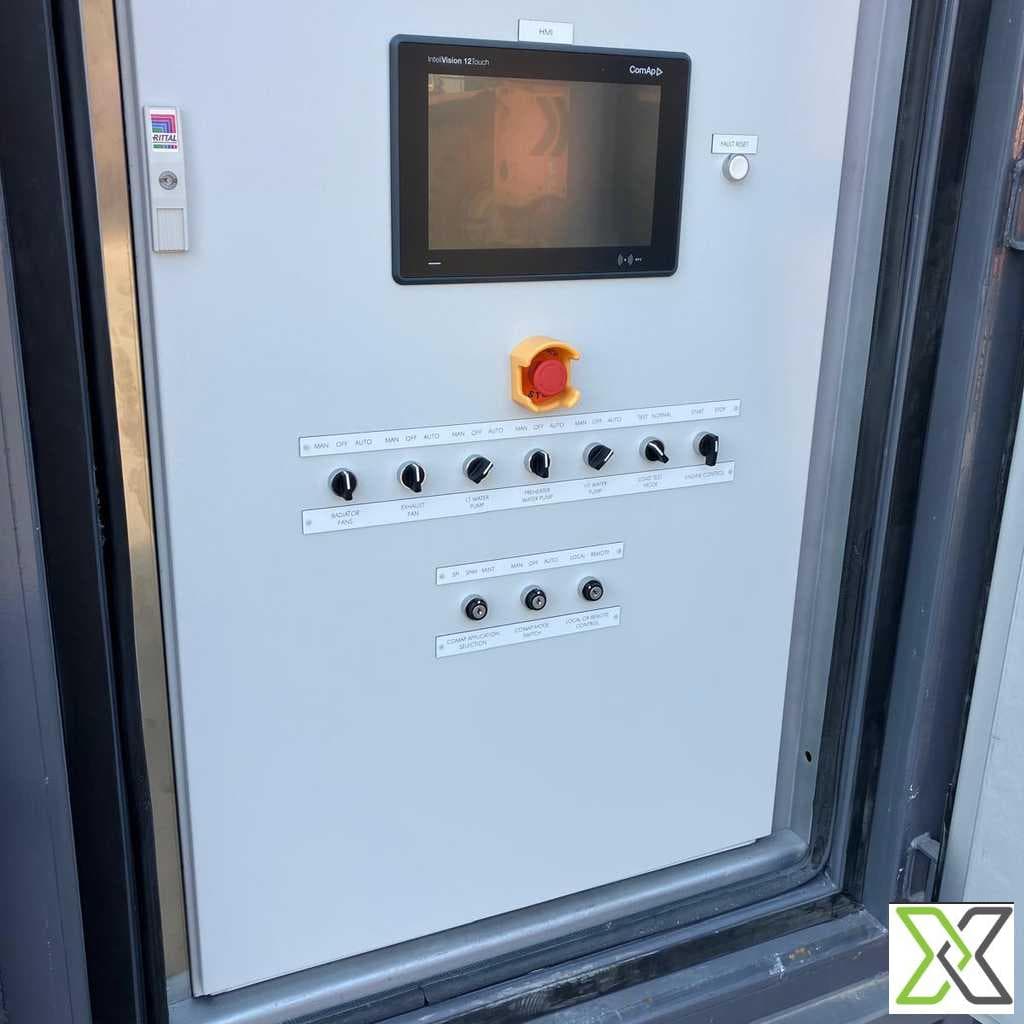

Control System: Included (fully integrated MIP & MCS control panel)

Fuel System: Natural Gas supply line integrated

Mounting: Containerized on Base Frame (skid-mounted)

 Scope of Supply

Engine (MTU 16V4000L64F)

Generator (Alternator)

Base Frame (Heavy Duty Skid)

MIP (Module Interface Panel)

MCS (Modular Control System)

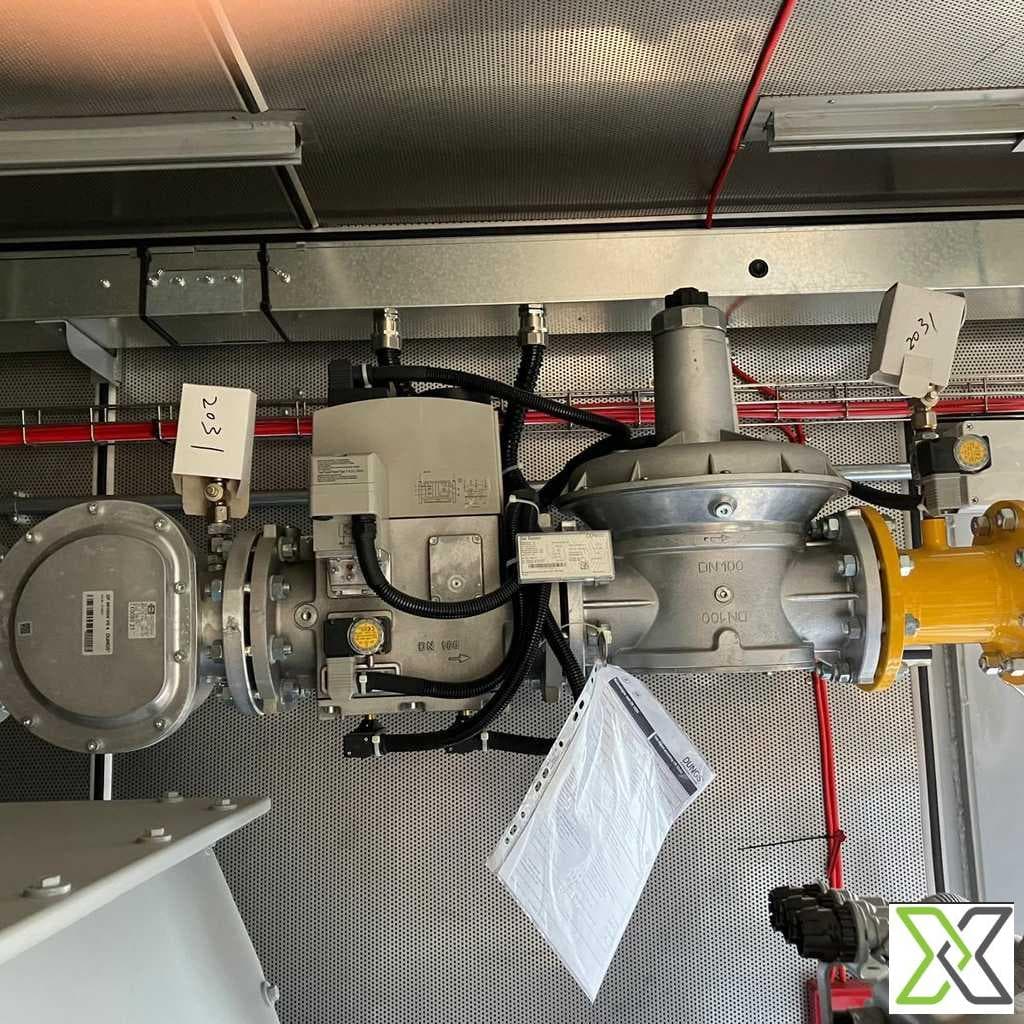

Gas Supply Line

Radiator (External or roof-mounted)

Exhaust System (silencer, piping included)

Container (likely 40-ft ISO standard, soundproofed)

 Environmental & Protection

Enclosure Type: Sound-attenuated container

Ambient Temp Rating: Typically up to 40–50°C (based on radiator design)

Protection Rating: Likely IP23–IP54 (for generator and control panel)

 Standards & Build

Standards: Likely conforms to ISO 8528, IEC 60034, and relevant gas safety standards

Country of Origin: Germany (MTU Engine), Assembled system may vary



For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com



Technical Details

Year of Manufacturing
2020
Year of Manufacturing
2020
Height
2,591 mm
Width
2,438 mm
Length
12,192 mm
Weight
40,000 kg
Usage Hours
Zero (unused)
ISO 15926 Pt 4
7686
PCA RDS Code
RDS820799
CFIHOS ID
CFIHOS-30000534
Fuel type
Natural Gas
Output Power
2,026 kW (2 MW)
Year of Manufacturing
2020
Height
2,591 mm
Width
2,438 mm
Weight
40,000 kg
Usage Hours
Zero (unused)
PCA RDS Code
RDS820799
CFIHOS ID
CFIHOS-30000534
Fuel type
Natural Gas
Output Power
2,026 kW (2 MW)
Speed
1,500 RPM (50 Hz)
Direction of Rotation
Clockwise
Design Specification
V16 engine configuration; containerized Plug & Play system
Normal Operating Temperature
80°C–95°C
Lower Limit Operating Temperature
-10°C
Operation Continuous Intermittent
Continuous
Upper Limit Operating Temperature
+50°C
Number Of Shafts
Single shaft
Test Medium
Natural Gas
Turbine Cycle
Not applicable
