MWM TCG 2020 V16 K – 1500 kW Natural Gas Generator, 2014, 400V | Marelli Alternator

MWM TCG 2020 V16 K Gas Generator – 1500 kW, 50 Hz, Natural Gas - 2014

ReflowX SKU: REF-8458

Product Details

  • Quantity
    2
  • Availability (Lead Time)
    N/A
  • Product Location
    Indonesia
  • Condition
  • OEM
    MWM (Motoren-Werke Mannheim AG)
  • Equipment code
    Power Generation
  • Total Price
  • Per Unit Price
    $ 478,500.00
Whatsapp

Short Description

2014 MWM TCG 2020 V16 K natural gas generator rated at 1500 kW, 400V, 50 Hz. Complete with Marelli alternator and GGCP control panel. In good condition with low hours and immediate availability.

Description

MWM TCG 2020 V16 K Gas Generator – 1500 kW, 50 Hz, Natural Gas - 2014

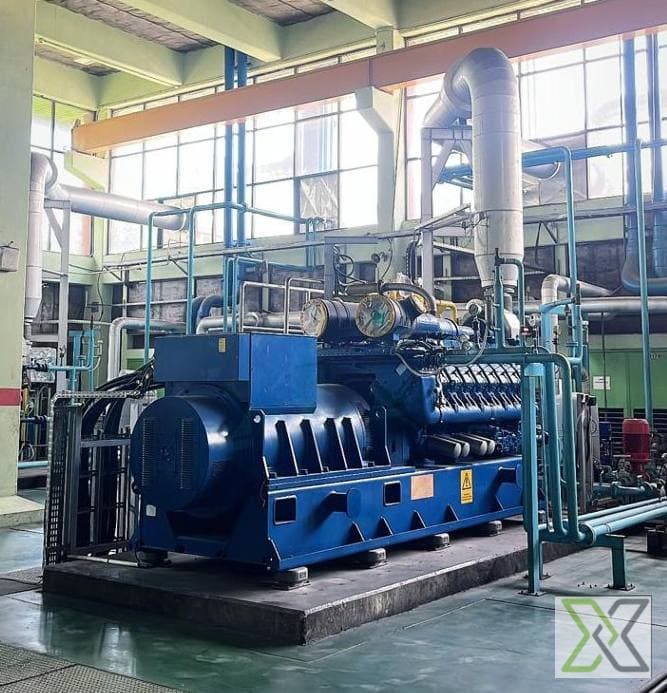

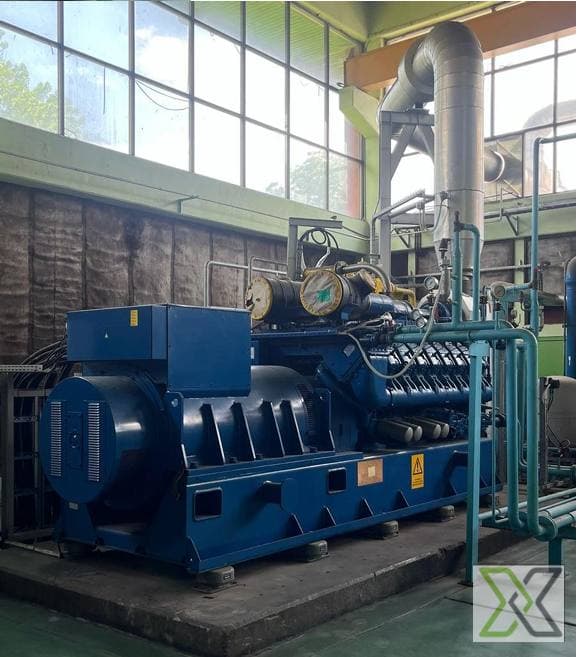

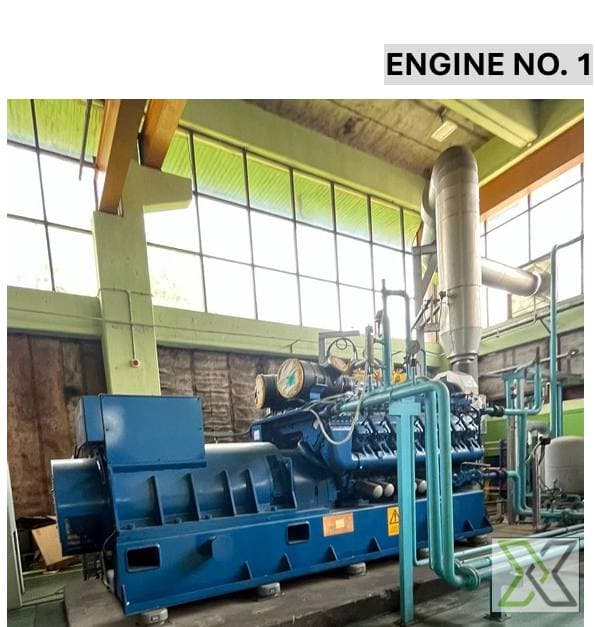

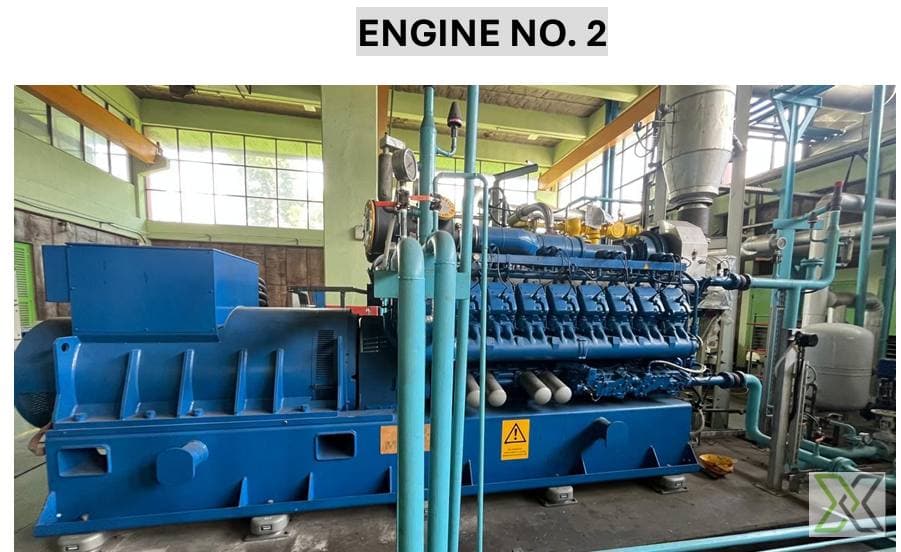

The MWM TCG 2020 V16 K gas generator set, manufactured in 2014 by Caterpillar Energy Solutions GmbH, delivers a reliable continuous output of 1500 kW at 50 Hz and 400 V. This high-efficiency generator is designed for industrial and CHP (Combined Heat & Power) applications using natural gas as the primary fuel.

The system includes a robust Marelli MJ 500 LA4 B2A alternator paired with the gas engine. This alternator is capable of delivering 1875 kVA with a rated voltage of 400 V and insulation class H, designed for heavy-duty continuous service (S1).

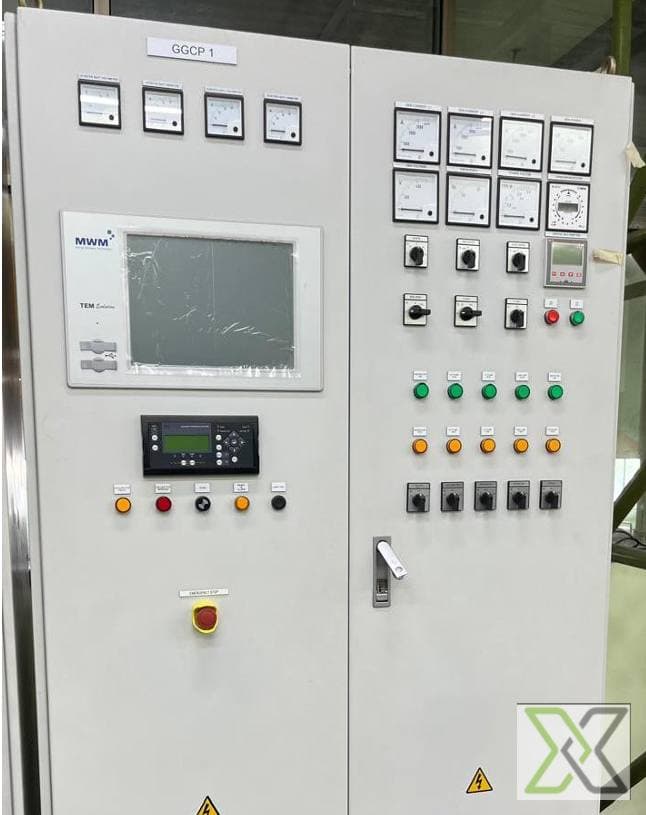

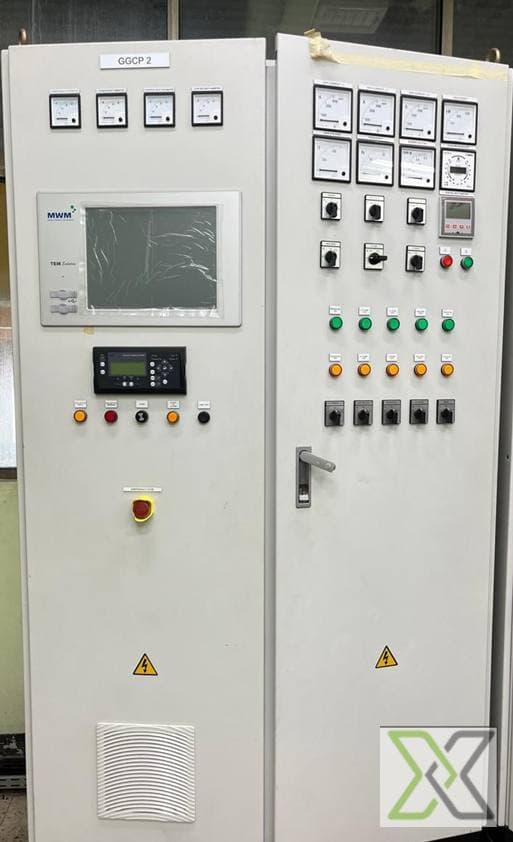

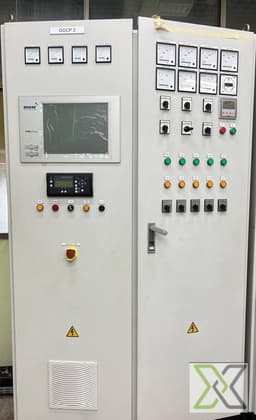

A fully integrated GGCP 1 control panel with MWM TEM control system and analog/digital instrumentation allows for comprehensive operation, monitoring, and synchronization capabilities. The generator is equipped with an advanced governing system (5% droop setting) for stable load sharing.

This set is also rated for ambient temperatures up to 35°C, at altitudes up to 100 m. With a rated current of 2165 A, and a power factor of 1.0, it is ideal for large-scale industrial energy needs or for integration into a grid or CHP plant.

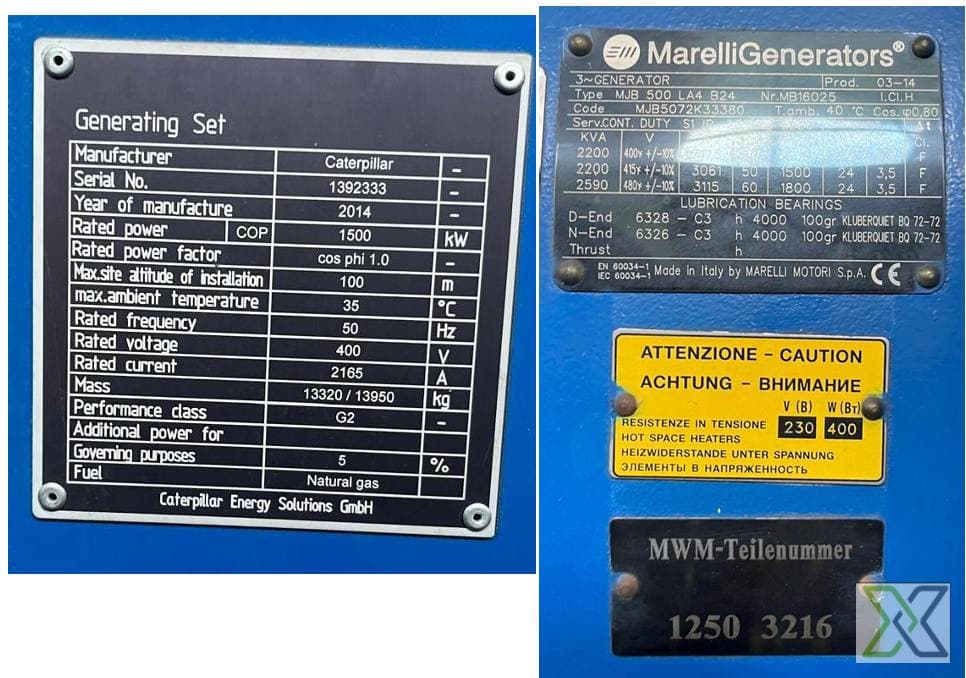

Specifications:
– Model: MWM TCG 2020 V16 K
– Manufacturer: Caterpillar Energy Solutions GmbH
– Year of Manufacture: 2014
– Rated Power: 1500 kW (COP)
– Rated Voltage: 400 V
– Frequency: 50 Hz
– Rated Current: 2165 A
– Rated Power Factor: 1.0 (cos φ)
– Fuel Type: Natural Gas
– Cooling: Water-cooled
– Governing System: 5% droop
– Ambient Temperature Limit: 35°C
– Maximum Installation Altitude: 100 m
– Generator Brand: Marelli
– Generator Model: MJ 500 LA4 B2A
– Generator Rated Power: 1875 kVA
– Generator Duty: S1 – Continuous Duty
– Insulation Class: H
– Excitation: Brushless
– Generator Cooling: Air-cooled
– Control Panel: GGCP 1 with MWM TEM control system
– Mass: 13,320–13,950 kg (approx.)
– Condition: Used, good operational state
– Quantity Available: 1 unit
– Location: Indonesia
– Delivery: Immediate availability

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

General Terms

  • ReflowX and the seller retain the right to evaluate and approve offers.
  • Buyers should verify quantities and conditions upon delivery.
  • After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
  • All parties agree to adhere to ReflowX Terms and Conditions in transactions.
  • Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
